Drive Med-Aire Alternating Pressure Pump and Pad System (14001E / 14002E Series)
/
Drive Med-Aire Alternating Pressure Pump and Pad System
Call 866-218-0902 to speak with a mattress specialist.
Reliable alternating pressure overlay system — designed to help prevent and manage pressure injuries by redistributing pressure using a powered bubble pad and pump.
The Drive Med-Aire Alternating Pressure Pump and Pad System is one of the most widely used pressure relief overlays for home care and clinical settings. It uses approximately 130 air cells that inflate and deflate in a timed cycle to reduce prolonged pressure on any one area of the body.
The quiet 4 LPM pump delivers consistent airflow and operates on a ~5-minute cycle, helping improve circulation and patient comfort during extended bed rest.

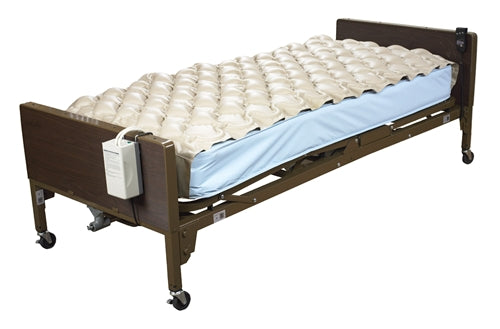

The durable bubble-style pad fits over most standard hospital mattresses and is available in versions with or without end flaps to help secure positioning.
Who Is This Overlay Best For?
- Patients at low to moderate risk for pressure injuries
- Individuals unable to reposition frequently
- Home care, hospice, and recovery settings
- Caregivers looking for a dependable, easy-to-use system
- Users upgrading from foam or gel overlays
Quick Summary
- Alternating pressure pump and pad system
- ~130 bubble air cells for pressure redistribution
- ~5-minute alternating cycle
- Quiet 4 LPM airflow pump
- Fits most standard hospital mattresses
Why Choose the Med-Aire System?
The Med-Aire system is one of the most trusted entry-level alternating pressure overlays because of its simplicity, reliability, and strong clinical track record.
Compared to basic foam or gel overlays, it provides active pressure redistribution by cycling air between cells, helping reduce pressure buildup during extended bed rest.
If you're looking for an alternating pressure mattress overlay system that is affordable, effective, and easy to set up, this is one of the most proven options available.
Key Specifications
- System Type: Alternating pressure overlay system
- Air Cells: ~130 bubble air cells
- Cycle Time: ~5 minutes
- Pump Output: 4 LPM
- Material: Heavy-duty medical-grade vinyl
- Weight Capacity: Up to ~300 lbs
- Options: Fixed or variable pressure, with or without end flaps
- Use: Home care, long-term care, recovery
Compare Alternating Pressure Overlays
View all Mattress Overlays & Pads →
Learn About Pressure Relief Mattress Options
Want to better understand the differences between overlays, alternating pressure systems, and low air loss therapy?
Best Mattress for Bed Sores (2026): Complete Guide to Pressure Relief Systems →
Drive Alternating Pressure Pump and Pad System Specifications
Particulars | Specifications |
Pump | |
Size | 8.8” x 4.2” x 4” |
Weight | 3.1lbs |
Pressure Range | 14002E: 100 mmHg |
Air Output | >4 liter/min |
Power Consumption | 7W |
Power Supply | 110V/60 Hz |
Fuse | 1A |
Cycle Time | 12 min |
Pad | |
Standard & Deluxe | 78"L x 36"W x 2.5"H |
Deluxe with End Flaps | 123" L x 36" W x 2.5" H |
Weight Capacity | 300lb |
System | |
Input Rating | AC 120V 60Hz or 100V 50/60Hz or 230V 50Hz 12W, 1A |
Environment Requirements | Temperature: Operation 50°F~95°F (10~35°C) |
