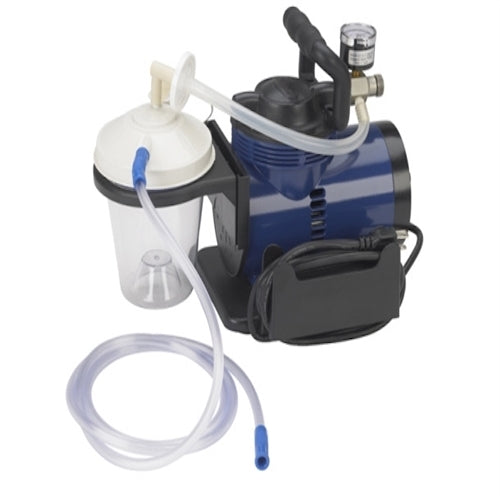

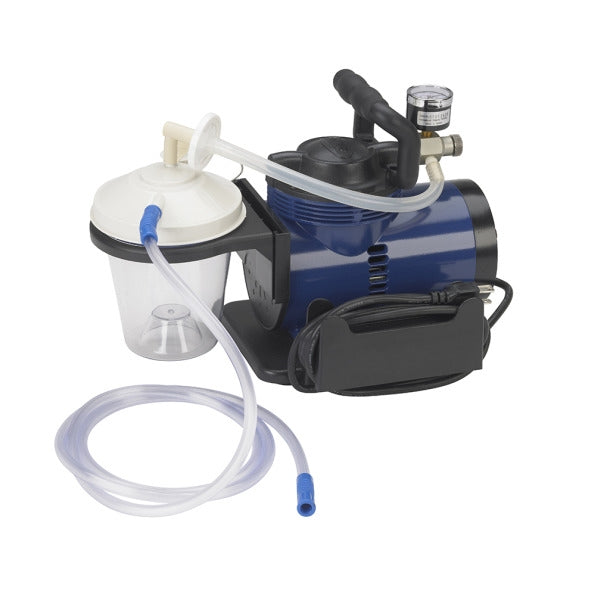

The Drive Medical 18600 Heavy Duty Suction Pump combines institution-grade suction performance with the simplicity and ease of operation needed for everyday homecare use. Delivering vacuum up to 560 mmHg through an oil-less, permanently lubricated pump, the 18600 is built for reliable continuous use in the home, at the bedside, or in a care facility — without the maintenance demands of oil-based pump systems.
At just 4 lbs with an E-Z grip handle and base cord wrap, it is easy to carry and position anywhere in the home. Includes 800 mL collection canister, 6-foot suction tubing, hydrophobic filter, and plastic elbow connector. Anti-bacteria filter design, anti-vibration vacuum gauge, and automatic overflow protection are built in. UL approved. HCPCS E0600. 2-year warranty.
560 mmHg. Oil-Less Pump. Built for Daily Home Use.
Full Specifications
| Model | Drive Medical 18600 |
| Vacuum Pressure | Up to 560 mmHg adjustable |
| Power Source | AC only — 115V 60Hz |
| Weight | 4 lbs |
| Pump Type | Oil-less · permanent lubrication · no maintenance |
| Gauge | Anti-vibration vacuum gauge |
| Canister | 800 mL — included |
| Filter | Anti-bacteria hydrophobic filter |
| Overflow Protection | Automatic float shut-off |
| Includes | 800 mL canister · 6 ft tubing · 10 in canister tubing · hydrophobic filter · elbow connector · manual |
| Approvals | UL approved |
| HCPCS Code | E0600 |
| Warranty | 2-year limited |
| Prescription Required | Yes — required before shipment |
Compare Suction Machines
Need a portable battery-powered unit instead? Our respiratory specialists can help you find the right match. Call 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM.
View →
View →
View →
Frequently Asked Questions
Nationwide Shipping & Local SW Florida Support
Medical Department Store ships suction machines nationwide to residential addresses and healthcare facilities across all 50 states. Local in-person support at all five SW Florida locations — Venice, Sarasota, Port Charlotte, Fort Myers, and Naples.
📞 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM · Find your nearest location →
Specifications for Drive 18600 Heavy Duty Suction Pump Machine
|
Dimensions and Weight
|
|
| Dimensions | (L)14.8" x (W) 6.8" x (H)9.8" |
| Weight | 12.1 lbs |
|
General Specifications
|
|
| Maximum Vacuum | 560 +/- 3% mm Hg |
| Flow Range | >40 LPM |
| Sound level | <58 dBA |
| Filter Pore Size | 0.027 microns |
| Collection Bottle Capacity | 800 ml |
|
Environmental
|
|
| Operating Temperature | 32 - 104 degrees F |
| Operating Humidity | 95% RH |
| Operating Pressure | 10.2 - 15.4 psi |
| Storage Temperature | 14 - 158 degrees F |
| Storage Humidity | 0 - 95% |
| Storage Pressure | 7.2 - 15.4 psi |
|
Electrical Specifications
|
|
| Voltage | AC115V 60Hz |
