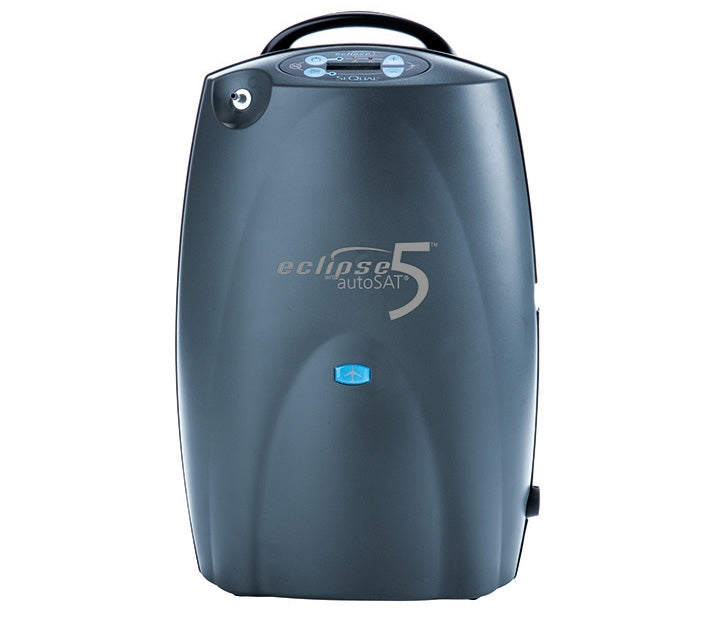

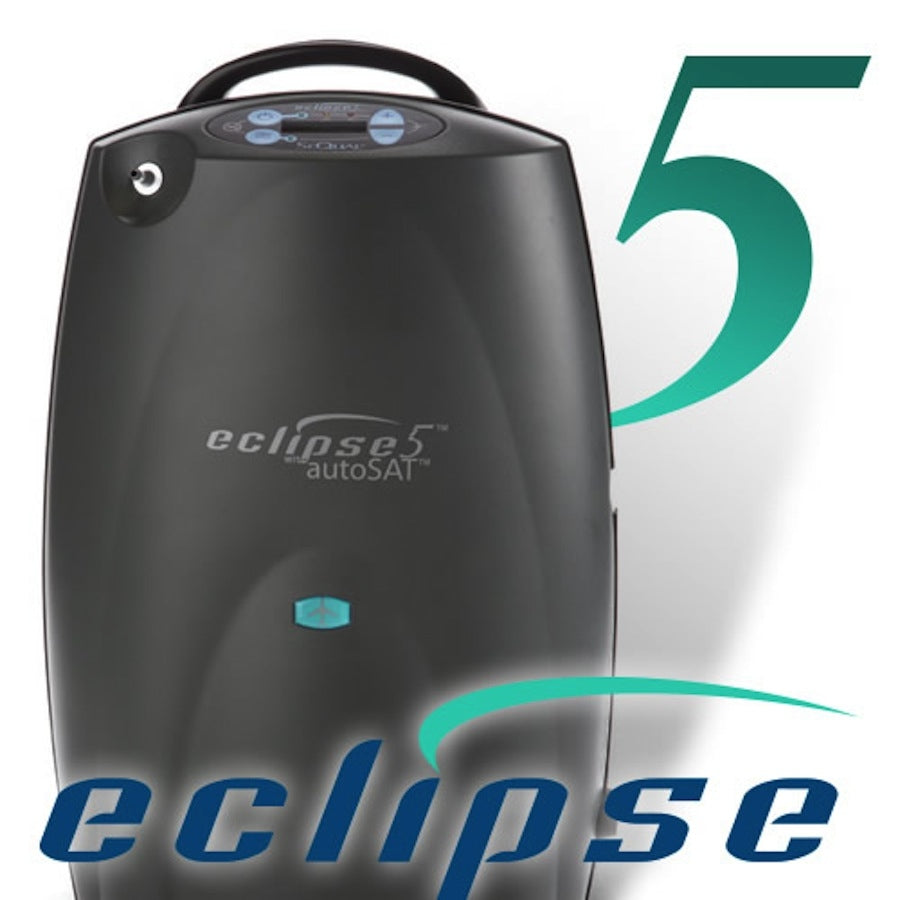

SeQual Eclipse 5 Portable Oxygen Concentrator – Continuous Flow & Pulse Dose Oxygen System
CALL 866-218-0902 for Pricing!
No Risk 10-Day Trial!
Our 10-Day Trial guarantees you picked the right portable for your oxygen needs. If you’re not satisfied with the portable you purchased, we’ll exchange it for the portable that meets your needs. Call 866-218-0902, Today!
Sequel Eclipse 5 - Accessories Included
No Risk 10-Day Trial!
Our 10-Day Trial guarantees you picked the right portable for your oxygen needs. If you’re not satisfied with the portable you purchased, we’ll exchange it for the portable that meets your needs. Call 866-218-0902, Today!
Sequel Eclipse 5 - Accessories Included
- AC and DC Adapters
- Cart
- Accessory Bag
- Cannula and Manual
- Rechargable Battery
Our Price: $3,200.00
/
Description
The CAIRE SeQual Eclipse 5 is the clinical standard for dual-mode portable oxygen concentrators — the unit against which everything else in the category is measured. Six continuous flow settings from 0.5 to 3 LPM. Nine pulse settings. autoSAT technology that adjusts pulse delivery in real time to maintain consistent oxygen levels regardless of how your breathing changes. Works equally as a stationary home concentrator and a rolling portable. CAIRE was the first manufacturer to cover both the device and the sieve beds under the same 3-year warranty — a concrete financial difference over the life of the unit that most competitors do not match. FAA-approved.
Continuous flow 0.5-3 LPM + pulse dose settings 1-9. Prescription required — bring yours when you come in or call before ordering. In-stock units available at all five SW Florida showrooms.
Questions about whether the Eclipse 5 matches your prescription?
Call 866-218-0902
-- Mon-Fri 9AM-5PM · Sat 9AM-3PM · Try it in any SW Florida showroom · 10-Day No-Risk Trial
Before you order — confirm these
The Eclipse 5 weighs 18.4 lbs with battery and cart — it is a rolling unit, not a shoulder-carry portable. It delivers continuous flow up to 3 LPM. If your prescription requires continuous flow and you want a wearable option up to 2 LPM, the Liberty2 may be more appropriate. Call us and we will help you compare. In SW Florida summer heat, plan for 70-75% of published battery runtime. 866-218-0902
Why the Eclipse 5 Is the Clinical Standard
One Device — Home and Portable · Eliminates Tanks Entirely
The Eclipse 5 works as a stationary home concentrator plugged into the wall and as a rolling portable on battery or DC car power. Plug it in at home, wheel it to the car, run on battery for appointments, recharge via DC while you drive. No separate home unit. No tank deliveries. No managing two devices. One setup, one service relationship, one device that does everything.
autoSAT Technology · 3 LPM Continuous · 9 Pulse Settings
autoSAT adjusts pulse bolus delivery in real time to maintain consistent oxygen saturation regardless of how your breathing rate changes — during a walk, a nap, or an anxious moment in a waiting room. Six continuous flow settings from 0.5 to 3 LPM. Nine pulse settings. The broadest prescription coverage of any portable we carry in a single device.
3-Year Sieve Bed Warranty — The One Most Competitors Skip
Every manufacturer warrants the device. Most exclude the sieve beds — the molecular columns that separate oxygen from air — which are among the most expensive components to replace. CAIRE warrants both the Eclipse 5 and its sieve beds for 3 years. Over a 5-year ownership period, that warranty difference is a real and significant cost distinction. It is not a marketing point — it is money.

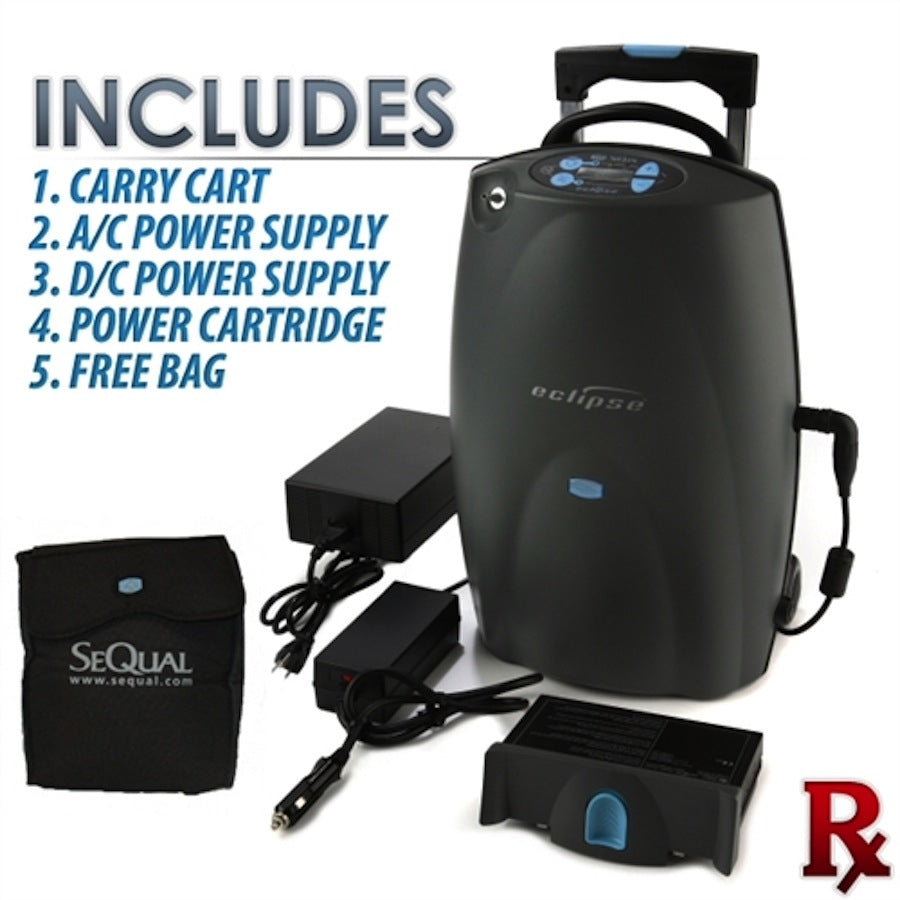

What's Included
- CAIRE SeQual Eclipse 5 Portable Oxygen Concentrator
- Battery
- Rolling cart
- AC power supply
- DC car adapter
- Nasal cannula
- User manual
Full Specifications
| Model | CAIRE SeQual Eclipse 5 |
| Delivery Type | Continuous flow 0.5-3 LPM (6 settings) + Pulse dose 1-9 |
| Weight | 15 lbs (unit) · 18.4 lbs with battery and cart |
| Continuous Flow Range | 0.5-3.0 LPM · 6 settings |
| Pulse Settings | 1-9 |
| Battery Life | 5.2 hrs (pulse setting 2) · 2 hrs (2 LPM continuous) |
| Oxygen Delivery | autoSAT — real-time pulse adjustment to breathing rate |
| Dual Use | Yes — home stationary and rolling portable in one unit |
| DC Recharge While Running | Yes — at 2 LPM or less |
| AC Power | Yes |
| DC Car Power | Yes |
| FAA Approved | Yes |
| Operating Altitude | Up to 13,123 ft |
| Warranty — Unit | 3 years |
| Warranty — Sieve Beds | 3 years — included in standard warranty |
| Warranty — Battery | 1 year |
Complete Portable Oxygen Concentrator Buying Guide
Comparing the Eclipse 5 to the OxLife Independence, Liberty2, or a pulse dose unit? Our 2026 guide covers every concentrator we carry and explains the clinical differences that actually matter. Read the Complete Portable Oxygen Concentrator Guide →
Frequently Asked Questions
Both are dual-mode continuous flow portables delivering up to 3 LPM. The Eclipse 5 is the clinical standard with the longest track record in the category and the 3-year sieve bed warranty that covers the component most competitors exclude. The Independence is Made in the USA, carries a 5-year unit warranty, is CPAP/BiPAP compatible, and has a magnesium alloy frame. Neither is a compromise — they serve the same prescription range with different strengths. Come in and compare them side by side. 866-218-0902.
Yes — this is one of its defining advantages. The Eclipse 5 runs as a stationary home concentrator on AC power and as a rolling portable on battery or DC car power. Many patients eliminate their home concentrators and tank deliveries entirely. One device, plugged in at home, wheeled out for appointments. Our Respiratory Therapists can help you assess whether your prescription and living situation support making it your only device. 866-218-0902.
autoSAT is CAIRE's real-time pulse delivery adjustment technology. It monitors your breathing rate continuously and adjusts the bolus size and timing to maintain consistent oxygen saturation — not just at rest, but during activity, during sleep, and during any change in breathing pattern. Most pulse dose concentrators deliver a fixed bolus based on a set rate. autoSAT adapts. For patients with variable breathing patterns or activity levels, consistent saturation across conditions is a meaningful clinical difference. 866-218-0902.
Sieve beds are the molecular columns inside the concentrator that separate oxygen from air. They are consumable components with a finite lifespan — typically several years of regular use. Replacing them is one of the more significant maintenance costs in the life of a concentrator. Most manufacturers warrant the device but exclude the sieve beds, meaning when replacement is needed, that cost is yours. CAIRE covers both the Eclipse 5 and its sieve beds for 3 years. Over 5+ years of ownership, that difference adds up to real money. 866-218-0902.
Yes. Our 10-Day No-Risk Trial lets you take the Eclipse 5 home and use it in your actual life for 10 days. For larger equipment, call ahead and we can arrange delivery. If it is not the right fit, we will exchange it. No restocking fee, no fine print. 866-218-0902.
Compare Portable Oxygen Concentrators
Continuous Flow · Made in USA · 5-yr Warranty
OxLife Independence
CF 0.5-3 LPM + Pulse 1-6 · 16.7 lbs · CPAP/BiPAP compatible
View →
View →
Wearable Continuous Flow — 2 LPM
OxLife Liberty2
CF 0-2 LPM + Pulse 1-10 · 6.36 lbs · Cellular remote monitoring
View →
View →
Most Prescribed Pulse Dose
Inogen One G5
Settings 1-6 · 4.7 lbs · 13 hrs (double) · 8-yr service life
View →
View →
All Portable Concentrators
Full Portable Lineup
Every concentrator we carry — pulse and continuous flow
Browse all →
Browse all →
Southwest Florida Showrooms & Nationwide Shipping
Five locations where you can hold this unit and speak with a Respiratory Therapist before buying — Venice, Sarasota, Port Charlotte, Fort Myers, and Naples. White-glove delivery available across SW Florida. Nationwide shipping on all models. Our 10-Day No-Risk Trial is available on every concentrator we carry.
📞 866-218-0902 · Mon-Fri 9AM-5PM · Sat 9AM-3PM · Find your nearest location →
Technical Specs
Specifications
Product Specifications
Size (H x W x D):
- 19.3 x 12.3 x 7.1 inches
- 49.0 x 31.2 x 18.0 cm
Weight:
- Eclipse: 15.0 lbs
- Power Cartridge: 3.4 lbs
Continuous Flow Settings
0.5 to 3.0 LPM (0.5 liter increments)
Pulse Dose Settings
Settings 1-6 (0.5 increments) up to 96 mL bolus size;
Settings 7-9 (1.0 increment) up to 192 mL bolus size
Oxygen Concentration
90% ± 3% @ sea level
Oxygen Output Pressure
5.0 psig (34.5 kPa) nominal
Sound Level
- 48 dB(A) at 3.0 LPM continuous flow
- 40 dB(A) at 3.0 Pulse Dose setting
Power Specifications
AC Operation: 100 - 240 VAC, 50 - 60 Hz
DC Operation: 12 V nominal
Power Cartridge: (2) 97.5 W-Hr battery packs, each containing 7.92 g lithium
Power Consumption
- 52 watts at 1.0 LPM continuous flow
- 145 watts at 3.0 LPM continuous flow
- 45 watts at 1.0 pulse flow setting
- 95 watts at 6.0 pulse flow setting
Nominal Power Cartridge Operating Time
- 2.0 hours at 2.0 LPM continuous flow
- 1.3 hours at 3.0 LPM continuous flow
- 5.2 hours at 2.0 pulse flow setting, 12 bpm
- 3.5 hours at 6.0 pulse flow setting, 12 bpm
Power Cartridge Recharge Time
1.8 to 5.0 hrs (dependent on flow setting) to reach 80% capacity from fully discharged
Back-Up Alarm Power
9 Volt battery
Oxygen Concentration Indicator
- Green Light = Normal Operation
- Yellow Light = Warning or Caution
- Red Light Flashing = Abnormal Operation
Operating Temperature
50° F to 104° F (10° C to 40° C)
Humidity
82.4° F (28° C) dew point, non-condensing
Trigger Sensitivity
Adjustable between -0.25 cm H₂O to -0.7 cm H₂O
Altitude Operating Range
0–13,123 feet (0–4000 meters)
