Sequal Eclipse 5 Portable Oxygen Concentrator
No Risk 10-Day Trial!
Our 10-Day Trial guarantees you picked the right portable for your oxygen needs. If you’re not satisfied with the portable you purchased, we’ll exchange it for the portable that meets your needs. Call 866-218-0902, Today!
Sequel Eclipse 5 - Accessories Included
- AC and DC Adapters
- Cart
- Accessory Bag
- Cannula and Manual
- Rechargable Battery
/

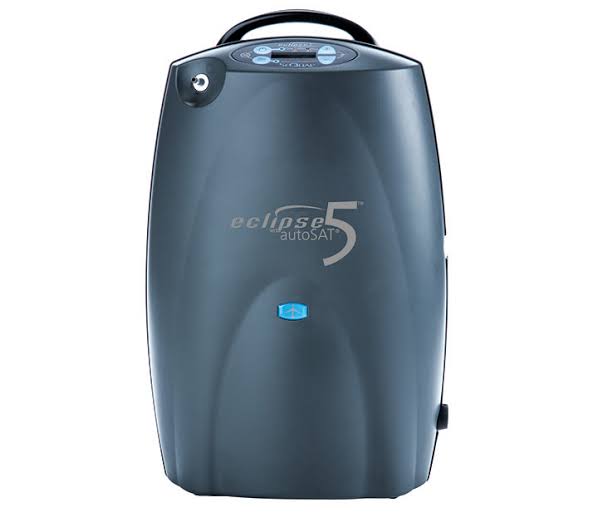

Eclipse 5 Portable Oxygen Concentrator
PRESCRIPTION REQUIRED – A valid physician prescription is required prior to shipment.
The Eclipse 5 Portable Oxygen Concentrator by SeQual (CAIRE) is a high-capacity oxygen system designed for patients who require prescribed supplemental oxygen therapy at home, during travel, and while active. Offering both continuous flow and pulse dose delivery, the Eclipse 5 provides a single solution for stationary, ambulatory, and travel oxygen needs.
Clinical flexibility designed for comprehensive oxygen therapy.
Oxygen Delivery & Clinical Capability
- Continuous Flow: 0.5 – 3.0 LPM
- Pulse Dose: Adjustable pulse settings
- Compatible with many CPAP and BiPAP devices (continuous mode only)
- autoSAT® Technology maintains consistent FiO2 levels
- Automatically adjusts output as respiratory rate increases
- Breath-detection backup safety feature
The Eclipse 5 is ideal for patients who require higher continuous flow levels than most wearable concentrators can provide, making it suitable for rest, sleep, exertion, and altitude conditions under physician guidance.
autoSAT® Technology Explained
autoSAT® technology servo-controls oxygen delivery to maintain a consistent oxygen concentration (FiO2). As breathing rate increases, the device automatically increases output to preserve the prescribed pulse volume, supporting uninterrupted oxygen therapy during activity.
Power & Travel Flexibility
- Operates on AC power, DC vehicle power, or rechargeable battery
- Can charge from DC sources (car, boat, RV) while delivering oxygen
- Rechargeable power cartridge extends travel time
- Optional desktop charger available for additional batteries
- FAA approved for commercial airline travel
The Eclipse 5 eliminates the need for oxygen cylinder deliveries while supporting extended mobility for active oxygen users.
What’s Included
- Eclipse 5 Concentrator
- Rechargeable Battery
- AC Adapter
- DC Adapter
- Cart
- Accessory Bag
- Cannula
- User Manual
Why Choose the Eclipse 5?
- One device for home, travel, and ambulatory oxygen needs
- Continuous and pulse modes in a single system
- Lower maintenance intervals
- Upgradeable platform as technology evolves
- Designed for long-term oxygen therapy support
Medical Compliance & Safety Information
This device is intended for patients who have been prescribed supplemental oxygen by a licensed healthcare provider. Oxygen flow settings must be configured strictly according to physician instructions.
Federal law restricts this device to sale by or on the order of a physician. This equipment is not intended to diagnose, treat, cure, or prevent any disease beyond delivering prescribed oxygen therapy.
Patients should consult their healthcare provider before adjusting oxygen delivery settings.
Trusted Nationwide Medical Equipment Provider
Medical Department Store is an established provider of respiratory and home medical equipment serving patients nationwide. Our oxygen specialists assist customers in selecting equipment that aligns with their prescription and physician guidance.
We operate retail locations in Sarasota, Naples, Port Charlotte, Fort Myers, and Venice, Florida, while offering fast nationwide shipping.
Speak With an Oxygen Specialist: 866-218-0902
Product Specifications
Size (H x W x D):
- 19.3 x 12.3 x 7.1 inches
- 49.0 x 31.2 x 18.0 cm
Weight:
- Eclipse: 15.0 lbs
- Power Cartridge: 3.4 lbs
Continuous Flow Settings
0.5 to 3.0 LPM (0.5 liter increments)
Pulse Dose Settings
Settings 1-6 (0.5 increments) up to 96 mL bolus size;
Settings 7-9 (1.0 increment) up to 192 mL bolus size
Oxygen Concentration
90% ± 3% @ sea level
Oxygen Output Pressure
5.0 psig (34.5 kPa) nominal
Sound Level
- 48 dB(A) at 3.0 LPM continuous flow
- 40 dB(A) at 3.0 Pulse Dose setting
Power Specifications
AC Operation: 100 - 240 VAC, 50 - 60 Hz
DC Operation: 12 V nominal
Power Cartridge: (2) 97.5 W-Hr battery packs, each containing 7.92 g lithium
Power Consumption
- 52 watts at 1.0 LPM continuous flow
- 145 watts at 3.0 LPM continuous flow
- 45 watts at 1.0 pulse flow setting
- 95 watts at 6.0 pulse flow setting
Nominal Power Cartridge Operating Time
- 2.0 hours at 2.0 LPM continuous flow
- 1.3 hours at 3.0 LPM continuous flow
- 5.2 hours at 2.0 pulse flow setting, 12 bpm
- 3.5 hours at 6.0 pulse flow setting, 12 bpm
Power Cartridge Recharge Time
1.8 to 5.0 hrs (dependent on flow setting) to reach 80% capacity from fully discharged
Back-Up Alarm Power
9 Volt battery
Oxygen Concentration Indicator
- Green Light = Normal Operation
- Yellow Light = Warning or Caution
- Red Light Flashing = Abnormal Operation
Operating Temperature
50° F to 104° F (10° C to 40° C)
Humidity
82.4° F (28° C) dew point, non-condensing
Trigger Sensitivity
Adjustable between -0.25 cm H₂O to -0.7 cm H₂O
Altitude Operating Range
0–13,123 feet (0–4000 meters)
