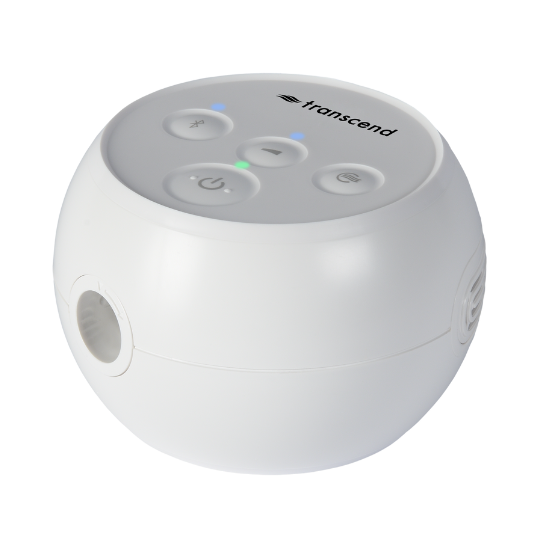

Transcend Micro™ Auto CPAP
/
The Transcend Micro 510 is the world's smallest auto-adjusting travel CPAP machine — 0.48 lb and smaller than a soda can, without sacrificing therapy quality or comfort features. Auto-adjusting APAP pressure, GentleRise ramp, and exhalation relief deliver the same therapeutic performance as full-size machines. AirMist waterless HME humidification, WhisperSoft muffler, hard shell travel case, 6ft TransFlex hose, and dual filters are all included standard. Bluetooth MySleepDash app provides detailed therapy data and in-app comfort adjustments. TSA/FAA compliant. Made and assembled in the USA. 3-year warranty — the longest in portable CPAP. Available in 4 colors. Prescription required.
Vendor Part Number: 507001 · HCPCS: E0601 · Therapy Mode: APAP (Auto-adjusting) · Noise Level: 25–29 dB with WhisperSoft Muffler
What Defines This Machine
Full Specifications
| Vendor Part Number | 507001 |
| Therapy Mode | Auto CPAP (APAP) — auto-adjusting pressure, breath-by-breath |
| Fixed CPAP Mode | Yes — switchable between APAP and fixed CPAP |

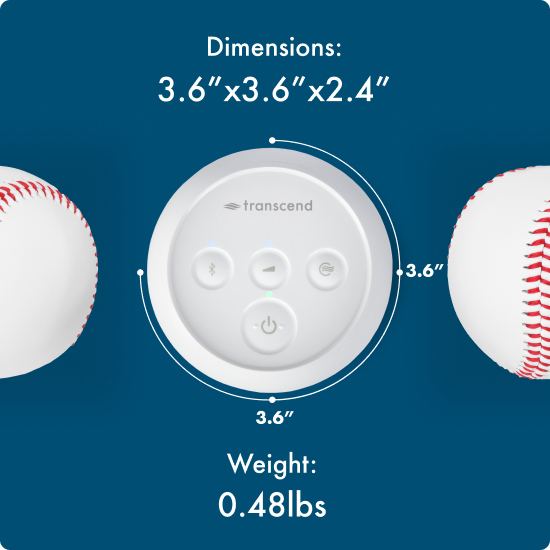

| Machine Weight | 0.48 lbs (without hose or accessories) |
| Noise Level | 25–29 dB with WhisperSoft Muffler installed |
| Humidification | AirMist HME waterless humidifier — included starter kit (no built-in water chamber) |
| HME Cartridge Replacement | Every 7 days of use |
| Connectivity | Bluetooth — MySleepDash app (iOS and Android); USB-C data port (data transfer only, not charging) |
| Power Input | AC power supply included; optional PowerAway Battery for off-grid use (sold separately) |
| Travel Compliance | TSA and FAA compliant — carry-on approved, cleared for in-flight use |
| Available Colors | Petal Pink · Graphite Gray · Midnight Blue · Birch White |
| Filters Included | Woven filter (pre-installed) + hypoallergenic filter (both included) |
| Filter Replacement | Every 1–3 months |
| Tubing Included | TransFlex 6ft hose — redesigned, more flexible than previous generation |
| Tubing Replacement | Every 3–6 months |
| Mask Compatibility | Most standard CPAP masks with 22mm connection — no adapter required. Not compatible with AirMini setup pack masks |
| Ramp Feature | GentleRise — starts at lower pressure, builds gradually to prescribed level |
| Exhalation Relief | Yes — reduces pressure during exhale for added comfort |
| Auto On/Off | SleepStart — starts when you breathe in, stops when mask is removed |
| Drying Mode | Yes — one-button moisture clearance after therapy |
| Advanced Settings | Transcend MiniCPAP Software (Windows PC only, free download) or MySleepDash app |
| Origin | Designed and assembled in the USA |
| Warranty | 3 years — longest in portable CPAP |
| HCPCS Code | E0601 |
| Prescription Required | Yes — FDA-regulated Class II medical device |
| FSA/HSA Eligible | Yes |

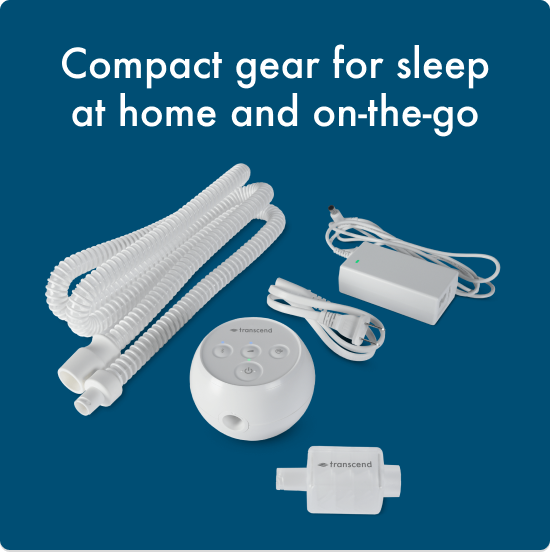

What's Included
| Transcend Micro 510 Machine | In your choice of color |
| TransFlex Hose | 6ft redesigned flexible hose — 22mm standard connection |
| WhisperSoft Muffler | Connects between machine and hose — reduces airflow noise to 25–29 dB |
| Hard Shell Travel Case | Black zippered hard shell case for the machine and accessories |
| AirMist HME Plastic Housing | Reusable adapter — replace every 3–6 months |
| AirMist HME Cartridge (x1) | Starter cartridge — replace every 7 days of use |
| Woven Filter | Pre-installed — replace every 1–3 months |
| Hypoallergenic Filter | Included — for dust-sensitive users; replace every 1–3 months |
| AC Power Supply | For standard wall outlet use; international adapters not included in base model |
| User Manual | Included |
AirMist Waterless Humidification — How It Works
The Mechanism
AirMist uses Heat Moisture Exchange (HME) technology — the same principle used in medical ventilators for decades. When you exhale through the mask, the warm, moisture-rich air passes through the AirMist cartridge, which captures that moisture. When you inhale, the incoming therapy air passes through the same cartridge and picks up that stored moisture before reaching your airway. No water tank. No heated tubing. No filling required before bed.
Where It Works Best
AirMist HME works best with masks that connect to tubing directly in front of the face — such as the AirFit F30, AirFit F20, AirFit F10, or ComfortGelBlue style masks. It does not work effectively with masks that route tubing above the head (AirFit P30i, DreamWear series, AirTouch F30i) or masks with a short flexible tube at the front (AirFit P10, Nova Micro, AirFit F40). If you use one of these mask types, waterless humidification will not deliver meaningful benefit.
Cartridge Replacement Schedule
Each AirMist cartridge must be replaced 7 days after opening regardless of nightly use frequency. For longer trips, pack one cartridge per week of travel. The plastic housing that holds the cartridge is reusable and should be cleaned each time a new cartridge is inserted.

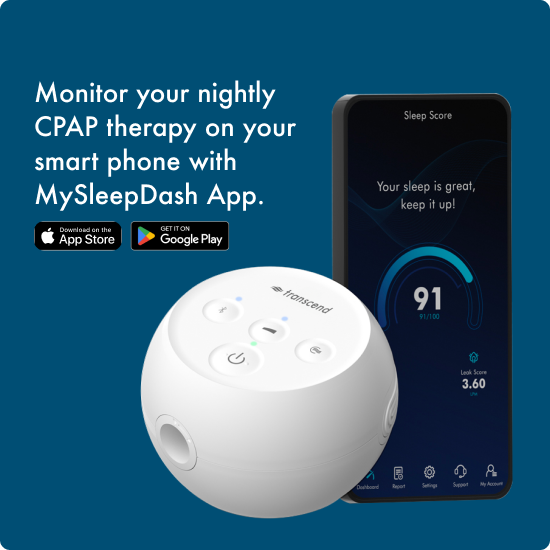

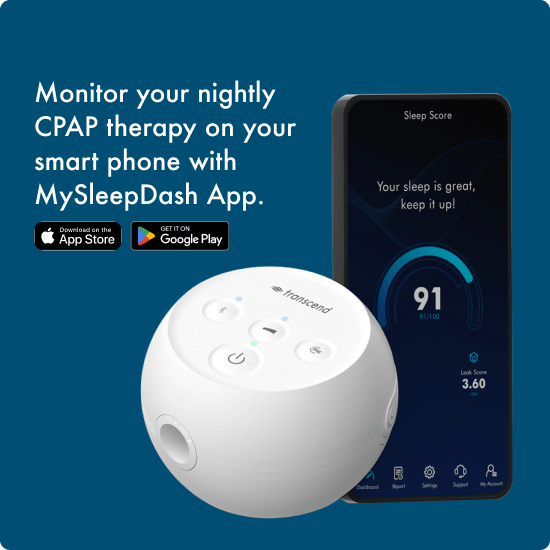

MySleepDash App — Therapy Data & In-App Adjustments
The free MySleepDash app (available for iOS and Android) connects to the Micro 510 via Bluetooth after each therapy session. Bluetooth is shipped disabled from the factory — enable it during initial setup to activate tracking. MySleepDash provides:
- Nightly usage data — hours of therapy per night, mask-on time, session start and stop times
- AHI tracking — apnea-hypopnea index per night with trend charting
- Pressure data — median, 95th percentile, and peak pressure statistics
- Shareable reports — export and send therapy reports directly to your physician or sleep clinic from the app
- In-app comfort adjustments — ramp time, ramp start pressure, exhalation relief intensity — without needing a Windows PC or advanced software
Note: Advanced therapy parameter changes (pressure range limits, clinical settings) require the free Transcend MiniCPAP Software for Windows PC. MySleepDash handles comfort adjustments; MiniCPAP Software handles clinical configuration.
Dual Filter System — Standard & Hypoallergenic
The Micro 510 includes two filter types for the same machine, giving users the option to choose based on their environment and sensitivity:
- Woven Filter (pre-installed) — standard filter that captures typical airborne particles; appropriate for most users and environments
- Hypoallergenic Filter (included) — finer filtration that captures smaller allergens including dust mites, pollen, and fine particulates; recommended for allergy-prone travelers, dusty environments, or hotel rooms where air quality is uncertain
Both filters are specific to the Micro 510 and are not compatible with the original Transcend Micro 310. Replace either filter every 1–3 months depending on environmental conditions.
Frequently Asked Questions
Yes — the Transcend Micro 510 is an FDA-regulated CPAP machine (HCPCS E0601) and requires a valid prescription from a licensed physician before it can be shipped. You can upload your prescription during checkout. If you need a new or renewed prescription, speak with your sleep physician or consider a home sleep test to obtain a diagnosis and prescription.

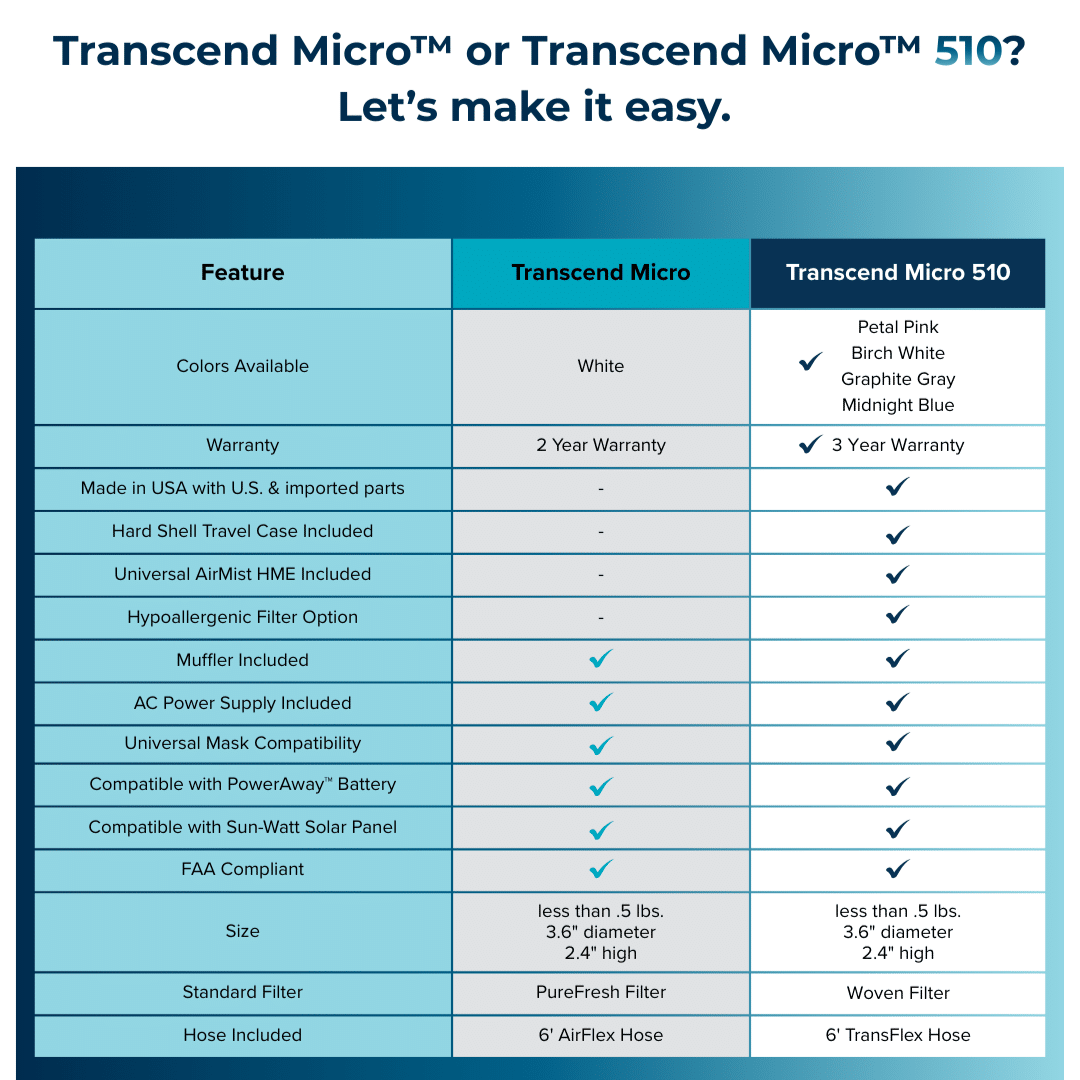

The Micro 510 (2026) improves on the Micro 310 with: three new color options (Petal Pink, Midnight Blue, Birch White in addition to Graphite Gray); a redesigned more-flexible TransFlex hose; AirMist HME waterless humidification included as standard (previously required separate purchase); a new dual-filter system with both a standard woven filter and a hypoallergenic filter included; an included hard shell travel case; and an extended 3-year warranty (up from 2 years). The two machines use different filters — they are not interchangeable. If you have a 310, the 510's filters will not fit your machine.
The Micro 510 does not have a built-in heated humidifier with a water chamber. It is compatible with the included AirMist HME waterless humidification cartridge, which captures exhaled moisture and recycles it into the incoming therapy air. Waterless humidification is not as effective as heated humidification in very dry or cold climates, but is significantly more convenient for travel since there is no water to carry, fill, or clean. Note that AirMist does not work with overhead-tube masks (P30i, DreamWear) or short front-tube masks (P10, F40).
Yes — the Transcend Micro 510 is TSA and FAA compliant and cleared for carry-on and in-flight use. It does not need to be removed from your bag for TSA screening (though you may be asked to remove it from its case for X-ray). For in-flight use, check with your airline regarding their specific CPAP in-flight policy, as some require advance notification. The machine runs on AC power out of the box; the optional PowerAway Battery provides off-grid operation for flights without power outlets.
The Micro 510 works with most standard CPAP masks that use a 22mm tubing connection — the universal standard for full-face, nasal, and most nasal pillow masks. No adapter is required. It is not compatible with masks designed specifically for the ResMed AirMini (AirMini setup pack masks using the AirMini HumidX). If you use an overhead-tube mask like the AirFit P30i or DreamWear, the machine will work for therapy but the AirMist waterless humidification will not be effective with those mask styles.
Basic comfort settings — ramp time, ramp start pressure, and exhalation relief intensity — can be adjusted directly through the MySleepDash app on your phone after enabling Bluetooth during initial setup. Advanced clinical settings (pressure range limits, therapy mode changes) require the free Transcend MiniCPAP Software, which is available for Windows PCs only. The MySleepDash app handles the adjustments most users need without requiring a computer.
Each AirMist HME cartridge must be replaced every 7 days after opening, regardless of how many nights it has been used. If you open a cartridge on Monday, replace it the following Monday. For travel, pack one cartridge per week of your trip. The AirMist plastic housing (the reusable adapter) should be cleaned each time you insert a new cartridge and replaced every 3–6 months.
Yes — CPAP machines are eligible for FSA (Flexible Spending Account) and HSA (Health Savings Account) reimbursement. Save your receipt and submit to your benefits administrator for reimbursement per your plan's guidelines.
Replacement Supply Schedule
| Supply Item | Replacement Frequency | Notes |
| AirMist HME Cartridge | Every 7 days after opening | Replace regardless of nights used; pack one per week of travel |
| AirMist HME Plastic Housing | Every 3–6 months | Clean each time cartridge is replaced |
| Air Filters (woven or hypoallergenic) | Every 1–3 months | Replace sooner in dusty environments; 510 filters not compatible with Micro 310 |
| TransFlex Tubing | Every 3–6 months | Check for cracks or stiffening; clean weekly |
Compare Travel CPAP Options
View AirMini →
View AirSense 11 →
Why Buy From Medical Department Store?
- Authorized Transcend dealer — genuine products with full manufacturer warranty support
- Full range of CPAP machines, masks, accessories, and replacement supplies
- FSA and HSA eligible — submit your receipt to your benefits provider for reimbursement
- Prescription upload available during or after checkout
Have Questions? We'll Help You Choose.
The Transcend Micro 510 fills a specific need — the smallest and lightest auto-adjusting travel CPAP available, with the most complete out-of-box accessory package in the category. If you're deciding between travel and home CPAP, comparing the Micro 510 to the AirMini, or have questions about mask compatibility with AirMist humidification, contact us before ordering.
*Prescription required before shipment — FDA-regulated medical device HCPCS E0601. AirMist waterless humidification not compatible with all mask types — see compatibility details above. AirMist cartridges must be replaced every 7 days after opening. 510 filters are not compatible with the original Transcend Micro 310. Bluetooth ships disabled — enable during initial setup. PowerAway Battery for off-grid use sold separately. FSA/HSA eligibility subject to individual plan terms.
