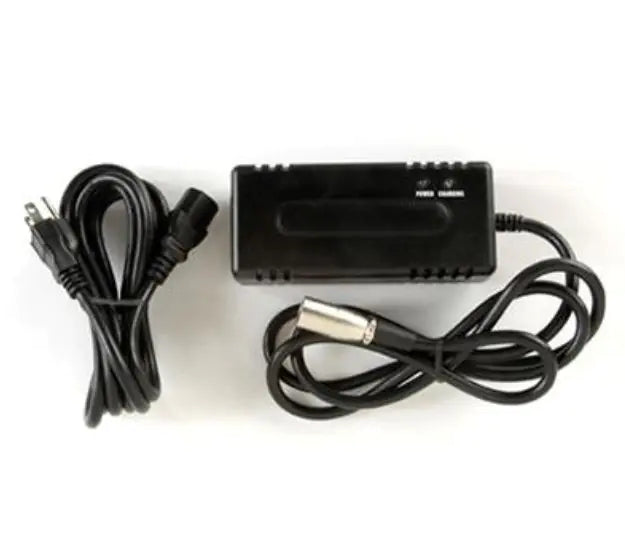

Pride 5-Amp Offboard Charger
/
The Pride Mobility ELE1803474 is the OEM 5-amp off-board battery charger for a range of Pride Mobility Jazzy power chairs and Revo/Maxima mobility scooters. When a Pride Mobility charger fails, is lost, or is damaged — this is the direct OEM replacement. It plugs into a standard wall outlet and connects to the charging port on the scooter or power chair. It can also charge the battery pack when removed from the unit. Replaces the discontinued model ELEASMB6293.
Not sure if this charger fits your Pride Mobility model? Call us with your chair or scooter model number: 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM
Compatible Pride Mobility Models
The ELE1803474 is confirmed compatible with the following Pride Mobility chairs and scooters. Verify your model number against this list before ordering.
| Model Name | Model Code | Type | Confirmed |
|---|---|---|---|
| Jazzy Elite HD | 2HD-C | Power Chair — Heavy Duty | ✓ |
| Jazzy Elite 14 | 14-C | Power Chair — Full Size | ✓ |
| Jazzy Select Elite | 2S-C | Power Chair — Full Size | ✓ |
| Jazzy Select 6 | Select 6 | Power Chair — Full Size | ✓ |
| Jazzy 614 HD | 614 HD | Power Chair — Heavy Duty | ✓ |
| Revo 2.0 3-Wheel | S66 | Mobility Scooter | ✓ |
| Revo 2.0 4-Wheel | S67 | Mobility Scooter | ✓ |
| Maxima 3-Wheel | SC900 | Mobility Scooter — Heavy Duty | ✓ |
| Maxima 4-Wheel | SC940 | Mobility Scooter — Heavy Duty | ✓ |
| Celebrity X Series | — | Scooter — Discontinued | ✓ |
Replaces Model ELEASMB6293
The ELE1803474 is the current production replacement for the discontinued Pride Mobility charger model ELEASMB6293. If your original charger is labeled ELEASMB6293, the ELE1803474 is the direct successor and direct drop-in replacement. Same amp rating, same compatible models, updated part number.
How to Use — Two Charging Methods
- Make sure the power chair or scooter is powered off.
- Plug the charger cord into the charging port on the side of the unit.
- Plug the power cord into a standard 110V wall outlet.
- The charger indicator light will show charging status — refer to the charger light guide for your specific model.
- Allow 8–14 hours for a full charge. Do not leave charging unattended overnight indefinitely — unplug when charge is complete.
- Remove the battery pack from the scooter or power chair per the manufacturer's instructions for your specific model.
- Connect one charger cord to the battery pack's charging port.
- Plug the power cord into a standard 110V wall outlet.
- Allow 8–14 hours for a full charge.
- Reinstall the battery pack once fully charged.
Full Specifications
| Part Number | ELE1803474 |
|---|---|
| Replaces | ELEASMB6293 (discontinued) |
| Brand | Pride Mobility |
| Charge Rate | 5 Amp |
| Charger Type | Off-Board (external plug-in charger) |
| Input Power | Standard 110V wall outlet (US) |
| Charge Time | 8–14 hours for full charge |
| Charger Weight | 5 lbs |
| Charging Methods | On-unit (via charging port) or off-unit (removed battery pack) |
| Compatible Units | See compatibility table above |
Frequently Asked Questions
My charger light stays red and never turns green — is the charger defective?
A charger that stays on the "charging" indicator color without completing is usually an indication of heavily depleted or sulfated batteries rather than a defective charger. If the batteries have been fully discharged and left uncharged for an extended period, they may not accept a full charge. Call us to discuss: 866-218-0902
Can I use this charger for overnight charging?
Pride Mobility recommends charging overnight when batteries are significantly depleted. The 8–14 hour range accommodates overnight charging. However, do not leave the charger plugged in indefinitely after charging is complete — unplug once the charge indicator shows complete.
My model isn't on the compatibility list — can I still use this charger?
Do not use this charger on models not listed without confirming compatibility first. Using a charger with the wrong amp rating can damage batteries and may void your chair or scooter warranty. Call us with your model number and we will confirm the correct charger: 866-218-0902
Is this the same charger that came with my chair?
The ELE1803474 replaces the ELEASMB6293. If your original charger shows ELEASMB6293 on the label, the ELE1803474 is the current OEM replacement. If your charger shows a different model number, call us to confirm: 866-218-0902
