Chattanooga Intelect Legend 2 2-Channel Combo Electrotherapy & Ultrasound System

SKU: 81-5010

2-Channel Electrotherapy & Ultrasound Combo  |  VMS Waveform  |  12 E-Stim Waveforms  |  Dual-Frequency Ultrasound (1 & 3 MHz)  |  7" Capacitive Touchscreen  |  2&Go 2-Button Treatment Start  |  SPS Indication-Based Setup  |  Anatomical Library  |  Software Upgradeable  |  Class II Medical Device  |  By Chattanooga

The Chattanooga Intelect Legend 2 2-Channel Combo is a professional clinical electrotherapy and therapeutic ultrasound system representing the current generation standard from Chattanooga — the leading manufacturer in physical medicine modalities. The proprietary VMS (Variable Muscle Stimulation) waveform delivers stronger muscle contractions with less neural fatigue and greater patient comfort than conventional Russian stimulation. Twelve electrotherapy waveforms cover the full spectrum of clinical E-stim applications. Dual-frequency ultrasound at both 1 MHz and 3 MHz allows selection of treatment depth for any anatomical target. The 7-inch high-resolution capacitive touchscreen provides an app-like interface with a built-in anatomical library for patient education. 2&Go saves up to 12 protocols for 2-button treatment start. SPS Suggested Protocol Setup allows full treatment configuration in 3 button pushes by indication rather than waveform. Software upgradeable for future functionality. Optional battery pack, transport cart, and carry case. For physical therapy, chiropractic, sports medicine, and rehabilitation clinics.

Technical Specifications

Key Features

• VMS Waveform (Variable Muscle Stimulation) — Chattanooga's patented proprietary waveform designed to achieve stronger, more efficient muscle contractions with less neural fatigue and improved patient comfort; demonstrably outperforms Russian stimulation in clinical comparisons for muscle contraction strength and patient tolerance
• 12 electrotherapy waveforms — VMS, Interferential, Premodulated, Asymmetric Biphasic, Symmetric Biphasic, High Volt, Microcurrent, Russian, VMS Burst, HAN, Direct Current, and VMS FR; covers all standard clinical E-stim applications in a single device
• Dual-frequency ultrasound — 1 MHz for deep tissue penetration and 3 MHz for superficial tissue treatment; selectable frequency allows the clinician to match ultrasound depth to the anatomical target
• 2&Go Treatments — save up to 12 preset or custom protocol shortcuts directly on the home screen; begin any saved treatment with 2 button pushes; eliminates parameter re-entry for commonly used protocols
• SPS Menu (Suggested Protocol Setup) — indication-based setup selects appropriate waveform and parameters from a clinical library; configure a full treatment in 3 button pushes without manually selecting individual parameters; appropriate for new staff or high-volume treatment environments

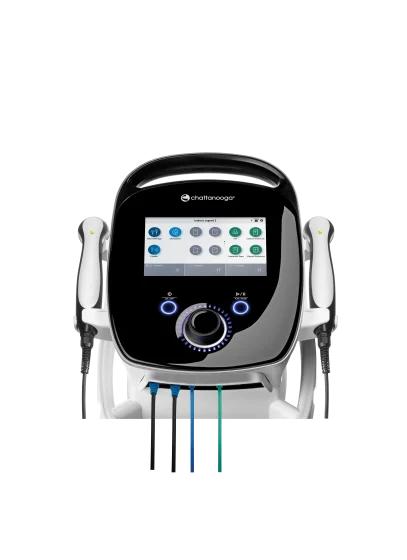

• 7" high-resolution capacitive touchscreen — app-like interface with clear visual feedback; upgraded to display anatomical library, real-time treatment progress, and post-session treatment results
• Anatomical Library — high-resolution illustrations of anatomical structures and pathologies built into the device for patient education during or after treatment sessions
• Improved coupling detection and monitoring — the ultrasound system actively monitors soundhead-to-skin coupling quality during treatment and alerts when coupling degrades
• Watertight sound heads — all sound heads rated for underwater therapy applications
• Software upgradeable — firmware updates download and install directly from the Chattanooga website; future functionality additions at no additional hardware cost
• Onboard memory — stores custom protocols, patient settings, and session data
• Optional battery module — enables fully mobile, cord-free operation for bedside, field, or multi-room clinic use

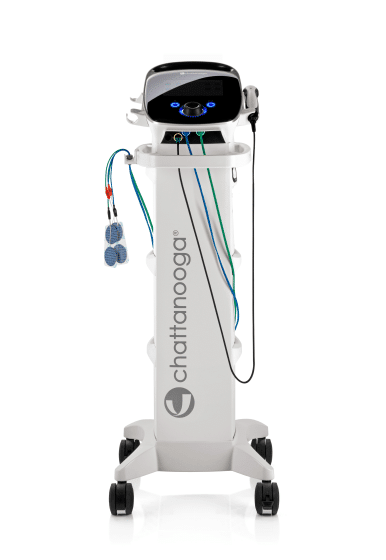

• Optional Intelect 2 Cart — storage and mobility solution for clinic organization; maximizes storage of clinical supplies alongside the unit
• Lightweight ergonomic design — ergonomic handle for easy transport between treatment rooms

Clinical Indications

The Intelect Legend 2 2-Channel Combo supports the following FDA-cleared indications for TENS/NMES electrotherapy:

• Relaxation of muscle spasms
• Prevention or retardation of disuse atrophy
• Increasing local blood circulation
• Muscle re-education
• Maintaining or increasing range of motion
• Immediate post-surgical stimulation (as indicated)
• Symptomatic relief of chronic, intractable pain
• Management of post-traumatic and post-surgical pain

Clinical FAQs

What is the VMS waveform and how does it differ from Russian stimulation?

VMS (Variable Muscle Stimulation) is Chattanooga's patented electrotherapy waveform designed specifically for neuromuscular electrical stimulation (NMES) applications. Russian stimulation, the traditional gold-standard NMES waveform, uses a medium-frequency alternating current (typically 2,500 Hz) that is amplitude-modulated at 50 bursts per second. Russian stimulation is effective at producing strong muscle contractions but is frequently reported as uncomfortable — the high carrier frequency causes significant superficial skin sensation, and sustained sessions can produce neural fatigue that limits contraction force over time. The VMS waveform modifies several parameters of the electrical delivery — burst timing, inter-burst intervals, and current shape — to produce comparable or stronger muscle contraction force while reducing the uncomfortable surface sensation and delaying neural fatigue. Clinical studies cited by Chattanooga show VMS achieves stronger contractions than Russian stimulation in matched comparisons while receiving significantly better patient comfort ratings. For clinics treating patients who have previously declined NMES due to discomfort, or who fatigued quickly in Russian stim protocols, VMS can expand the treatable patient population and enable longer effective treatment sessions.

What is the difference between 1 MHz and 3 MHz ultrasound on the Legend 2 and how does the clinician choose?

The frequency of a therapeutic ultrasound beam determines how deeply it penetrates tissue before its energy is absorbed. At 1 MHz, ultrasound energy penetrates to approximately 4–6 cm below the skin surface, making it appropriate for treatment of deeper structures — the supraspinatus and rotator cuff tendons, the hip abductor complex, lumbar paraspinals, hamstring origin, and other deep musculature and periarticular tissue. At 3 MHz, the energy is absorbed in the more superficial tissue layers at 1–2 cm depth — appropriate for structures close to the skin surface such as the plantar fascia, superficial extensor/flexor tendons of the wrist and forearm, Achilles tendon insertions, and scar tissue in subcutaneous layers. The general clinical decision rule: 1 MHz for deep muscle, joint capsule, or bursa targets; 3 MHz for superficial tendon, ligament, and scar tissue targets. The Legend 2's dual-frequency capability allows the clinician to switch frequencies within a session or between sessions without changing equipment, which is particularly valuable in clinics treating a mix of conditions with different tissue depth requirements. The improved coupling detection on the Legend 2 monitors contact quality at both frequencies, reducing the risk of inadequately coupled treatment delivery.

How does the SPS menu differ from the 2&Go system and when should each be used?

The 2&Go system and the SPS menu serve different workflow scenarios. 2&Go is a recall system — the clinician configures a treatment protocol once (either from scratch or from SPS suggestions), saves it to one of the 12 home screen shortcut slots, and then any subsequent session for the same protocol starts with 2 button pushes. It is ideal for frequently repeated treatments: a standard shoulder protocol, a low back TENS protocol, a plantar fasciitis ultrasound protocol — any treatment that a clinic does multiple times per week benefits from being saved as a 2&Go shortcut. The SPS (Suggested Protocol Setup) menu is an indication-first configuration system — the clinician selects the anatomical area and condition (e.g., "knee — tendinopathy") and the device suggests clinically appropriate waveform, frequency, intensity range, and duration parameters based on Chattanooga's protocol library. This is the starting point for: new patient presentations that don't yet have a saved protocol; conditions outside the clinic's standard repertoire; newer staff members who are building clinical confidence in parameter selection; and patient education scenarios where the clinician wants to show the patient that their treatment parameters are evidence-based and condition-specific. Together, 2&Go and SPS make the Legend 2 efficient for both high-volume repeat treatments and varied new clinical presentations.
