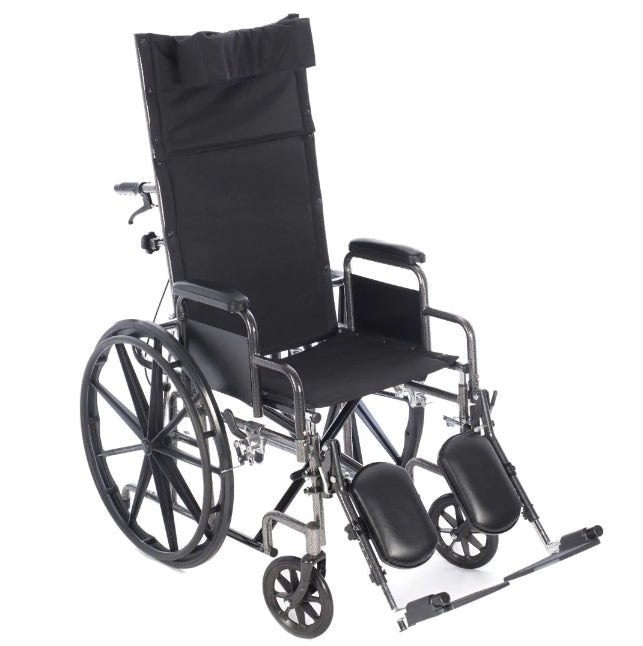

Chariot-RC Reclining Wheelchair

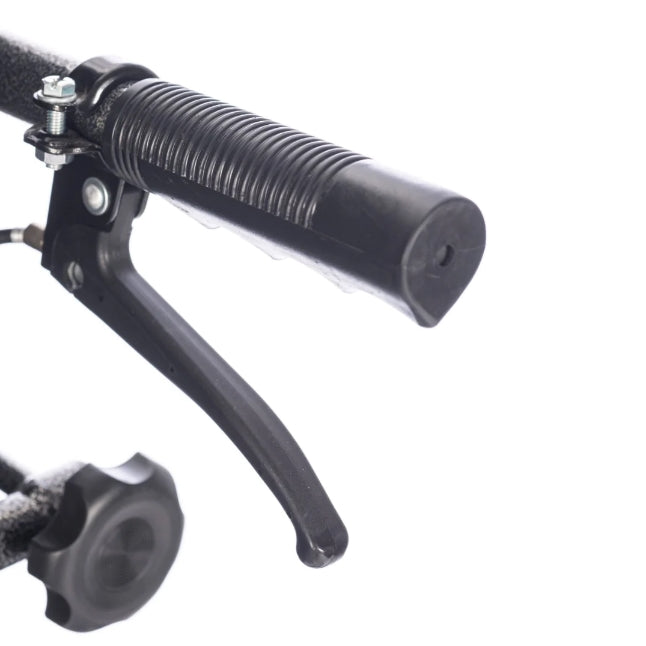

- Smooth reclining with finger trigger release mechanism
- Rear anti-tippers for security and headrest extension for comfort
- Slide tube steel frame with a silver vein finish that is chip resistant
/
Chariot-RC Reclining Wheelchair

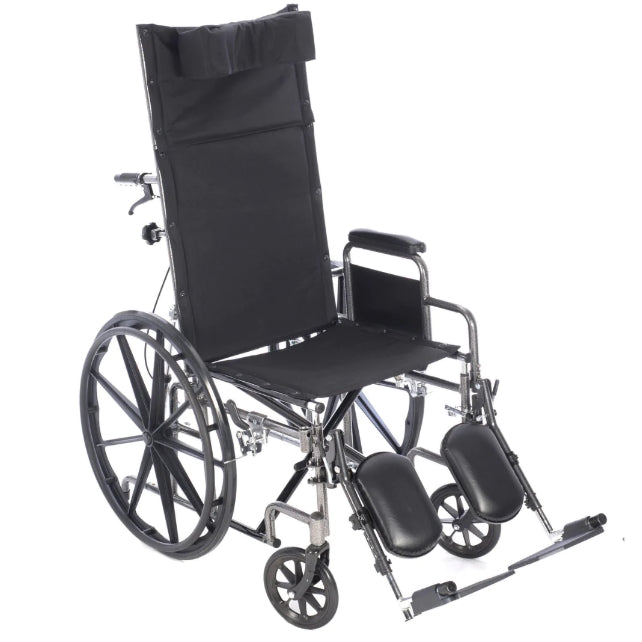

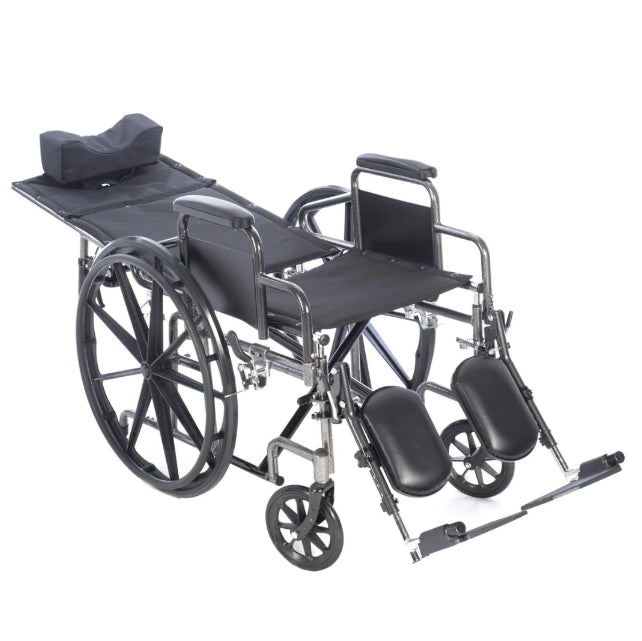

The Chariot-RC Reclining Wheelchair offers comprehensive support for both the back and head as the user can recline between 90 and 180 degrees. It features a removable headrest and padded armrests for added convenience. The upholstery is made of black padded nylon, which is designed to resist mildew and bacteria, ensuring a hygienic experience. The wheelchair's frame boasts a durable chip-resistant silver vein finish.
Designed for safety and stability, the wheelchair is equipped with lightweight mag-style wheels that are strategically positioned to minimize the risk of tipping when the user is reclined. This thoughtful design enhances the overall functionality and comfort of the Chariot-RC, making it an excellent choice for those in need of a reliable reclining wheelchair.
Product Highlights
- Smooth reclining with finger trigger release mechanism
- Rear anti-tippers for security and headrest extension for comfort
- Slide tube steel frame with a silver vein finish that is chip resistant and easy to maintain
- Padded, detachable armrests provide added patient comfort.
- Easy-to-clean, comfortable nylon upholstery resists mildew and bacteria.
- Tool-free elevating padded leg rests are equipped with a pneumatic piston for infinite positions.
- Composite footplates on 16/18/20 & aluminum footplates on 22/24 chairs.
- Composite handrims with mag-style wheels are lightweight and maintenance free.
- Wheels are set back on the frame to prevent tipping.

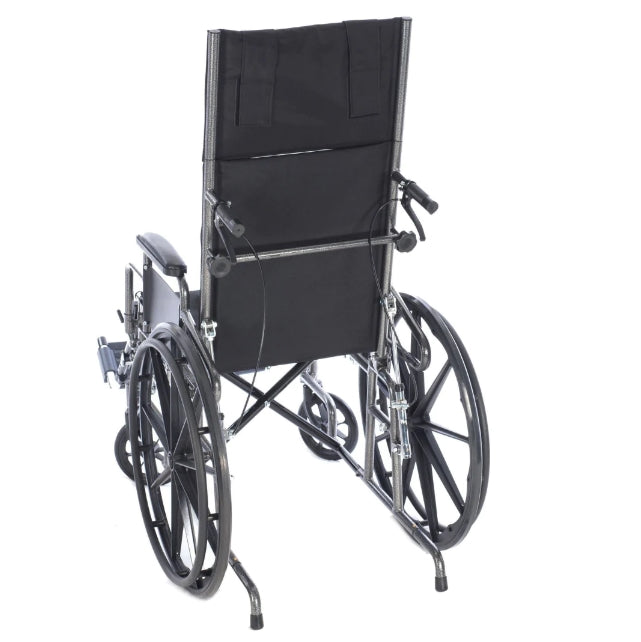

- Rear anti-tippers come standard.
- The Headrest extension comes standard with a removable head immobilizer.
- 8" x 1 " solid rubber front casters.
- Easy push-to-lock wheel locks.
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the arm pit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90 degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
| Seat Width: | 16" / 18" / 20" / 22" / 24" |
| Seat Depth: | 16" / 18" |
| Seat to Floor Height: | 20" |
| Back Height: | 32" |
| Back Style: | Reclining |
| Overall Width with Arms: | 24" / 26" / 28" / 30" / 32" |
| Weight Capacity: | 300 / 300 / 350 / 500 / 500 lbs |
