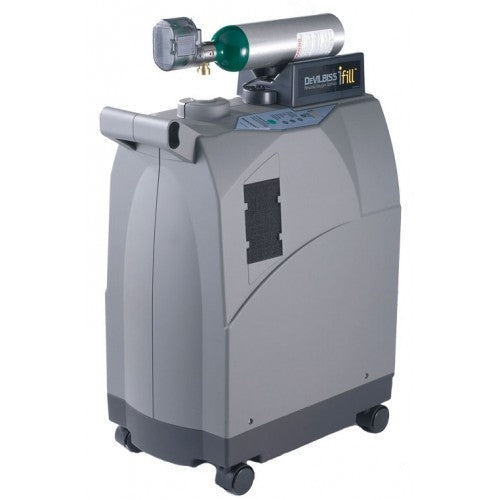

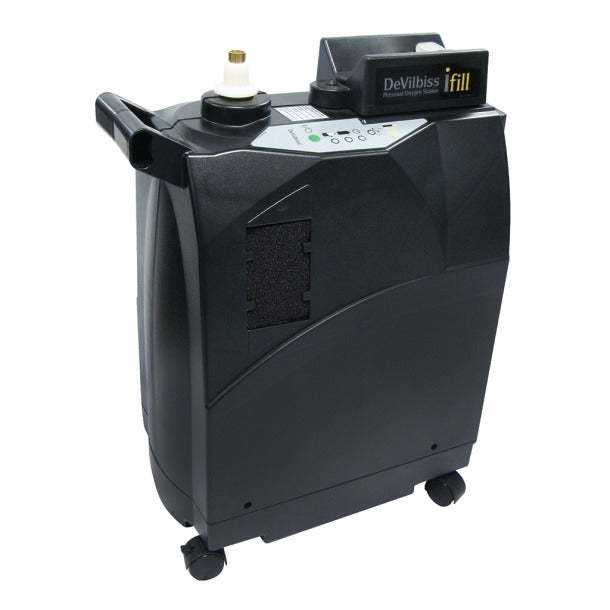

Devilbiss Ifill Personal Oxygen Station
Overview of the Devilbiss iFill Personal Oxygen Station model 535 (No tanks Included)The DeVilbiss iFill Personal Oxygen Station uses a dual-pressure head compressor to simultaneously power a pressure swing adsorption oxygen generation system and a pneumatic pressure intensifier. It is designed to provide supplemental oxygen to fill portable cylinders for ambulatory use.
Oxygen cylinders are attached to the I-Fill unit with a coupler and cylinder nipple set. The application-specific coupler helps to insure that other cylinders cannot inadvertently be connected to the I- Fill system.
The I-Fill station is designed to fill various sizes of portable oxygen cylinders. Cylinders are available with an integrated oxygen conserving device or continuous flow regulator mounted on top
Features of the Devilbiss iFill Personal Oxygen Station -Model 535
- I-Fill Personal Oxygen Station may be used in conjunction with any manufacturer's oxygen concentrator.
- Offers the flexibility to fill most cylinder sizes including M4, M6, ML6, C, D and E.
- Choice of PulseDose Oxygen Conserving Device interface or Regulator interface Fill oxygen cylinders in just a little over an hour - not the 2 hours it takes other in-home oxygen filling units Shorter fill time reduces associated energy costs.
- Partially filled cylinders can be easily topped off.
- I-Fill Oxygen Station shuts off automatically when cylinder is full Includes easy-roll casters that make it easy to move and store.
- DeVilbiss iFill Personal Oxygen Station is the only stand alone oxygen filling station on the market Unique design allows patients to use and store their I-Fill anywhere in their home
- Intuitive operation with instructions printed on the unit in English, French & Spanish Manufacturer's warrants against defects in materials and workmanship for 3 years or 8,000 hours
Technical Specs
Specifications
| Built to meet the requirements of HCPCS code: | K0738 |
| Product Weight: | 66 lbs. |
| Shipping Dimensions (box 1): | 16 ?"w / 33 ?"h / 26 5/8" d |
| Ship Method(s): | Ground, Next Day, 2 Day |
| Shipping Weight: | 76 lbs. |
| Product Dimensions (Including casters): | 12.25"W x 28.5"H x 22.5"D |
| Oxygen Purity: | 93% +/- 3% |
| Sound Level: | 50DBA |
| Filling Time: | 75 Minutes (M6 Cylinder) |
| Electrical Requirements: | 115V, 60Hz, 4.1Amps |
| Power Consumption: | 400 Watts |
| Patient Use Flow Rate: | Up to 5LPM |
| Cylinder Top Off: | Yes. |
