Dolphin FIS (Fluid Immersion Simulation) Mattress System
Dolphin FIS (Fluid Immersion Simulation) Mattress System
- Fits existing bed frames including: ICU, Med/Surg, and Bariatric
- 12 hour backup battery life ensures continual treatment, even in the event of disconnection or power loss
Our Price: $28,996.00
/
Description

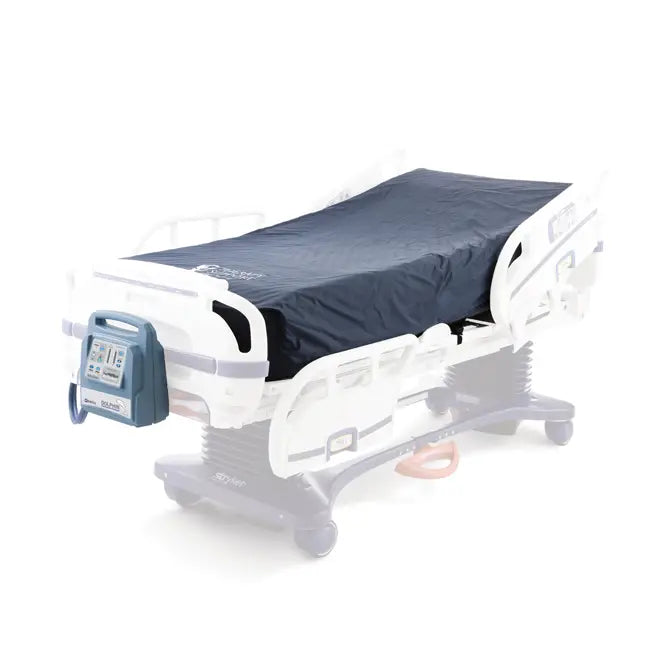

Dolphin Fluid Immersion Simulation Mattress System
Effectively treat patients with the healing power of pressure redistribution provided by being submerged in water. This fluid immersion simulation mattress replacement supplies patients with unparalleled pain management while maintaining superior supportive comfort.Originally developed by the U.S. Navy to transport and care for marine animals, Joerns Dolphin Fluid Immersion Simulation (FIS) System is a one-of-a-kind therapeutic system for patients with varying needs.

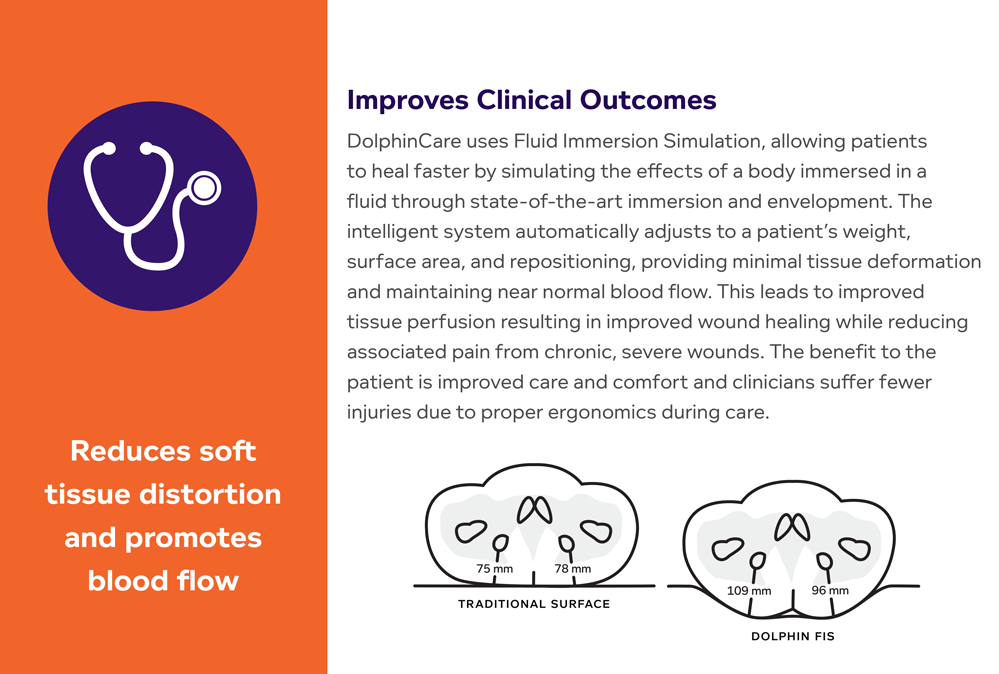

The Dolphin FIS System mimics buoyancy in three levels of volumetric engagement with the patient. This helps to maximize the patients blood flow while feeling like they are floating on water.
A unique feature of this system is that once the patient is transferred onto the surface, the system automatically adjusts to the patients weight and the surface area to maximize the benefits. The easy-to-use controls allow for the caregiver to adjust the firmness and ensure total patient comfort. Along with the easy controls, the Dolphin FIS System is easy to set up and user friendly. There is a three-hose connection and a CPR mechanism for easy deflation. The control panel has a simple interface with LED indicators to keep the caregiver informed.
Dolphin Fluid Immersion Simulation Mattress System Features:
- Treats and prevents wounds by simulating submersion in a fluid medium
- Does not require any manual input
- Automatically adjusts to the individual patient's weight, body surface area, and any repositionings
- Fits existing bed frames including: ICU, Med/Surg, and Bariatric
- 12 hour backup battery life ensures continual treatment, even in the event of disconnection or power loss
Technical Specs
Specifications for the DolphinCare™ Integrated Bed System
| Length: | 80" |
| Bed Width: |
35" 42" |
| Bed Height: | 7" to 30" |
| Quick-Ship: | No |
| Massage: | No |
| Adjustable Deck Height: | Yes |
| Input Voltage: | 110V |
| Minimum Height: |
Specifications
Product Specifications / Dimensions
| 3582OODMJKIT (Standard Therapy Mattress) Dimensions | 82"L x 35"W x 10"D |
| 4282OODMJKIT (Standard Therapy Mattress) Dimensions | 82"L x 42"W x 10"D |
| 4882OODMJKIT (Standard Therapy Mattress) Dimensions | 82"L x 48"W x 10"D |
| 3588OVDMJKIT (Step-Deck Dolphin V-Matt Therapy Mattress) Dimensions | 88"L x 35"W x 10"D |
| Therapy Mattress Weight | 22lbs |
| Therapy Mattress Maximum Weight Capacity | 1000lbs |

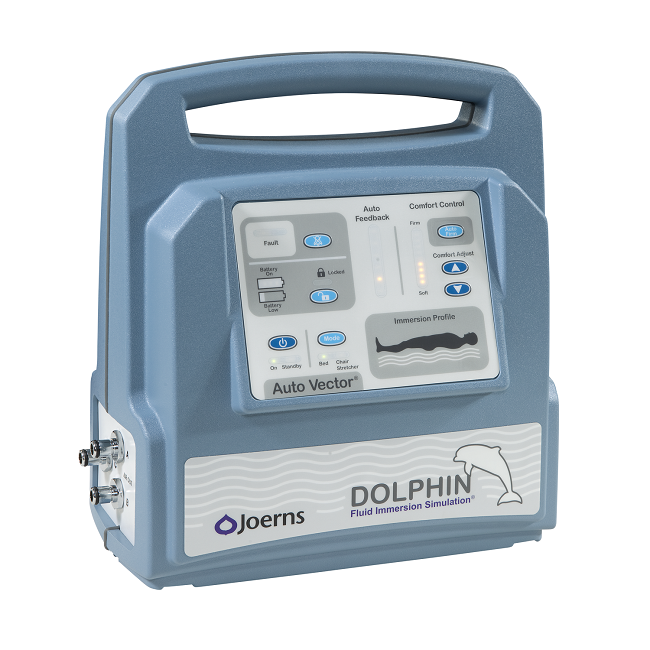

| Control Unit Dimensions | 12.5"H x 11.5"W x 6"D |
| Electrical Specifications | 90/240 VAC, 50/60 Hz |
| Control Unit Classifications (North America) | UL 60601-1, CAN/CSA C22.2 No. 601.1 |
| Control Unit Classifications (Europe) | Conforms to IEC/EN 60601-1 and IEC/EN 60601-1-2 CE |
| Operating Conditions Ambient Temperature | 50 - 104 Degrees (Fahrenheit) / 10 - 40 Degrees (Celsius) |
| Operating Conditions Relative Humidity | 30% - 75% (Non-Condensing) |
| Storage and Shipping Conditions Ambient Temperature | 50 - 104 Degrees (Fahrenheit) / 10 - 40 Degrees (Celsius) |
| Storage and Shipping Conditions Relative Humidity | 10% - 100% |
| Fits Existing Bed Frames (ICU, Med/Surg, Bariatric) | Yes |
