Drive Chad CGA 870 Oxygen Regulator
Our Price: $61.97
/
Description

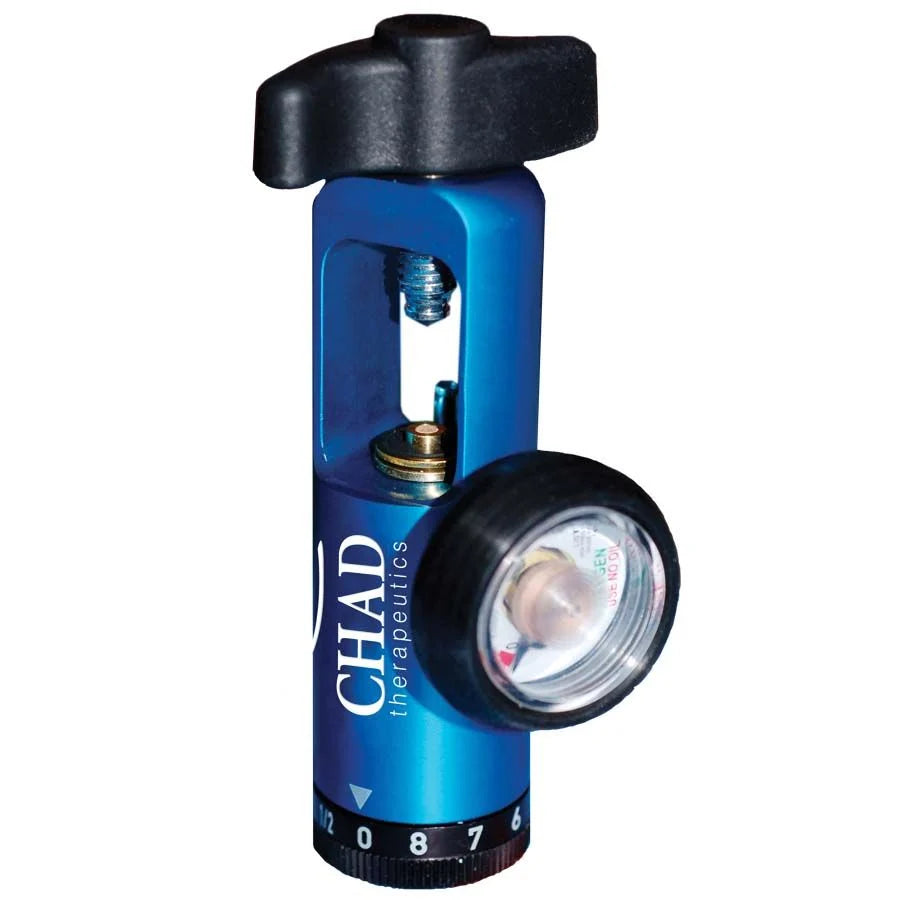

Drive Chad CGA 870 Oxygen Regulator
The CHAD CGA 870 Click Style Oxygen Regulator is durable and reliable and offers a multitude of liter flow options.Durable and Simple: The barb outlet will connect directly with a cannula and the ergonomic design allows for simple oxygen regulation. It is made with brass components in the high-pressure and relieve-valve areas to ensure long lasting and reliable use.
Accurate and Safe: This regulator has been fully quality control tested and inspected in the USA to an accuracy within +/- 15% tolerances. It meets ASTM-G175-03 in promoted ignition tests and uses FDA recommended Viton and brass seal washers.
Specifications: The regulator has an inlet pressure of 200 - 3,000 PSI and outlet pressure of 50 PSI. It comes with a 3 year limited warranty.
Select Option
This CHAD Click Style Regulator comes in three variations; Blue with 0 - 15 lpm, Blue with 0 - 8 lpm, and Green with the Drive logo with 0 - 8 lpm. The 0 - 15 lpm option has adjustments in increments 0.5, 1, 2, 3, 4, 5, 6, 8, 10, 12, & 15, and the 0 - 8 options have adjustments in increments 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 7, 8.
Options:
- CH4815-L-BLUE: Blue, 0 - 15 lpm
- CH4808-L-BLUE: Blue, 0 - 8 lpm
- DR4808-L-GREEN: Green, 0 - 8 lpm
Technical Specs
Specifications
Specifications for Drive CH4815-L-BLUE CHAD® CGA 870 Click Style Oxygen Regulator
Performance & Operation |
|
| Supply Pressure | 200 - 3000 PSI |
| Outlet Pressure | 50 PSI |
| Flow Capacity | 15 or 8 lpm |
Warranty |
|
| 3 Year Limited | |
