Durable manual hydraulic patient lift designed for safe caregiver-assisted transfers.

  • 450 lb weight capacity
  • Hydraulic hand pump lifting system
  • Adjustable base for wheelchair access
Our Price: $649.00

Drive Medical Deluxe Hydraulic Patient Lift — 13023SV
Description
Drive Medical 450 lbs · 72" Boom Lifetime Frame Warranty

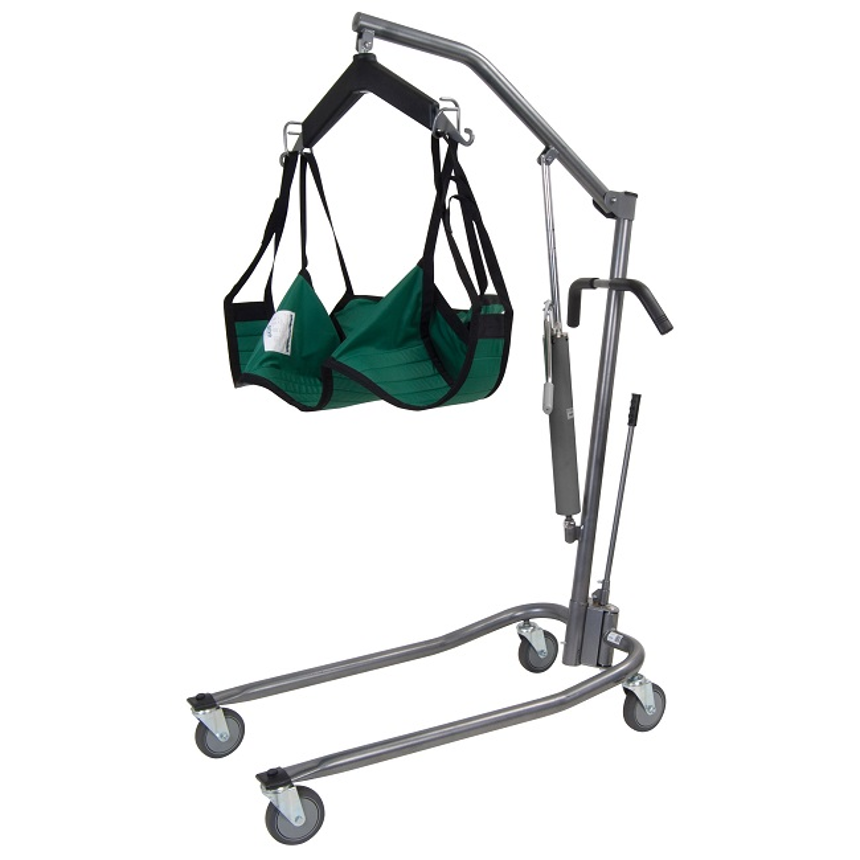

The Drive Medical Deluxe Hydraulic Patient Lift (13023SV) is Drive Medical's hydraulic floor lift — 450 lb capacity, 17.5"–72" boom range, silver vein steel construction, and the strongest warranty of any hydraulic lift MDS carries: a Lifetime Limited frame warranty. The 6-point cradle accommodates 2- or 4-point sling configurations plus 2 chain connections. Sling chains are included. Dual caster brakes lock the lift in position during transfer. Adjustable base opens from 22.5" to 42" for clearance around wheelchair legs and bed frames. At 72 lbs, it is among the lightest hydraulic lifts at 450 lb capacity. For caregivers who want Drive Medical's established reputation and a lift that carries a lifetime frame warranty, the 13023SV is the answer.

450 lb capacity
17.5"–72" boom range
72 lbs
6.5" floor clearance
Life frame warranty

Sling selection, HCPCS E0630 documentation, or comparison to other hydraulic lifts? Call 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM · Six SW Florida Showrooms

The Lifetime Frame Warranty

Lifetime Frame — Limited Warranty Hydraulic Pump: 1 Year Limited

The Drive Medical 13023SV carries a Lifetime Limited warranty on the steel frame — the strongest frame warranty of any hydraulic patient lift MDS carries. The Invacare 9805P and Proactive Onyx carry 3-year frame warranties; the Lumex LF1030 carries 1-year. A lifetime frame warranty means Drive Medical stands behind the structural integrity of this lift for as long as it is in use — covering defects in materials and workmanship without a time limit.

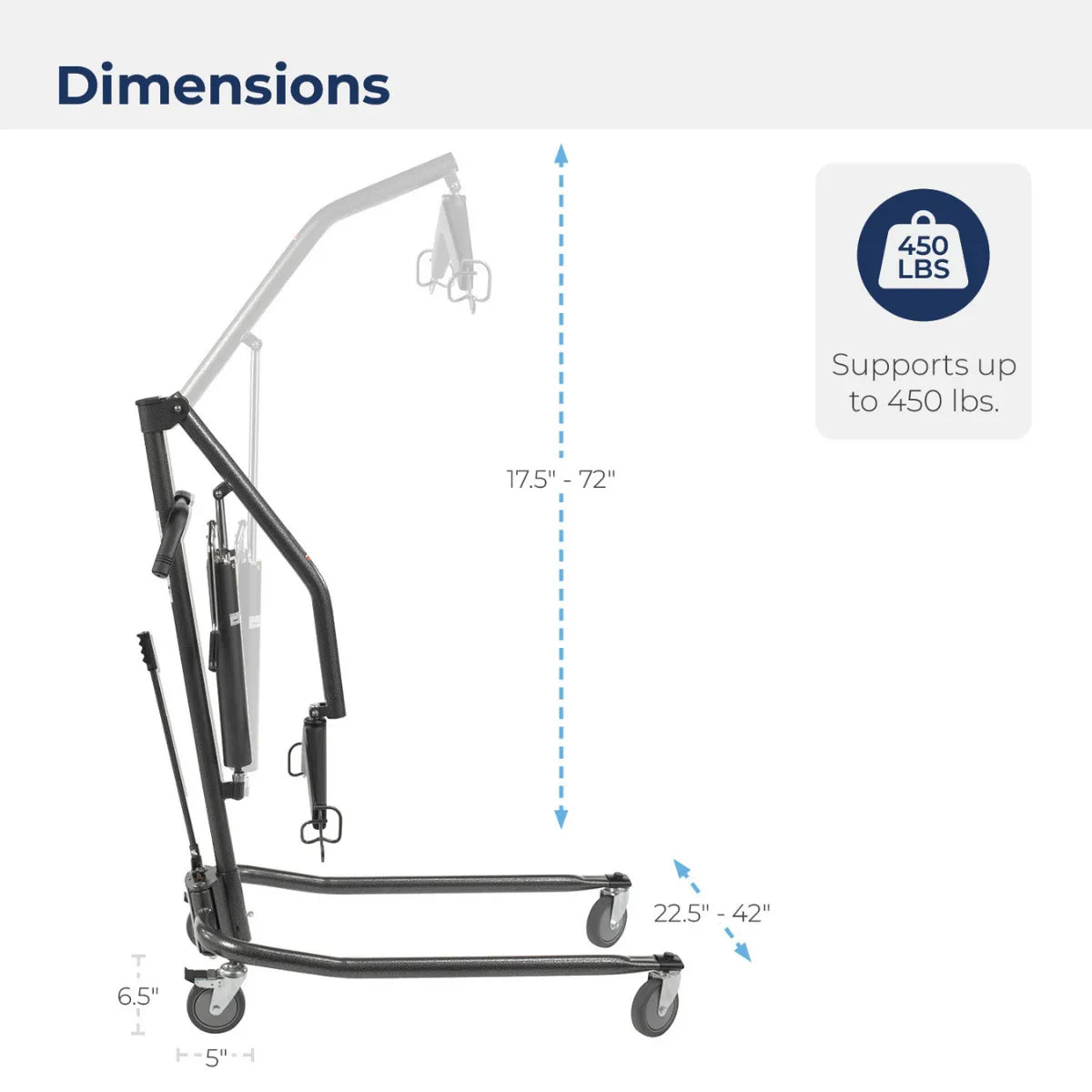

Lifting Range — 17.5" to 72"

Drive Medical 13023SV — Boom Height Range
17.5" Minimum height
72" Maximum height
54.5" Total travel range
6.5" Floor clearance

The 72" maximum boom height clears standard Hi-Lo hospital beds at most elevated positions and reaches above standard chair and wheelchair seat heights for the full transfer arc. The 17.5" minimum gets low enough for transfers from standard-height positions — beds, chairs, and wheelchairs. The 6.5" floor clearance is tied for the highest of any lift in MDS's hydraulic lineup, providing the most clearance under low-profile beds and furniture.

How the 13023SV Works

1
Sling and connect Position patient in sling on bed, chair, or wheelchair. Connect sling straps to the 6-point cradle bar using the included chain connections — 2- or 4-point configurations both accepted.
2
Open base and position Open adjustable base to 42". Roll lift over patient using 5" casters. 6.5" floor clearance fits under most standard and low-profile beds. Engage caster brakes on both rear casters.
3
Pump to raise Operate hydraulic pump handle to raise patient smoothly. Rotate 360° to face destination — bed, chair, wheelchair, or toilet. Silver vein steel boom handles the full load without flex.
4
Release valve to lower Release hydraulic valve to lower patient controllably into position. 72" maximum clears elevated hospital beds. Remove sling chains once patient is fully seated and supported.

The Adjustable Base

Closed — 22.5" Wide Close the base for doorway navigation and corridor transport. At 22.5" closed, the 13023SV fits through standard interior doorways. Close before wheeling the lift between rooms.
Open — 42" Wide Open to 42" for transfer — the base straddles wheelchair leg rests and standard bed frames. Caster brakes hold the lift in position once the base is opened and the transfer is initiated.

Key Features

Lifetime Frame Warranty — Drive Medical The strongest warranty in MDS's hydraulic lift category. A lifetime limited warranty on the steel frame means Drive Medical stands behind the structural integrity of the 13023SV for the full service life of the lift. No 1-year, 3-year, or fixed-term expiration on the component that matters most.
72" Maximum Boom Height Clears Hi-Lo hospital beds at elevated positions and standard bariatric beds. At 72", the 13023SV has a higher maximum than the Protekt Onyx (61") and Invacare 9805P (64") — covering the full range of residential and post-acute bed heights.

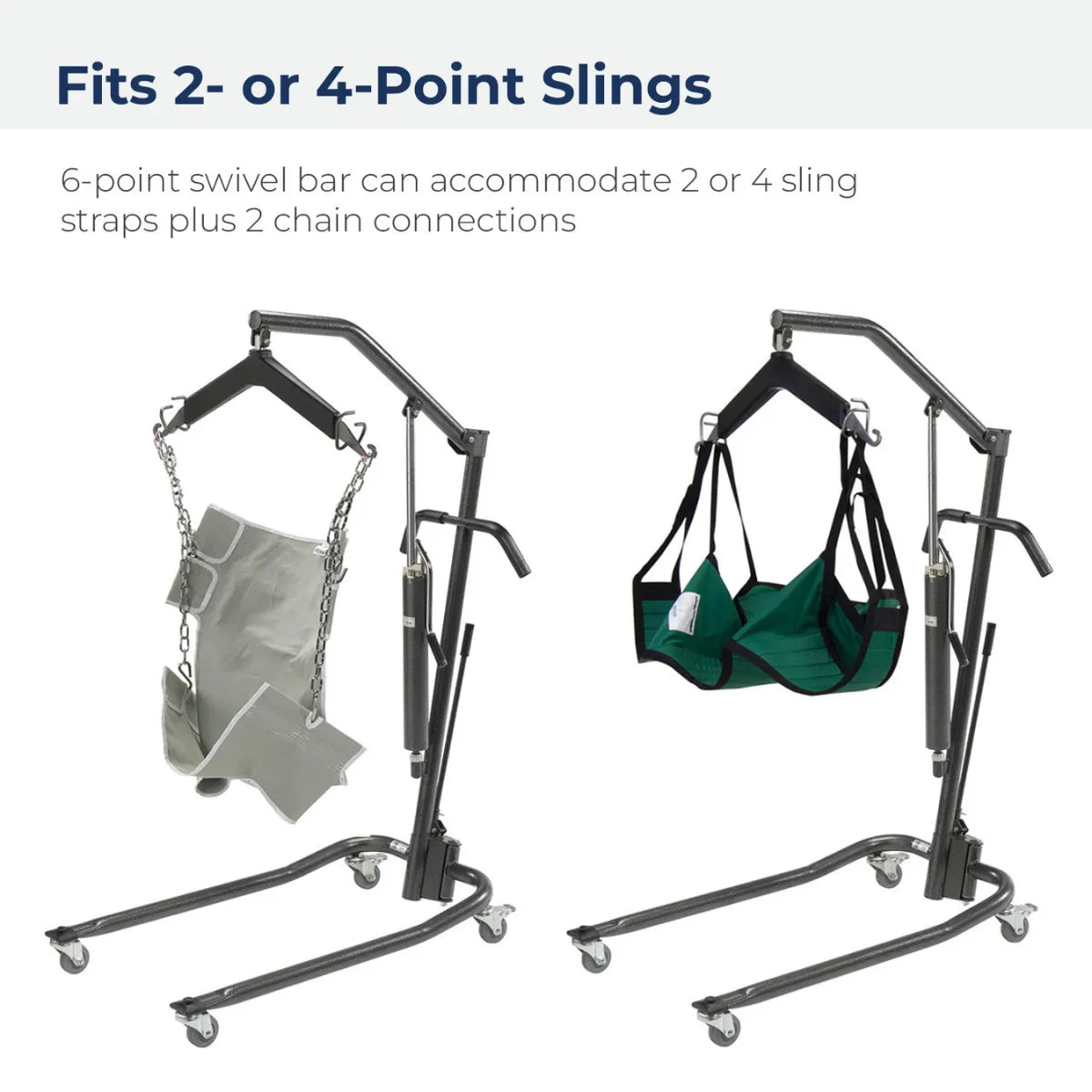

6-Point Cradle — 2 and 4-Point Slings The 6-point swivel cradle bar accepts both 2-point and 4-point sling strap configurations. Chain connections provide the attachment — sling chains are included standard. The 360° swivel allows repositioning toward the destination without side-to-side sway.
Silver Vein Steel Construction Silver vein powder-coat finish over steel — resistant to the surface rust that chrome-plated alternatives can develop in humid bathroom and home care environments. Easier to wipe clean between transfers. The silver vein finish is also more visually appropriate for residential home care environments.
72 lbs — Second Lightest in Class At 72 lbs, the 13023SV is the second lightest hydraulic lift MDS carries after the Invacare 9805P (68 lbs). Lighter than the Protekt Onyx (85 lbs) and Lumex LF1030 (90 lbs). Important for caregivers who transport the lift between rooms or load it into a vehicle for secondary care locations.
6.5" Floor Clearance — Best in Class 6.5" floor clearance is tied for the highest of any lift in MDS's hydraulic lineup — equal to the Invacare 9805P. The extra clearance allows the base to navigate under low-profile platform beds, futons, and hospital bed frames that lower-clearance lifts cannot pass under.
Dual Caster Brakes Both rear casters lock independently. The lift stays in position during sling attachment, lifting, and lowering — no movement that could compromise the transfer. Easy-to-operate brake levers require minimal hand strength.
Sling Chains Included Sling chains are included with the 13023SV — no additional hardware purchase required to start using the lift with compatible slings. Chains are the most secure sling connection method and the preferred option in clinical environments.

All Four Hydraulic Lifts — Complete Comparison

Spec Drive 13023SV Protekt Onyx
32475 		Invacare
9805P 		Lumex
LF1030
Capacity 450 lbs 450 lbs 450 lbs 400 lbs
Min height 17.5" 17" 20" 27.4"
Max height 72" 61" 64" 80.3"
Lift weight 72 lbs 85 lbs 68 lbs 90 lbs
Floor clearance 6.5" 5.25" 6.5" 5.5"
Base open 42" 42.25" 42.25" 43"
Base closed 22.5" 22" 22" 24.6"
Frame warranty Lifetime 3 years 3 years 1 year
Chains included Yes Yes — —
Best for Lifetime warranty · Drive brand · 72" max Arched legs · value · free sling Lightest · floor clearance 80.3" Hi-Lo beds
Quick selection guide: Drive 13023SV for the lifetime frame warranty and Drive Medical brand confidence. Invacare 9805P if minimum weight (68 lbs) or floor-level lifts are the priority. Lumex LF1030 for Hi-Lo beds requiring above 72" reach. Protekt Onyx for the best all-around value with arched legs and free sling. Call us: 866-218-0902

Full Specifications

Model Number 13023SV
Manufacturer Drive Medical / Drive DeVilbiss Healthcare
HCPCS Code E0630
Weight Capacity 450 lbs (204 kg)
Boom Height Min 17.5"
Boom Height Max 72"
Total Boom Travel 54.5"
Base Height (floor) 6.5"
Base Width — Closed 22.5"
Base Width — Open 42"
Overall Length 48"
Casters 5" with brakes (rear)
Cradle / Spreader Bar 6-point · accepts 2- and 4-point sling configurations
Connections Sling chains — included standard
Lift Type Hydraulic — manual (no battery or motor)
Frame Material Silver vein steel
Product Weight 72 lbs
Frame Warranty Lifetime Limited
Pump Warranty 1 Year Limited
Included Lift unit · sling chains · user manual
✅ Free Sling Available with Purchase

MDS offers a complimentary sling with the purchase of the Drive Medical 13023SV. Call us to confirm sling type and sizing for your patient before ordering — the correct sling is as important as the correct lift: 866-218-0902

⚠️ Sling chains included — patient sling sold separately (free option available). The 13023SV includes sling chains but does not include a patient sling. A compatible Drive Medical sling correctly sized for the patient is required before use. A complimentary sling is available with your MDS purchase — call us to select the correct type and size: 866-218-0902

Six Southwest Florida Showrooms

Available at all six MDS locations. Our specialists can compare all four hydraulic lifts for your specific care environment and confirm HCPCS E0630 documentation requirements. Walk-ins welcome.

📞 Nationwide: 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM · support@medicaldepartmentstore.com

Technical Specs
Specifications

Specifications for the Deluxe Hydraulic Lift

Quick-Ship: Yes
Lifts Patient from Floor: Yes
Base Type: Manual
Base Width Open: 42.00"
Furniture Clearance Needed: 6.50"
Base Width Closed: 22.50"
Lifting Range: 17.5" to 72"
Mast Height: 72.00"
Caster Size - Front: 5.00"
Sling Types: 2-Point Sling
4-Point Sling
Sling Cradle Height: 17.5" to 72"
