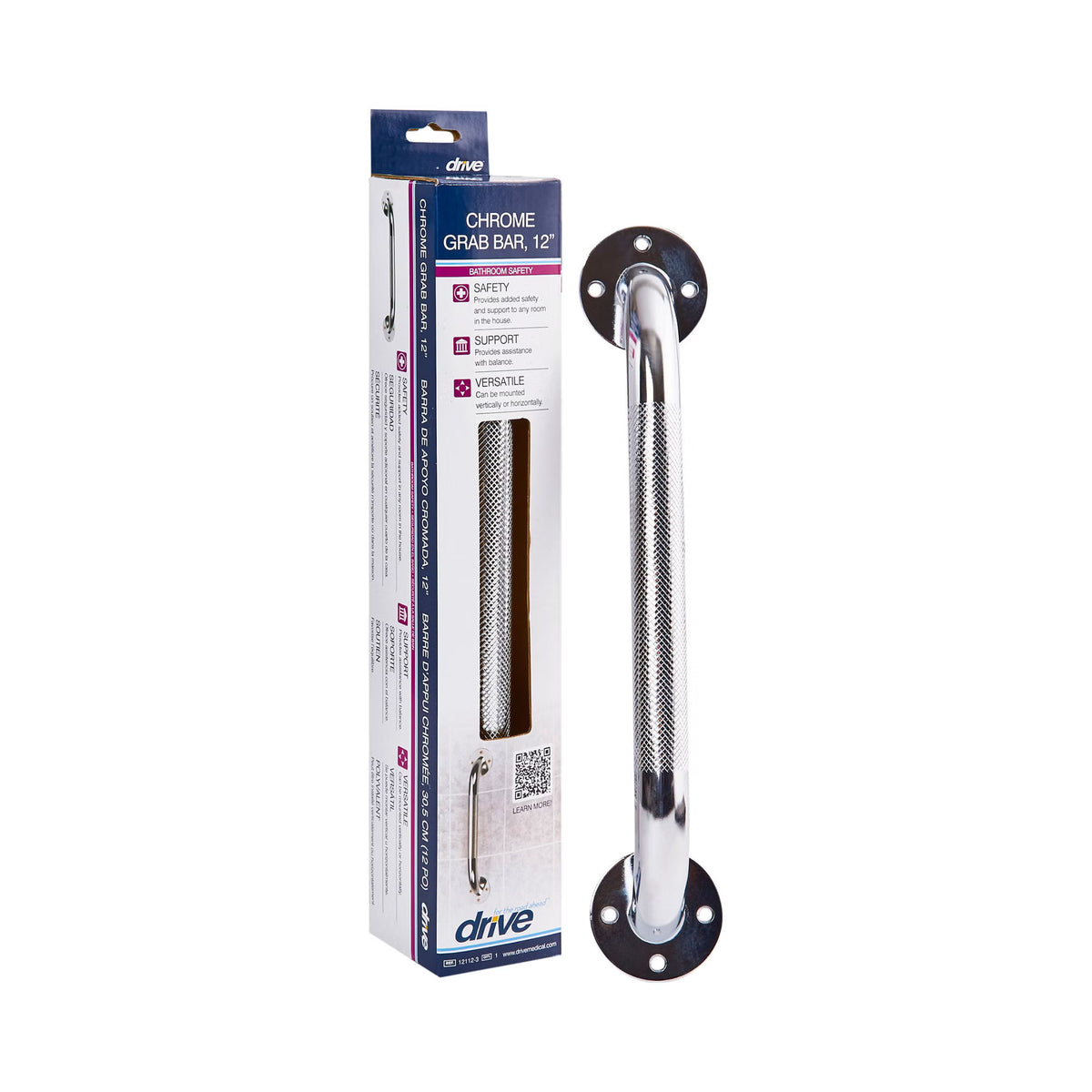

Drive Medical Chrome Knurled Grab Bar — 12" to 32", 250 lb
/
The Drive Medical Chrome Knurled Grab Bar is a permanent, wall-mounted grab bar that gives users something solid to hold when sitting down, standing up, or stepping in and out of the tub. Unlike suction grab bars, a properly installed wall-mount bar is built to support weight — up to 250 lbs. The knurled surface has a diamond-pattern texture engraved into the metal, so hands keep their grip even when wet. Available in five lengths — 12", 16", 18", 24", and 32" — it mounts vertically or horizontally and sits 1.5" from the wall, leaving room for the hand to wrap fully around the bar. The chrome finish matches most bathroom fixtures, and it's backed by a limited lifetime warranty.
Not sure where to place grab bars or which length you need? Call 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM · Six SW Florida Showrooms

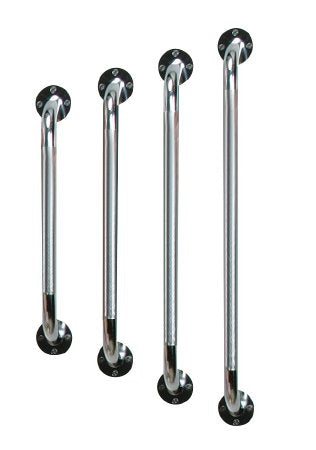

Five Lengths — Part Numbers
| Length | Part Numbers | Capacity | Common Placement |
|---|---|---|---|
| 12" | 12112-3 | 250 lbs | Beside the toilet, short vertical bar at a tub or shower entry |
| 16" | 12116-3 | 250 lbs | Toilet side wall, tub entry, small shower stalls |
| 18" | RTL12118 | 250 lbs | Vertical bar at shower entry or beside the toilet |
| 24" | 12124-3 | 250 lbs | Horizontal bar along the tub or shower wall |
| 32" | 12132-3 | 250 lbs | Long horizontal bar for tub walls and walk-in showers |
Wall-Mount Grab Bar or Suction Grab Bar?
Where to Mount It
| Location | Orientation | Why |
|---|---|---|
| Beside the toilet | Horizontal | A short bar on the side wall gives a steady hold for sitting down and standing up |
| Tub or shower entry | Vertical | A vertical bar at the entry gives a natural hand position when stepping over the tub wall |
| Inside the shower | Horizontal or angled | Place where the user can reach it while standing or reaching for a shower seat |
| Hollow drywall or tile with no backing | Do not mount | Anchor into wall studs or solid blocking — a loose bar can fail when it's needed most |
Key Features
Full Specifications
| Manufacturer | Drive Medical |
|---|---|
| Product Name | Chrome Knurled Grab Bar |
| Part Numbers | 12112-3 (12") · 12116-3 (16") · RTL12118 (18") · 12124-3 (24") · 12132-3 (32") |
| HCPCS Code | E0241 |
| Lengths Available | 12" · 16" · 18" · 24" · 32" |
| Weight Capacity | 250 lbs |
| Distance from Wall | 1.5" |
| Material | Steel |
| Finish | Chrome, knurled grip |
| Mounting | Wall-mount · vertical or horizontal |
| Wall Types | Wood, tile, or plastic walls — follow included instructions; anchor into studs or blocking |
| Packaging | Retail packaged |
| Warranty | Limited lifetime |
Medicare and Insurance
Drive Medical lists HCPCS code E0241 for this grab bar. Original Medicare generally treats grab bars and other bathroom safety items as convenience items and does not cover them. Some Medicare Advantage plans offer over-the-counter or supplemental benefits that may apply, and an FSA or HSA may also be an option — check with your plan.
Call us to talk through your plan and your bathroom setup: 866-218-0902
