Eagle Health · 77963 / 77993
29.5" Slide — Toilet to Tub
3-in-1: Bench + Chair + Raised Seat

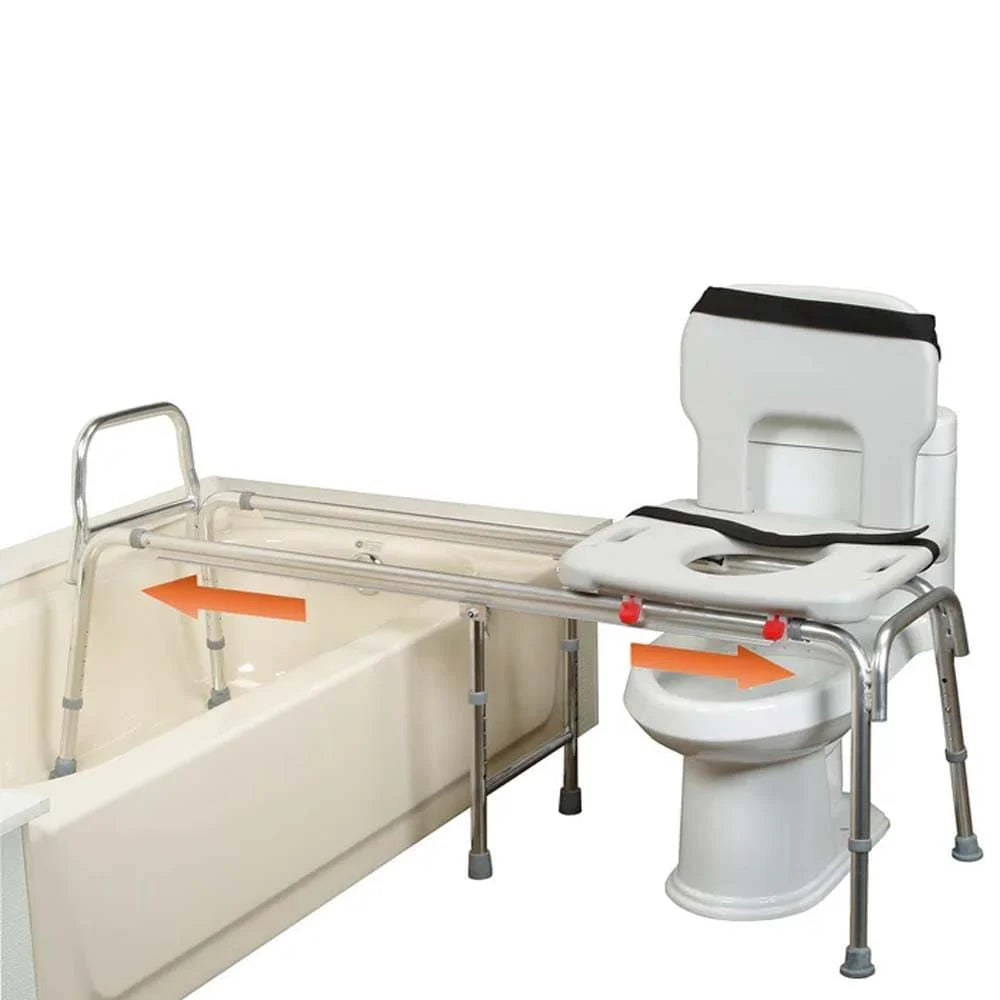

The Eagle Health Toilet-to-Tub Sliding Transfer Bench is a fundamentally different product from standard transfer benches. While the 70311 and 80662 slide across the tub wall (9.75 inches), this bench spans the entire distance from toilet to tub — sliding 29.5 inches along polished aluminum rails. The user sits over the toilet, uses it safely with the bench in place, then glides 29.5 inches to the tub end for bathing — all without standing, all without transferring to a different device. One bench. Three functions: raised toilet seat with commode cutout, shower chair inside the tub, and transfer bridge between them. Two safety belts (lap and chest). 350 lb capacity. Available in Long (77963, 54.5"–55.5") and XX Long (77993, 64.5"–65.5") for larger bathrooms.
29.5"
total slide
350
lb capacity
2
safety belts
3-in-1
toilet · chair · bridge
19"
max clearance
Questions about the Long vs XX Long for your bathroom, or how this compares to the 70311 Pro-Slide? Call 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM · Six SW Florida Showrooms
The 29.5" Slide — What Makes This Different
Eagle Health 77963 / 77993 — The Full-Span Transfer System
From Toilet to Tub Without Standing
Standard transfer benches slide across the tub wall — typically 9.75 inches. This bench spans the entire space between the toilet and the tub and slides 29.5 inches along that distance. The user sits over the toilet at one end, then glides the full 29.5 inches to the tub position for bathing — remaining seated the entire time. For users who cannot stand between toilet use and bathing, this is not a minor convenience feature. It is the product that makes independent bathroom use possible without a caregiver-assisted transfer between two separate pieces of equipment.
Two Lengths — Long and XX Long
Long
Model #77963
Standard bathroom spacing
Base Length54.5"–55.5"
Sliding Distance29.5"
Capacity350 lbs
Best forStandard bathrooms
XX Long
Model #77993
Larger bathrooms / greater spacing
Base Length64.5"–65.5"
Sliding Distance29.5"
Capacity350 lbs
Best forLarger bathrooms, more spacing
How to choose Long vs XX Long: Measure the distance from the outside edge of your toilet to the outside edge of your bathtub. The bench base must span that distance. If your measurement is under 55", the Long (77963) fits. If it's 55"–65", the XX Long (77993) is required. Call us with your measurement and we'll confirm the right model before you order a non-returnable product:
866-218-0902
Three Functions — One Bench
1
Raised Toilet Seat
Seat locks over the toilet at the toilet-end position. Commode cutout provides full toilet access. Seat height 20.25"–24.25" — above standard toilet height for easier sit-to-stand.
2
Toilet-to-Tub Bridge
User glides 29.5 inches along polished aluminum rails from the toilet-end position to the tub-end position. No standing. No transfer to a second device. Locking rings secure the seat at each end.
3
Shower / Bath Chair
Seat locks at the tub-end position — inside the shower or tub. Drainage holes in the seat allow water to pass through. Two safety belts (lap and chest) secure the user during bathing.
How This Bench Compares to the 70311 and 80662
| Feature |
77963/77993 — Toilet-to-Tub |
70311 — Pro-Slide |
80662 — Swivel MOD |
| Slide distance |
29.5" — toilet to tub |
9.75" — tub only |
9.75" — tub only |
| Over-toilet use |
Yes — locks over toilet |
No |
No |
| Swivel seat |
No |
No |
Yes — 360° |
| Commode cutout |
Yes — 10"×8" |
Yes |
No |
| Safety belts |
2 (lap + chest) |
1 (lap) |
1 (lap) |
| Weight capacity |
350 lbs |
400 lbs |
350 lbs |
| Seat size |
20.25"×18.5" (largest) |
17.75"×14.75" |
17.75"×16.75" |
| Max tub clearance |
19" |
18.5" |
18" |
| Best for |
No-stand toilet-to-tub transfers; multi-function bathroom |
Tub entry; perineal access; higher capacity |
Tub entry; natural swivel motion |
Key Features
29.5" Sliding Distance — Toilet to Tub
The full 29.5" slide spans the complete distance from the toilet position to the tub position. The locking rings engage automatically at each end — toilet position and tub position — preventing the seat from sliding unexpectedly while the user is positioned at either end. Release requires deliberate action.
Two Safety Belts — Lap and Chest
The 77963/77993 includes two separate safety belts: a lap belt and a chest belt. The lap belt prevents forward sliding during transfer; the chest belt provides additional upper-body security during bathing. No other Eagle Health transfer bench in this lineup includes a chest belt as standard.
Commode Cutout — 10"×8"
The 10"×8" commode opening provides full toilet access when the seat is locked in the toilet-end position — functioning as a raised toilet seat with commode access. The same cutout provides perineal cleaning access during shower use at the tub-end position.
Six Adjustable Legs — Middle Legs Relocatable
Six legs provide maximum stability across the toilet-to-tub span. The middle legs are not in fixed positions — they can be installed at any point along the rails to account for toilet placement, floor variations, or user preference. All six legs adjust in height independently for uneven floors.
Largest Seat in the Eagle Health Lineup — 20.25"×18.5"
At 20.25" wide and 18.5" deep, the 77963/77993 has the largest seat of any Eagle Health transfer bench. The extra seat area provides more comfort during extended use — particularly relevant when the user spends time at both the toilet and tub ends of the bench during a single bathroom session.
Drainage Holes in Seat
The blow-molded plastic seat includes drainage holes — water passes through the seat during showering rather than pooling. The textured seat surface provides traction when wet. Easy to clean and disinfect between uses.
19" Max Tub/Toilet Clearance
At 19", the 77963/77993 accommodates taller tub walls than the 70311 (18.5") or 80662 (18"). The half-inch difference matters for users with taller jetted tubs or non-standard bath configurations. Verify your tub wall height before ordering.
Tool-Free Assembly · Left or Right
No tools required for assembly. Assembles to face right or left to match the user's approach direction and bathroom layout. The same bench configures either way — no additional hardware. Middle legs install anywhere along the rails without tools.
⚠️ Before Ordering — Measure Your Bathroom
⚠️ Three measurements — all required before ordering. This product is non-returnable.
1. Toilet-to-tub distance: Measure from the outer edge of your toilet to the outer edge of your tub. Under 55" → choose Long (77963). 55"–65" → choose XX Long (77993).
2. Tub wall height: Measure from your bathroom floor to the top of the tub rim. Maximum is 19". If taller than 19", this bench will not span correctly.
3. Toilet height: Standard toilet height is 15"–17". The bench seat adjusts 20.25"–24.25" — verify the seat height will be above your toilet rim for correct over-toilet use.
Call us with all three measurements before ordering: 866-218-0902
Full Specifications
| Part Numbers |
77963 (Long) · 77993 (XX Long) |
| Manufacturer |
Eagle Health Supplies |
| HCPCS Code |
E0247 |
| Weight Capacity |
350 lbs |
| Seat Width |
20.25" |
| Seat Depth |
18.5" |
| Seat Height (adjustable) |
20.25"–24.25" |
| Cutout Size |
10" (L) × 8" (W) |
| Sliding Distance |
29.5" |
| Max Tub/Toilet Clearance |
19" |
| Back Height from Floor |
35"–39" |
| Base Length — 77963 |
54.5"–55.5" |
| Base Length — 77993 |
64.5"–65.5" |
| Safety Belts |
2 — lap belt + chest belt (both included) |
| Legs |
6 adjustable legs · middle legs relocatable anywhere on rails |
| Frame |
Heavy-duty rust-proof aluminum |
| Seat Material |
Blow-molded textured plastic · drainage holes |
| Entry Direction |
Left or right configurable — same bench |
| Assembly |
Tool-free |
| Latex |
Not made with natural rubber latex |
| FSA/HSA Eligible |
Yes |
| Warranty |
1-Year Limited |
| Returns |
⚠️ Non-returnable — hygiene product (once opened) |
✅ FSA / HSA Eligible — Eagle Health 20+ Years in Bath Safety
Both the 77963 and 77993 are eligible for Health Savings Account and Flexible Spending Account purchases. Eagle Health Supplies invented the original sliding transfer bench and has been an innovator in bath safety for over 20 years. We accept HSA and FSA cards directly at all six MDS locations.
Six Southwest Florida Showrooms
Our specialists can help you confirm the correct length (Long vs XX Long) for your bathroom, verify tub clearance, and determine whether the toilet-to-tub bench or a standard tub-only bench is the right product for your situation. Walk-ins welcome. Call ahead to confirm availability.
