EV Rider Transport 4M Manual Fold Lightweight Portable Mobility Scooter S19FM
Installation & Product Guides:
- Added Stability: New 4-wheel design
- Automatic LED lights controlled by a lighting sensor
- Adjustable tiller height
Our Price: $1,995.00
/
Description
EV Rider Transport 4M Manual Fold Lightweight Portable Mobility Scooter S19FM
The EV Rider Transport 4M, a four-wheeled companion, is designed for effortless manual folding, enabling a swift transition from the street to your vehicle's trunk in mere seconds. It boasts a bi-directional throttle, an adjustable tiller height, and customizable armrests and backrest, providing a comfortable and tailored riding experience.Safety is a top priority, featuring an automatic electric braking system, speed reduction capabilities, an auto stop function, and an anti-rollback safety mechanism. Additionally, the integrated LED headlights and tail lights enhance visibility, ensuring safe operation even in dimly lit conditions.
Features
- Added Stability: New 4-wheel design
- Automatic LED lights controlled by a lighting sensor
- Adjustable tiller height
- The front steering sensor reduces speed when making turns for added safety

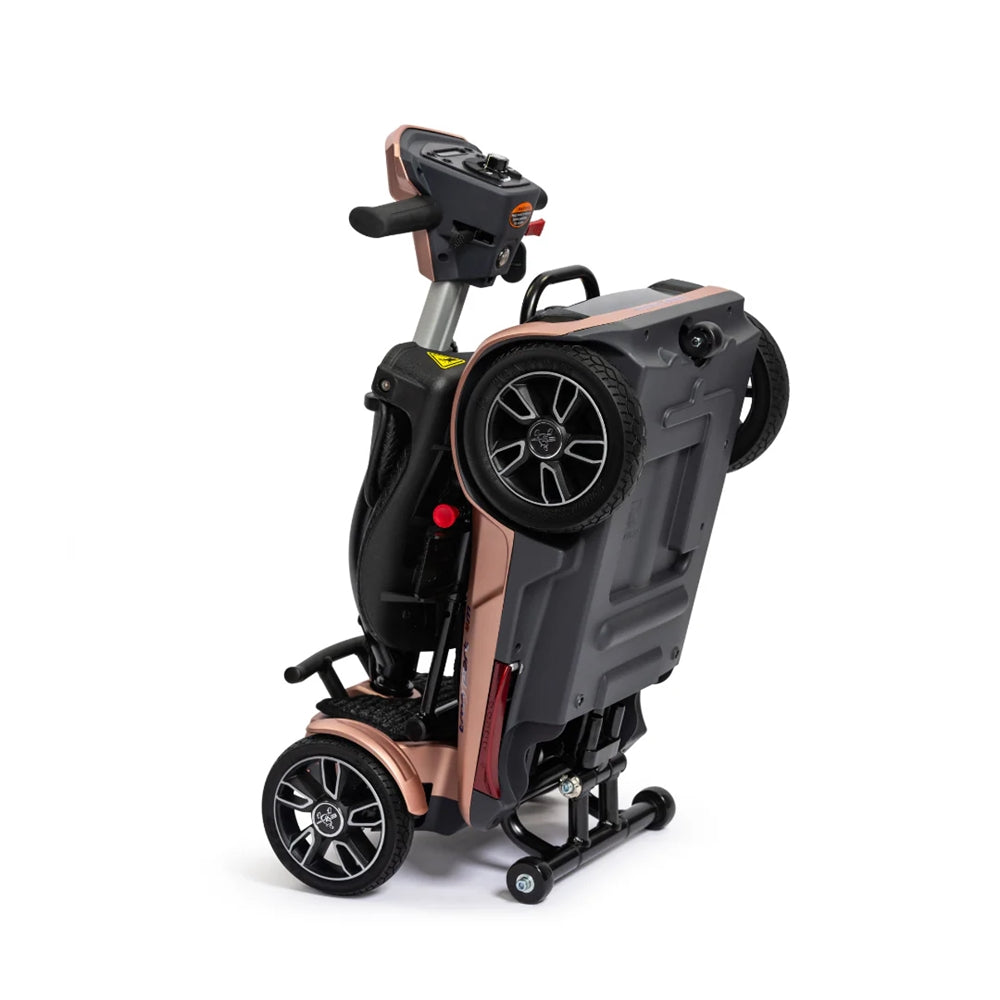

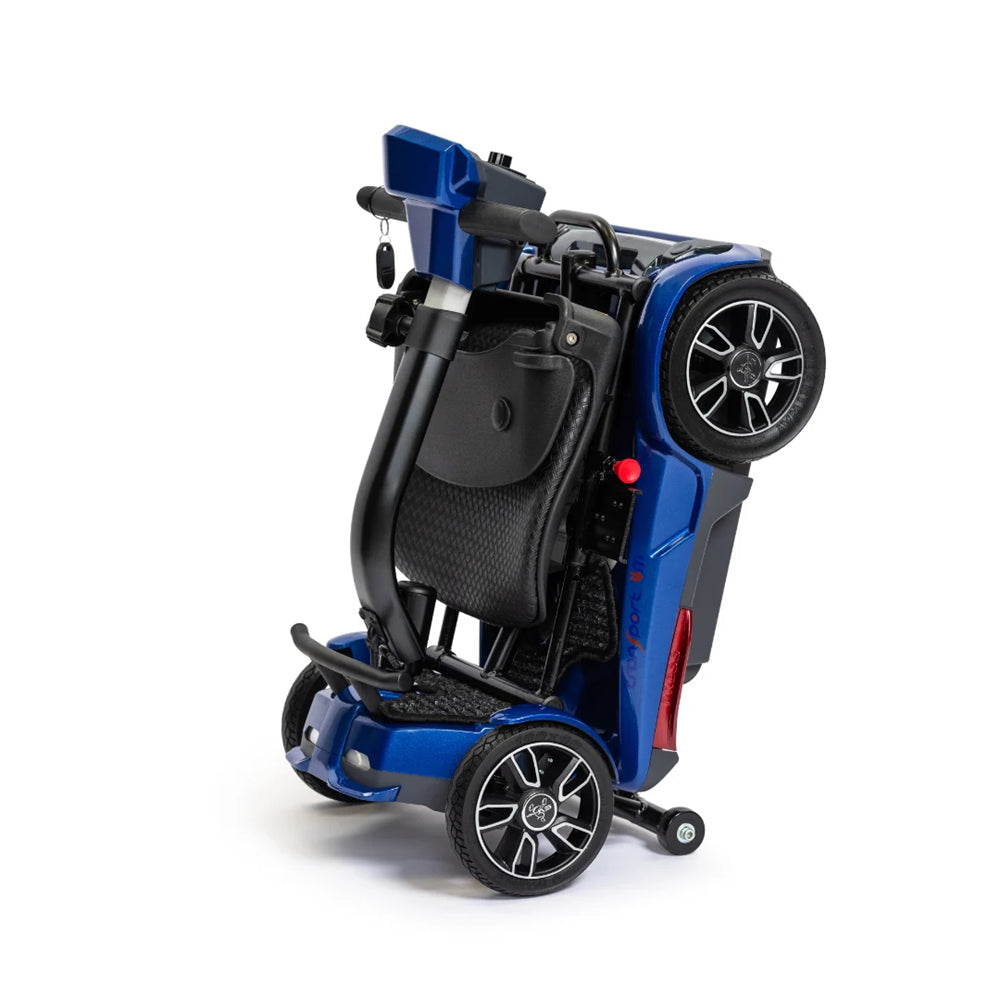

- Folds manually in seconds
- Airline and crui ship approved lithium battery
- Two tone rims
- Weight Capacity: 250 lbs.
- Max Speed: 3.7 mph
- Turning Radius: 41"
Technical Specs
Specifications
- Overall Length: 33.5” / 85 cm
- Overall Width: 23” / 58.5 cm
- Overall Height (Max Tiller): 33.5” / 85 cm
- Overall Height (Min Tiller): 30” / 76 cm
- Legroom (Floorboard Length x Width): 17” / 43 cm
- Deck Height (Floorboard to Floor): 5.9” / 15 cm
- Ground Clearance: 1.4” / 3.6 cm
- Turning Radius: 39.3” / 100 cm
- Weight with Batteries: 55 lbs / 25 kg
- Weight without Batteries: 51.8 lbs / 23.5 kg
- Seat Type: Folding Mobility Seat
- Seat Dimensions (Width x Depth x Height): 15” W x 12” D x 9” H / 38 cm x 30.5 cm x 23 cm
- Seat Cushion Thickness: 1” / 2.5 cm
- Seat Height (Cushion to Deck): 15” / 38 cm
- Seat Height (Cushion to Floor): 19.7” / 50 cm
- Tire Type: Solid Tires
- Rim Type (Rear): Industrial Plastic
- Rim Type (Front): Industrial Plastic
- Rear Tire Diameter: 7.9” / 20 cm
- Rear Tire Width: 2” / 5 cm
- Front Tire Diameter: 7.08” / 18 cm
- Front Tire Width: 1.57” / 4 cm
- Battery Type & Power: 24V 10.05Ah Lithium-Ion x1 (included)
- Brake System: Electromagnetic
- Max Climbing Angle: 3 degrees
- Charger Type: Off-board Li-Ion Charger, 2 Amp 24 VDC, input: 100/240 Vac
- Charging Time: 4 - 6 hours
- Controller: Dynamic R-Series 50A
- Driving Range: Up to 6.8 miles / 11 km
- Load Capacity: 250 lbs / 115 kg
- Motor & Drive Location: 180 watt, 24 volt
- Max Speed: Up to 3.7 mph
- Available Colors: Blue, Silver, Rose Gold, Red
- Tiller Type: T-Shape
- Throttle Control Type: Pot Meter
- Anti-Tipper Wheels (Rear): Rear Casters - Standard
