EZ-ACCESS SUITCASE Advantage Series Ramp
Installation & Product Guides:
- Five ramp lengths, 2, 3, 4, 5, and 6 feet
- Made of strong lightweight aircraft aluminum
- Ramp surface is covered with skid-resistant tape
Our Price: $155.99
/
Description
EZ-ACCESS SUITCASE Advantage Series Ramp

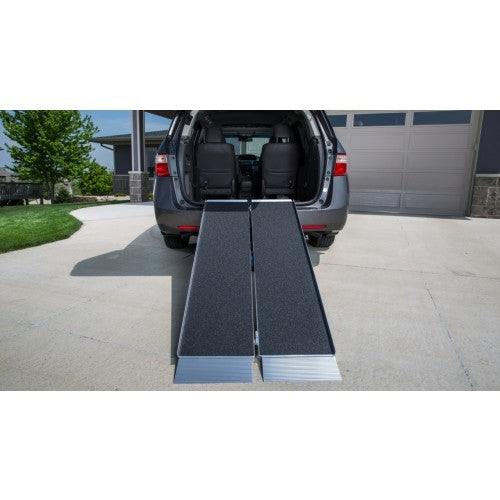

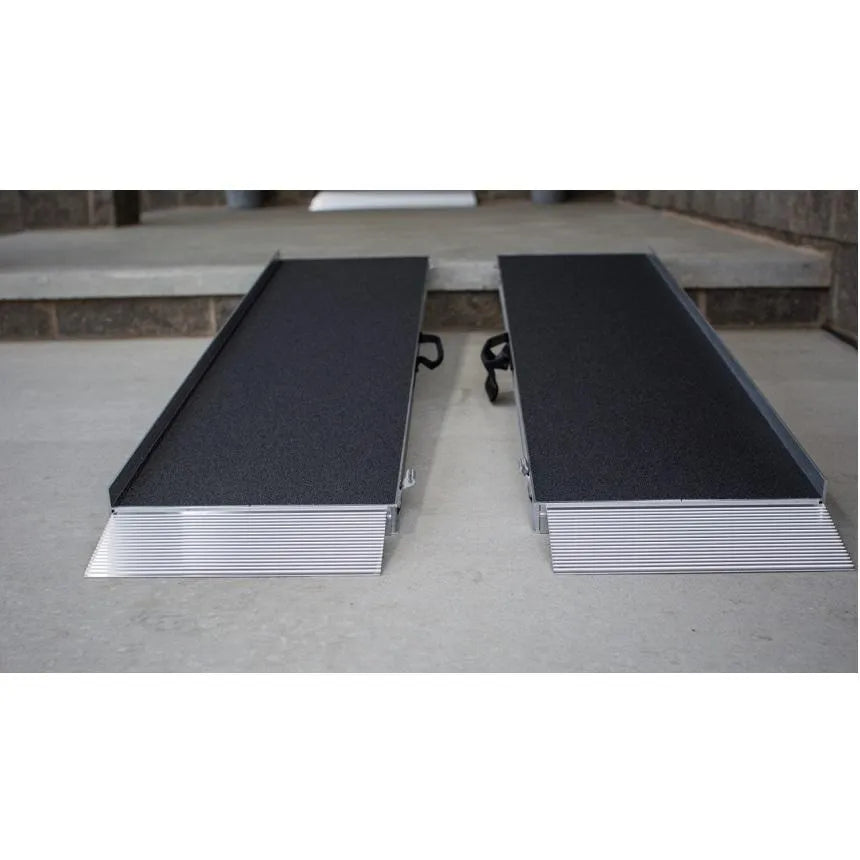

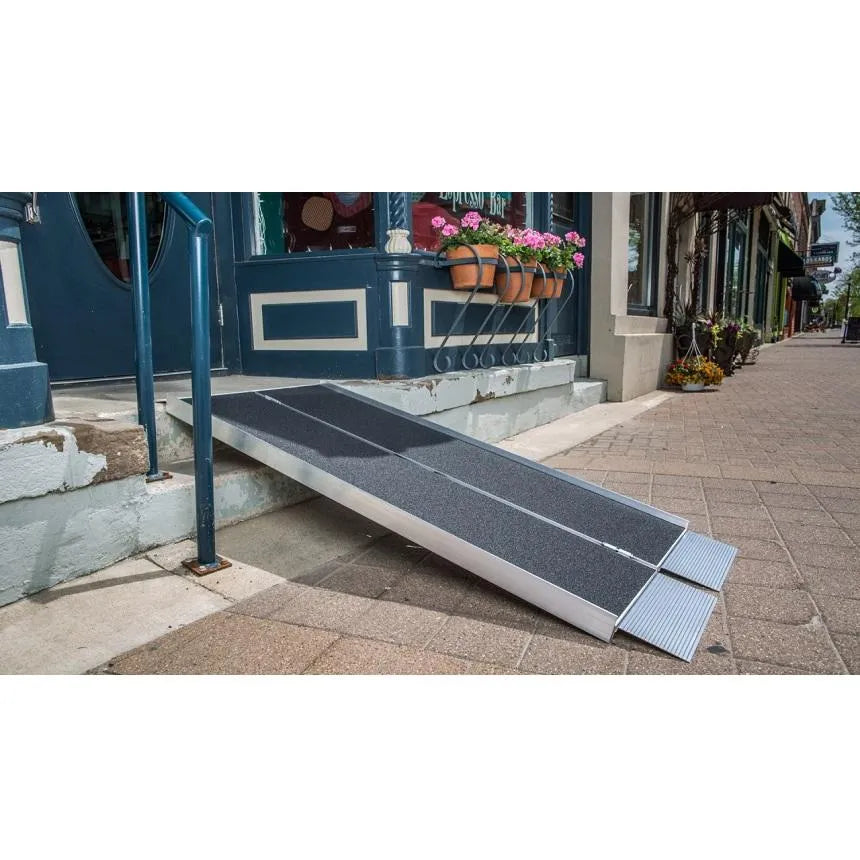

EZ-Access Suitcase Ramps - Advantage Series are single-fold aluminum ramps for scooters and all wheelchair types. Advantage Series ramps are available in five sizes and designed to bridge the gap over steps, curbs, and raised landings as well as some mini vans end or side entrances.Suitcase ramps feature "take anywhere" portability. Its single-fold design sets up quickly and folds in half lengthwise to be carried like a suitcase with convenient attached handle. The self-adjusting bottom transition plate feature allows for smooth, easy conversion from ramp to ground.
Features:
- Five ramp lengths, 2, 3, 4, 5, and 6 feet
- Made of strong lightweight aircraft aluminum
- Ramp surface is covered with high-quality skid-resistant tape
- Each ramp half has yellow safety stripe down outside edge
- Ramp folds in half lengthwise or separates at hinge points with removable pins
- Each ramp half has built-in carrying handle
- Ramp side rail is 2-1/2" in height

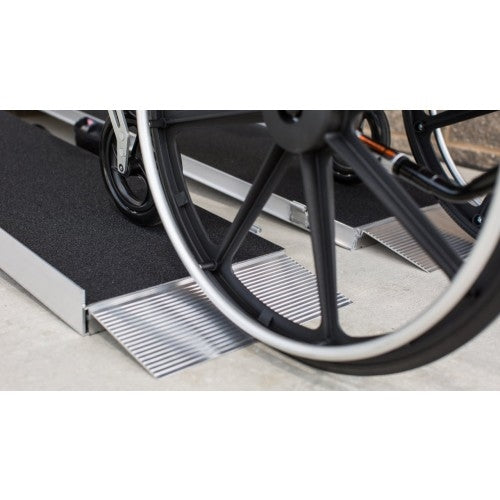

- Each ramp half has self-adjusting 6" long transition plate at bottom
- Each ramp half has 3", solid, angled transition lip at the top
- Each ramp half will accommodate the OPTIONAL 6" Top Lip Extension plate (TLE)
- Ramp halves can be spread apart to accommodate other 4-wheeled units
Technical Specs
Specifications
EZ-ACCESS Advantage Suitcase Ramp Specifications:
Weights & Dimensions
2 ft. accommodates 3"-7" rise Size
- Overall Ramp Length - Front to Back: 24'
- Thickness of Ramp Platform: 7"
- Folded Height - Top to Bottom: 29"
3 ft. Accommodates 3"-10" Size
- Overall Ramp Length - Front to Back: 36'
- Thickness of Ramp Platform: 10"
- Folded Height - Top to Bottom: 29"
4 ft. accommodates 3"-14" rise Size
- Ramp Rise: 48"
- Thickness of Ramp Platform: 14"
- Folded Height - Top to Bottom: 29"
5 ft. accommodates 3"-18" rise Size
- Overall Width - Side to Side: 60"
- Thickness of Ramp Platform: 18"
- Folded Height - Top to Bottom: 29"
6 ft. accommodates 3"-21" rise Size
- Overall Width - Side to Side: 72"
- Thickness of Ramp Platform: 21"
- Folded Height - Top to Bottom: 29"
Additional Weights & Dimensions
- 24-in. Accommodates 3''-7'' rise: 29'' W x 24'' L
- 36-in. Accommodates 3''-10'' rise: 29''W x 36'' L
- 48-in. Accommodates 3''-14'' rise: 29'' W x 48'' L
- 60-in. Accommodates 3''-18'' rise: 29'' W x 60'' L
- 72-in. Accommodates 3''-21'' rise: 29''W x 72'' L
- Product Weight: 12 lbs
