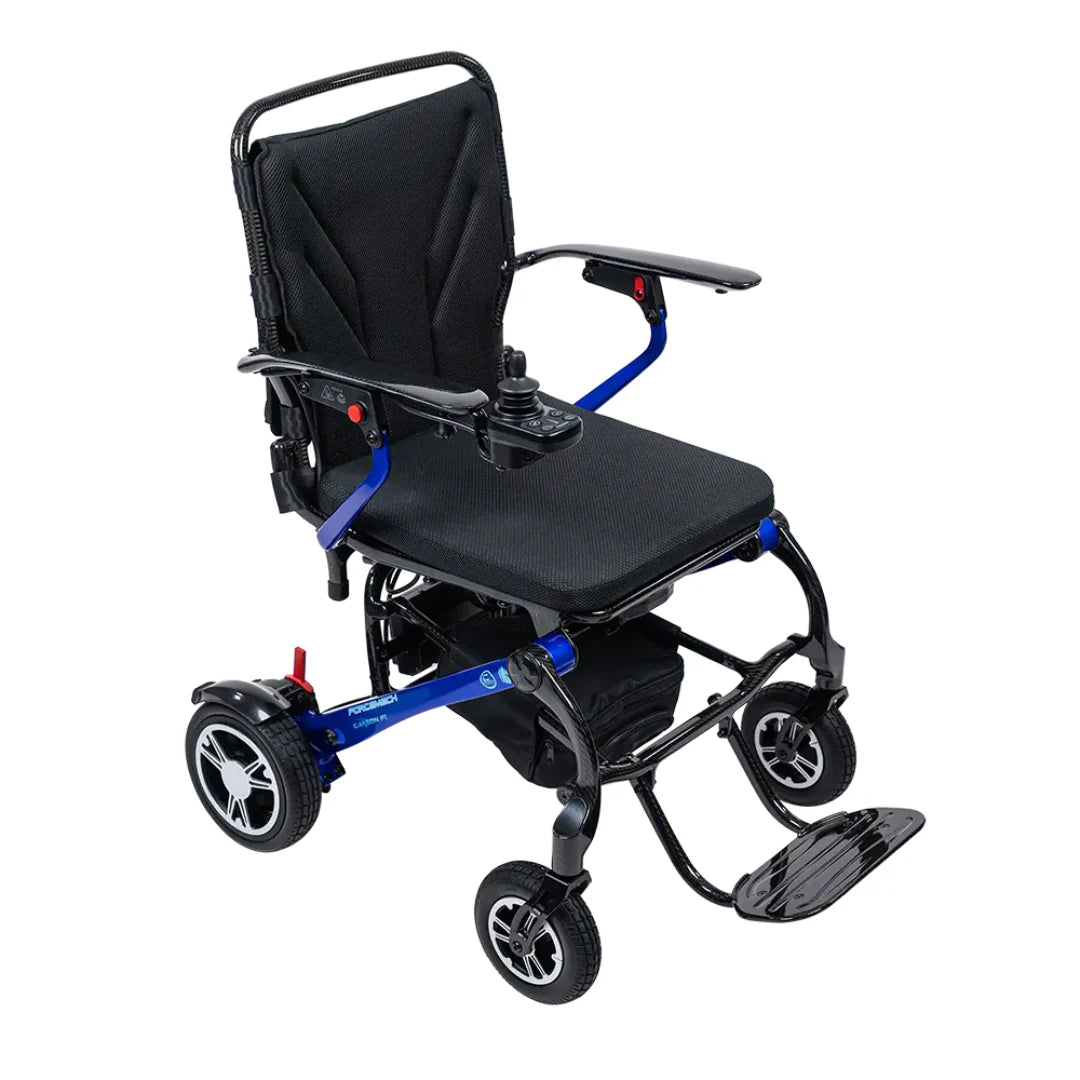

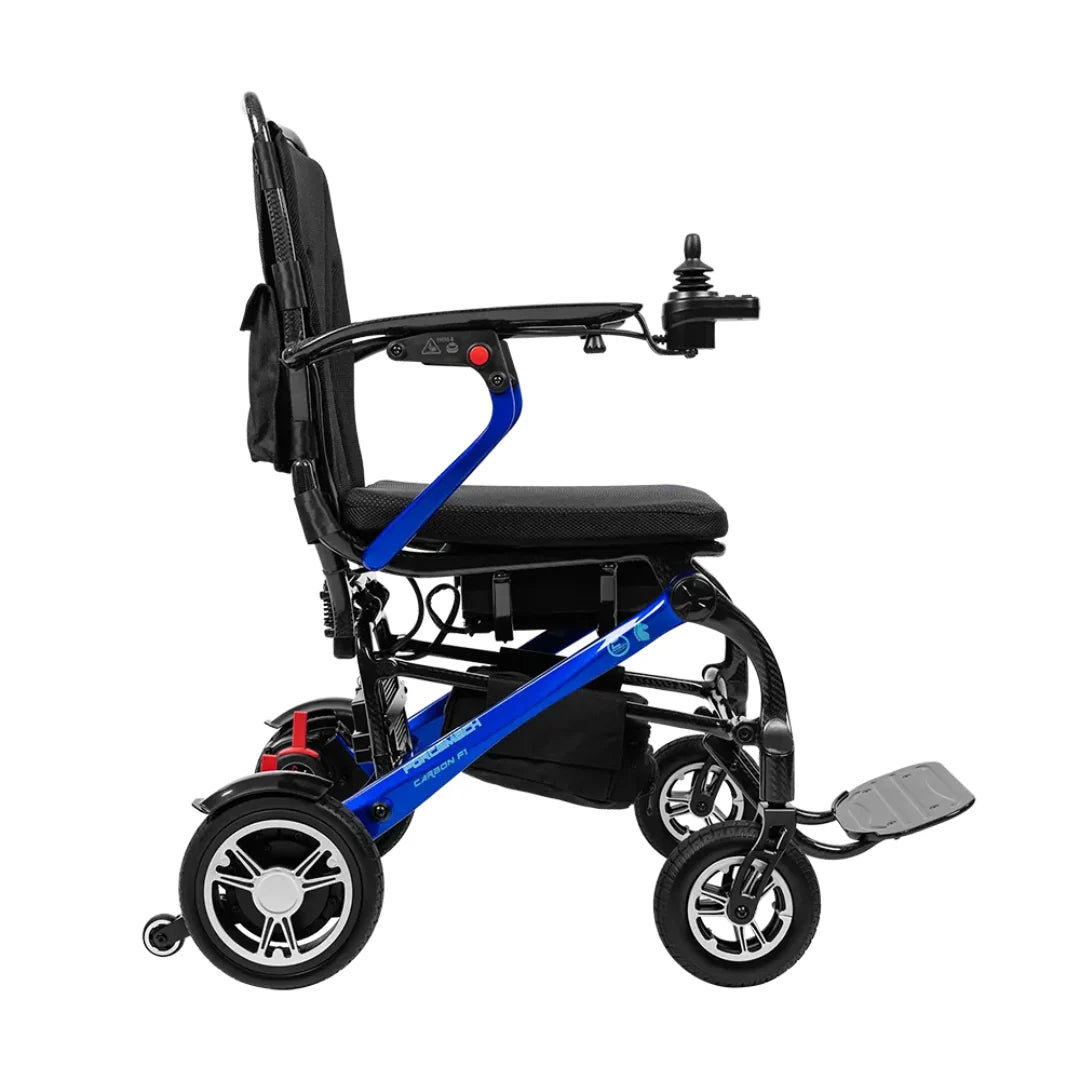

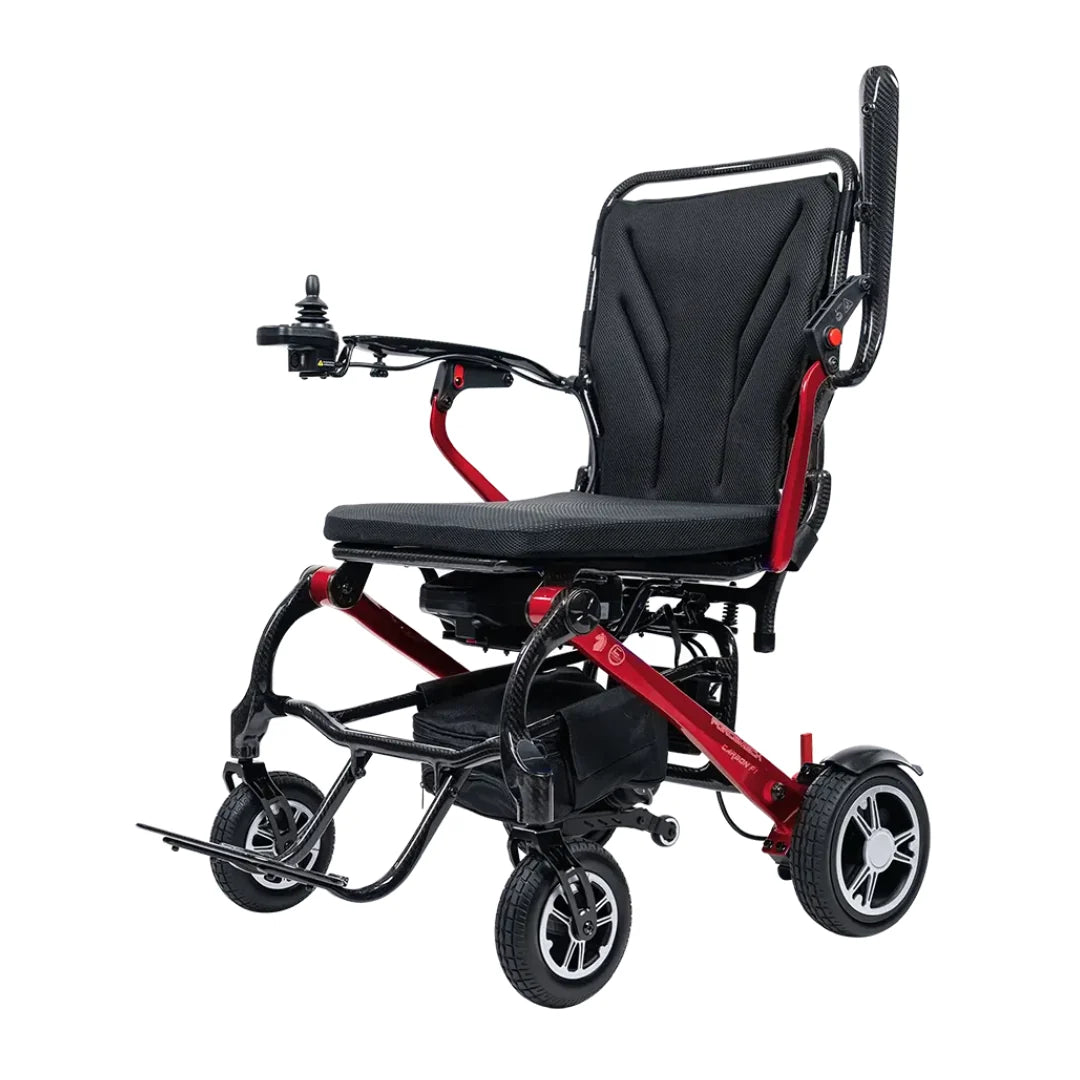

Forcemech Carbon F1 Ultralight Power Wheelchair - Only 33 lbs
/
Forcemech Carbon F1 Ultralight Power Wheelchair – Only 33 lbs
The Forcemech Carbon F1 is engineered for users who demand lightweight mobility without sacrificing structural strength. Built with a precision carbon fiber frame, this ultralight power wheelchair weighs approximately 33 lbs without the battery and around 35 lbs with the battery installed, making it one of the lightest high-performance powerchairs available.
Have questions about lift weight, folding size, or travel use? Call 866-218-0902 or email our mobility specialists for personalized assistance.
Quick Summary: The Carbon F1 is a 33 lb carbon fiber folding power wheelchair with dual 200W motors, a 24V lithium battery system, and up to 10 miles of travel range. Designed for portability and durability, it combines advanced carbon engineering with everyday usability.
Advanced Carbon Fiber Construction
At the core of the Carbon F1 is a high-modulus carbon fiber frame engineered for strength-to-weight efficiency. This construction reduces overall mass while reinforcing high-stress areas, helping maintain long-term durability.
- Frame material: Carbon fiber
- Weight (without battery): approx. 33 lbs
- Total weight (with battery): approx. 35 lbs
- Weight capacity: up to 300 lbs
Compact Folding Design
The Carbon F1 folds into a slim profile for easier storage and transport. Whether placing it into a vehicle trunk or storing it at home, the compact folding dimensions simplify everyday handling.
- Unfolded dimensions: 27" x 24" x 38"
- Folded dimensions: 28" x 24" x 13"
- Lightweight build for easier lifting
- Travel-friendly configuration
Balanced Performance & Stability
Despite its lightweight design, the Carbon F1 delivers dependable performance through dual 24V 200W motors and a 24V 10Ah lithium battery system.
- Maximum speed: up to 4 mph
- Driving distance: up to 10 miles per charge
- Turning radius: 24"
- Ground clearance: 2"
- Climbing ability: up to 9°
Comfort & Ergonomic Positioning
- Effective seat width: 20"
- Seat depth: 17"
- Backrest height: 16.5"
- Seat height from ground: 20"
- Armrest height: 9"
Key Technical Specifications
- Motor: Dual 24V 200W
- Battery: 24V 10Ah Lithium
- Maximum output current (controller): 35A
- Maximum output current (charger): 2A
- Maximum speed forward: ≤ 4 mph
- Driving range: up to 10 miles
- Maximum obstacle height: 1"
Frequently Asked Questions
How much does the Forcemech Carbon F1 weigh?
The chair weighs approximately 33 lbs without the battery and about 35 lbs with the battery installed.
Is the Carbon F1 strong enough for daily use?
Yes. It supports up to 300 lbs and uses reinforced carbon fiber construction for strength and durability.
How far can it travel on one charge?
The Carbon F1 provides up to 10 miles of travel range depending on terrain and user weight.
Is this chair good for travel?
Yes. Its lightweight frame and compact folding design make it suitable for vehicle transport and regular travel use.
Specs
| Drive Range: | 9.30 miles |
| Top Speed: | 3.70 mph |
| Disassembles: | No |
| Heaviest Piece: | 39.6 lbs. |
| Turning Radius: | 24.00" |
| Ground Clearance: | 2.00" |
| Tire Type: | Solid |
| Drive Type: | Front Wheel Drive |
| Foldable: | Yes |
| Legrest Options: | Footplate |
| Seat Options: | Stadium Seat |
| Power Chair Seat Width: | 17" |
| Seat Depths: | 17" |
| Seat to Floor Height: | 20.25 |
| Maximum Seat to Floor Height: | 20.25" |
| Overall Width: | 24.00" |
| Overall Length: | 37.00" |
| Joystick Options: |
Right Left |
| Battery Type: | 24V 12AH (288WH) lithium-ion |
| Batteries Included: | Yes |
| Battery Charger Type: | Off Board |
| Caster Type: | Solid |
| Base Weight: | 39.60 lbs. |
| Battery Pack Weight: | 4.00 lbs. |
| Weight Without Batteries: | 39.60 lbs. |
| Handles Thresholds of 2" or More: | No |
| Handles Thresholds of 2" or Less: | Yes |
