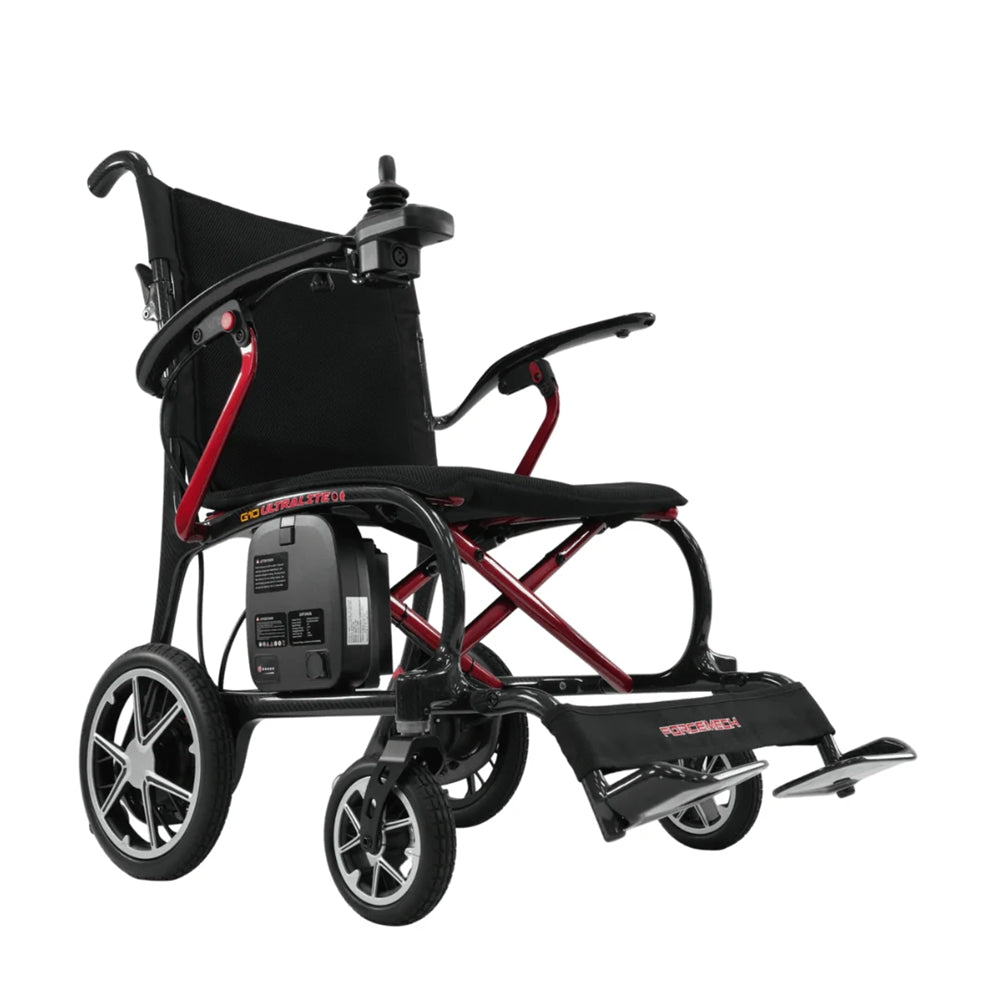

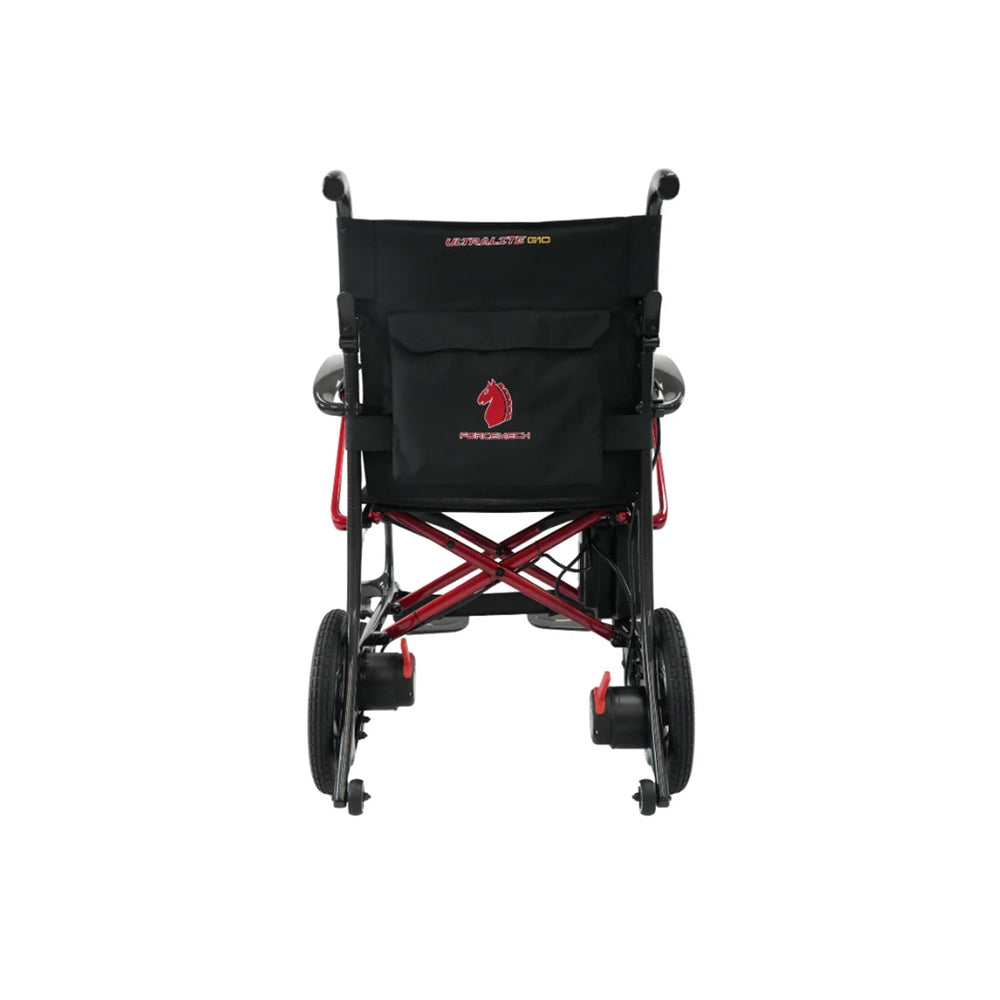

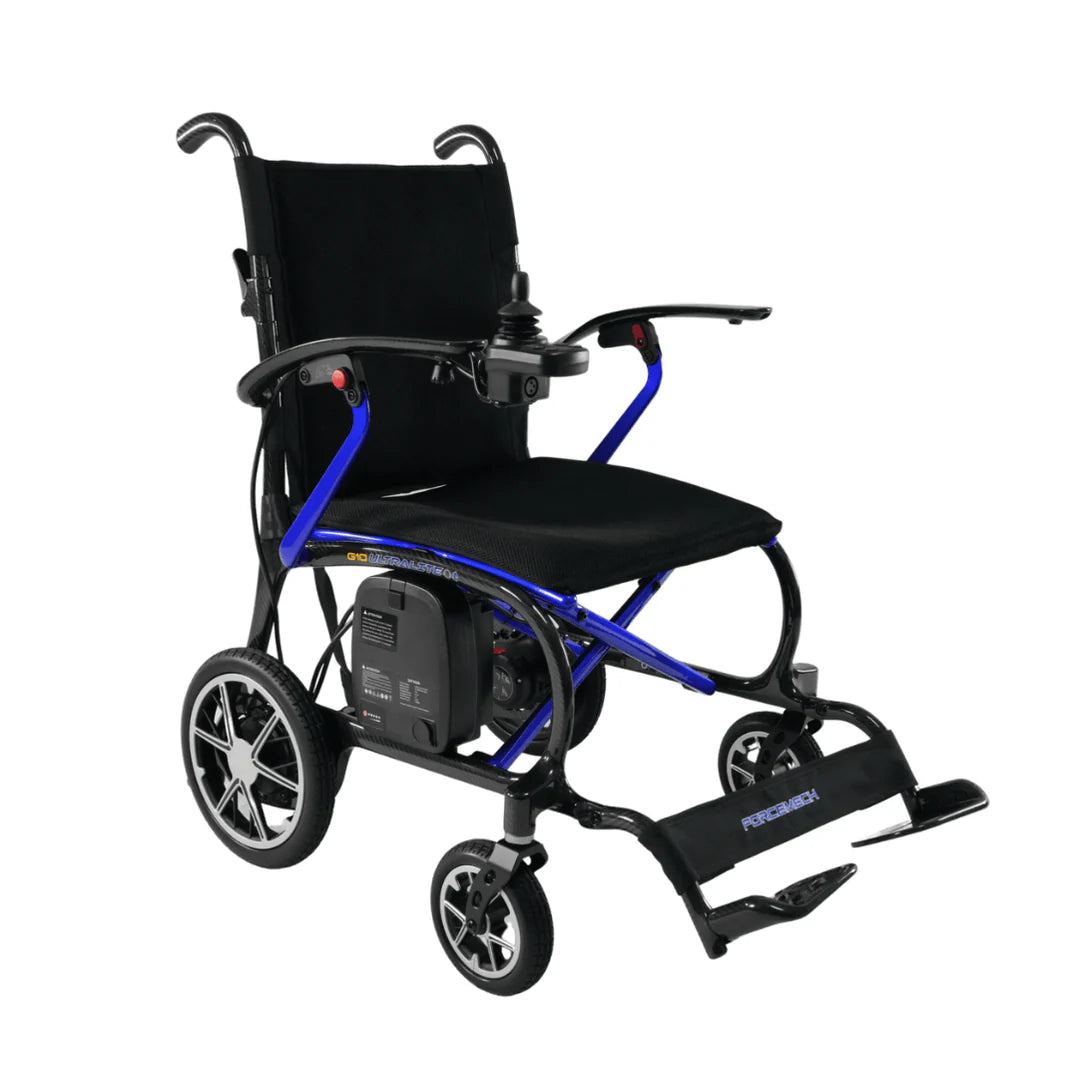

Forcemech Ultralite G10 Carbon Fiber Power Wheelchair
/
Forcemech Ultralite G10 Carbon Fiber Power Wheelchair
The Forcemech Ultralite G10 Carbon Fiber Power Wheelchair is engineered for users who want maximum mobility with minimal weight. Weighing approximately 26 pounds (25.8 lbs without the battery), the G10 stands among the lightest power wheelchairs available today while still supporting up to 300 lbs.
Need help deciding if the G10 is right for your lifestyle? Call 866-218-0902 or email our mobility specialists for personalized assistance.
Quick Summary: The Ultralite G10 is a 26 lb carbon fiber folding power wheelchair with a 300 lb capacity, lithium battery system, and compact travel-ready design. Built for portability without sacrificing durability, it is ideal for everyday mobility and frequent travelers.
Ultra-Lightweight Carbon Fiber Construction
The G10 is built using advanced carbon fiber technology, delivering exceptional strength while dramatically reducing weight. Carbon fiber provides superior rigidity compared to traditional aluminum frames, helping maintain structural integrity without bulk.
- Chair weight: approx. 26 lbs (25.8 lbs without battery)
- Weight capacity: 300 lbs
- Full carbon fiber frame
- Durable metallic finish options

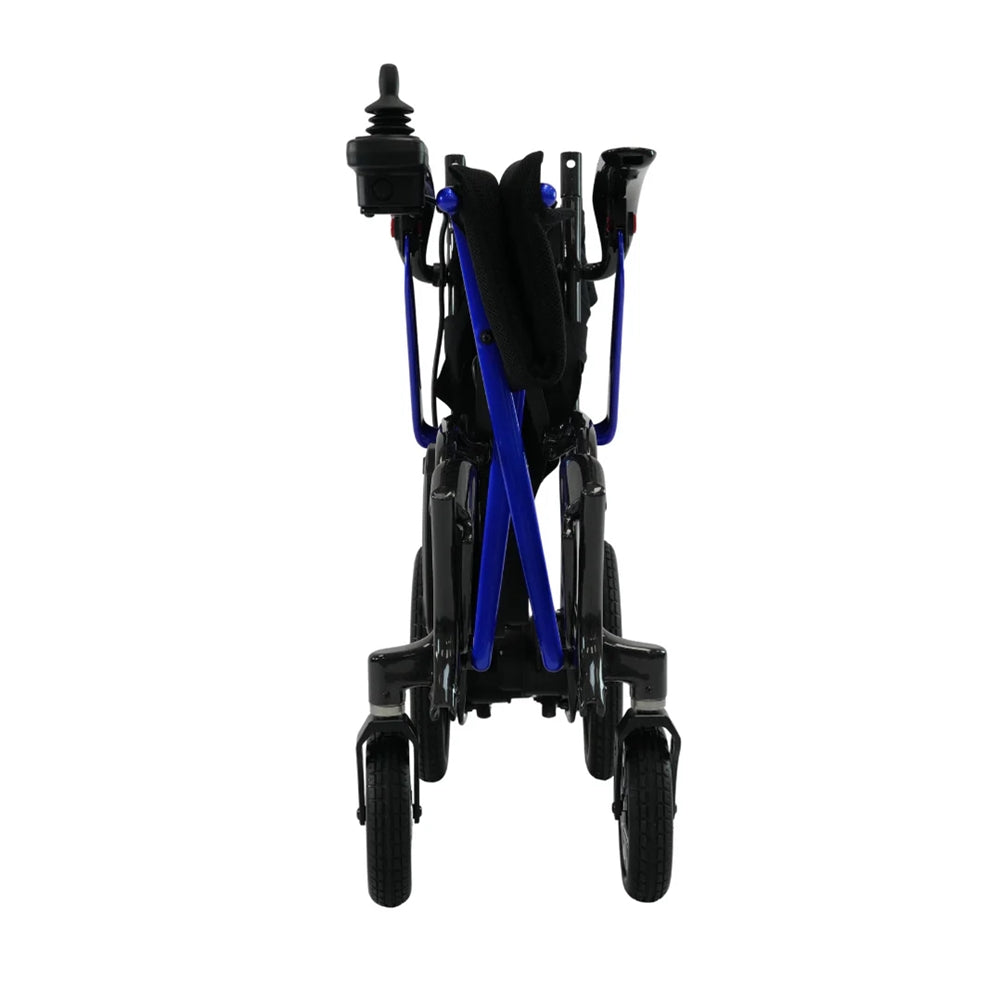

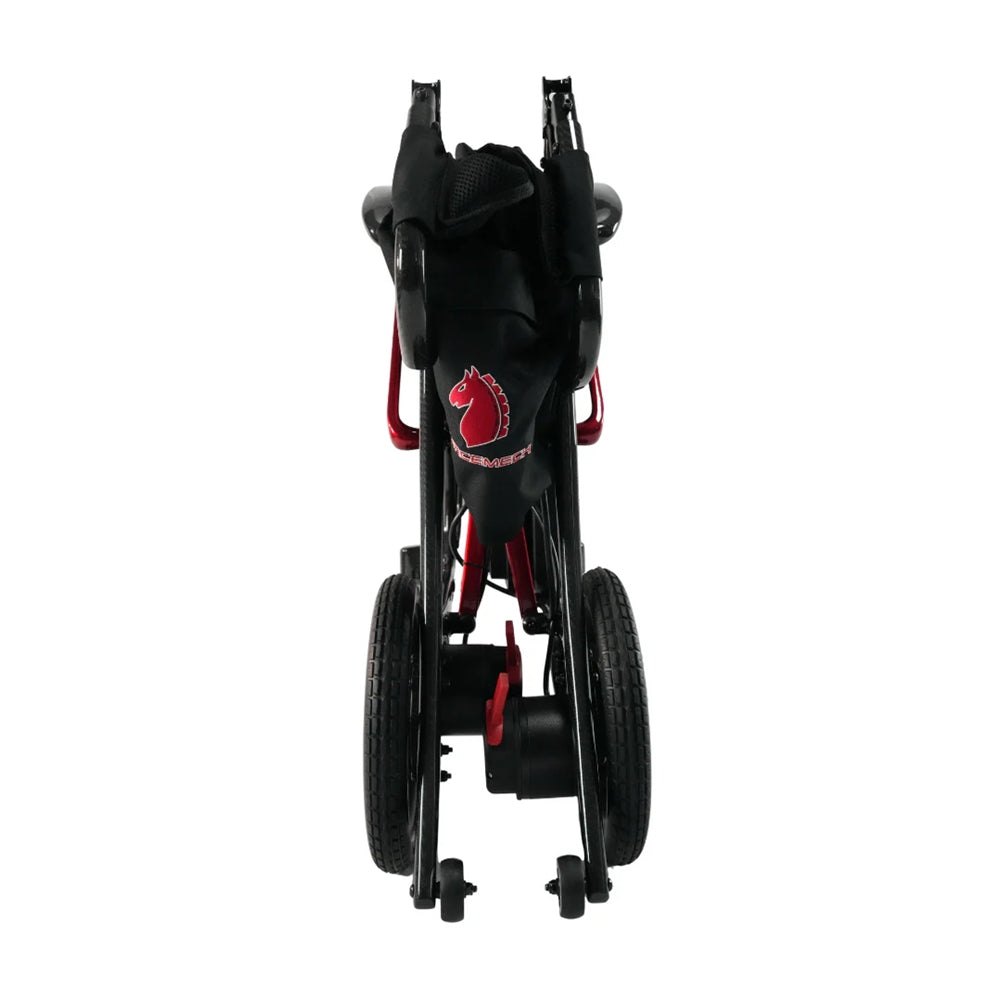

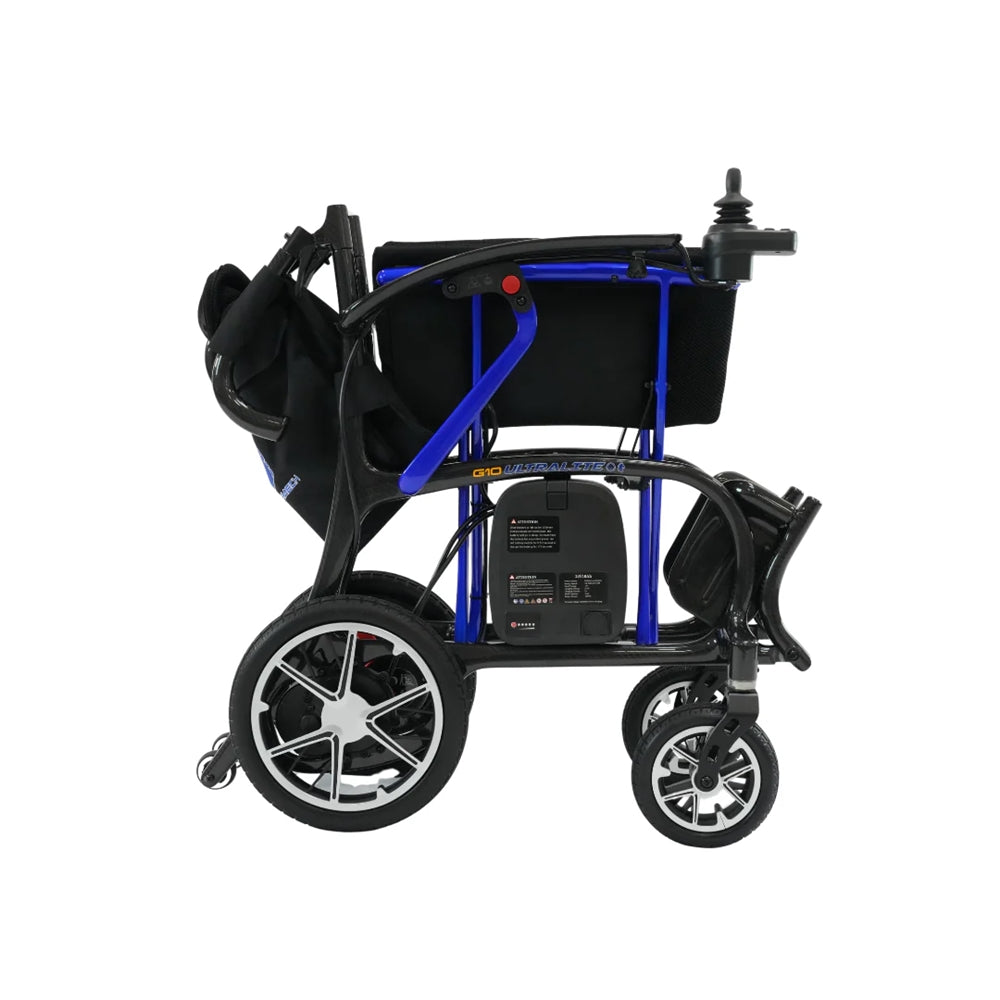

Travel-Friendly Folding Design
Designed for easy transport, the Ultralite G10 folds quickly for storage in vehicle trunks, closets, or cargo compartments. Its compact folded footprint makes it ideal for travel, appointments, and everyday errands.
- Effortless folding mechanism
- Lightweight structure for easier lifting
- Compact design for tighter spaces
Reliable Power & Performance
Despite its minimal weight, the G10 delivers dependable everyday performance. The lithium battery system provides consistent output while keeping overall chair weight low.
- Forcemax lithium battery system
- Smooth responsive control
- Balanced stability for indoor and outdoor use
Designed for Active Lifestyles
The Ultralite G10 is ideal for users who frequently travel or require a chair that can be easily lifted and stored. Whether navigating indoor spaces, loading into a vehicle, or taking it along on a trip, the G10 supports independence without added strain.
Key Specifications
- Weight (without battery): 25.8 lbs
- Total weight (approx.): 26 lbs
- Weight capacity: 300 lbs
- Frame material: Carbon fiber
- Battery type: Lithium
Frequently Asked Questions
How much does the Forcemech Ultralite G10 weigh?
The chair weighs approximately 26 pounds, or 25.8 pounds without the battery installed.
Is the G10 strong enough for daily use?
Yes. Despite its ultra-light frame, it supports up to 300 pounds and is built with high-strength carbon fiber construction.
Is this chair good for travel?
Yes. Its lightweight frame and folding design make it ideal for vehicle transport and frequent travel.
What makes carbon fiber better than aluminum?
Carbon fiber offers higher strength-to-weight performance, allowing the chair to remain extremely light while maintaining durability.
- Overall Dimensions (LWH): 36” x 24” x 35”
- Folded Dimensions (LWH): 29” x 12” x 28”
- Total Weight (with Battery): 27 lbs
- Battery Weight: 2 lbs
- Mass of Heaviest Part: 2.2 lbs
- Pivot Width: 44”
- Reversing Width: 59”
- Turning Radius: 28”
- Ground Clearance: 1.25”
- Required Width of Angled Corridor: 39”
- Required Doorway Entry Depth: 62”
- Required Corridor Width for Side Opening: 35”
- Static Stability: 9°
- Driving Distance: 10 miles
- Dynamic Stability Uphill: 6°
- Climbing Ability: 3°Maximum Climbing Degree: 10°
- Maximum Obstacle Height: 1”
- Maximum Speed Forward: < 4 mph
- Minimum Braking Distance from Max Speed: ≤ 39”
- Seat Plane Angle: 4°
- Effective Seat Depth: 16.5”
- Seat Width: 18”
- Effective Seat Width: 20”
- Seat Surface Height at Front Edge: 17.3”
- Backrest Angle: 8°
- Backrest Height: 17.5”
- Back Support Height: 16.4”
- Distance from Footrest to Seat: 15.3”
- Distance from Footrest to Surface: 3”
- Footrest Length: 4.5”
- Footrest to Leg Angle: 97°
- Leg to Seat Surface Angle: 114°
- Armrest Height: 9.5”
- Front Location of Armrest Structure: 14”
- Armrest Length: 15”
- Armrest Width: 2”
- Armrest Angle: 2.5°
- Audible Noise: ≤ 65 dB (A-weighted)
- Force to Operate Control Devices: Push-button: 2N, Rockers: 5N
- Motor Model: 24V 200W
- Lithium Battery Specification: 24V/10Ah
- Maximum Output Current of Controller: 35A
- Maximum Output Current of Charger: 2A
- Diameter of Movable Wheels/Caster Wheel Diameter: 6.5”
- Diameter of Fixed Wheels/Propelling Wheel Diameter: 11”
- Linear Tolerance: ±2°
- Angular Tolerance: ±2°
- Mass Tolerance: ±4.4 lbs
