Golden Tech GP620M Compass HD Bariatric Power Chair
/
Golden Technologies Compass HD Heavy Duty Power Wheelchair
Model: GP620
450 lb Capacity | 4 mph Top Speed | 12-Mile Range | Center-Wheel Drive | Springless Articulating 6-Wheel System | 20” Turning Radius | Dynamic LiNX 75 Amp Controller | Captain’s Seat (20”–24” widths) | Adjustable Armrests | Elevating Legrests Optional | Off-Board Charging | HSA/FSA Eligible | By Golden Technologies
The Golden Technologies Compass HD GP620 is a heavy-duty power wheelchair designed for users requiring higher weight capacity, reinforced structural support, and precise maneuverability in both indoor and outdoor environments. Built on a center-wheel drive platform with a patented springless articulating 6-wheel suspension system, the Compass HD maintains continuous ground contact across all wheels, improving stability, traction, and obstacle handling. A 450 lb weight capacity positions it as one of Golden’s strongest full-size power chairs, while still maintaining a compact 20-inch turning radius for indoor navigation. The Dynamic LiNX 75 Amp controller delivers smooth acceleration and terrain-responsive handling, automatically adjusting motor output for improved control on slopes and uneven surfaces. With an approximate 12-mile operating range depending on configuration, the Compass HD is designed for full-day mobility use. Multiple seat widths and positioning options allow for customized fit, while the captain’s seat provides long-term comfort and postural support.
Specifications
| Specification | GP620 |
|---|---|
| Drive Range | 12 miles |
| Max Speed | 4 mph |
| Turning Radius | 20" |
| Weight Capacity | 450 lbs. |
| Overall Width | 25" |
| Overall Length | 40" |
| Product Weight | ~209 lbs. |
| Heaviest Piece | ~101 lbs. |
| Seat Width | 20" / 22" / 24" |
| Seat Depth | 20" |
| Seat to Floor Height | ~23" |
| Ground Clearance | 3.5" |
| Drive Type | Center-Wheel Drive (6-wheel articulation system) |
| Battery Type | 2 × NF22 batteries |
| Controller | Dynamic LiNX 75 Amp Remote |
| Suspension | Springless articulating chassis |
| Charging | Off-board charger |
| Lead Time | Ships 2–3 business days |

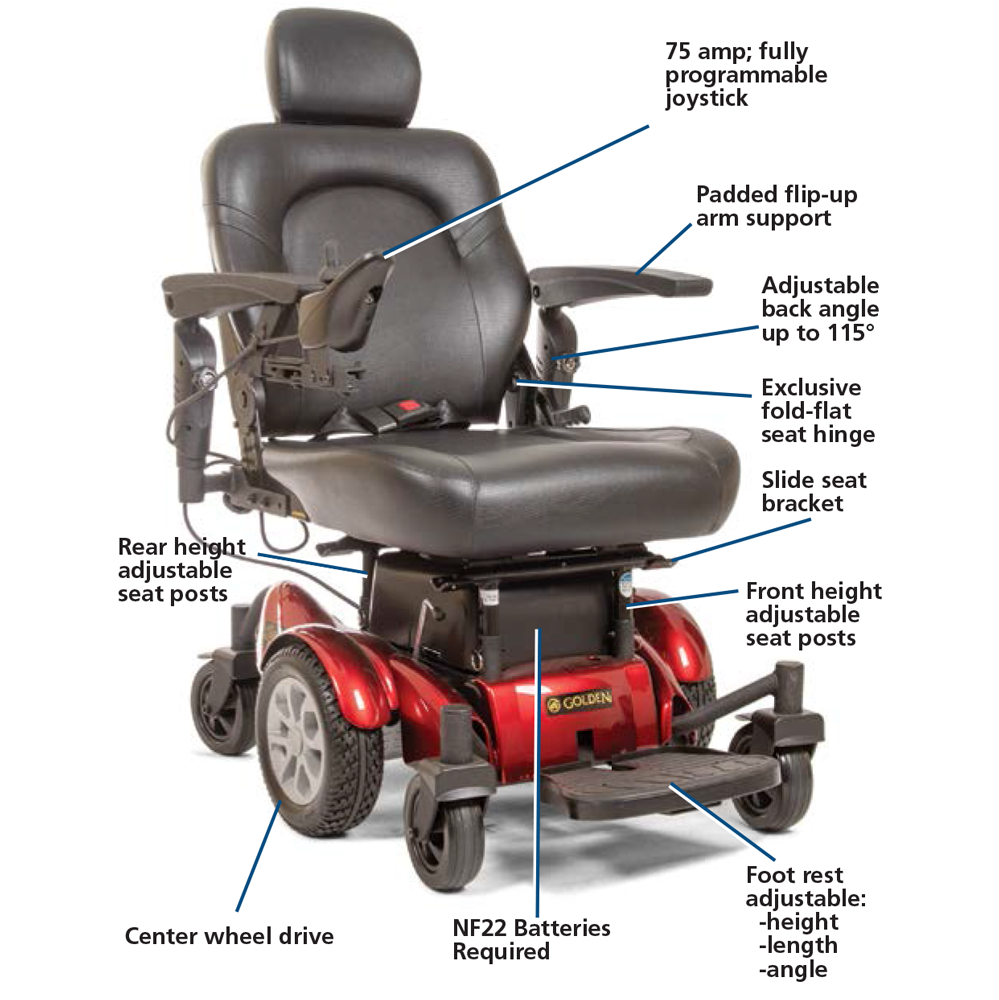

Key Features
- 450 lb heavy-duty capacity — reinforced frame supports bariatric-level users while maintaining stability
- Springless articulating 6-wheel system — keeps all wheels in constant contact for maximum traction and balance
- 20-inch turning radius — tight indoor maneuverability for a full-size heavy-duty chair
- Center-wheel drive stability — improves control and obstacle climbing performance

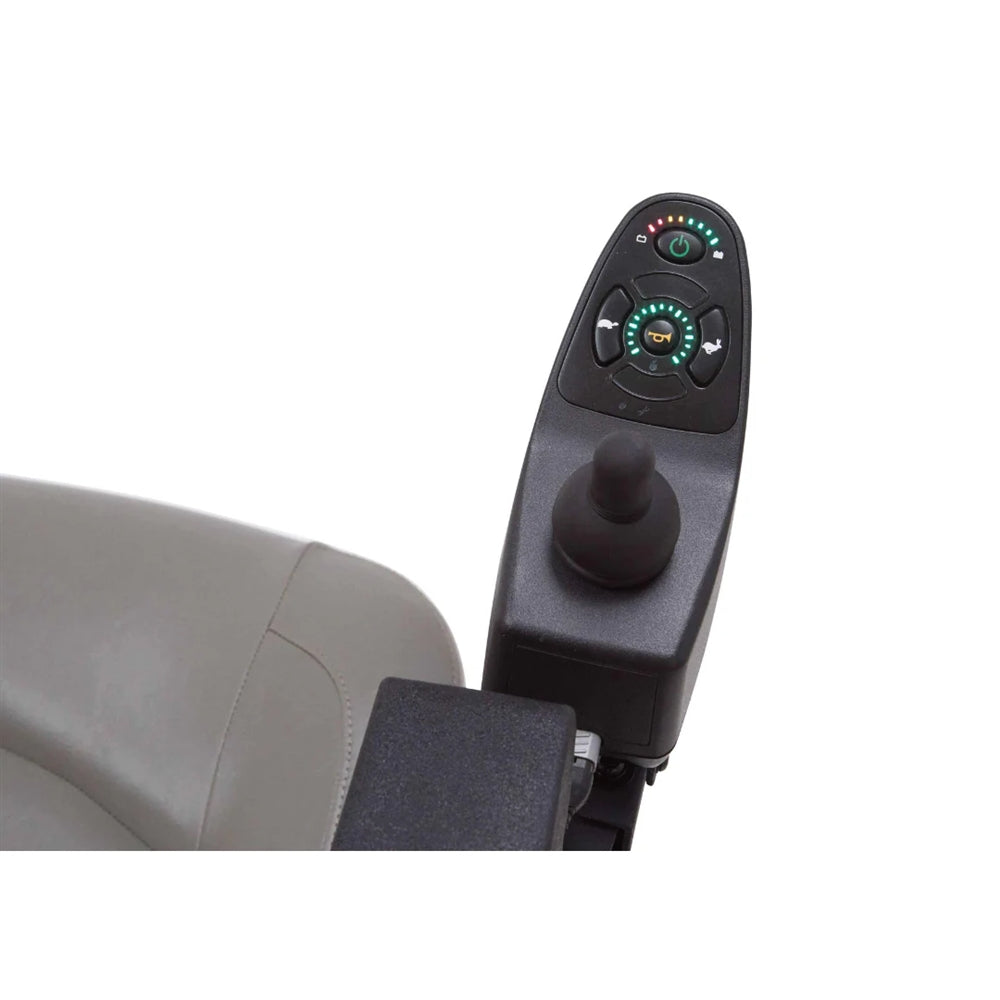

- Dynamic LiNX smart controller — adjusts output based on terrain and load conditions
- Up to 12-mile range — supports full-day mobility use depending on configuration and conditions
- Multiple seat widths (20”–24”) — allows proper fit customization for user comfort
- High-strength chassis design — engineered for durability under heavy daily use
- Captain’s seating system — ergonomic support for extended periods of use
- Elevating legrests & accessories available — customizable comfort and positioning options
- HSA/FSA Eligible | FDA Class II Medical Device | By Golden Technologies
Warranty
- Frame: 5 Years
- Drive Train & Electronics: 13 Months
- Batteries: 1 Year
Clinical FAQs
Is the Compass HD suitable for bariatric users?
Yes. The GP620 is designed specifically for higher weight capacity users up to 450 lbs with reinforced structural components.
How does the center-wheel drive system help?
It improves turning performance and balance by placing the drive wheels at the center of the chassis for tighter maneuverability.
Can it be used indoors?
Yes. Despite its heavy-duty build, the 20-inch turning radius allows effective indoor navigation.
How does it perform outdoors?
It is designed for both indoor and outdoor use with strong traction and stability across uneven surfaces and ramps.
What is the main limitation?
The chair’s weight (~209 lbs) makes transport and vehicle loading more demanding than lighter travel models.
