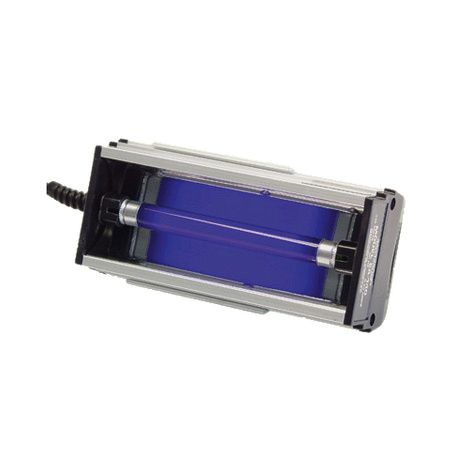

Graham Field Grafco E-Series Hand-Held UV-A Lamp — Silver-Anodized, Integrally Filtered | SKU 2211, 2212, 2213, 2214

Compact, lightweight handheld UV-A lamps for clinical dermatology and diagnostic applications. Silver-anodized aluminum housing is durable and easy to clean. All models use integrally filtered tubes — the filter is built into the tube, not a separate component. Four models cover a range of wattage, tube count, and UV intensity to match your clinical needs. Sold each.

Key Features

• Silver-anodized aluminum housing — durable, attractive, easy to disinfect
• Integrally filtered UV-A tubes — filter built into tube for consistent output
• Compact and lightweight — designed for handheld use in clinical and exam settings
• Range of UV intensity, wattage, and tube configurations across 4 models
• Manufactured by GF Health Products (Graham-Field / Grafco)

SKU Options — Sold Each

• SKU 2211 — One 4W integrally filtered tube | Dimensions: 3-1/4" x 10-1/4" x 2-1/2"
• SKU 2212 — One 6W integrally filtered tube | Peak Intensity: 1,280 µW/cm² at 6" | Dimensions: 3-1/4" x 10-1/4" x 2-1/2"
• SKU 2213 — Two 4W integrally filtered tubes | Dimensions: 3-1/4" x 10-1/4" x 2-1/2"
• SKU 2214 — One 4W integrally filtered assembly

Not sure which model fits your application? Call 866-218-0902 and we'll help you select the right configuration.

Intended Use

UV-A lamps in the E-Series are used in clinical settings for dermatological examination, fluorescence detection, and other applications requiring long-wave ultraviolet light. Always follow your facility's UV safety protocols — appropriate eye protection should be used by both operator and patient during UV exposure.

Important Safety Note

• Never look directly into the UV-A tubes during operation
• UV-protective eyewear required for operator and patient
• Avoid prolonged UV exposure to unprotected skin
• For professional clinical use

Frequently Asked Questions

What is the difference between the 4 models?

The main differences are wattage and tube count. SKU 2211 uses a single 4W tube for lower-intensity applications. SKU 2212 steps up to a single 6W tube for higher peak intensity (1,280 µW/cm² at 6"). SKU 2213 uses two 4W tubes for broader coverage. SKU 2214 uses a single 4W integrally filtered assembly in a slightly different configuration. Call us at 866-218-0902 if you need help matching the right model to your clinical use.

What does "integrally filtered" mean?

Integrally filtered means the UV filter is built directly into the lamp tube itself, rather than being a separate glass or plastic filter in front of the bulb. This ensures consistent UV-A output, eliminates the risk of a loose or cracked filter, and simplifies maintenance.

What wavelength does the E-Series emit?

The E-Series lamps emit long-wave ultraviolet light in the UV-A range (approximately 320–400 nm). They are not UV-B or UV-C lamps. Always confirm the required wavelength for your specific clinical application before purchasing.

Is eye protection required when using these lamps?

Yes. UV-protective eyewear is required for both the operator and the patient during any UV-A exposure. Never look directly into the lamp during operation. Follow your facility's UV safety protocols at all times.

Are replacement tubes available?

Yes — replacement tubes for the E-Series lamps are available separately. Call us at 866-218-0902 and we'll help you identify the correct replacement tube for your model.

Is this lamp for home or clinical use?

The Graham Field Grafco E-Series is designed for professional clinical use in dermatology offices, exam rooms, and medical facilities. It is not intended for unsupervised home use.

Does this lamp require any special power source?

The E-Series lamps operate on standard 120V AC power. No special electrical requirements are needed for typical US clinical settings.
