Harmar Mobility AL105 Swing Away Bracket
/

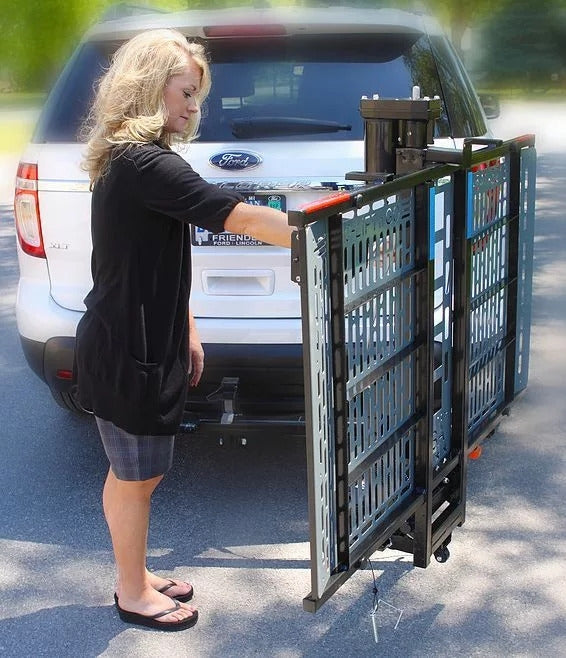

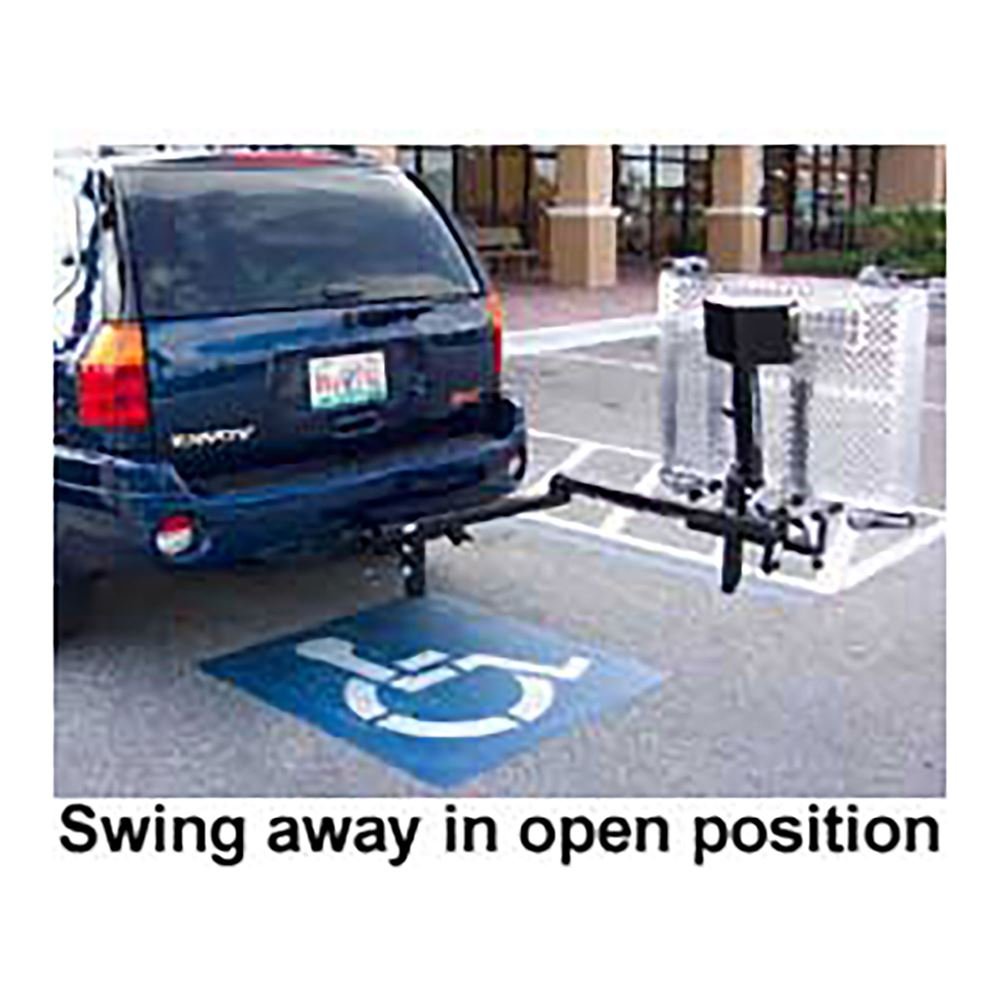

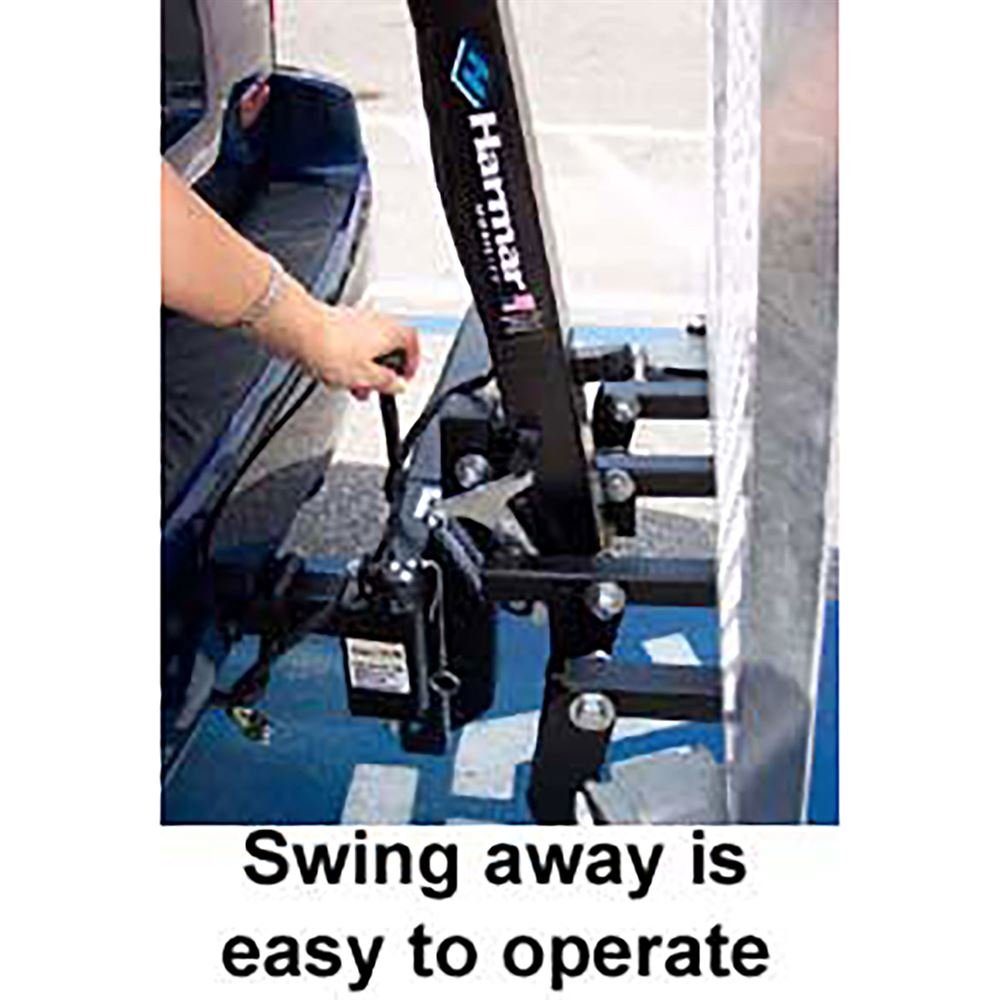

The Harmar AL105 Swing-Away Bracket is the standard swing-away option for Harmar outside lifts — the version that fits every Harmar outside lift in the lineup, including heavy-duty HD models. At a 400 lb capacity rating and ~38 lbs installed, it handles the full range of Harmar hitch-mount lifts without restriction. When the lift is unloaded and folded, pull the easy-grip handle to release the latch and pivot the entire lift assembly aside — trunk, liftgate, and tailgate access restored instantly. Re-engage the latch to lock it back into the travel position. For a lighter option (25 lb) that does not support HD models, see the AL105L →
Key specs:
| Model | AL105 Swing-Away Bracket |
| Capacity | 400 lbs |
| Installed Weight | ~38 lbs |
| Hitch Size | 2" receiver (Class III/IV standard · Class II adapter available) |
| Compatible Lifts | All Harmar outside lifts — including HD models |
| Construction | Powder-coated steel · easy-grip pull handle latch |
| Made in USA | Yes |
| Lightweight Version | AL105L (350 lb · 25 lb · not for HD) → |
AL105 vs AL105L: The AL105 is heavier (~38 lb) but rated to 400 lbs and compatible with every Harmar outside lift including HD models. The AL105L is lighter (25 lb) but limited to 350 lbs and not suitable for HD lifts. If you have an HD lift (AL300HD, AL301XLHD, AL500HD, AL580-HDX, AL425HD), the AL105 is required. If you have a standard lift and prefer less weight to pivot, the AL105L is the right choice.
We are an authorized Harmar dealer. Call us to confirm the right swing-away for your specific lift before ordering.
📞 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM
