Convertible patient transfer chair designed for safe repositioning and early patient mobilization.

  • Converts from stretcher to upright chair
  • Supports safe caregiver transfers
  • Available in standard and bariatric capacities
Our Price: $8,971.00

HumanCare I-Series Convertible Patient Transfer Chair — I-400 & I-700
Description
I-400 · 400 lb I-700 · 700 lb Bariatric Stretcher → Chair · No-Lift

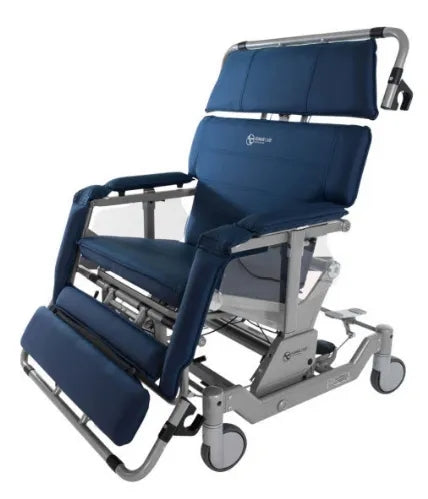

The HumanCare I-Series Convertible Patient Transfer Chair is the institutional-grade line of HumanCare's convertible positioning system — the same stretcher-to-chair conversion technology as the H-250, in two higher-capacity configurations designed for acute care, skilled nursing, and home care environments where patient weight or clinical complexity exceeds the H-250's range. The I-400 (B1041-TS-GEL) supports users up to 400 lbs with a 21" seat. The I-700 (B1071-TS-GEL) is a bariatric-class chair supporting users up to 700 lbs with a 25.5" seat and reinforced frame. Both convert from fully flat stretcher to upright mobile chair in seconds, allow single-caregiver transfers without lifting, provide unlimited Tilt-In-Space repositioning (0°–17°) and back angle adjustment (0°–70°), and are compatible with the HumanCare Patient Transfer System.

Clinical evaluation questions — I-400 vs I-700, PTS compatibility, or institutional purchase? Call 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM

Choose Your Model — I-400 or I-700

I-400 400 lb Capacity Part No: B1041-TS-GEL
Weight Capacity400 lbs (181 kg)
Chair Weight191 lbs (86.6 kg)
Seat Width21" (53 cm)
Overall Width30" (76 cm)
Headrest Adj.0"–5"
Footrest Adj.0"–5"
Frame Height Adj.3.9" (10 cm)
Standard capacity — acute care, home care
I-700 700 lb Bariatric Capacity Part No: B1071-TS-GEL
Weight Capacity700 lbs (318 kg)
Chair Weight206 lbs (93.4 kg)
Seat Width25.5" (65 cm)
Overall Width35" (89 cm)
Headrest Adj.0"–5"
Footrest Adj.0"–5"
Frame Height Adj.—
Bariatric — up to 700 lbs
✓ Shared Specifications — Both I-400 and I-700
0°–17°Tilt Range
0°–70°Back Angle
✓Trendelenburg
5.9"Castors
27.5"Prone Height
51"Wheelchair Height
✓No Sling Required
1Caregiver Needed

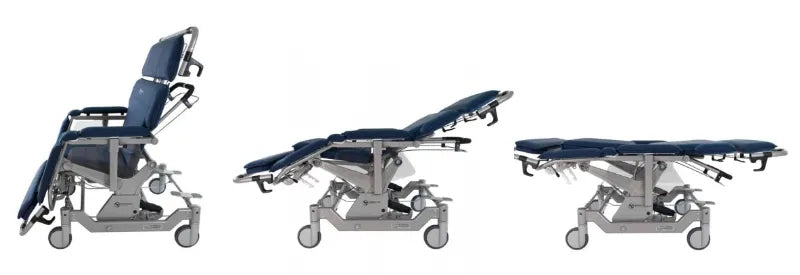

How It Works — Stretcher to Chair

The I-series conversion sequence is the same as the H-250 — the patient never leaves a supine position to enter the chair:

  1. Position chair flat beside the patient's bed, adjusted to matching height. The chair is in stretcher mode — fully horizontal.
  2. Transfer patient horizontally using the HumanCare Patient Transfer System (PTS), slide sheet, or air-assisted lateral transfer device. No lifting required — patient moves at the same level from bed to chair.
  3. Secure patient — headrest, armrests, and footrest are positioned and secured before initiating conversion.
  4. Convert to chair — caregiver operates the adjustment levers to raise the backrest from 0° (supine) to the desired upright angle. Patient rises from flat to seated without being lifted at any point.
  5. Apply brakes or steer — central brake system locks all four castors; steering lock enables directional control for corridor and room navigation.
No sling placement — no wound interference. Because the I-series chair accepts the patient in supine position, no sling is placed around the patient's body. For patients with existing pressure injuries, post-surgical wounds, or fragile skin, this eliminates a significant source of friction, shear, and discomfort at wound sites that traditional sling-based mechanical lift transfers create.

Key Features — Both Models

Stretcher-to-Chair Conversion Converts from fully flat (0° back angle) to fully upright (70° back angle) and any intermediate position. Patient enters in supine position — the chair rises around them rather than placing them into a seated chair.
Single-Caregiver Transfer Designed for one caregiver to manage the entire sequence from bed positioning through horizontal transfer to upright conversion. Reduces caregiver injury risk and eliminates multi-staff coordination for routine transfers.

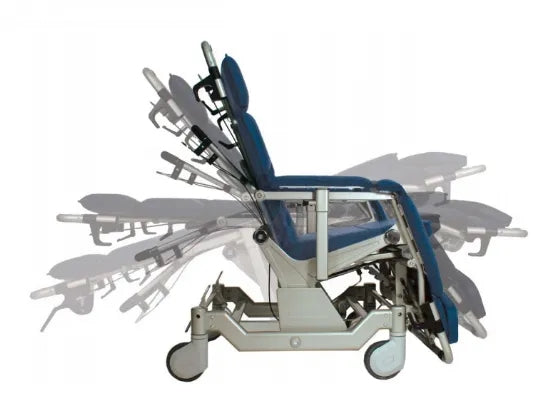

Tilt-In-Space 0°–17° Tilt-In-Space redistributes pressure while maintaining hip, knee, and ankle joint angles — the correct clinical intervention for routine pressure relief during extended seating. Used as frequently as needed throughout the day without repositioning the patient into a different chair.
Back Angle 0°–70° Full range from completely supine (transfer position) to upright (activity position). Intermediate angles for meals, therapy, comfort, and respiratory management. Adjusted by caregiver via positioning levers.
Trendelenburg Positioning Feet-above-head positioning available for vascular management, circulatory support, and specific clinical indications. Both I-400 and I-700 are Trendelenburg capable as part of the full positioning range.
Central Brake + Steer Lock Four-caster braking system with central control — one action locks all four castors simultaneously. Steer lock function enables directional control during navigation through corridors and between patient rooms. Significantly different from standard wheel locks on transport chairs.
Patient Transfer System (PTS) Compatible Both models are compatible with the HumanCare PTS add-on — a dedicated transfer aid that further simplifies the horizontal transfer step from bed to chair. PTS is available as an optional add-on. Also compatible with standard slide sheets and air-assisted lateral transfer mats.
Adjustable Headrest and Footrest Headrest adjusts 0"–5" above the backrest — appropriate for users with limited or no head control. Footrest adjusts 0"–5" for lower extremity positioning in both prone transfer position and seated upright position.
Gel Seat — Standard Both I-400 and I-700 include a gel seat cushion as standard (indicated by the -GEL suffix in the part number). Gel seat provides meaningful pressure redistribution benefit for patients spending extended time in the chair between transfers.
ISO 13485 — CE Marked Medical Device HumanCare is ISO 13485:2016 certified. The I-series is CE marked as a Class I medical device, tested to ISO7176-1:2016 and EN12182:1999. Designed and manufactured to comply with US 21 CFR Part 820.

Full Specifications — Both Models

Specification I-400 (B1041-TS-GEL) I-700 (B1071-TS-GEL)
Weight Capacity 400 lbs (181 kg) 700 lbs (318 kg)
Chair Weight 191 lbs (86.6 kg) 206 lbs (93.4 kg)
Seat Width 21" (53 cm) 25.5" (65 cm)
Overall Width 30" (76 cm) 35" (89 cm)
Overall Length — Prone 72.5"–78.5" (184–199 cm) 72.5"–78.5" (184–199 cm)
Overall Length — Wheelchair 45.5"–62.5" (115–159 cm) 45.5"–62.5" (115–159 cm)
Overall Height — Prone 27.5" (70 cm) 27.5" (70 cm)
Overall Height — Wheelchair 51" (130 cm) 51" (130 cm)
Back Angle 0°–70° 0°–70°
Tilt-In-Space Range 0°–17° 0°–17°
Trendelenburg Yes Yes
Headrest Adj. Range 0"–5" (0–12.7 cm) 0"–5" (0–12.7 cm)
Footrest Adj. Range 0"–5" (0–12.7 cm) 0"–5" (0–12.7 cm)
Frame Height Adjustment 3.9" (10 cm) —
Castors 5.9" (15 cm) 5.9" (15 cm)
Brake System Central brake — all 4 castors Central brake — all 4 castors
Steering Steer lock function Steer lock function
Seat Cushion Gel — included standard Gel — included standard
Sling Required No No
PTS Compatible Yes (optional add-on) Yes (optional add-on)
Certification ISO 13485:2016 · CE Marked Class I · ISO7176-1:2016 · EN12182:1999
Care Setting Acute care, post-acute, home Acute care, bariatric units, home

The Full HumanCare Convertible Chair Family

Three Models — Which One Is Right?
Model Part # Capacity Seat Width Chair Weight Best For
H-250 B1002-BL 250 lbs 17" 123 lbs Home care; lighter patients; easier caregiver maneuvering
I-400 B1041-TS-GEL 400 lbs 21" 191 lbs Acute care / post-acute; standard adult patients up to 400 lbs
I-700 B1071-TS-GEL 700 lbs 25.5" 206 lbs Bariatric patients; highest-capacity no-lift convertible available

All three use the same stretcher-to-chair conversion concept. Selection is driven by the patient's weight, seat width requirements, and care setting. Call us to confirm: 866-218-0902

Who the I-Series Is For

  • Acute care settings where early mobilization protocols are in place and nursing staff need a one-person transfer solution for non-ambulatory patients
  • Skilled nursing facilities managing patients with complex positioning needs, pressure injuries, or weight that exceeds standard transfer equipment capacity
  • Bariatric care (I-700) — patients above 400 lbs who require a no-lift transfer solution; the I-700 at 700 lbs is the highest-capacity no-lift convertible chair available
  • Home care for high-dependency patients — family caregivers managing patients who cannot participate in standard transfers and require a supine-entry chair that one person can operate
  • Patients with existing pressure injuries or wounds — eliminating sling-based transfers removes friction, shear, and direct pressure at wound sites during every transfer event
  • Post-ICU and step-down care — patients transitioning from intensive care environments who are cleared for out-of-bed activity but cannot tolerate mechanical sling lifts
Note on chair weight for home care: The I-400 weighs 191 lbs and the I-700 weighs 206 lbs. These are institutional-grade chairs designed for facility environments with dedicated caregiving staff and wide corridors. For home care with a single caregiver, the H-250 (123 lbs, 24" overall width) may be more practical if the patient's weight is within its 250 lb capacity. Call us to discuss which model fits your specific home layout and caregiver situation: 866-218-0902

Warranty

✅ HumanCare Warranty HumanCare products are warranted against defects in materials and workmanship. ISO 13485:2016 certified manufacturer. Call us for warranty terms, service support, and PTS accessory availability: 866-218-0902

Six Southwest Florida Showrooms

Our RESNA ATP/SMS-certified specialists can help determine whether the I-400 or I-700 is appropriate for your patient's weight and care setting, discuss PTS compatibility, and assist with institutional purchase processes. Call ahead for clinical consultations.
