Invacare Tracer EX2 Deluxe Wheelchair
Our Price: $299.97
/
Description
Invacare Tracer EX2 Deluxe Wheelchair
Special 16", 18" and 20" All Sizes and widths at no extra charge!The Invacare Tracer EX2 Deluxe wheelchair is a high quality standard wheelchair that offers options not available on any other standard weight chair that we carry, including a hemi seat-to-floor height, for those users who propel with their feet. Choose from desk length or full length arm rests and a full range of accessories. Standard features include 8" solid rubber casters, composite handrims, black vinyl upholstery, padded armpads and wheel locks. The frame is covered by a lifetime warranty.
Features:
- Removable armrests and swing-away footrests standard
- 16", 18" and 20" widths at no extra charge

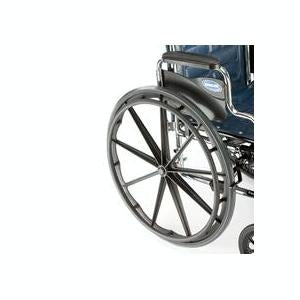

- Solid urethane rear tires and 24" composite wheels
- Full range of options including oxygen tank holders and multiple legrests
- Weight Capacity 250lbs
Technical Specs
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the arm pit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90 degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
Specifications
Invacare Tracer EX2 Deluxe Wheelchair Specifications:
| Weight Capacity: | 250 lbs |
| Weight | 36 lbs. |
| Shipping Weight: | 45 lbs |
| Seat Width | 18″, 16″, 20″ |
| Seat Depth: | 16″ |
| Back Height | 16″ |
| Seat-to-Floor Height: | 19.5 ″, 17.5″ (dual axle) |
| Overall Height | 36″ |
| Overall Width: | 26.5″, 24.5″, 28.5″ |
| Overall Length | 32″ |
| Folded Width: | 12.5″ |
| Front Wheel Size | 8″ |
| Rear Wheel Size: | 24″ Composite |
| Armrests | Desk or Full Length Padded (Removable or Non-Removable) |
| Footrests: | Composite Swingaway or Elevating. Removable |
| Upholstery | Midnight blue vinyl |
| Frame: | Siver |
| Medicare HCPCS Code | K0001/K0002 |
| Warranty: | Five year warranty on frame and crossbraces. |
