Invacare Tracer IV 20 Inches Desk-Length Arms Wheelchair hello
Installation & Product Manuals:
- Weight: 44 lbs
- Reinforced Frame Includes Gussetted Side
- Available in 350 lbs. or 450 lbs
Our Price: $539.97
/
Description
Invacare Tracer IV 20 Inches Desk-Length Arms Wheelchair Hello Hi

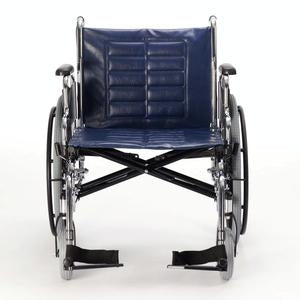

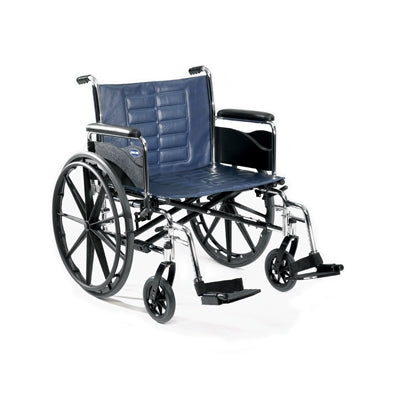

Invacare Tracer IV 20 Inches Desk-Length Arms Wheelchair combines a reinforced, heavy-duty carbon steel frame which includes gusseted sides, caster journals and dual crossbraces.
Features superior durability, rollability and streamlined looks. It is designed for the active individual who needs the strength of a reinforced heavy-duty frame.
Why to buy Invacare Tracer IV Wheelchair?
- Long-lasting
- Requires low-maintenance
- Heavy-duty inner liners keep seat and back from stretching
- Attractive, silver vein finish
Invacare Tracer IV Wheelchair Features
- Dual axle position that allows variation of seat-to-floor height
- Padded, desk-length arms for added comfort
- 14-gauge crossbraces add durability and strength

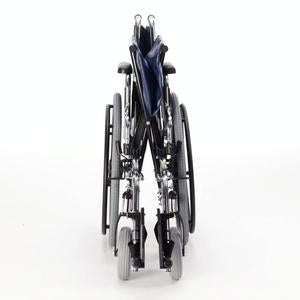

- Folds to 13" wide for convenient travel and storage
Technical Specs
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the arm pit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90 degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
Specifications
Invacare Tracer IV Wheelchairs Specifications:
| Weight Capacity | 350 lbs., 450 lbs. |
| Weight | 42 lbs. |
| Seat Width | 20″, 22″, 24″ |
| Seat Depth | 18″, 20″ |
| Back Height | 16″ fixed |
| Seat-to-Floor Height | 20″ |
| Overall Width | 27″, 29″, 31″ |
| Upholstery | Blue Vinyl |
| Footrests | Swingaway or elevating footrests |
| Medicare HCPCS Code | K0007 |
| Warranty | Limited five-year warranty |
