Invacare Tracer SX5 Recliner Wheelchair
Installation & Product Guides:
- Weight capacity: 250 lbs
- Weight: 53 lbs
- State-of-the-art reclining mechanism
Our Price: $649.97
/
Description

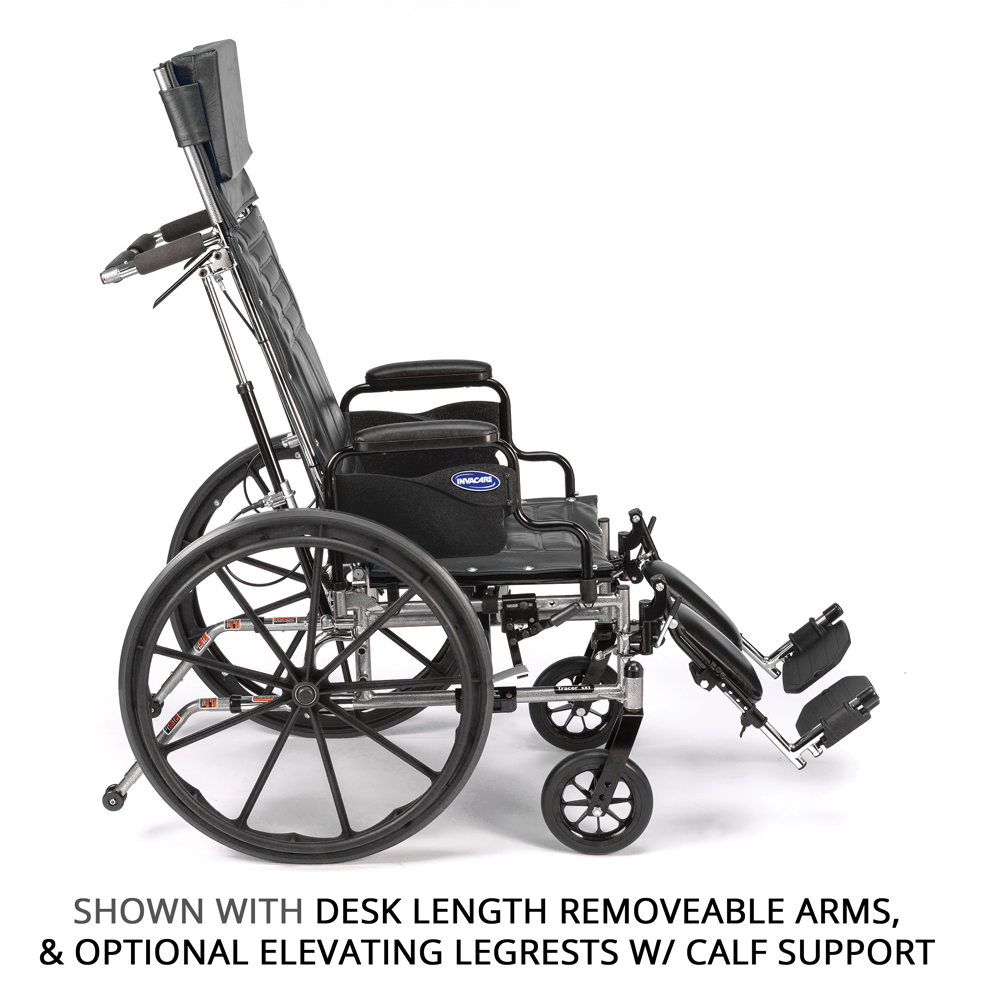

Invacare Tracer SX5 Recliner Wheelchair
The Invacare IVC Tracer SX5 Recliner wheelchair offers the durability of a lightweight manual wheelchair frame with the added versatility and comfort of a full reclining back. The Tracer SX5 Recliner offers dynamic recline range from 90° to 180°.The Tracer SX5 is as durable as it is comfortable, with a dual-embossed upholstery that resists mildew, bacteria, UV damage and cold-cracking. Urethane wheels set on no-flex tires with dual-sealed precision bearings allow for speed, durability and no maintenance.
Optional padded calf rests may be added for maximum comfort while reclining.
Features:
- Desk-length fixed height removable armrests
- Dynamic 90°-180° Recline
- Padded Calf Rests
- Chrome-Plated, Carbon Steel Frame
- Urethane Rear Tires
- No-Flex Wheels
- Dual-Sealed Precision Bearings
- Back and Seat Feature Inner Lining to Prevent Stretching
- Dual Embossed, Flame Retardant Upholstery
- Upholstery Resists Mildew, Bacteria, UV Damage and Cold-Cracking
- Rear Anti-Tippers
- Free Shipping
Technical Specs
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the arm pit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90 degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
Specifications
Invacare Tracer SX5 Recliner Wheelchair Specifications:
|
Weight Capacity |
250 lbs. |
| Weight | 53 lbs. |
| Seat Width | 20″, 18″, 16″ |
| Seat Depth | 16″ |
| Seat-to-Floor Height | 17.5″, 19.5″ |
| Armrest Length | 9.5″ |
| Overall Width | 26″ |
| Overall Length | 34″ |
| Overall Height | 53″ |
| Folded Dimensions | 13″ x 43″ x 34″ |
| Medicare HCPCS Code | K0003/K0006/E1226 |
| Warranty | Five year warranty on frame |
