Karman Ergo Flight S-2512, Ultra Lightweight Wheelchair
Installation & Product Guides:
- Weight capacity: 220 lbs
- Weight: 19.8 lbs
- Companion Brakes Located on Handles
Our Price: $783.00
/
Description

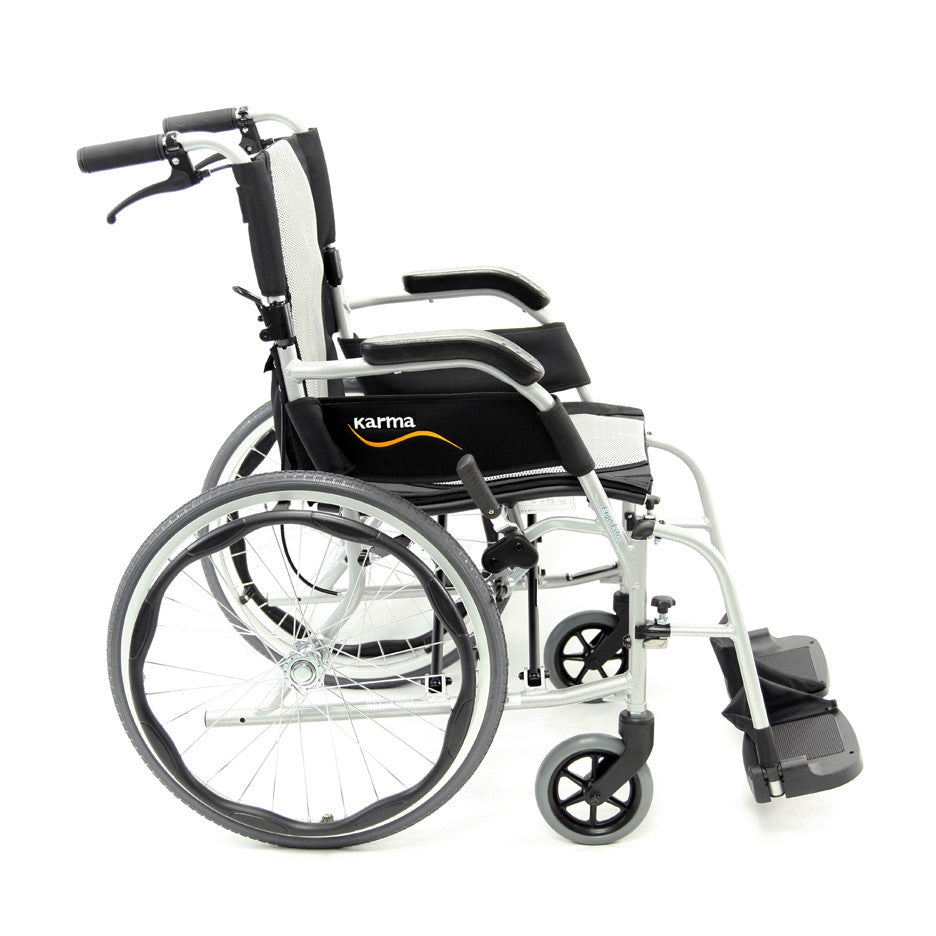

Karman Ergo Flight S-2512, Ultra Lightweight Wheelchair

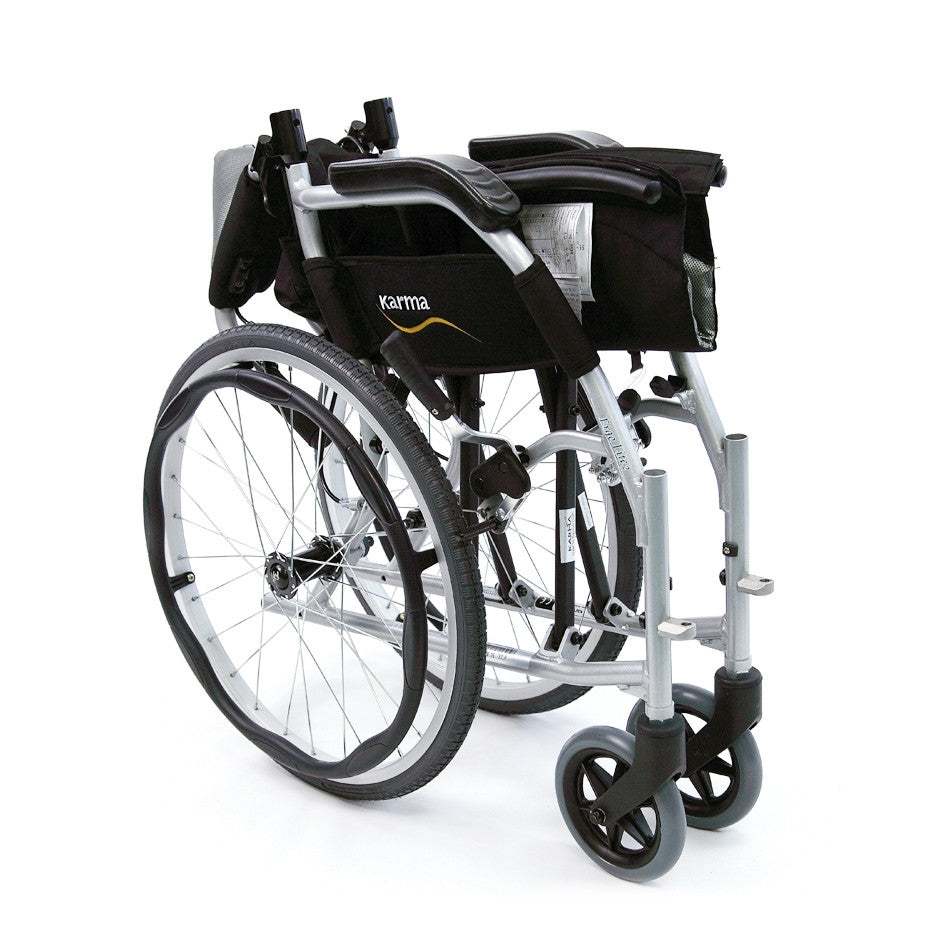

The Ergonomic series provides the perfect shape to fit the human body to relieve pressure, increase stabilization, weight distribution and lower the risk of pressure sores and scoliosis.The Ergo Flight Wheelchair is easy to lift and its small size makes it ideal for travel. Weighing only 19.8 lbs., the chair is easy to store and transport. The chair folds down the middle like a standard wheelchair and the backrest also folds down to make the wheelchair even more compact. Also features companion brakes located on handles for added safety and comfort.
Features:
- S-Style Ergonomic Seat Frame
- Only 19.8 lbs
- Pocket Behind Backrest & Small Carry Pouch on Each Armrest
- Companion Brakes Located on Handles
- Built in Silver Aegis Anti-bacterial Seat and Back Cushion
- Folding Backrest/Folding Seat
- Fixed Armrests w/Ergonomic Arm Pads
- Removable Swing-in & Out Footrests
- 20 Inch Rear Polyurethane, High Tread, Flat Free Wheels
- Optional Quick Release Rear Wheels
Included
- One Karman Ergo Flight Wheelchair
- Limited Lifetime Warranty on Frame
- Free Shipping
Technical Specs
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the arm pit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90 degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
Specifications
Karman Ergo Flight - S-2512 Ultra Lightweight Wheelchair Specifications:
| Weight Capacity | 220 lbs. |
| Weight | 19.8 lbs. without legrests |
|
|
|
| Seat Width | 16", 18" |
| Seat Depth | 17" |
|
|
|
| Seat-to-Floor Height | 18.5" |
| Back Height | 17.5" |
| Folded Width | 15" |
|
|
|
| Overall Width | 25", 27" |
| Overall Length | 38" |
| Overall Height | 36" |
|
|
|
| Warranty | Limited Lifetime on Frame |
