Karman VIP2-TR Tilt-In-Space Reclining Transport Wheelchair

Tilt-in-space wheelchair with reclining backrest for pressure relief and positioning support.

  • 0–35° tilt-in-space system
  • Reclining backrest for comfort
  • Lightweight folding aluminum frame
Our Price: $2,530.00

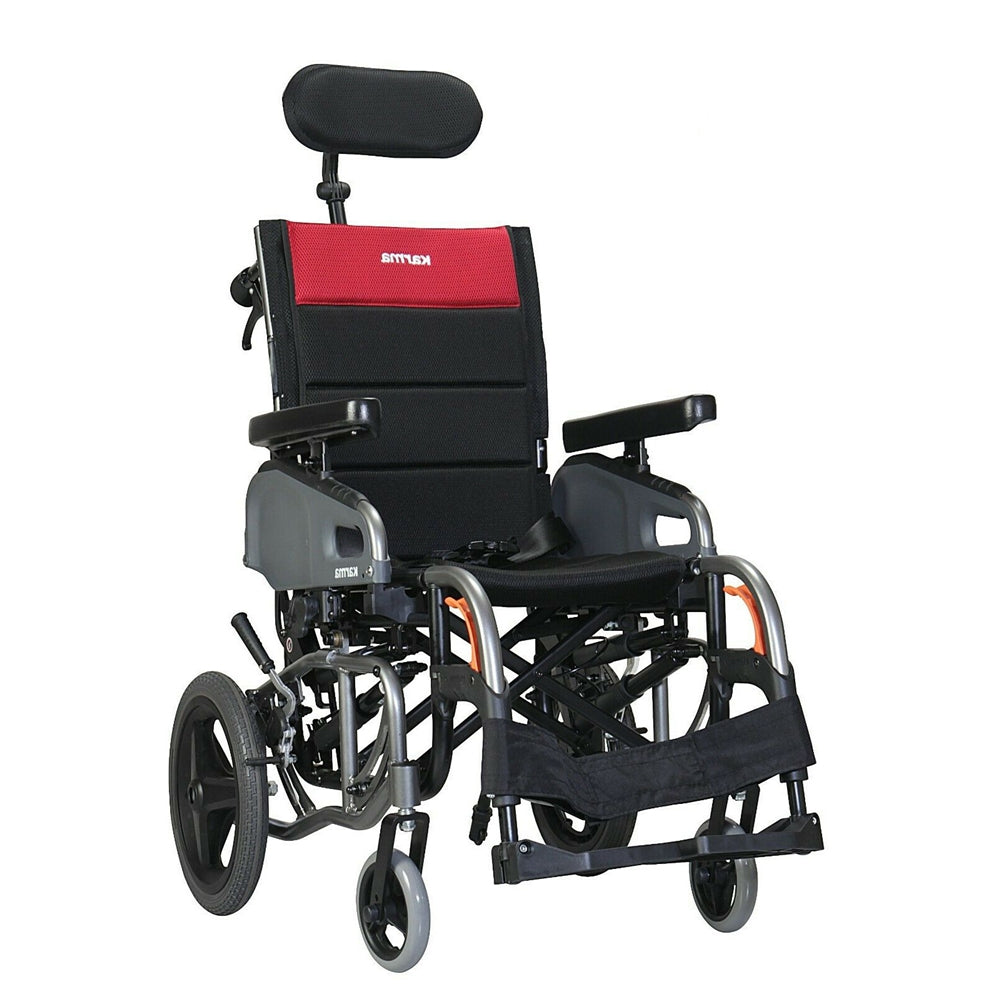

Karman VIP2-TR Tilt-In-Space Reclining Transport Wheelchair
Description
Tilt 0°–35° Recline 0°–30° Transport · Caregiver-Pushed

The Karman VIP2-TR Tilt-In-Space Reclining Transport Wheelchair combines two independent positioning systems — tilt-in-space and backrest recline — in a lightweight folding transport chair designed for users who need complex postural support and pressure management but do not self-propel. The aircraft-grade T6 aluminum frame keeps weight to approximately 36 lbs. The VIP2-TR's defining engineering feature is the anti-slide reclining system: the reclining pivot point aligns with the user's hip joint, eliminating the shear and sliding that occurs when standard reclining chairs open at the wrong point. Folds flat for vehicle transport. Two seat sizes: 16"×16" and 18"×18".

35° Max Tilt
30° Max Recline
36 lbs
253 lb Capacity
✓ Folds Flat
✓ Anti-Slide System

Questions about clinical fit, sizing, or whether the VIP2-TR is appropriate for your patient? Our RESNA-certified specialists can help. Call 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM

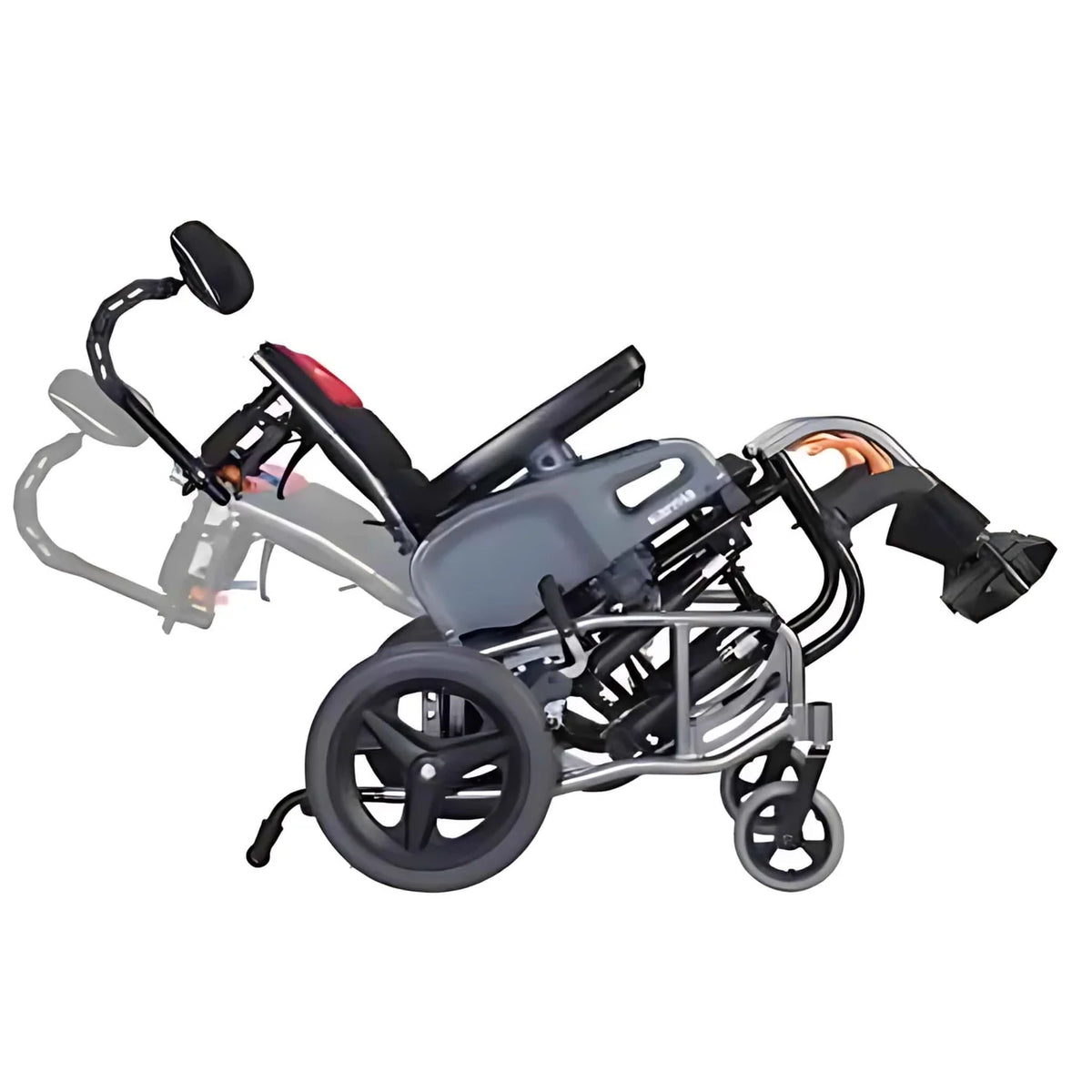

Tilt-In-Space and Recline — Two Independent Systems

0°–35° Tilt Range Tilt-In-Space

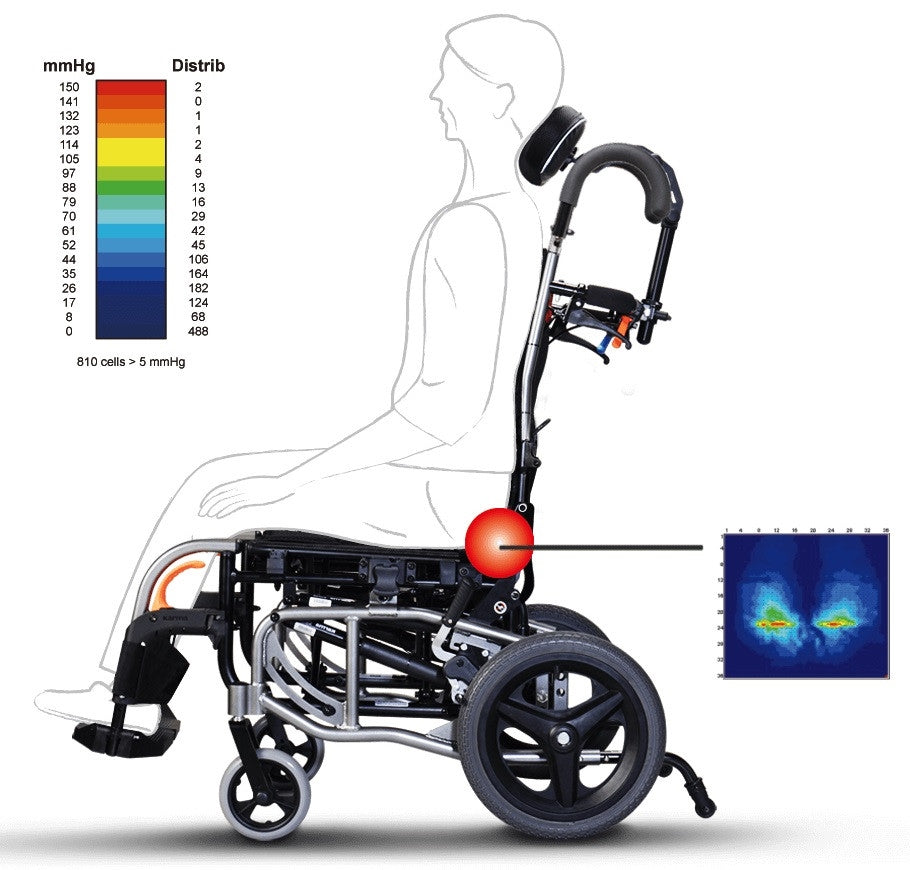

The entire seating surface — seat and backrest together — tilts as a unit. The user's hip angle remains constant throughout the full tilt range. Pressure is redistributed away from the ischial tuberosities as the posterior surface area in contact with the chair increases. The weight-shifting system provides a smooth, steady tilt motion with a controlled sense of security for the user. Reduces shear at bony prominences. Used for routine pressure relief throughout the day without repositioning the user.
0°–30° Recline Range Backrest Recline
The backrest reclines independently of the seat — opening the seat-to-back angle. This changes hip flexion and can reduce extensor tone in users with spasticity. The VIP2-TR's anti-slide reclining system locates the pivot point close to the user's actual hip joint, synchronizing chair and body motion. This eliminates the sliding and shearing that occurs in standard reclining chairs where the pivot point is misaligned — the primary cause of skin breakdown during recline.
The Anti-Slide Reclining System — Why It Matters Standard reclining wheelchairs recline from a fixed pivot point on the chair frame — which is almost never aligned with the user's hip joint. As the backrest opens, the user's body slides forward and down in the seat. This sliding creates shear between the user's back and the backrest — one of the primary mechanisms of pressure ulcer formation. The VIP2-TR moves the reclining pivot point to align with the user's hip joint. As the chair reclines, the user's body and the chair move together. No sliding. No shear. The same functional recline range becomes clinically safer and more comfortable.

Two Seat Sizes

16" × 16" Nominal Seat Width × Depth
Nominal Seat Width16" (400mm)
Nominal Seat Depth16" (415mm)
Effective Seat Width18.1" (460mm)
Overall Width24.8" (630mm)
Turning Radius~35.6" (905mm)
18" × 18" Nominal Seat Width × Depth
Nominal Seat Width18" (450mm)
Nominal Seat Depth18" (465mm)
Effective Seat Width20.1" (510mm)
Overall Width26.8" (680mm)
Turning Radius~38.4" (975mm)
Which seat size? Measure the user's hip width at the widest point when seated. Choose the seat size that is closest to — but not narrower than — the hip width. For most users, the 18"×18" provides more comfortable lateral containment. Call us to confirm before ordering: 866-218-0902

Key Features

Anti-Slide Reclining System Pivot point aligns with the user's hip joint — chair and body recline together. Eliminates sliding and shear during recline. Clinically significant for users at risk of skin breakdown.
Aircraft-Grade T6 Aluminum Frame High-strength aluminum alloy used in aerospace applications. Achieves the structural integrity needed for tilt-in-space and recline mechanisms at approximately 36 lbs — light enough for caregiver vehicle loading without a lift.
Adjustable Headrest Height adjustable from 630mm–860mm above the seat surface. Provides head and neck support at appropriate height for users with limited head control. Wider range than most competitive tilt transport chairs.

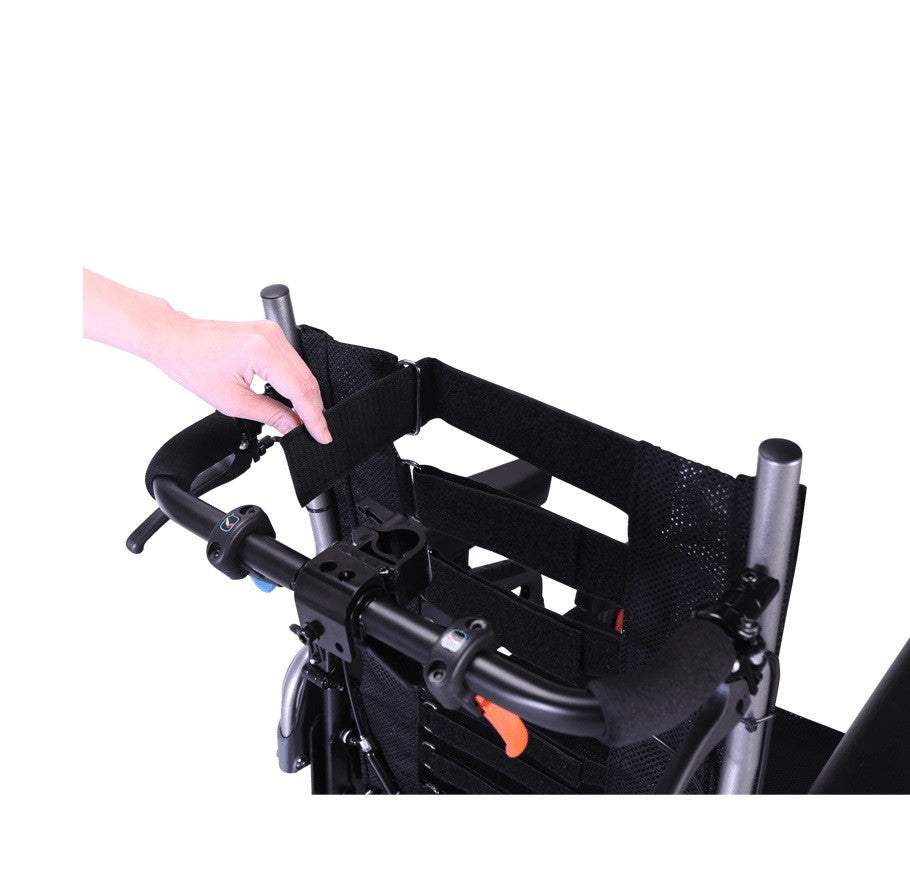

Tension-Adjustable Backrest The backrest strap tension is user-adjustable — providing firmer or more conforming back support without changing the chair configuration. Accommodates different trunk support requirements without accessories.
Adjustable Armrests Armrest height adjusts from 220mm–280mm above the seat surface. Accommodates different user shoulder heights and positioning requirements. Detachable for lateral transfers.
Elevating Legrests Legrests elevate for lower extremity positioning — relevant for users with knee flexion contractures, edema, or post-surgical lower extremity requirements. Footrest-to-seat distance adjustable 320mm–420mm.
14" Rear Wheels (Transport) 14" attendant-propelled rear wheels. The VIP2-TR is a transport configuration — caregiver-pushed. Users do not self-propel. The 14" wheel provides good rollability for the caregiver without the width overhead of full 24" self-propel wheels.
Folds Flat for Vehicle Transport The frame folds for vehicle loading — folded dimensions approximately 30.5" × 14" × 26.8". Fits in most standard car trunks. Important for families who transport the chair to appointments, facilities, and community outings.
Unique Weight-Shifting Tilt System Karman's tilt mechanism is designed to produce a sense of security and controlled motion during position changes — reducing user anxiety during tilting, which is a common barrier to caregiver compliance with pressure relief schedules.

Full Specifications

Model VIP2-TR
Manufacturer Karman Healthcare
Tilt Range 0°–35° (seat and back tilt as unit)
Recline Range 0°–30° (backrest reclines independently)
Seat-to-Back Angle 102°–132° (full range)
Weight Capacity 253 lbs (115 kg)
Chair Weight ~36 lbs (heaviest single piece ~39–40 lbs)
Seat Sizes Available 16"×16" (400×415mm) · 18"×18" (450×465mm)
Backrest Height 20"–22" (510–560mm) adjustable
Headrest Height Above Seat 24.8"–33.9" (630–860mm) adjustable
Armrest Height Above Seat 8.7"–11" (220–280mm) adjustable
Seat-to-Floor Height 18.5"–19.3" (470–490mm)
Footrest-to-Seat Distance 12.6"–16.5" (320–420mm) adjustable
Rear Wheel Size 14" (attendant-propelled transport)
Front Caster Size 6" or 7"
Overall Length (with legrest) 42.1"–44.1" (1,070–1,120mm)
Overall Width (16" seat) 24.8" (630mm)
Overall Width (18" seat) 26.8" (680mm)
Overall Height 54.3" (1,380mm)
Folded Width ~14" (355mm)
Frame Material Aircraft-grade T6 aluminum
Anti-Slide System Yes — hip-aligned pivot point
Propulsion Attendant / caregiver-pushed (transport)
Legrests Elevating, detachable
Armrests Adjustable height, detachable
Headrest Adjustable height, included
Backrest Tension-adjustable strap
Folding Yes — fits most car trunks
Anti-Tippers Included (16° uphill stability with anti-tippers)

Who the VIP2-TR Is For

The VIP2-TR is appropriate for users who need both tilt-in-space and recline positioning in a chair that a caregiver propels. Common clinical indications:

🧠 Neurological Conditions MS, ALS, stroke recovery, TBI — users who need postural support and routine pressure relief throughout the day but are transported by a caregiver
🦴 Spinal Cord Injury Users with limited trunk control requiring tilt for pressure redistribution and recline for hip angle management and spasticity control
❤️ Circulatory / Edema Elevating legrests + tilt combination addresses lower extremity positioning and fluid management for users with dependent edema
🏥 Post-Surgical Positioning Users recovering from orthopedic procedures with specific hip or spine angle requirements during transport and community mobility
👶 Pediatric / Young Adult The 16"×16" seat configuration fits smaller users. Adjustable headrest range accommodates various trunk and head heights.
🏠 Home + Community Folds for vehicle transport — families who need complex positioning at home and during community outings without a dedicated van or ramp system

VIP2-TR vs Standard Tilt-In-Space Transport Wheelchair

The VIP2-TR is distinguished from most tilt transport chairs by two specific features that separate it clinically:

  • Independent recline in addition to tilt. Most tilt-in-space transport chairs tilt only — the seat and back move as a unit. The VIP2-TR adds an independent reclining backrest, giving the caregiver two separate positioning tools: tilt for pressure relief without changing hip angle, and recline for hip angle management, spasticity control, and positioning variety. Users who need both are often moved to much heavier, more expensive power tilt systems. The VIP2-TR provides both in a manual folding transport chair.
  • Anti-slide reclining system. Standard reclining transport chairs slide the user forward and create shear during recline because the pivot point is on the chair frame, not at the hip. The VIP2-TR eliminates this by aligning the pivot. For users with fragile skin or existing pressure injuries, this is not a comfort feature — it is a safety one.

Warranty

✅ Karman Healthcare Warranty Karman Healthcare products are covered by a manufacturer's warranty against defects in materials and workmanship. Call us for specific warranty terms and service support: 866-218-0902

Six Southwest Florida Showrooms

Our RESNA ATP/SMS-certified specialists can confirm whether the VIP2-TR is the clinically appropriate choice for your patient's positioning needs and discuss sizing before you order. Walk-ins welcome; call ahead to confirm specialist availability for complex seating evaluations.
