Karman Ultralight Reclining Wheelchair
Karman Ultralight Reclining Wheelchair
Our Price: $1,340.00
/
Description

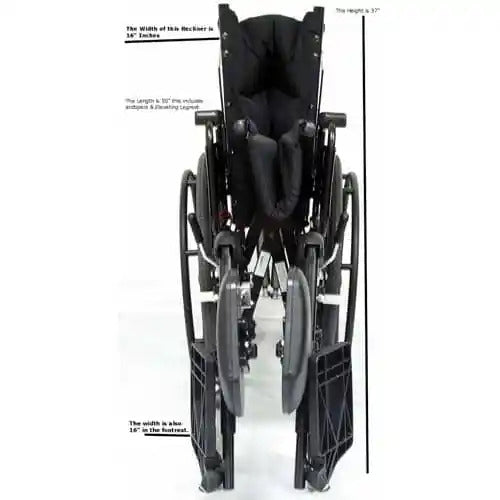

Karman Ultralight Reclining Wheelchair
KM-5000 Reclining Wheelchair made of T6 AluminumThis fully reclining, high strength, light weight wheelchair is in a league all its own. The reclining range is 90° - 163° and it weighs only 33 lbs. making storage and transport easy.
The frame is crafted from 6061 T-6 aircraft aluminum and includes premium options such as elevating legrests and anti-tippers.
Features
- Full-length fixed height armrests

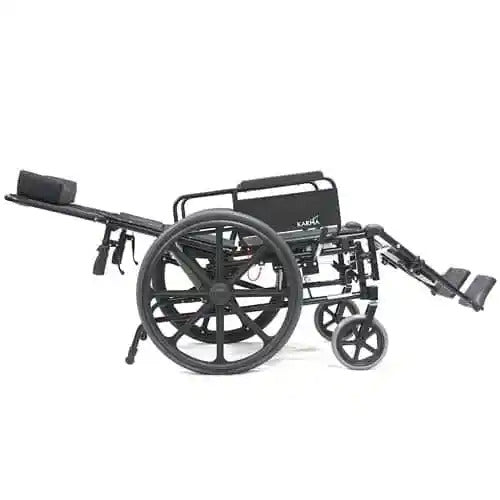

- 90° - 163° reclining back
- Aircraft-grade aluminum frame in black powder coat finish
- Detachable elevating leg rests
- Adjustable length leg supports & footplates
- High-grade flame retardant, breathable nylon upholstery
- Anti-tippers
- Adjustable-height pillow
- 24 rear polyurethane tires
- 8 x 1 front caster wheels with rubber tires
- Toggle wheel locks/brakes
Technical Specs
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the arm pit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90 degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
Specifications
Product Specifications
| Weight Capacity | 250 lbs. - 350 lbs. |
| Product Weight | 36 lbs., 38 lbs. |
| Seat Width | 16" - 22" |
| Seat Depth | 17", 18" |
| Seat-to-Floor Height | 20" |
| Overall Width | 25" - 31" |
| Overall Length | 35" |
| Overall Height | 51" |
| Frame Color | Black |
| Front Wheel Size | 8" |
| Rear Wheel Size | 24" |
| Axle Type | Fixed |
| Armrest | Full Length, Removable |
| Back Height | 33" |
| Upholstery Type | Nylon |
| Upholstery Color | Black |
| Footrests | Elevating |
| HCPCS | E0966 - K0004 |
| Warranty on Frame | Lifetime Limited |
| Warranty on Wearable Parts | One Year Limited |
| Box Length | 34" |
| Box Width | 15" |
| Box Height | 38" |
