Lumex LF1050 Battery-Powered Patient Lift — Full Body Electric
Our Price: $1,747.97
/
Description
Lumex · Graham Field
Full Body · 400 lbs · E0635
Made in USA · 10–12 Hr Battery
The Lumex LF1050 Battery-Powered Patient Lift by Graham Field is a full-body electric floor lift — the powered alternative to the Lumex LF1030 hydraulic lift in the same product family. Where the LF1030 requires the caregiver to manually pump for every inch of lift travel, the LF1050's 24V DC motor raises and lowers the patient at the touch of a button on the hand pendant. No pumping. The 10–12 hour battery life supports multiple daily transfers on a single charge. Six-point spreader bar with 360° rotation accommodates 2-, 4-, and 6-point slings. Foot pedal base opening keeps both caregiver hands free. Emergency stop button and manual lowering mechanism for power-loss situations. Optional digital scale. Made in USA. Free sling, battery with onboard charger, and accessory bag included. HCPCS E0635.
400
lb capacity
27.5"–68"
lift range
10–12
hr battery life
6-pt
spreader bar
4.7"
base clearance
USA
made in USA
Questions about sling selection, comparing the LF1050 to the hydraulic LF1030, or E0635 Medicare documentation? Call 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM · Six SW Florida Showrooms
Lifting Range — 27.5" to 68.1"
Lumex LF1050 — Spreader Bar Height from Sling Attachment
27.5"
Minimum height
68.1"
Maximum height
40.6"
Total travel range
4.7"
Floor clearance
What's Included
✓ Free Sling
A compatible full-body transfer sling is included — ready for use on arrival without a separate sling purchase.
✓ Free Battery with Onboard Charger
The 24V DC battery and onboard charger are included. 10–12 hour battery life supports all-day use on a single overnight charge.
✓ 6-Point Spreader Bar
The 6-point spreader bar is included standard — accommodates 2-, 4-, and 6-point sling configurations without additional hardware.
✓ Free Accessory Storage Bag
The accessory bag attaches to the lift frame and stores the sling, charger, and pendant between transfers — keeping all components organized and at the lift.
How the LF1050 Works
1
Sling the patient
Position patient in full-body sling on bed, chair, or wheelchair. Attach sling loops to the 6-point spreader bar — accepts 2-, 4-, or 6-point configurations.
2
Open base — foot pedal
Open base from 26" to 37.8" using the foot pedal — both hands free to manage sling and patient. 4.7" clearance slides under most standard beds.
3
Raise with pendant

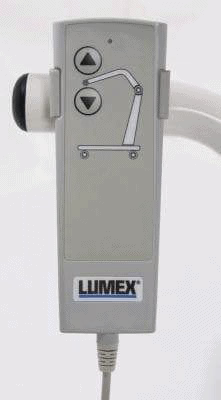

Press UP on the ergonomic hand pendant — 24V DC motor raises patient smoothly and quietly. Rotate 360° to face the destination. No pumping required.
4
Lower to destination
Press DOWN to lower patient into bed, chair, wheelchair, or toilet. If power fails at any point, the manual lowering mechanism allows controlled descent. Remove sling once patient is positioned.
The Adjustable Base
Closed — 26" Wide
Close the base for doorway navigation and room-to-room movement. At 26", the LF1050 fits through standard interior doorways. Rubber-coated base legs protect wall and door frame surfaces from contact damage during maneuvering.
Open — 37.8" Wide
Open to 37.8" for transfer positioning around wheelchair leg rests, bed frames, and toilet bases. Foot pedal opens and locks the base with both caregiver hands free.
Key Features
10–12 Hour Battery Life — Full Day on One Charge
The LF1050's 10–12 hour battery life is one of its most practical clinical advantages. A caregiver doing 4–6 transfers per day — morning bed-to-chair, bathroom, noon repositioning, afternoon activity, evening bed return — can complete an entire day's transfers without mid-day recharging. Charge overnight; lift all day.
Electric Lift — No Pumping Required
The 24V DC motor handles all lifting effort. For caregivers managing multiple daily transfers, eliminating the manual pump effort of hydraulic lifting directly reduces cumulative back, shoulder, and arm strain across the care week. The pendant up/down controls replace the hydraulic pump — one button press per lift cycle instead of 30–50 pump strokes.
6-Point Spreader Bar — 360° Rotation · 2/4/6-Point Slings
The 6-point spreader bar distributes patient weight across six attachment points and accepts any Lumex sling configuration — 2-, 4-, or 6-point. Full 360° rotation allows the caregiver to reposition the patient toward the destination without moving the lift. The bar's multiple hand-hold locations accommodate different patient arm positions.
Foot Pedal Base Opening — Both Hands Free
The base opens using a foot pedal while the caregiver's hands remain available for patient contact, sling adjustment, or lift guidance. On lifts with hand-operated base controls, one hand is tied up during base adjustment — the foot pedal eliminates that conflict at the moment when patient stability management matters most.
Emergency Stop + Manual Lowering Mechanism
The emergency stop button halts the electric motor immediately. The manual lowering mechanism on the actuator allows the caregiver to lower the patient to a safe position by hand if the battery dies or power is interrupted during a transfer — no patient left suspended. Both safety systems are accessible without tools.
Warning Beep + Visual Indicator for Low Battery
The control box provides both audible and visual low-battery alerts. The caregiver is warned before the battery reaches the level where a transfer could be interrupted — not mid-lift. The visual indicator on the control box is readable in dim bedroom lighting where audible signals alone may be insufficient.
Rubber-Coated Low Base Legs
Rubber coatings on the base legs protect floor surfaces, walls, and furniture from scuffing during daily positioning. The 4.7" base height fits the LF1050 under most standard bed frames and furniture without requiring the furniture to be moved to access the patient. Low base height also provides a stable, wide footprint during the lift cycle.
Optional Digital Scale DSC250
The DSC250 digital scale accessory attaches to the LF1050 for in-sling patient weighing without a separate transfer to a weight scale. For patients where daily or weekly weight monitoring is part of the care plan — cardiac, renal, or bariatric patients — in-lift weighing eliminates a physically demanding and often skipped step in the care routine.
LF1050 Electric vs LF1030 Hydraulic — Same Family, Different Power
| Specification | LF1050 — Electric | LF1030 — Hydraulic |
|---|---|---|
| Power system | Battery-powered — no pumping | Manual hydraulic pump |
| Weight capacity | 400 lbs | 400 lbs |
| Min lift height | 27.5" | 27.4" |
| Max lift height | 68.1" | 80.3" |
| Product weight | 114.5 lbs | 90 lbs |
| Base width — closed | 26" | 24.6" |
| Base width — open | 37.8" | 43" |
| Battery life | 10–12 hours | No battery — always ready |
| Caregiver effort per lift | Button press only | 30–50 pump strokes |
| Emergency lower | Yes — manual mechanism | Yes — valve release |
| Frame warranty | 3 years | 1 year |
| HCPCS | E0635 | E0630 |
| Best for | Daily multiple transfers · caregiver fatigue reduction | Higher max reach · lighter weight · no charging |
LF1050 or LF1030? If the caregiver does multiple daily transfers and reducing physical effort per lift is the priority — the LF1050 electric is the right choice. If the care environment includes very high beds (above 68") or the caregiver prefers a lift that never needs charging — the LF1030 hydraulic with its 80.3" max and no-battery design is the better fit. Call us to discuss: 866-218-0902
Full Specifications
| Model Number | LF1050 |
|---|---|
| Manufacturer | Lumex / GF Health Products (Graham Field) |
| Lift Type | Full-Body Electric Floor Lift |
| HCPCS Code | E0635 |
| Weight Capacity | 400 lbs (evenly distributed) |
| Spreader Bar Min Height | 27.5" from sling attachment |
| Spreader Bar Max Height | 68.1" from sling attachment |
| Total Travel Range | 40.6" |
| Floor Clearance | 4.7" |
| Overall Length | 40.2" |
| Base Width — Closed (outside) | 26.0" |
| Base Width — Open (outside) | 37.8" |
| Spreader Bar | 6-point · 360° rotation · accommodates 2-, 4-, 6-point slings |
| Motor | 24V DC — quiet, smooth operation |
| Battery Life | 10–12 hours per charge |
| Base Control | Foot pedal — hands-free opening |
| Handles | Large easy-grip — ergonomic design |
| Controls | Ergonomic hand pendant with hook |
| Safety | Emergency stop button + manual lowering mechanism |
| Warning System | Audible beep + visual indicator — low battery |
| Base Legs | Rubber-coated — protects furniture and walls |
| Frame | Heavy-gauge steel · white powder-coat finish |
| Country of Origin | Made in USA |
| Product Weight | 114.5 lbs |
| Optional Accessory | Digital scale DSC250 |
| Included | Lift · free sling · battery + onboard charger · 6-point spreader bar · accessory storage bag |
Warranty
3 Years
Frame + Spreader Bar — Limited
2 Years
Actuator — Limited
1 Year
Batteries — Limited
✅ HCPCS E0635 · Made in USA · FSA / HSA Eligible
The LF1050 is manufactured in the USA by GF Health Products (Graham Field), coded E0635 for Medicare billing, and FSA/HSA eligible. The free sling, battery, spreader bar, and accessory bag are all included — no supplemental purchases required to start. Call us for E0635 documentation guidance: 866-218-0902
Six Southwest Florida Showrooms
Our specialists can compare the LF1050 electric to the LF1030 hydraulic for your specific care situation, confirm sling type and sizing, and discuss E0635 Medicare documentation. Walk-ins welcome.
- Venice — 1180 Jacaranda Blvd · 941-497-2273
- Sarasota — 3672 Webber St · 941-923-7556
- Port Charlotte — 4265 Tamiami Trl., Unit E · 941-743-6644
- Fort Myers — #170 College Pkwy · 239-482-6111
- Naples — 13030 Livingston Rd. #2 · 239-529-2242
- North Port — 14824 S. Tamiami Trl. · 941-282-9676
📞 Nationwide: 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM · support@medicaldepartmentstore.com
Technical Specs
Specifications
Lumex Easy Lift Patient Lifting System - LF1050 Specifications:
- Lifting Range (Min-Max) : 15.5" - 64"
- Base Width (Min-Max) : 26.5" - 38"
- Weight : 114.4 lbs
- Motor : 24V DC
- Battery : 1 Yr.
- Warranty : 1 year limited
- Weight Capacity : 400 lbs
- Floor Clearance : 4.5"
- Overall Height : 64"
- Overall Length : 41"
- Overall Width : 26.5"
