Description

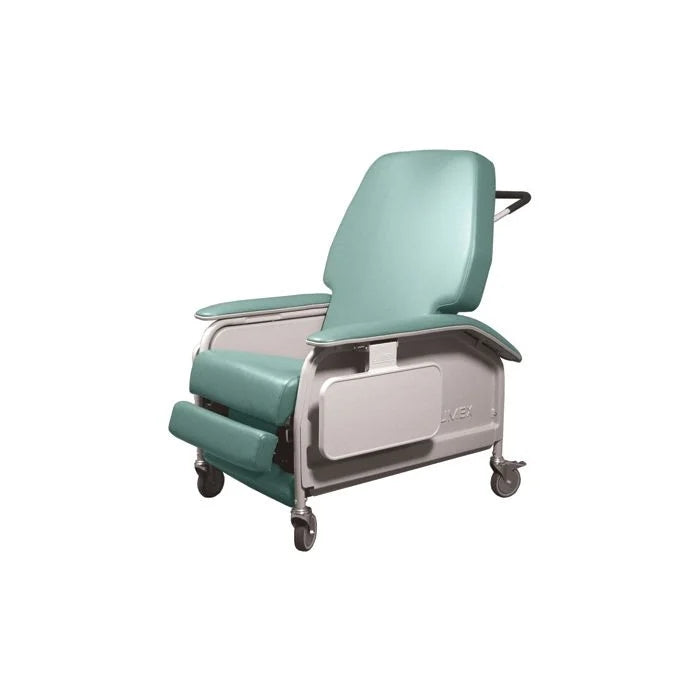

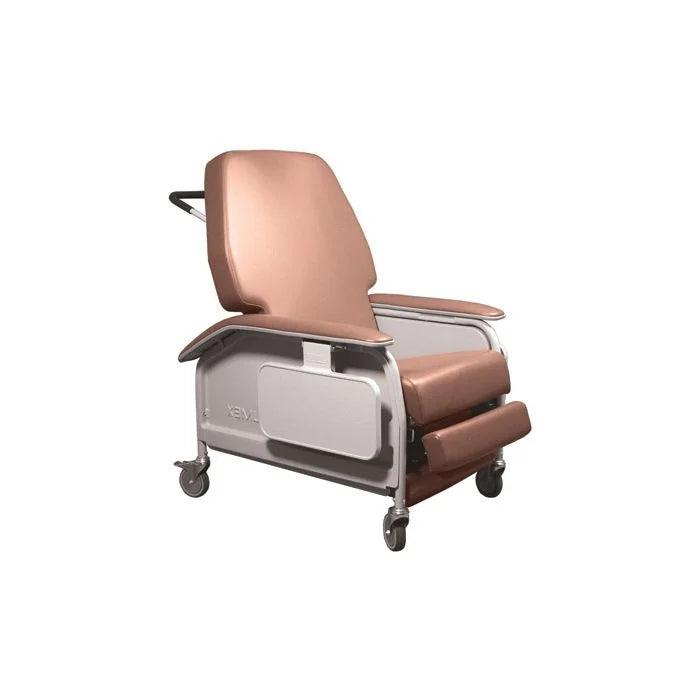

The Lumex Extra-Wide Clinical Recliner is specifically engineered for larger patients in clinical settings who require a wider seat and higher weight capacity than standard clinical recliners provide. With a 450 lb. capacity, 23-inch extra-wide seat, four adjustable positions including caregiver-activated Trendelenburg, dual gas cylinder mechanism, and TB133 flammability compliance, it is a direct answer to the challenge of clinical bariatric seating where comfort, safety, and infection control all matter equally. Made by Graham Field and designed for dialysis, oncology, acute care, and extended care environments.
Bariatric clinical recliner · 450 lb. capacity · 23" wide seat · 4 positions · Trendelenburg · Dual gas cylinders · TB133 compliant · Fold-down side trays · Directional locking casters.
Questions about this chair or facility requirements?
Call 866-218-0902
— Mon–Fri 9AM–5PM · Sat 9AM–3PM · Product specialists on staff · Five SW Florida locations
TB133 Flammability Compliance
The Lumex Extra-Wide Clinical Recliner meets California Technical Bulletin 133 flammability standards — required for clinical furniture in California, Illinois, Minnesota, and Massachusetts. If your facility is in one of these states confirm TB133 compliance is required before ordering. Call us with any questions. 866-218-0902.
Built for Larger Patients in Clinical Settings — Key Features
450 lb. Capacity · 23" Extra-Wide Seat · Clinical Grade
The Extra-Wide Clinical Recliner addresses the most common clinical bariatric seating problem — patients who are too large for a standard clinical recliner but need full clinical functionality. The 23-inch seat width and 450 lb. capacity provide genuine comfort and structural integrity for larger patients without sacrificing the clinical features that facilities require. Directional locking casters support safe transport.
4 Positions · Dual Gas Cylinders · Quick Trendelenburg
Four adjustable positions cover the full range of clinical need — upright for transfers and treatment, first recline for relaxation and IV access, full recline for rest and dialysis, and Trendelenburg for emergency positioning. The dual gas cylinder mechanism allows quick Trendelenburg activation from a rear-mounted release lever. Caregiver-only function — patients cannot activate Trendelenburg independently.
Fold-Down Side Tables · Easy-Clean Upholstery · TB133
Durable fold-down side tables on both sides provide convenient surfaces for treatment supplies, meals, and patient items — folding flat when not needed to allow full side access. Fluid-resistant upholstery supports standard healthcare disinfectant cleaning. Meets California TB133 flammability standards for use in compliant clinical environments. Removable side panels for thorough cleaning access.
Full Specifications
| Brand | Lumex / Graham Field |
| Weight Capacity | 450 lbs. |
| Seat Width | 23 inches |
| Positioning | 4 positions — upright · first recline · full recline · Trendelenburg |
| Trendelenburg | Caregiver-activated · rear-mounted release lever · dual gas cylinders |
| Side Tables | Durable fold-down · both sides · multi-use |
| Upholstery | Fluid-resistant · easy-clean · removable side panels |
| Casters | Directional locking casters · straight-path transport |
| TB133 Compliance | Yes — meets California Technical Bulletin 133 |
| Manufacturer | Graham Field |
| Clinical Applications | Dialysis · Oncology · Acute care · Extended care · Infusion therapy |
| Returns | Non-returnable — confirm specifications before ordering |
Complete Geri Chair Buyer's Guide
Not sure if the Lumex Extra-Wide Clinical Recliner is the right chair for your facility? Our complete guide covers all geri chair types, clinical vs. home use, Trendelenburg explained, TB133 requirements, and full brand comparisons. Read the Complete Geri Chair Buyer's Guide →
Frequently Asked Questions
The standard Lumex clinical recliners are designed for patients up to 300–350 lbs. with standard seat widths of approximately 19–22 inches. The Extra-Wide Clinical Recliner increases capacity to 450 lbs. and widens the seat to 23 inches — specifically designed for larger patients who experience discomfort or safety issues in standard-width chairs. Both share the same clinical functionality including Trendelenburg, fold-down trays, and fluid-resistant upholstery.
Trendelenburg on the Lumex Extra-Wide is activated by a caregiver via a rear-mounted release lever connected to dual gas cylinders — providing quick, controlled activation. The patient's feet are elevated above the head at approximately 10 to 30 degrees. This position is used to manage hypotension, support blood return to the heart, and assist with certain clinical procedures. It is a caregiver-only function and cannot be activated by the patient independently.
Yes — the Lumex Extra-Wide Clinical Recliner meets California Technical Bulletin 133 flammability standards. TB133 compliance is required for clinical furniture in California, Illinois, Minnesota, and Massachusetts. If your facility is located in one of these states confirm the requirement applies before ordering. Call us if you need clarification. 866-218-0902.
Yes — the Lumex Extra-Wide Clinical Recliner is well suited for dialysis environments. The four positions cover the full range needed for dialysis treatment — upright for access and transfers, reclined for treatment comfort, and Trendelenburg for emergency positioning. The fold-down side tables provide convenient surfaces for treatment supplies and the fluid-resistant upholstery supports disinfectant cleaning between patients. For dialysis centers with a higher proportion of bariatric patients the 450 lb. capacity addresses needs that standard dialysis chairs cannot.
Both are 450 lb. bariatric clinical recliners designed for dialysis and acute care environments. The Winco 6540 XL uses an elastic band suspension system and has a 25-inch seat width. The Lumex Extra-Wide has a 23-inch seat width, dual gas cylinder Trendelenburg mechanism, and TB133 certification as a standard feature. Chair selection between the two often comes down to facility preference for Winco or Lumex — call us to discuss which is the better fit for your specific environment. 866-218-0902.
Compare Bariatric Geri Chairs
450 lb · Drop Arms · Winco
Winco 6570 XL Drop-Arm Bariatric CareCliner
450 lb · Drop arms · Bilateral Trendelenburg · Clinical transfer
View →
View →
450 lb · Elastic Suspension · Winco
Winco 6540 XL CareCliner
450 lb · Elastic band suspension · Trendelenburg · 25" seat
View →
View →
500 lb · Heavy Bariatric
Champion 56 Series Bariatric Clinical Recliner
500 lb · Widest seat · Infinite position · Heavy clinical use
View →
View →
All Bariatric Chairs
Full Bariatric Collection
400 to 750 lb. capacity · All brands · Home and clinical
Browse all →
Browse all →
Five SW Florida Locations · Nationwide Shipping
Medical Department Store is an authorized Lumex and Graham Field dealer with over 25 years of DME experience. We carry the full Lumex clinical recliner line across our five Southwest Florida locations in Venice, Sarasota, Port Charlotte, Fort Myers, and Naples. We ship nationwide — call us before ordering to confirm TB133 requirements, current availability, and lead times.
📞 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM · Find your nearest location →
Technical Specs
Specifications
Product Specifications / Dimensions
- Weight Capacity 450 lbs
- Seat Dimensions 23.5"W x 20.5"D
- Floor to Seat Height 22"
- Width Between Arms 23"
- Overall Width 33"
- Overall Depth 44"
- Overall Height 49.5"
- Arm Height from Seat 7"
- Width Between Side Tables in Upright Position 53"
- Depth When Fully Reclined 80"
