Lumex · Graham Field
400 lbs · 80.3" Max Reach
HCPCS E0630
The Lumex LF1030 Hydraulic Patient Lift by Graham Field is a heavy-gauge steel manual hydraulic floor lift with one defining specification that separates it from most hydraulic lifts in its class: an 80.3" maximum spreader bar height. Where most hydraulic patient lifts top out at 61"–65", the LF1030 reaches 80.3" — enough to transfer a patient over the highest hospital-style beds, bariatric beds, and elevated surfaces without repositioning the lift. Caregiver-operated hydraulic pump. No battery, no motor, no charging. Six-point spreader bar handles 2-, 4-, and 6-point slings. Adjustable base from 24.6" closed to 43" open. Disassembles for transport. 400 lb capacity. Available in three configurations — LF1030 (blue), LF1031 (black/silver), and LF1031FP (black/silver with foot pedal base adjustment).
400
lb capacity
80.3"
max height
27.4"
min height
43"
max base width
6-pt
spreader bar
E0630
HCPCS code
Sling sizing, model selection (LF1030 / LF1031 / LF1031FP), or questions about hydraulic vs power lift for your situation? Call 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM
The Lifting Range — 27.4" to 80.3"
Lumex LF1030 — Spreader Bar Height from Sling Attachment
27.4"
Minimum height
80.3"
Maximum height
52.9"
Total travel range
5.5"
Floor clearance
The 80.3" maximum is the LF1030's primary clinical advantage. For caregivers managing patients on adjustable Hi-Lo hospital beds — which can raise sleeping surfaces to 30"–36" — a lift that tops out at 64" may not clear the bed frame at its highest position. The LF1030's 80.3" maximum reaches above any standard Hi-Lo bed. The 27.4" minimum is appropriate for patients in a chair, wheelchair, or standard height bed — but users requiring floor lifts (patient lying on the floor) may prefer the Invacare 9805P, which reaches down to 20".
Three Models — Choose Your Configuration

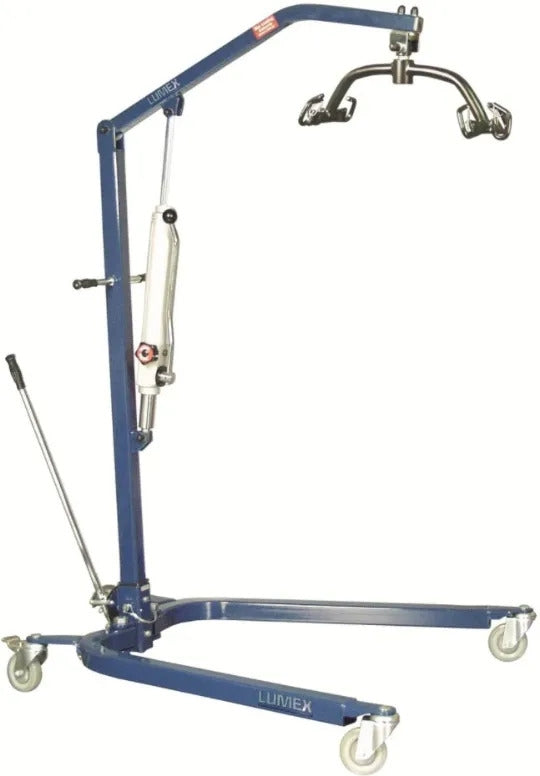

LF1030
Blue Powder-Coated · Standard
The base model — full LF1030 specs in a blue powder-coated finish. Manual cam-lock base adjustment. Same lifting range and capacity as the LF1031 and LF1031FP. Good choice for home care environments where a distinctive color makes the lift easy to identify.

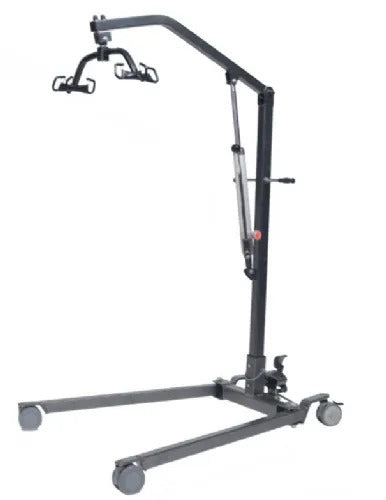

LF1031
Black/Silver Vein Hammertone · Standard
Identical specs to the LF1030 — same lifting range, capacity, and base — in a black/silver vein hammertone finish. The hammertone finish is more common in facility environments. Manual cam-lock base adjustment.
LF1031FP
Black/Silver · Foot Pedal Base
The foot pedal version — base opens and closes via foot pedal rather than manual cam-lock. Frees the caregiver's hands during base adjustment, which matters during transfers when both hands may be needed to stabilize the patient or sling. Slightly different overall dimensions than LF1030/LF1031.
How the Hydraulic Lift Works
1
Sling patient
Position patient in the appropriate Lumex sling while in bed, chair, or wheelchair. Attach sling loops to the 6-point spreader bar — all six attachment points engaged for 2-, 4-, or 6-point configurations.
2
Position lift
Open base to 43" using cam-lock (LF1030/1031) or foot pedal (LF1031FP). Roll lift over patient — 5.5" floor clearance, 24.6" closed base width navigates through doorways. Position spreader bar directly over patient.
3
Pump to raise
Caregiver operates the ergonomically positioned hydraulic pump handle to raise the spreader bar. Patient lifts smoothly. Rotate 360° to reposition over the destination — no side-to-side sway during rotation.
4
Release valve to lower
Release the hydraulic valve to lower patient controllably into the destination position. Lift range tops at 80.3" — clearing Hi-Lo hospital beds at maximum height. Remove sling once patient is positioned.
The Adjustable Base
Closed — 24.6" Wide
Close the base for navigating through doorways, hallways, and tight spaces between furniture. At 24.6" closed, the LF1030 fits through standard interior doorways. Close before wheeling the lift between rooms.
Open — 43" Wide
Open base for transfer. At 43", the base straddles most wheelchair leg rests and standard bed frames — the widest open base in the hydraulic lift category. Open before initiating any sling transfer.
Key Features
80.3" Maximum Height — Industry-Leading Reach
The LF1030's 80.3" maximum spreader bar height clears Hi-Lo hospital beds at their highest position, bariatric beds with elevated frames, and elevated transfer surfaces that shorter-reach hydraulic lifts cannot serve. If your care environment includes adjustable beds that raise above 30", the LF1030's maximum height is the correct specification.
Six-Point Spreader Bar — 360° Rotation
The six-point spreader bar distributes patient weight across all six attachment points — a more even load distribution than four-point bars. Accepts Lumex 2-point, 4-point, and 6-point slings. Full 360° rotation during the transfer allows repositioning toward the destination without sway.
Ergonomic Pump Handle Placement
The hydraulic pump handle is positioned ergonomically on the lift mast — accessible to caregivers of a broad range of heights without requiring the caregiver to bend, crouch, or over-reach during pumping. Reduces the repetitive strain risk of repeated daily hydraulic lifts.
Heavy-Gauge Steel Construction
All-steel frame handles the full 400 lb rated capacity with appropriate structural margin. The robust construction is why Lumex hydraulic lifts are standard equipment in skilled nursing facilities and hospitals as well as home care — the same lift serves both environments.
Disassembles for Storage and Transport
The LF1030 separates into its main components for transport — fits in a standard vehicle for secondary care locations, family travel, or apartment storage when not in daily use. No tools required for disassembly.
No Battery · No Motor · No Charging
Hydraulic operation means zero electrical components to maintain or charge. The lift is always ready — no battery level to check before a transfer. The only service component is the hydraulic pump, covered under the 1-year warranty.
LF1030 vs Invacare 9805P — Side-by-Side
MDS carries both hydraulic lifts. Here is how they compare on the specs that actually determine which one is right for a given care situation:
| Specification |
Lumex LF1030 |
Invacare 9805P |
| Max height |
80.3" — Hi-Lo beds, bariatric beds |
64" |
| Min height |
27.4" |
20" — better for floor lifts |
| Weight capacity |
400 lbs |
450 lbs |
| Lift weight |
90 lbs |
68 lbs |
| Max base width |
43" |
42.25" |
| Floor clearance |
5.5" |
6.5" |
| Spreader bar |
6-point |
6-point |
| Warranty |
1 year |
3 years (frame) |
| HCPCS |
E0630 |
— |
| Best for |
Hi-Lo beds · high transfers · facility use |
Floor lifts · lighter weight · home care |
Simple rule: If transfers involve Hi-Lo hospital beds or elevated surfaces — choose the LF1030 (80.3" max). If transfers frequently involve picking the patient up from the floor — choose the Invacare 9805P (20" min). Call us to confirm which fits your specific situation:
866-218-0902
Compatible Lumex Slings — Sold Separately
✓ Compatible Lumex Sling Types
Lumex Six-Point Slings
Lumex Four-Point Slings
Lumex Two-Point Slings
Full Body / Comfort Slings
Divided Leg / Universal Slings
Toileting Slings
⚠️ Slings sold separately.
A correctly sized, undamaged compatible sling is required before this lift can be used. Do not attempt a transfer without a properly fitted sling. Call us to confirm the correct sling for your patient:
866-218-0902
Full Specifications
| Model Numbers |
LF1030 (blue) · LF1031 (black/silver) · LF1031FP (black/silver + foot pedal) |
| Manufacturer |
Lumex / GF Health Products (Graham Field) |
| HCPCS Code |
E0630 |
| Weight Capacity |
400 lbs (181.4 kg) |
| Spreader Bar Min Height |
27.4" (69.6 cm) from sling attachment |
| Spreader Bar Max Height |
80.3" (203.96 cm) from sling attachment |
| Total Lift Travel |
52.9" |
| Floor Clearance |
5.5" (13.97 cm) |
| Overall Length |
48" (121.92 cm) |
| Overall Height |
55" (139.7 cm) |
| Overall Width |
24.6" (62.48 cm) |
| Base Width — Closed |
24.6" (62.48 cm) |
| Base Width — Open |
43" (109.22 cm) |
| Spreader Bar |
Six-point · 360° rotation |
| Sling Compatibility |
2-point · 4-point · 6-point Lumex slings |
| Lift Type |
Hydraulic — manual (no battery or motor) |
| Base Adjustment |
Manual cam-lock (LF1030/LF1031) · Foot pedal (LF1031FP) |
| Frame Material |
Heavy-gauge steel |
| Product Weight |
90 lbs (40.8 kg) |
| Disassembly |
Yes — for transport and storage |
Warranty
1 Year
Limited — Full Lift
E0630
HCPCS Code
Six Southwest Florida Showrooms
Our specialists can help confirm whether the LF1030, LF1031, or LF1031FP is the right configuration for your care environment, discuss sling selection, and compare the LF1030 to the Invacare 9805P for your specific transfer situation. Walk-ins welcome.
📞 Nationwide: 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM · support@medicaldepartmentstore.com
