Durable manual hydraulic patient lift designed for safe caregiver-assisted transfers.

  • 450 lb weight capacity
  • Hydraulic hand pump lifting system
  • Adjustable base for wheelchair access
Our Price: $549.00

Proactive Medical Protekt Onyx Hydraulic Patient Lift — 32475
Description
Proactive Medical 450 lbs · HCPCS E0630 Free Sling Included

The Proactive Medical Protekt Onyx Hydraulic Patient Lift (model 32475) is Proactive's hydraulic floor lift for home care and facility use — 450 lb capacity, 17"–61" lifting range, and a design built around practical everyday use. The arched leg design provides a stronger, more stable stance than straight-leg alternatives at the same 42.25" open width. Chain connections replace clip-based sling attachments — no loose hardware to track between transfers. The 6-point spreader bar accepts 4- and 6-point slings. Dual rear locking casters prevent the lift from moving unexpectedly during sling attachment and transfer. Tool-free assembly. Free sling included with purchase. 3-year frame warranty / 1-year hydraulic pump warranty.

450 lb capacity
17"–61" lift range
42.25" max base width
Chain connections — no clips
3 yr frame warranty
Free sling included

Questions about the Protekt Onyx vs other hydraulic lifts, sling sizing, or HCPCS E0630 documentation? Call 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM · Six SW Florida Showrooms

Lifting Range — 17" to 61"

Protekt Onyx — Lifting Range (Spreader Bar Height)
17" Minimum height
61" Maximum height
44" Total travel range
5.25" Floor clearance

Chain Connections — Why It Matters

✓ Chain Connections — No Clips, No Lost Hardware

The Protekt Onyx uses chain connections between the spreader bar and the sling — not plastic clip hooks. Clip-based sling attachments are the most common source of small-part loss in patient lift use: clips detach between transfers, fall behind furniture, and get misplaced during storage. When a clip is missing at transfer time, the lift cannot be used safely until a replacement is found.

Chain connections eliminate this problem entirely. The chains are permanently attached to the spreader bar — there is nothing to lose. Every transfer, the chains are where they should be. A small design choice with a meaningful practical impact for caregivers doing daily transfers.

The Arched Leg Design

The Protekt Onyx's legs follow an arched profile rather than straight horizontal tubes. The arched design serves two purposes: structural strength and floor profile. The arch distributes the lateral load of the open base more efficiently than a straight tube — the same steel wall thickness produces a stronger, more rigid open-base stance. The arch also keeps the outermost points of the legs slightly above the floor, reducing the risk of catching on carpet edges and low furniture bases when navigating the lift to the transfer position.

How the Protekt Onyx Works

1
Position sling Position the patient in a compatible sling while in bed, chair, or wheelchair. Attach sling loops to the 6-point spreader bar using the included chain connections — no clips to fumble with.
2
Open base and position Open the base to 42.25" using the hand-operated base control — locks open securely. Roll the lift over the patient using low-friction casters. 5.25" base clearance clears most bed frames.
3
Pump to raise Caregiver operates the hydraulic pump handle to raise the patient smoothly. Engage dual rear locking casters to hold the lift in position. Rotate 360° to face the destination.
4
Release valve to lower Release the hydraulic valve to lower the patient controllably. Destination: chair, bed, toilet, or wheelchair. Remove sling once patient is fully positioned and supported.

Key Features

Arched Legs — Stronger Wider Stance The arched leg design provides structural strength at the open base position — the moment of maximum lateral load during a transfer. The arch also keeps the outer leg profile slightly elevated, reducing carpet-catching during navigation.
Chain Connections — Permanently Attached Chains connect the sling to the spreader bar. No clips to lose between transfers, no small parts to track during storage or cleaning. The most common compliance problem in patient lift use — missing sling hardware — is eliminated by design.
6-Point Spreader Bar — 4 and 6-Point Slings The 6-point bar accepts both 4-point and 6-point sling configurations. 4-point is the most common home care sling type; 6-point provides additional stability for patients with less postural control. One bar handles both.
Dual Rear Locking Casters Both rear casters lock independently — the lift stays where it is placed during sling attachment, lifting, and lowering. A lift that shifts during transfer is a fall risk; dual rear locking casters prevent that movement without requiring the caregiver to hold the lift in position.
Hand-Operated Base — Locks Open The base opens via a user-friendly hand control and locks in the open position for transfer. No foot pedal required — one hand opens and locks. This matters for caregivers who are managing the patient with their other hand during base positioning.
Tool-Free Assembly The Protekt Onyx assembles without tools from the partially disassembled shipping configuration. Most setup steps are push-pin connections. Ready for first use quickly without requiring tools or technical skill.
450 lb Weight Capacity Rated for users up to 450 lbs — appropriate for the broad range of home care patients including those with higher body weight. The same capacity as the Invacare 9805P at an accessible price point.
High-Performance Hydraulics The hydraulic system raises and lowers patients gradually — not abruptly. The smooth motion matters for patients with pain sensitivity, post-surgical precautions, or anxiety during transfers. Precise valve release controls the rate of lowering.

Three Hydraulic Lifts — Which Is Right?

MDS carries three hydraulic patient lifts. Here is the comparison across the specs that drive the selection:

Specification Protekt Onyx
32475 		Invacare
9805P 		Lumex
LF1030
Capacity 450 lbs 450 lbs 400 lbs
Min height 17" 20" 27.4" (highest)
Max height 61" 64" 80.3"
Base open 42.25" 42.25" 43"
Base closed 22" 22" 24.6"
Lift weight 85 lbs 68 lbs 90 lbs
Floor clearance 5.25" 6.5" 5.5"
Sling connections Chain — no clips Standard Standard
Leg design Arched — stronger stance Standard Standard
Frame warranty 3 years 3 years 1 year
Free sling included Yes — —
Best for Home care · chain connections · arched leg stability Lightest · floor lifts · best floor clearance Hi-Lo beds · highest max reach
Simple selection guide: Protekt Onyx if chain connections and arched leg design are priorities, or value is the deciding factor. Invacare 9805P if the lift weight (68 lbs) matters for caregiver transport or floor lifts are needed. Lumex LF1030 if Hi-Lo hospital beds with high frames are part of the care environment. Call us to confirm: 866-218-0902

Full Specifications

Model Number 32475 (also PRO-32475)
Manufacturer Proactive Medical
HCPCS Code E0630
Weight Capacity 450 lbs
Min Lifting Height 17.0"
Max Lifting Height 61.0"
Total Travel Range 44"
Base Height (floor) 5.25"

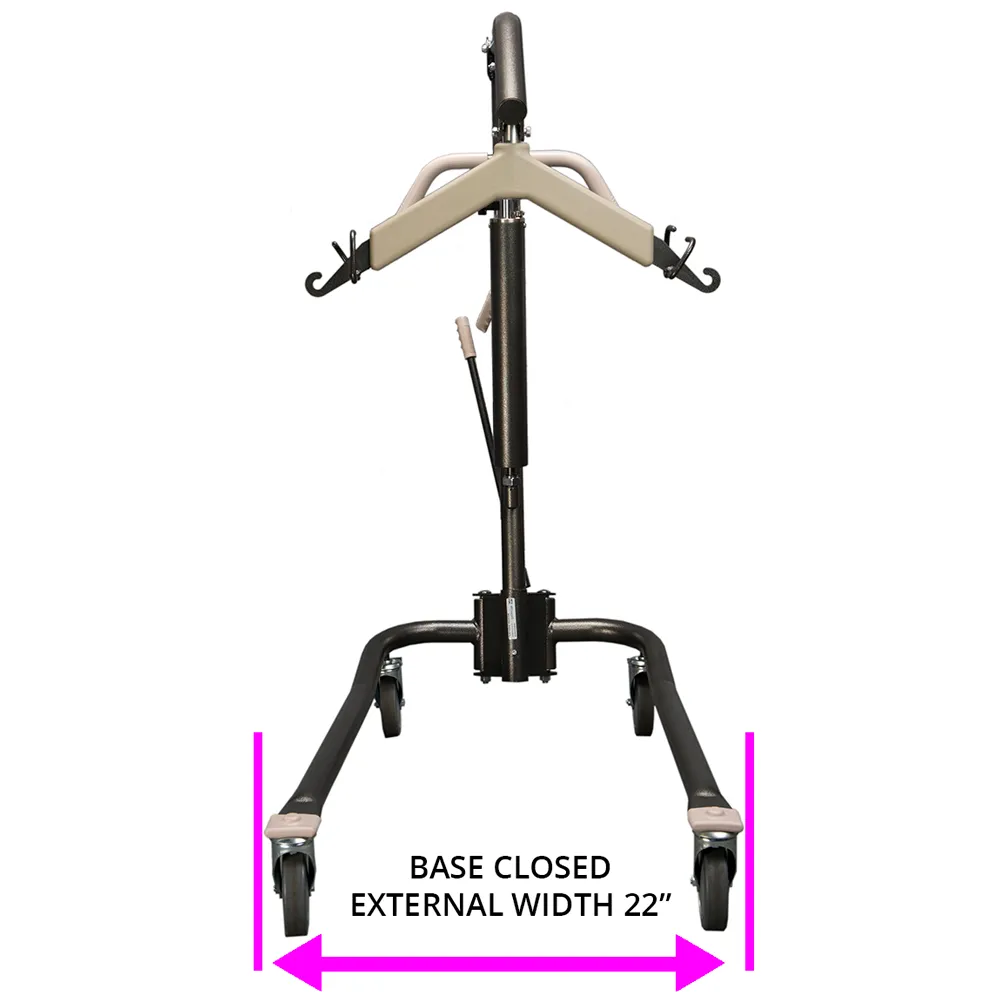

Base Width — Closed 22.0"
Base Width — Open 42.25"
Leg Design Arched — stronger, wider stance
Spreader Bar 6-point · 360° rotation · accepts 4 and 6-point slings
Sling Connections Chain connections — permanently attached, no clips
Casters Dual rear locking casters
Base Adjustment Hand-operated — locks open
Lift Type Hydraulic — manual (no battery or motor)
Product Weight 85 lbs
Assembly Tool-free · minimal assembly required
Included Lift unit · chain connections · FREE full-body sling

Warranty

3 Years Frame — Limited
1 Year Hydraulic Pump — Limited
⚠️ Slings sold separately — free sling included with purchase. The Protekt Onyx includes one complimentary full-body sling with purchase. Additional slings, different sling types, or replacement slings are sold separately. Slings must be compatible with 4-point or 6-point attachment configurations. Call us for sling selection: 866-218-0902

Six Southwest Florida Showrooms

Available at all six MDS locations. Our specialists can compare the Protekt Onyx to the Invacare 9805P and Lumex LF1030 for your specific care situation, confirm sling sizing, and walk through HCPCS E0630 documentation. Walk-ins welcome.

📞 Nationwide: 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM · support@medicaldepartmentstore.com

Technical Specs
Specifications
Product Specifications
  • Manufacturer: Protekt
  • Product Number: 32475
  • Weight Capacity: 450 Pounds
  • Unit Weight: 85 Pounds
  • Mast Height: 51 Inches
  • Base Legs Length: 40.5 Inches
  • Base Width (Closed): 22 Inches
  • Base Width (Open): 42.25 Inches
  • Base Height (Clearance): 5.25 Inches
  • Lowest Lifting Height: 17 Inches
  • Highest Lifting Height: 61 Inches
  • Lifting Range: 44 Inches
Warranty:
  • Frame: Limited Lifetime
  • Pump and Lift Components: 1 Year Limited
