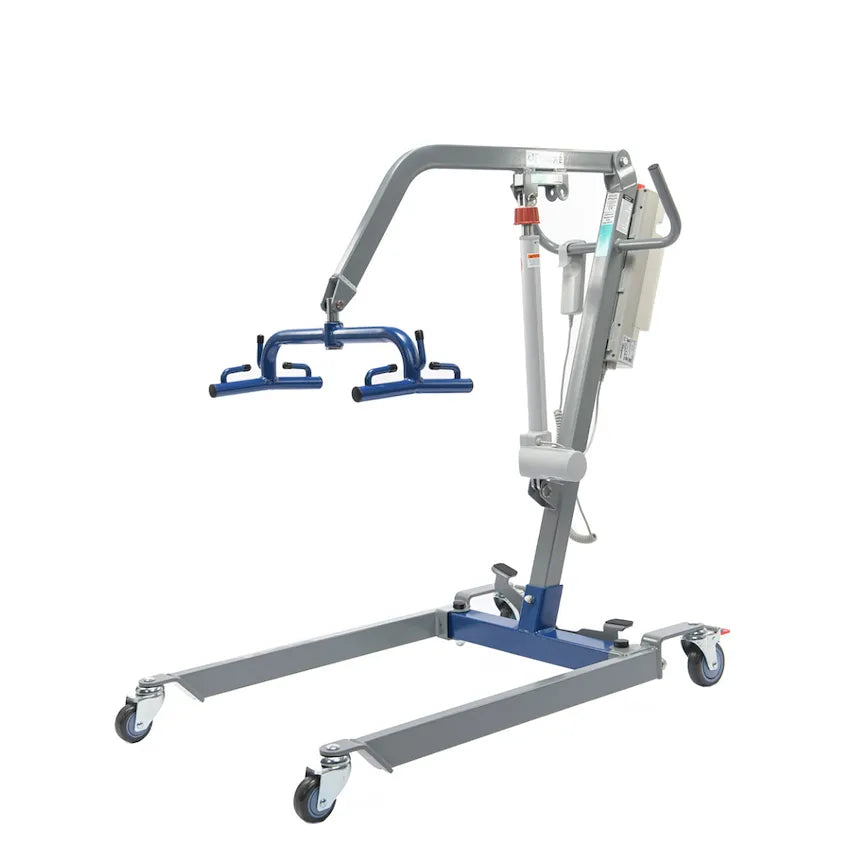

Proactive Medical Protekt Transformer Hydraulic Patient Lift — 33400H
/
The Proactive Medical Protekt Transformer (33400H) is a hydraulic patient lift that does something no other hydraulic lift does — it can be upgraded to a full battery-powered electric lift at any time, using the optional Electric Upgrade Kit (LP-33400HE-K). As sold here, the Transformer is the 33400H hydraulic model — caregiver pumps to raise, releases valve to lower, no battery required, HCPCS E0630. When care needs change and the caregiver needs powered lifting, the upgrade kit converts it to the 33400HE power lift (E0635) without replacing the frame or buying a new lift. 400 lb capacity. 20.9"–66.9" hydraulic lifting range. 6-point spreader bar. Tool-free assembly. Quick disassembly for transport. 3-year frame warranty.
Questions about the optional electric upgrade kit, sling selection, or E0630 Medicare documentation? Call 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM · Six SW Florida Showrooms
The Transformer Concept — One Lift, Two Power Systems
Hydraulic Now. Electric When You Need It.
Most patient lifts lock you into one power system at the time of purchase. The Transformer is different: it ships as a fully functional hydraulic lift (33400H, HCPCS E0630) — pump to raise, release to lower, no battery, no motor. When care needs evolve and the caregiver needs to remove manual pumping effort from the equation, the Electric Upgrade Kit (LP-33400HE-K) converts the 33400H into the 33400HE — a full battery-powered electric lift (HCPCS E0635) with hand pendant operation. No new lift to buy. No waste of a functioning piece of equipment. The same steel frame serves both power systems.
Two Models — 33400H and 33400HE
Lifting Range — 33400HE Electric
How the Transformer Works — Hydraulic Mode
Key Features
Full Specifications — Both Models
| Specification | 33400H — Hydraulic ✓ Sold Here | 33400HE — Electric (Upgrade) |
|---|---|---|
| HCPCS Code | E0630 (hydraulic) | E0635 (power — with upgrade kit) |
| Weight Capacity | 400 lbs | 400 lbs |
| Unit Weight | 82 lbs | 82 lbs |
| Min Lifting Height | 20.9" | 28.1" (with upgrade kit) |
| Max Lifting Height | 66.9" | 66.9" |
| Base Length | 40.0" | 40.0" |
| Base Width — Closed (ext.) | 26.3" | 26.3" |
| Base Width — Open (int.) | 32.5" | 32.5" |
| Mast Height | 47.0" | 47.0" |
| Front Caster Height | 4.9" | 4.9" |
| Rear Casters | 4" with locking brakes | 4" with locking brakes |
| Front Casters | 3" | 3" |
| Turning Diameter — Open | 52.8" | 54.7" |
| Turning Diameter — Closed | 49.5" | 52.6" |
| Spreader Bar | 6-point · 360° rotation | 6-point · 360° rotation |
| Power | Manual hydraulic pump | Battery-powered · hand pendant (upgrade kit) |
| Assembly | Tool-free | Tool-free |
| Disassembly | Quick — for transport | Quick — for transport |
| Optional Scale | Available | Available |
| Electronics Warranty | — | 2 years |
| Frame Warranty | 3 years | 3 years |
| Battery Warranty | — | 1 year |
Replacement Parts and Accessories
Warranty
Frequently Asked Questions
What is the difference between the 33400H and the 33400HE — and which one is the SpinLife listing? +
The 33400H is the hydraulic (manual) version of the Transformer. A caregiver pumps the handle to raise and releases a valve to lower — no battery, no motor, HCPCS E0630.

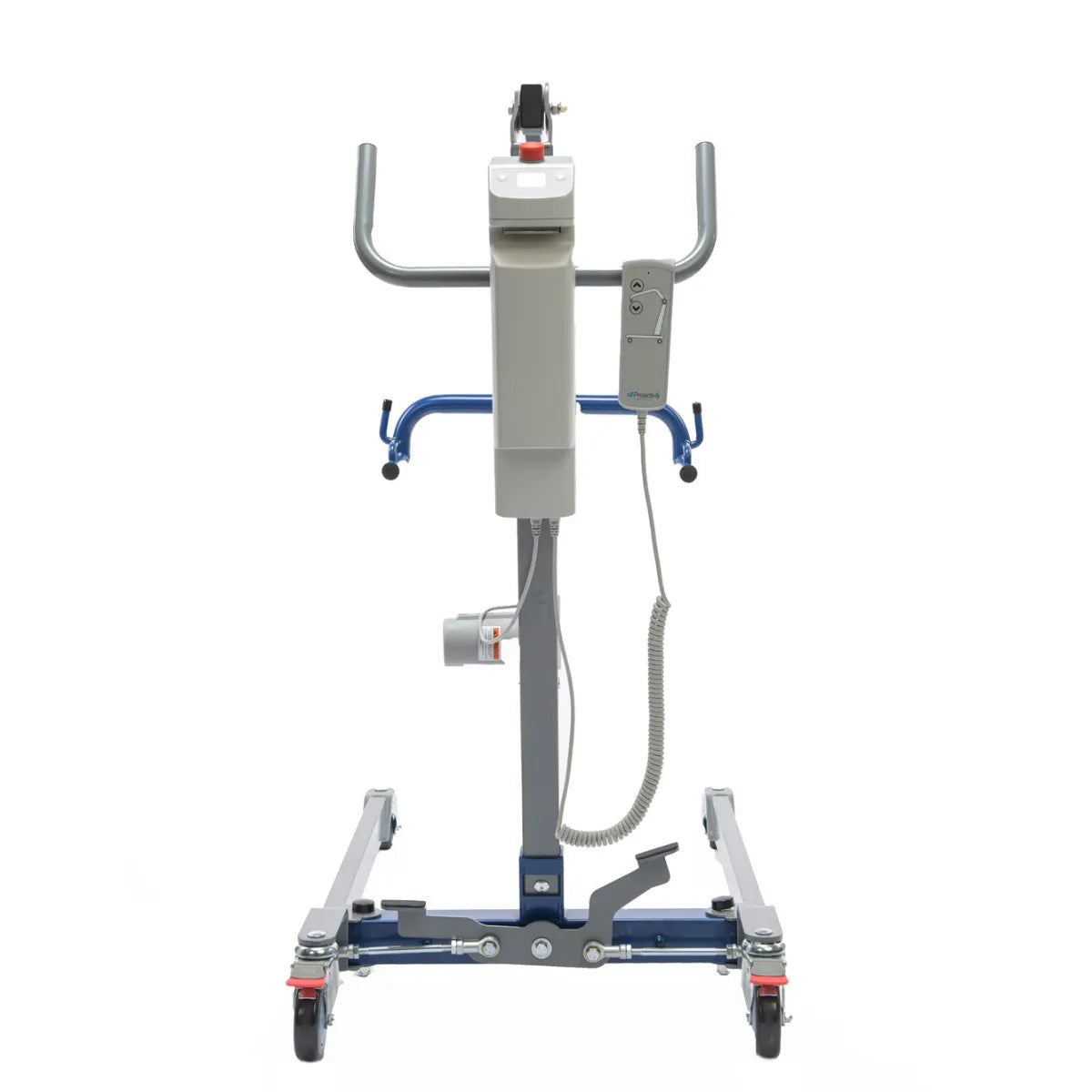

The 33400HE is the electric version — the same steel frame with a battery pack and hand pendant installed. A caregiver presses a button on the pendant to raise and lower — no pumping required, HCPCS E0635.
The SpinLife productID 183643 listing titled "Protekt Transformer Power Patient Lift" is the 33400HE — the fully electric version. It arrives with the battery, charger, and hand pendant already installed. No additional upgrade kit purchase is needed.
If you are purchasing for Medicare billing: E0635 (power lift) has different documentation requirements than E0630 (hydraulic). Call us before ordering if you need to confirm the correct code for your situation: 866-218-0902
How does the Electric Upgrade Kit work — and can any 33400H be upgraded? +

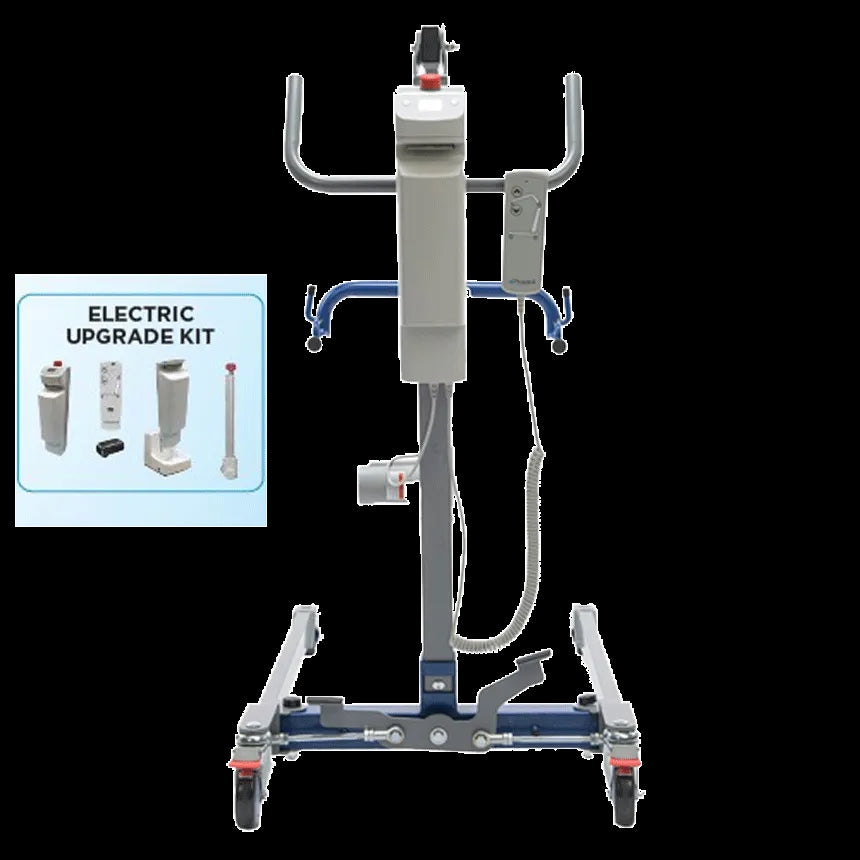

The Electric Upgrade Kit (LP-33400HE-K) is Proactive Medical's purpose-built conversion system for the 33400H. It replaces the hydraulic pump assembly with a battery-powered electric actuator and adds the hand pendant. The installation is designed to be completed by the user or caregiver — no technician required.
Important: The upgrade kit is designed specifically for the Protekt Transformer 33400H. It is not compatible with other hydraulic patient lifts from Proactive Medical or other brands. Only a 33400H can be upgraded to 33400HE using this kit.
Note that when the lift is upgraded, the HCPCS code changes from E0630 (hydraulic) to E0635 (power) — which may affect Medicare billing if the original lift was billed under E0630. Call us to discuss: 866-218-0902
What slings are compatible with the Protekt Transformer? +
The Transformer's 6-point spreader bar is compatible with Proactive Medical's full sling lineup, including:
- Standard slings — for general bed-to-chair and chair-to-toilet transfers
- Standard slings with commode opening — for toileting transfers without sling removal
- Full body slings — for patients who require full postural support and cannot sit unsupported
- Full body mesh — for bathing transfers where water drainage through the sling is needed
- Divided leg / U-sling padded — for patients requiring individual leg support or specific lower-extremity positioning
- Divided leg padded with head support — for patients with limited head or neck control
Sling sizing (XS through XL) is based on the patient's height and weight. The correct sling type is determined by the transfer type and the patient's level of function. Sling selection should be confirmed by a physician, nurse, or physical therapist. Call us to confirm the correct sling for your patient before ordering: 866-218-0902
Six Southwest Florida Showrooms
Available at all six MDS locations. Our specialists can explain the hydraulic vs electric configurations, walk through the upgrade kit, discuss E0635 Medicare documentation, and confirm the correct sling for your patient. Walk-ins welcome.
- Venice — 1180 Jacaranda Blvd · 941-497-2273
- Sarasota — 3672 Webber St · 941-923-7556
- Port Charlotte — 4265 Tamiami Trl., Unit E · 941-743-6644
- Fort Myers — #170 College Pkwy · 239-482-6111
- Naples — 13030 Livingston Rd. #2 · 239-529-2242
- North Port — 14824 S. Tamiami Trl. · 941-282-9676
📞 Nationwide: 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM · support@medicaldepartmentstore.com
Weight Capacity 400 lbs. Unit Weight 82 lbs. Base Length 40.3” Base External Width - Closed 25.3” Base Internal Width - Opened 32.5” Mast Height 47.0” Front Caster Height 4.7” Lifting Height - Lowest 20.9” Lifting Height - Highest 68.2” Base Opened Turning Diameter 52.7” Base Closed Turning Diameter 49.6 ”
