SR Smith PAL Portable Aquatic ADA Compliant Pool Lift
Installation & Product Guides:
- Meets or exceeds ADA Access Guidelines
- Makes almost any pool accessible
- Lift capacity: 300 lbs
Our Price: $11,775.97
/
Description

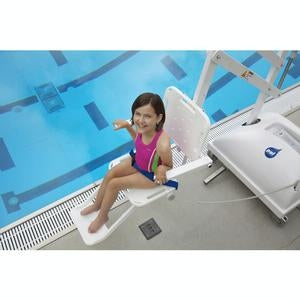

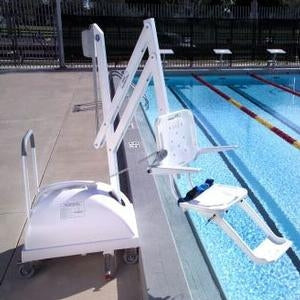

Pal Portable Aquatic Pool Lift - ADA Compliant
The PAL Portable Aquatic Pool Lift is an ADA compliant portable swimming pool lift that requires no hardware or mounting to the pool deck to be used. Ideal for facilities with multiple pools, the PAL 1000 Portable Aquatic Lift can be set up anywhere alongside the pool and then put away when not in use.Easy to use, the PAL Aquatic Pool Lift can be operated by either the user or an attendant. The pool lift controller is completely waterproof. In addition to its powerful mechanical actuator that provides a 240 degree turning radius, the PAL 1000 Portable Aquatic Pool Lift features a 24-volt rechargeable battery that allows it to lift up to 300 pounds. The PAL 1000 Pool Lift is virtually maintenance free and constructed of corrosion proof materials, so it will last you for many years
Capable of easy movement to multiple pool locations using a patented counterbalance system (no deck anchors required).
Product includes:
- Battery charger
- Battery console cover
- Battery
- Waterproof control
- Footrest
- Seatbelt assembly
Completely portable - Requires no mounting to the pool deck, making it the perfect solution for facilities with multiple pools
Easy to use - Can be operated by either the user or an attendant with the completely waterproof controller
Powerful lifting mechanism - Includes a 24-volt rechargeable battery that allows for a 300 pound lifting capacity
Corrosion proof materials - Virtually maintenance free and designed to last for many years
ADA Compliant - Makes almost any pool accessible - Simply roll the PAL-1000 to the edge of the pool, lock the casters, set the stabilizers, at it is ready to use
The PAL 1000 Portable Aquatic Pool Lift is available in 3 models:
- PAL: Standard portable aquatic lift is the perfect lift solution for facilities wishing to service more than one pool
- Pal Hi/Lo: A variation of the PAL designed for in facilities that have both in-ground pools AND above ground spas up to 52" above the deck
NOTE: Since pools and spas vary, after you place your order you may be contacted by our representative to provide some measurements for your pool/spa. Manufacturer will configure the lift to match your specific poolside configurations.
Technical Specs
Specifications
PAL Portable Aquatic Pool Lift Technical Specifications:
- Lifting Capacity: 300 lbs
- Max Speed: 0.59"/sec
- Rotation: 240 degrees (120 degrees on each side)
- Materials: powder coated aluminum, abs plastic, powder coated zinc plated steel
- Power: Linak Rechargeable Battery Pack BAJ1 24 VDC, IP65 Gel Lead Acid
- Unit weight: 850 lbs
- Overall Height:73"
- Base Height: 23.5"
- Base Length: 37.25"
- Base Width: 29.25"
- Clearance: 1.25" with stabilizer, 2" without stabilizer
- Overall Length (footprint): 85-91" (fully extended), 66" in stored position
- Seat depth: 18-20" below waterline
