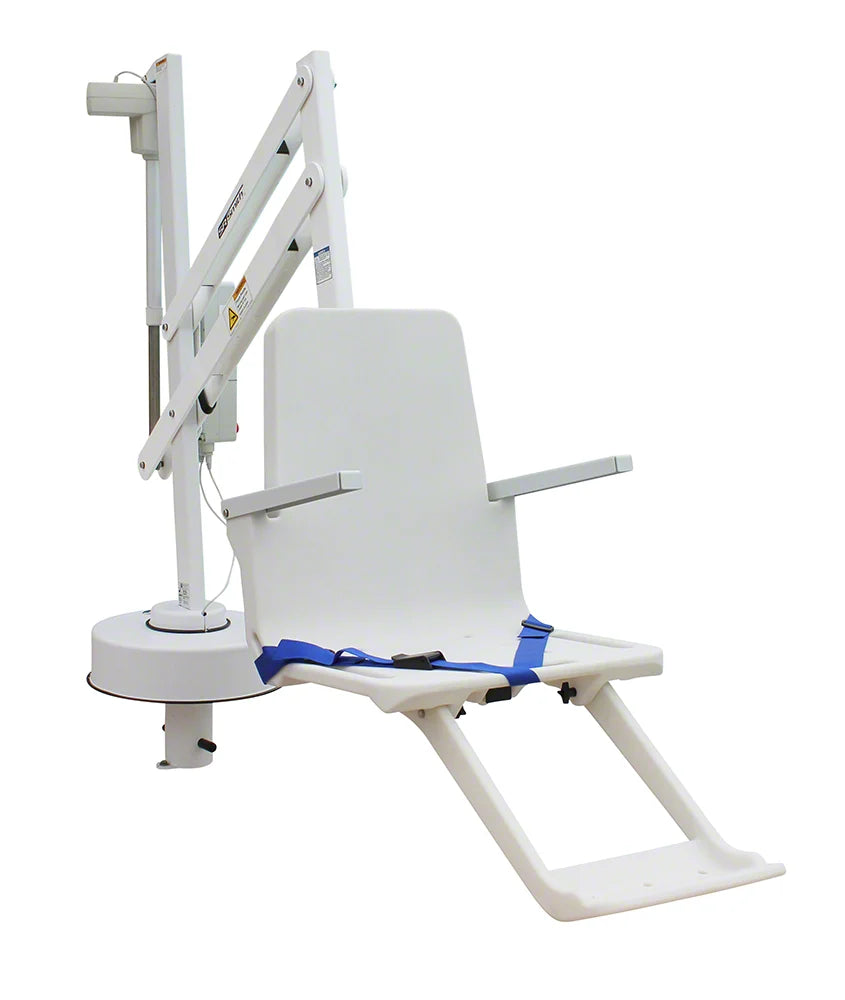

S.R. Smith Splash! Hi/Lo Pool Lift – ADA Compliant Pool Lift (Part #350-0000N)

The S.R. Smith Splash! Hi/Lo (Item 350-0000N) is a 400 lb ADA compliant, third-party verified pool and spa lift designed specifically for facilities with both an in-ground pool and an above-ground spa — a single lift, anchored once, that can reach down to pool level and up to raised spa level from the same deck position. The Hi/Lo's 44"–58" total vertical travel range accommodates the height difference between a standard in-ground pool waterline and an above-ground spa surface, serving both without a second lift installation. 344-degree rotation. LiftOperator Intelligent Control System with medical-grade LINAK actuator. 24V rechargeable battery with charger included. Integrated armrests (California compliant). Waterproof user-operated hand control. Footrest and seatbelt assembly included. Powder-coated stainless steel and aluminum construction. Semi-portable — removes from anchor for winter storage without reinstallation. Anchor sold separately (LiftLock2 recommended). Deck Profile Data Sheet required at time of order. Ships LTL freight, 2–4 weeks. ADA compliant (ADAAG 2010). 3-year frame warranty + 2-year electronics warranty. By S.R. Smith.

Key Specifications

What "Hi/Lo" Means — The Dual-Level Advantage

Standard pool lifts are designed for a fixed height — the distance from the pool deck to the waterline in an in-ground pool. A separate spa lift handles the raised height of an above-ground spa. Facilities with both typically face the choice between two lift installations, two anchor points, two maintenance contracts, and twice the deck footprint.

The Splash! Hi/Lo is engineered to eliminate that choice. Its 44"–58" total vertical travel range spans both heights in a single unit — the same lift that lowers a user into an in-ground pool can also raise a user to reach an above-ground spa surface, from the same anchor position on the deck. One installation. One lift. One ADA-compliant solution for both water features.

The Hi/Lo's 344-degree rotation range allows the seat to swing to face the pool for pool entry, then rotate to face the spa for spa entry — all controlled by the user via the waterproof handset without needing to reposition the lift or involve staff.

LiftOperator Intelligent Control — What It Does

The S.R. Smith LiftOperator Intelligent Control is the brain of the Splash! series. It provides two meaningful operational advantages over simpler lift controllers:

• Configurable stop positions — the LiftOperator can be programmed to stop automatically at the correct height for your specific pool waterline and spa surface level; rather than the user having to judge the right stopping point during descent or ascent, the lift stops precisely where it should every time
• Dual operation modes — the lift can be operated from the waterproof handset (user holds the control while in the seat) or from the control box on the lift body (useful for staff assistance or when the user cannot manage the handset); both modes work independently
• LINAK medical-grade actuator — the LINAK screw/spline actuator provides a safe, stable stop at any position in the travel range; if power is lost or the control is released mid-motion, the seat holds its position rather than dropping

Semi-Portable — Winter Storage and Seasonal Removal

Unlike permanently anchored lifts that require hardware removal and reinstallation each season, the Splash! Hi/Lo is semi-portable — the lift body removes from the deck anchor without tools or hardware modification. This means:

• The lift can be removed for winter storage in climates where pool lifts must be stored indoors during freeze season (relevant for any MDS customers with seasonal pools or second homes)
• The anchor remains in the deck year-round; the lift slides out of the anchor socket when not needed and back in when needed
• Theft deterrence — the lift body can be stored indoors or locked when the pool is closed seasonally or overnight
• One person can remove and replace the lift without special equipment — the design accommodates single-person seasonal maintenance

Integrated Armrests — ADA and California Compliance

The Splash! Hi/Lo's integrated armrests are built into the seat structure rather than added as swing-away accessories. This design is specifically required for California State pool lift compliance, which has stricter armrest requirements than the federal ADA standard. If your facility is located in California, or if your ADA compliance documentation requires California-level compliance, the Splash! Hi/Lo's integrated armrests satisfy that requirement out of the box. For facilities outside California, the integrated armrests provide the same transfer support as swing-away designs with a more streamlined aesthetic.

The Deck Profile Sheet — Why It's Required

S.R. Smith requires a completed Deck Profile Data Sheet before the Splash! Hi/Lo can be manufactured and shipped. The form captures your pool and spa dimensions, deck thickness, waterline depths, and anchor placement requirements — data that S.R. Smith uses to configure the lift's actuator range and stop positions for your specific installation. Without accurate Deck Profile data, the lift cannot be properly configured, and the Hi/Lo's dual-level functionality will not operate correctly.

The process: download the form from S.R. Smith's site (or call us and we will send it to you), complete it with your pool and spa measurements, and submit it with your order. We will coordinate the submission with S.R. Smith. Call us before ordering and we will walk through the form together: 866-218-0902.

Splash! Hi/Lo vs. Aqua Creek Lifts — Choosing Your Brand

Warranty

• Frame — 3-year limited: S.R. Smith warrants the frame against defects in material and workmanship for 3 years from date of original purchase.
• Electronics — 2-year: Electronics and motor components covered for 2 years, excluding batteries. Battery warranty is separate — contact S.R. Smith at 800-824-4387 for battery-specific warranty terms.

FAQs

What makes the Hi/Lo different from the standard Splash! lift?

The standard Splash! is configured for a fixed pool waterline height. The Hi/Lo has an extended vertical travel range (44"–58") and a configurable LiftOperator controller that lets it stop at two different heights — one for the in-ground pool, one for the above-ground spa — from a single anchor point. If your facility only has a pool, the standard Splash! is appropriate. If you have both a pool and a raised spa, the Hi/Lo is the right model.

How high of a spa can it reach?

The Splash! Spa version is rated for spas up to 48 inches above the deck. The Hi/Lo's 44"–58" vertical travel range accommodates most standard above-ground spa heights within that range. Call us with your spa height and we will confirm the Hi/Lo is appropriate for your configuration: 866-218-0902.

What is the Deck Profile Sheet and how do I complete it?

The Deck Profile Sheet is a form S.R. Smith requires to configure the lift for your specific pool and spa heights, deck thickness, and anchor placement. We will send you the form and walk through it with you — call us before ordering: 866-218-0902. The form can also be completed online at srsmith.com/liftprofile.

Which anchor do I need?

The Splash! Hi/Lo uses a square deck anchor. The LiftLock2 Anchor Assembly (Cast 316 Stainless Steel) is S.R. Smith's recommended anchor for most standard concrete deck applications. Anchor type depends on your deck material (concrete, pavers, wood). Call us for anchor selection guidance: 866-218-0902.

Is it ADA compliant for our commercial facility?

Yes — the Splash! Hi/Lo meets ADAAG 2010 and has been independently third-party verified for compliance. California facilities: the integrated armrests also satisfy California's additional pool lift requirements. Full ADA compliance of your installation depends on proper anchor installation, deck clearance, and correct height configuration per your Deck Profile data.

Can it be removed for winter?

Yes — the Splash! Hi/Lo is semi-portable and removes from the deck anchor without tools. The anchor remains in the deck; the lift body stores indoors. This is one of the design advantages of the S.R. Smith system over permanently fixed lifts for seasonal pool facilities.
