Transport Reclining Wheelchair by Karman Healthcare
/
Transport Reclining Wheelchair by Karman Healthcare

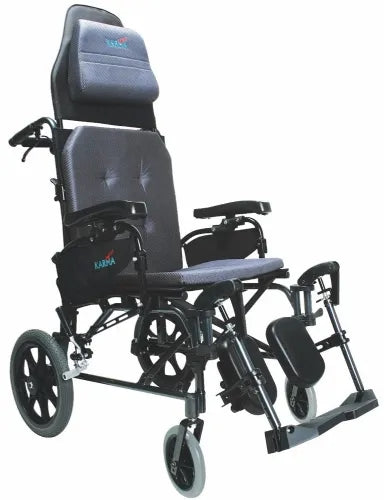

The Ergonomic V Seat Reclining Transport Chair is designed with a unique V-shaped seat that helps keep patients securely in place, preventing any sliding. This chair can be folded and reclines all the way back to 163 degrees, plus it comes equipped with anti-tippers to enhance safety.
Additionally, this transport chair includes flip-back armrests and arm pads that can be adjusted for height. For maximum comfort, it features a removable two-inch seat cushion, a back cushion, and a headrest cushion, all designed to reduce pressure on the body and provide a cozy experience.
The foldable transport chair reclines to a full one hundred and sixty-three degrees and features anti-tippers for safety purposes.
- Reclines from 93-160 degrees

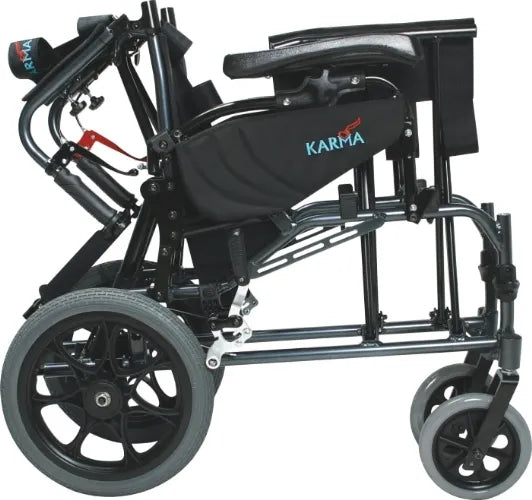

- Folds into an ultra compact size
- Relieves overall pressure on the body
- Features V shaped seating to prevent sliding
- Features armrests that are adjustable, even when reclined
Product Specifications / Dimensions
- Seat Width 16 in, 18 in, 20 in
- Seat Depth 18 in
- Armrest Height 9-11 in
- Seat Height 20 in
- Back Height 19 in
- Overall Height 52 in
- Overall Open Width 23 in, 25 in, 27 in
- Folded Width 14 in, 15 in, 16 in
- Overall Length 47 in
- Weight Without Riggings 34 lbs
- Weight Capacity 250 lbs
- Shipping Dimensions 39" L x 37" H x 16"W
- Frame Color Diamond Black
The Ergonomic V Seat Reclining Transport Chair pays special attention to maximizing user comfort. The patented ergonomic and anti-sliding V seat prevents sliding and sores, while relieving overall pressure on the body. The backrest reclines smoothly from 93 to 160 degrees, and the ergonomic armrest adjusts even while reclined. Removable elevating leg rests fold in or out.
Addition Features of the Ergonomic V Seat Reclining Transport Chair
The seat and backrest adjust with a tension strap, and the arms are height adjustable. The Ergonomic V Seat Reclining Transport Chair, which folds into an ultra compact size, is made with high strength aircraft grade aluminum that weighs only 33 lbs. without the footrests. The V shape seating is anti-thrust and slippage, while the footplate uses a tube-in-center design.
Wheelchair Measuring Guide
Wheelchair Measurements:
- Hip Width:
Use this to figure seat width if it is the widest point. - Widest Point:
Measure the widest area across the lower extremities if different from the hip width. This may influence seat width or arm style. - Chest Width:
Measure the widest point of the thorax just below the arm pit. This measurement may influence system width or back width. - Heel to Knee:
Use this for legrest extensions and seat height. - SRP to Knee (Seat Reference Point to Knee):
This will determine the seat depth. - Elbow to SRP (Elbow to Seat Reference Point):
Measure this width with the arm in a 90 degree angle at the elbow and the shoulder in a neutral position. - Shoulder Height:
This will determine the height and the style of the back panel or the start for a custom back. - Head Height:
This will help determine the proper headrest height.
