DonJoy UltraSling PRO Shoulder Brace

Part#: 11-0447-9  |  UPC: 00190446673552  |  By DonJoy / DJO / Enovis  |  6-Month Warranty

Shoulder Ring — Distributes Weight Off the Neck  |  15° or 30° Removable Abduction Cushion  |  Telescoping Trimmable Straps  |  One-Hand Quick-Release Buckles  |  Universal Fit — Right or Left Arm  |  Breathable Air Mesh  |  Waist Belt Included  |  Latex-Free

The DonJoy UltraSling PRO is DJO's next-generation post-operative shoulder immobilization system — engineered to maximize comfort, compliance, and convenience during recovery from shoulder surgery or acute shoulder injury. Three innovations define the UltraSling PRO over previous generation slings: the shoulder ring, which redistributes the sling's weight load from the neck across the shoulder and torso; the telescoping trimmable strap system, which allows one-hand adjustment to fit a wide range of patients without excess inventory; and the removable contoured abduction cushion, which positions the arm at 15° or 30° of abduction to relieve ulnar nerve pressure and maintain the prescribed arm position after surgery. The breathable air mesh envelope promotes airflow and reduces skin irritation during extended wear. Universally sized to fit most patients, fits right or left arm. Ships in right configuration (instructions included for left conversion). Part# 11-0447-9. Latex-free. 6-month DJO warranty. By DonJoy / DJO / Enovis.

Indications

• Post-operative rotator cuff repair
• Post-operative Bankart procedure
• Capsular shift
• Glenohumeral dislocation / subluxation
• Soft tissue strains and repairs

Specifications

Key Features

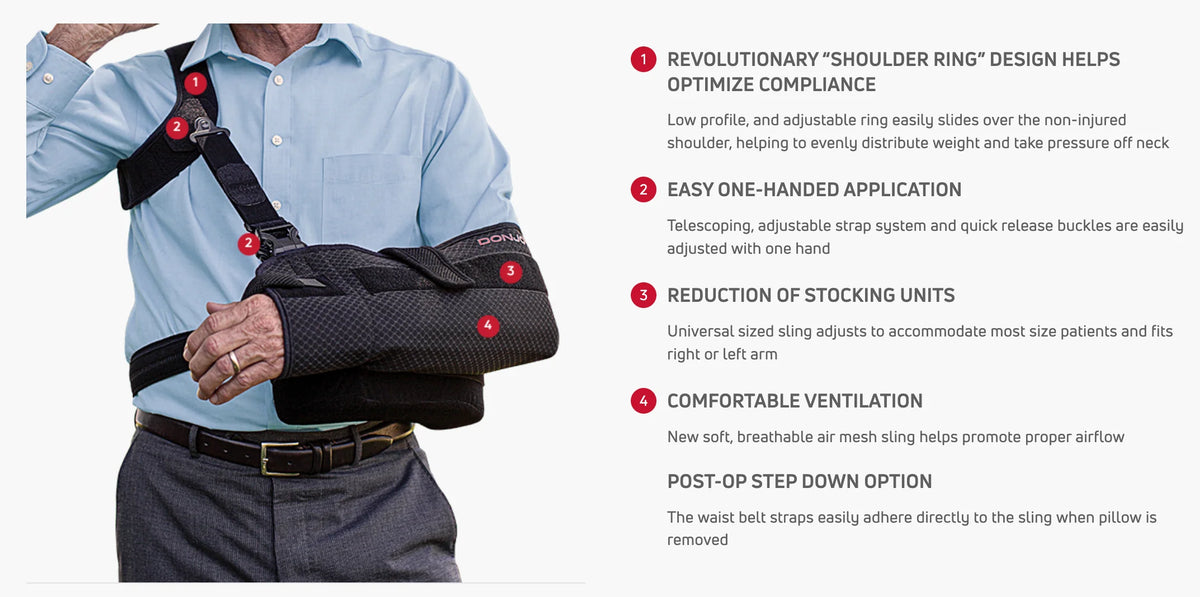

• Shoulder ring — redistributes weight off the neck — the UltraSling PRO's defining design innovation is its low-profile shoulder ring, which slides over the non-injured shoulder and sits against the torso; rather than suspending the full weight of the arm and sling from a single strap across the back of the neck (the design used in traditional slings), the ring distributes weight across the shoulder girdle and torso; this reduces the compressive loading on the cervical spine and trapezius that causes the neck pain and fatigue that commonly limits compliance with traditional post-operative shoulder slings; the ring works whether the patient is seated or supine, making it equally effective during sleep and during daily activities
• Telescoping trimmable straps — one-hand adjustment — the strap system telescopes to accommodate a wide range of body sizes and can be permanently trimmed with scissors to remove excess strap length once the correct fit is established; quick-release buckles allow the sling to be opened and repositioned with one hand, critical for patients whose injured arm is immobilized and who must manage the sling adjustment with their uninjured hand; the one-hand operation is particularly important for post-operative patients in the early recovery period
• Universal size — fits right or left arm — the sling envelope adjusts to accommodate most patients; a single SKU covers the full range without requiring separate right and left inventory; shipped in right configuration and converted to left by flipping the abduction cushion (instructions included)
• Removable contoured abduction cushion — 15° or 30° — the abduction cushion positions the arm away from the body at either 15° or 30° of abduction, as prescribed; the contoured shape additionally relieves pressure on the ulnar nerve at the elbow, addressing one of the most common discomforts associated with prolonged arm immobilization; the cushion is removable so the sling can be worn without it when the abduction position is no longer required; the waist belt straps adhere directly to the sling when the cushion is removed for a clean low-profile finish
• Breathable air mesh sling envelope — the soft air mesh material promotes airflow through the sling against the arm and torso, reducing moisture accumulation and skin irritation during extended wear; standard in post-operative shoulder immobilization that can extend for 4–6 weeks or more
• Waist belt included — wraps around the patient's back and secures at the front, providing a secondary stabilizing point that prevents the sling from rotating or riding upward during movement
• Extra-length strap available — Part# 25-0447 provides additional strap length for patients with longer torsos or higher BMI who require more material than the standard strap provides; call us to order
• Latex-free | 6-month warranty | Single patient use | By DonJoy / DJO / Enovis

Application Guide

1. Position the abduction cushion at waist/hip level with the contoured end toward the elbow. For left arm: flip cushion so the contoured end is at the back of the elbow, then reattach the arm sling to the cushion.
2. Place the forearm into the arm envelope with the elbow at a 90° angle. The sling envelope should extend to the knuckles to support the arm, wrist, and hand.
3. Secure the forearm and thumb straps.
4. Slide the shoulder ring over the non-injured shoulder and position it comfortably against the torso.
5. Wrap the waist strap around the patient's back and secure at the front.
6. Adjust and trim straps as needed to achieve proper fit. Trim excess strap length once fit is confirmed.

To size down for smaller patients: remove the forearm and thumb straps from the sling envelope, disengage shoulder strap quick-release buckles, and fold the envelope back into itself to engage the hook squares on the inner edge before reassembling.

Removal: Detach quick-release buckles, remove forearm strap, thumb strap, and waist belt. Slowly remove the brace.

Cleaning: Hand wash in water no warmer than 86°F (30°C) with mild soap. Air dry. Do not iron, tumble dry, or bleach.

Clinical FAQs

What is the shoulder ring and how does it prevent neck pain during extended sling wear?

The shoulder ring is the UltraSling PRO's primary innovation over previous generation shoulder slings. In a traditional shoulder sling, the arm's weight is transferred through a single strap that crosses the back of the neck and terminates at the opposite shoulder — concentrating the load from the arm, forearm, and sling hardware at the back of the neck where it creates compressive loading on the cervical spine and sustained tension in the trapezius and levator scapulae muscles. Over the 4 to 6 weeks or more that post-operative shoulder immobilization typically lasts, this sustained neck loading causes progressive discomfort, muscle fatigue, and in some patients headache — all of which reduce compliance with the prescribed immobilization period. The UltraSling PRO's shoulder ring slides over the non-injured shoulder and sits against the upper chest and shoulder girdle, distributing the arm's weight load across a larger surface area of the torso rather than concentrating it at the neck. The ring's weight transfer mechanism works in all positions — seated, standing, and supine during sleep — providing consistent neck pressure relief throughout the day and night. Improved comfort translates directly to improved compliance: patients who are not experiencing neck pain from their sling are more likely to wear it consistently, including during sleep, which is when compliance with shoulder immobilization is most commonly lost.

What is the abduction cushion for, and does my surgeon decide the 15° or 30° angle?

The abduction cushion serves two clinical purposes. First, it maintains the prescribed arm position — specifically, a controlled degree of abduction (arm held away from the body) that is required after certain shoulder procedures to protect the repair or reconstruction. After rotator cuff repair, the repaired tendons are under reduced tension when the arm is held in slight abduction, which reduces the mechanical load on the healing tissue compared to the arm being held directly at the side. The specific angle — 15° or 30° — is determined by the operating surgeon based on the procedure performed, the tissue quality, and the tension of the repair. The UltraSling PRO's cushion accommodates both angles; your surgeon or their clinical staff will advise which to use. Second, the contoured shape of the cushion relieves ulnar nerve pressure at the elbow — a specific anatomical benefit of the contoured cushion design over a flat foam insert, addressing the elbow numbness and tingling that is a common complaint with prolonged arm immobilization. The cushion is removable: when the abduction position is no longer required (typically at the surgeon's direction, after the initial protected healing phase), the sling can be worn without the cushion and the waist belt straps adhere directly to the sling material for a streamlined, lower-profile configuration.

How do I convert the UltraSling PRO from right to left arm configuration?

The UltraSling PRO ships in right arm configuration and is converted to left by the following steps: First, remove the arm sling envelope from the abduction cushion by detaching the connection points. Then, flip the cushion over so that the contoured end of the pillow — which was positioned at the elbow for the right arm — is now positioned at the back of the elbow for the left arm. Center the arm sling on the cushion and reattach it in the correct position for left arm use. The shoulder ring and strap system are symmetrical and do not require modification. The conversion is straightforward and should be completed before the device is applied to the patient — ideally pre-operatively during the fitting visit, when the correct arm, cushion angle, and strap length can be confirmed by clinical staff before the patient is in recovery.

Questions about the DonJoy UltraSling PRO, sizing, left/right configuration, or the extra-length strap accessory? Call our product specialists: 1-866-218-0902  |  Mon–Fri 9am–5pm, Sat 9am–3pm EST
