Universal Inline Bacterial & Viral Filter for CPAP/BiPAP Machines

SKU: 06216  |  By CPAP Store USA  |  5.0 Stars

99.99% Bacterial & Viral Filtration  |  Inline — Installs Between Tubing and Mask  |  Clear Housing for Visual Inspection  |  Universal Fit — All CPAP/BiPAP Systems  |  Replace Every 4–6 Weeks  |  HSA/FSA Eligible  |  For Allergy, Respiratory Sensitivity & Immunocompromised Users

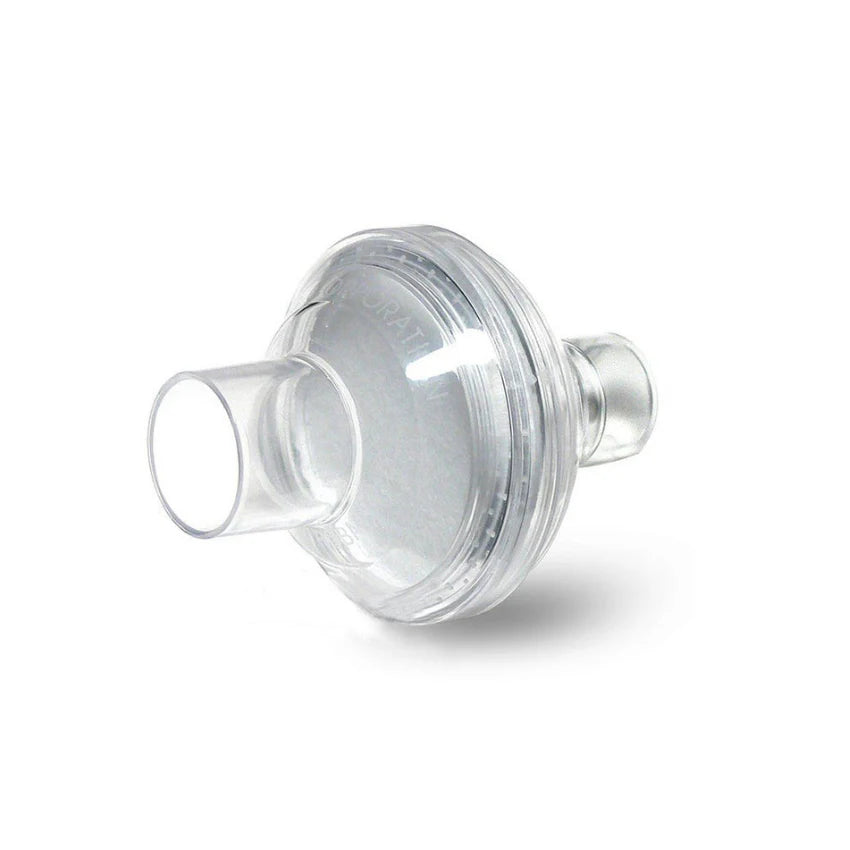

The Universal Inline Bacterial & Viral Filter adds a high-efficiency filtration stage directly in the CPAP or BiPAP breathing circuit — installed between the machine tubing and the mask, it is the last point at which airborne bacteria and viruses can be intercepted before pressurized air enters the patient's nose and throat. The 99.99% bacterial and viral filtration efficiency provides meaningful protection against airborne pathogens reaching the airway during therapy — an important layer for users with seasonal allergies, frequent respiratory illness, reduced immune function, or any condition that makes respiratory infections particularly risky. The clear outer housing allows a quick visual check of the inner white filter medium: when the white material shows discoloration, the filter should be replaced. Universal design with standard 22mm tubing connectors installs on any CPAP or BiPAP system in seconds. Disposable — replace every 4 to 6 weeks under normal conditions. One filter per package. HSA/FSA eligible. SKU 06216.

Specifications

Note: this is an inline circuit filter installed between tubing and mask — not a machine intake filter. For machine intake filtration (pollen and ultrafine filters), see the Respironics M Series Reusable Pollen Filter (SKU 1029330). Both types of filtration serve different purposes and can be used together. Call 1-866-218-0902 with questions.

Key Features

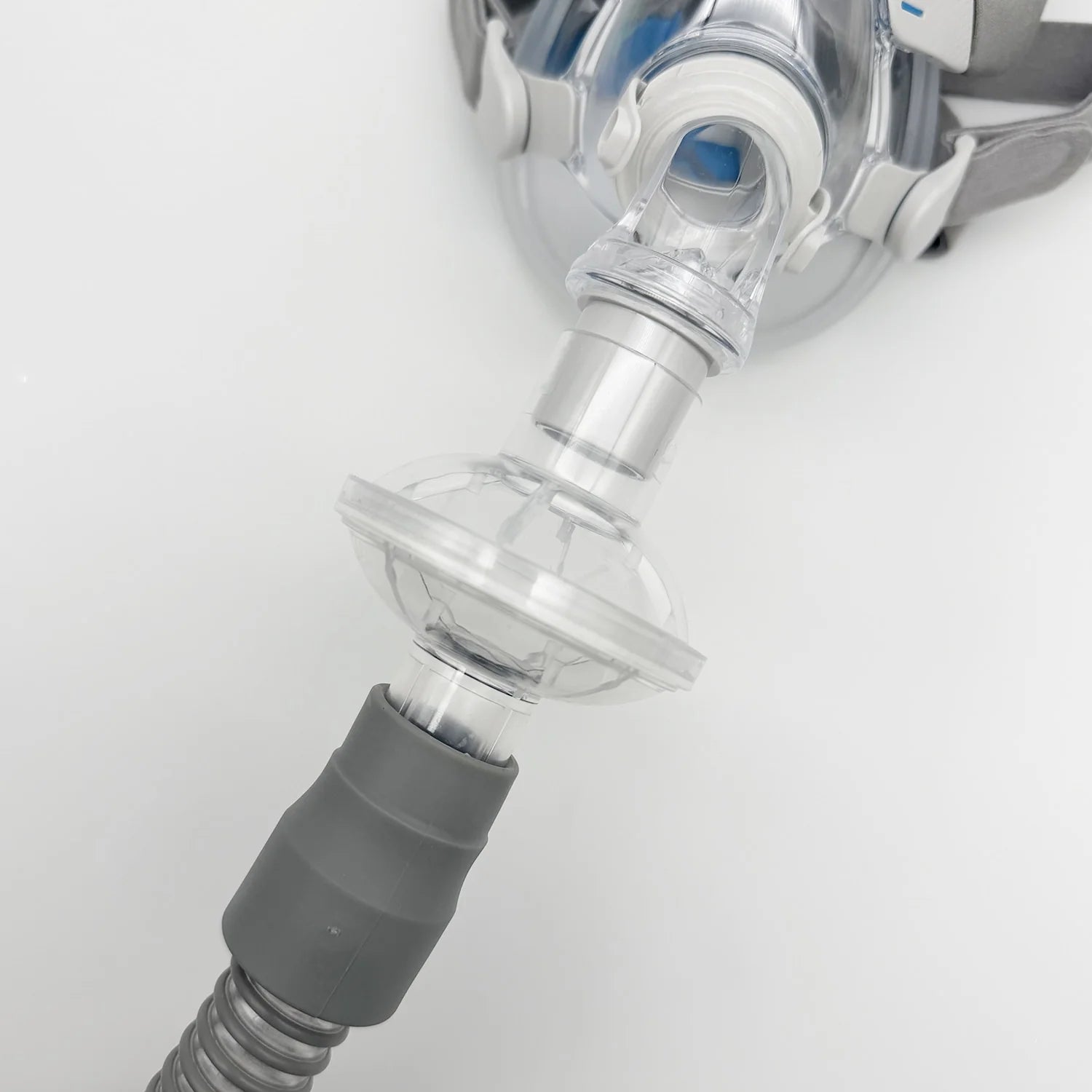

• Inline circuit installation — between tubing and mask — unlike machine intake filters that filter air as it enters the machine at the start of the circuit, this inline filter is positioned at the end of the breathing circuit where filtered, pressurized air transitions from the tubing into the mask and into the patient's airway; it intercepts any bacteria or viruses that may be present in the air column at the point closest to the patient
• 99.99% bacterial and viral filtration efficiency — high-efficiency particulate filter medium that captures bacterial and viral particles at 99.99% effectiveness, providing clinically meaningful protection against airborne pathogens in the CPAP breathing circuit
• Clear housing for visual replacement monitoring — the transparent outer casing makes the inner white filter medium visible; when the white filter material darkens from particle accumulation, the filter is due for replacement without needing to remove it from the circuit to check its condition
• Universal 22mm fit — standard CPAP/BiPAP tubing connection size used across all major machine brands; installs inline between the tubing end and the mask port without adapters on any CPAP or BiPAP system
• Especially appropriate for sensitive users — users with seasonal allergies, frequent colds or upper respiratory infections, asthma or COPD, post-surgical immunosuppression, chemotherapy-related immunocompromise, or any condition that increases susceptibility to or severity of respiratory infection
• Simple 4-to-6-week replacement schedule — or replace earlier when the inner medium visibly discolors; aligns with standard CPAP supply replenishment calendars
• Single-use disposable — not washable or reusable; replacing on schedule maintains full filtration efficiency
• HSA/FSA eligible | 5.0 Stars | By CPAP Store USA

Clinical FAQs

Where in the CPAP circuit does this inline filter sit, and how is it different from machine intake filters?

A CPAP system has two distinct filter positions, and this product occupies the circuit-end position — not the machine-intake position. The machine intake filter (such as the Respironics M Series foam pollen filter and disposable ultrafine filter) sits at the air inlet of the CPAP machine and filters room air before it enters the machine's blower and motor. These filters protect the machine's internal components and remove environmental particles from ambient air before it is pressurized. The inline bacterial and viral filter occupies a completely different position: it connects between the end of the CPAP tubing and the mask port, and filters the pressurized air at the very last point before it enters the patient's nose and throat. Air must pass through this filter as it exits the tubing and enters the mask's delivery system. Particles that passed through the machine's intake filters — or that entered the tubing from the mask side (such as bacteria from the patient's own exhalation on BiPAP systems, or from handling the equipment) — are intercepted at this final stage. The two filter types are complementary, not alternatives: intake filters protect the machine and remove gross environmental particulates; the inline circuit filter protects the patient's airway from residual bacteria and viruses at the point of delivery.

Who most benefits from adding an inline bacterial/viral filter to their CPAP setup?

While any CPAP user can benefit from the added filtration layer, certain patient populations have a particularly meaningful clinical reason to use an inline filter. Patients with seasonal allergies or asthma who use CPAP may have heightened airway reactivity — reducing the particulate and pathogen load in the air delivered to their already-sensitive airways supports more comfortable therapy and reduces the risk of allergen-triggered exacerbations during sleep. Patients who are immunocompromised — from chemotherapy, organ transplant immunosuppressive therapy, HIV/AIDS, or other immune-suppressing conditions — face significantly higher risk from respiratory infections; the inline filter reduces exposure to airborne pathogens during the 6 to 8 hours of nightly CPAP therapy. Patients who experience frequent colds or upper respiratory infections may benefit from the additional protection against introducing airborne viral particles directly into the nasal and pharyngeal mucosa during therapy, particularly during cold and flu season. Patients with COPD, chronic bronchitis, or post-surgical pulmonary vulnerability may benefit from reduced airway pathogen exposure. Additionally, patients using BiPAP (where exhalation also passes through part of the circuit) may appreciate the inline filter as protection against their own exhaled bacteria being recirculated into the inhalation stream in poorly ventilated systems.

Does adding an inline filter affect CPAP pressure delivery or cause breathing resistance?

Adding an inline filter to the CPAP circuit introduces a small amount of additional airflow resistance at the filter medium — the air must pass through the filter material before reaching the mask. In a correctly functioning auto-titrating CPAP or pressure-adjusted CPAP machine, the machine detects changes in airflow resistance in the circuit and compensates by adjusting the delivered pressure to maintain the prescribed therapy pressure at the mask. For most users with a properly calibrated machine, the inline filter's resistance is within the machine's normal compensation range and does not meaningfully affect therapy effectiveness. However, patients on fixed-pressure CPAP (as opposed to APAP or auto-adjusting machines) should be aware that the filter introduces a slight resistance that the machine cannot automatically compensate for, which could reduce effective pressure at the mask by a small margin. If you are on a fixed-pressure prescription and have specific concerns about circuit resistance, consult your sleep physician or DMEPOS provider before adding the inline filter, or ask your machine manufacturer whether inline HME (heat-moisture exchanger) or bacterial-viral filters are approved for use with your specific machine model. Call us at 1-866-218-0902 with any questions about filter compatibility with your equipment.

Questions about the inline bacterial/viral filter, CPAP filtration, or compatible machine intake filters? Call our product specialists: 1-866-218-0902  |  Mon–Fri 9am–5pm, Sat 9am–3pm EST
