The single most important number in bariatric hospital bed shopping is not the rated weight capacity. It is the safe working load — which is typically 75–80% of that number — because no bed should be operated at its maximum rating for sustained daily use. A bed rated at 750 lbs has a safe working load of 560–600 lbs. Know the difference before you order, and know it before a caregiver does.
Bariatric hospital beds solve a specific problem: standard home care hospital beds are built for weight capacities of 250–450 lbs, with sleep surfaces typically 36"–38" wide. When a patient exceeds either limit — in weight, in width, or both — a standard bed becomes a safety risk. The frame flexes under loads it was not rated for. The sleep surface does not provide enough surface area for comfortable positioning. Transfers become difficult and potentially dangerous for both patient and caregiver.
A bariatric hospital bed addresses these problems directly: heavier-rated frames, wider sleep surfaces, and in the best models, expandable width systems that can grow with the patient's needs over time. This guide covers everything you need to know to choose the right one — or call us and we will walk you through it: 866-218-0902.
Bariatric Hospital Bed Size Reference — Width, Capacity & Use Case
| Bed Width |
Mattress Size |
Typical Capacity |
Best For |
| 36" standard |
30"–32" sleep surface |
250–450 lbs |
Standard home care — not bariatric |
| 36"–42" expandable |
Twin to expanded twin |
550 lbs (P703) |
Entry-level bariatric — growing needs |
| 42" wide |
42" × 80" |
600–750 lbs |
Mid-range bariatric, most home care situations |
| 48" wide |
48" × 80" |
750 lbs |
Heavier bariatric patients, extra surface area |
| 36"–48" expandable |
Adjustable |
850 lbs (RC Ultra 850) |
Highest capacity, advanced care environments |
| Up to 54" wide |
Bariatric mattress |
750 lbs (RC-750) |
Maximum surface area, long-term bariatric care |
Standard vs Bariatric Hospital Bed — The Key Differences
What is the difference between a standard and a bariatric hospital bed?
A standard home care hospital bed is typically rated for 250–450 lbs with a 36"–38" sleep surface. A bariatric hospital bed uses a reinforced frame with higher-rated structural components, a wider sleep surface (42"–54"), and in many cases a heavy-duty hi-low mechanism capable of safely raising and lowering higher patient weights. Bariatric beds are also often designed with expandable width frames that can be adjusted as needed, and they use stronger deck components — typically heavy-gauge steel rather than the lighter construction of standard beds.
The differences go beyond just a higher number on the capacity label. Bariatric beds differ from standard beds in:
-
Frame construction: heavier-gauge steel, wider cross-members, reinforced welds rated for the actual load they will carry
-
Motor capacity: hi-low motors rated for the higher lifting loads involved in raising and lowering heavier patients
-
Sleep surface: 42"–54" versus the standard 36"–38", providing the surface area for safe positioning and comfort
-
Expandability: many bariatric beds have width-adjustable frames — a standard bed's width is fixed
-
Casters and locking: heavier-duty casters rated for the combined patient + bed weight when moving
-
Safe working load margin: bariatric beds are engineered with higher safety factors in their structural calculations
Safe Working Load vs Weight Capacity — The Number That Actually Matters
What is the safe working load vs the weight capacity of a bariatric hospital bed?
The weight capacity listed on a hospital bed is the maximum rated load — the point at which the structure begins to approach its design limits. The safe working load is 75–80% of that maximum, representing the weight at which the bed should be operated for sustained daily use without accelerated wear, structural fatigue, or safety risk. A bed rated at 750 lbs has a safe working load of approximately 560–600 lbs. For sustained daily bariatric use, always choose a bed rated at least 25–30% above the patient's actual weight.
⚠️ The number most buyers look at last — but should look at first:
Operating any piece of medical equipment at or near its rated maximum for sustained daily use accelerates wear on motors, frame welds, and mechanisms — and creates a safety margin that disappears quickly if the patient's weight changes. A 600 lb patient should not be using a 600 lb rated bed as their long-term home care solution. The next step up — 750 lb or 850 lb — provides the working margin that turns a safe number on a label into actual safety in practice.
Practical safe working load guidelines by capacity tier:
| Rated Capacity |
Safe Daily Working Load |
Best Suited For Patient Weight |
| 550 lbs (Drive P703) |
~415–440 lbs |
Up to ~420 lbs with adequate margin |
| 600 lbs (EasyCare / P903) |
~450–480 lbs |
Up to ~460 lbs with adequate margin |
| 750 lbs (Drive 48") |
~560–600 lbs |
Up to ~580 lbs with adequate margin |
| 850 lbs (RC Ultra 850) |
~640–680 lbs |
Up to ~660 lbs with adequate margin |
Five Features to Look for in a Heavy-Duty Home Care Bed
1. Hi-Low Height Range
The most underappreciated feature on any bariatric home care bed. A bed that lowers to 7"–10" allows a heavier patient to get in and out with significantly reduced fall risk. A bed that raises to 28"–30" allows caregivers to provide care without bending — preventing back injuries that end caregiving relationships faster than almost anything else. The hi-low range is the feature that makes daily care sustainable over months and years, not just days.
2. Expandable Width Frame
A fixed-width bariatric bed bought today may not fit the patient's needs in six months. An expandable frame — like the Drive P703 (36"–42"), Drive P903 (36"–42"), or Joerns RC-750 (up to 54") — adjusts as the patient's situation changes. For long-term home care, expandability is insurance against having to replace the entire bed system when care needs evolve.
3. Full-Electric Operation
For a bariatric patient who spends extended time in bed, the ability to adjust head and foot positioning independently — without requiring caregiver assistance for every adjustment — directly affects skin integrity, respiratory comfort, and patient dignity. Full-electric operation with a pendant control is not a convenience feature; it is a care quality feature. All six beds in this guide are full-electric.
4. Mattress Deck System
Standard hospital bed decks use spring-tension systems that can fail under sustained bariatric loads. Look for split-pan deck designs that provide even support across the entire sleep surface without concentrated stress points. The split-pan design (Drive 15302) is specifically engineered to accommodate low-air-loss and alternating-pressure bariatric mattress systems — which are often required alongside the bed for pressure injury prevention.
5. Caster and Lock System
Moving a bariatric hospital bed with a patient in it — for repositioning in the room, cleaning, or care access — requires a caster system rated for the combined weight. Look for total-lock casters (locks both rotation and swivel) and, in premium systems like the Joerns RC Ultra 850, roll-at-any-height capability — which allows moving the bed without lowering it to a transfer position first.
Are Bariatric Hospital Beds Full-Electric?
Do bariatric beds come in full-electric options?
Yes — all premium bariatric hospital beds available at MDS are full-electric. Full-electric operation means head, foot, and height (hi-low) adjustments are all controlled by a pendant or wired remote, with no manual cranking required for normal operation. An emergency manual crank is typically included for power failure situations. Semi-electric bariatric beds — where the height adjustment is manual — exist but are not appropriate for most home care situations involving heavier patients, as the manual height mechanism would place excessive physical demand on the caregiver.
The beds in this guide range from the Drive Medical 15302 — a straightforward full-electric bariatric system that is the most affordable way to reach 750 lb capacity at a 48" sleep surface — to the Joerns RC Ultra Hi-Lo 850, which represents the highest-capability home and facility bariatric system available at MDS. All are full-electric. All include an emergency manual crank.
Are Bariatric Hospital Beds Expandable in Width?
Are bariatric hospital beds expandable in width?
Many bariatric hospital beds offer expandable width frames. The Drive Medical P703 expands from 36" to 42". The Drive Medical P903 expands from 36" to 42" with three length options. The Joerns RC-750 expands to approximately 54" — the widest expandable option in the MDS bariatric collection. Expandable beds are particularly valuable for long-term home care situations where the patient's needs may change over time, as they eliminate the need to replace the entire bed system when a wider sleep surface becomes necessary.
What Mattress Size Fits a Bariatric Hospital Bed?
What mattress size fits a bariatric hospital bed?
Bariatric hospital bed mattresses are not standard mattress sizes. They are typically offered as 36"×80", 42"×80", 48"×80", or 54"×80" — matching the bed deck's specific dimensions. Standard twin (38"×75") or twin XL (38"×80") mattresses fit standard hospital beds but will not fit a 42"+ bariatric frame. For bariatric home care, a pressure-relieving mattress is strongly recommended alongside the bed — alternating pressure, low-air-loss, or foam-based bariatric mattress systems all require the matching bariatric deck size. Browse our
hospital bed and mattress system guide for compatible options.
⚠️ The mattress mistake that costs patients most:
Standard foam hospital bed mattresses do not provide adequate pressure redistribution for bariatric patients — the higher body weight creates higher pressure at bony prominences, increasing pressure injury risk. A bariatric alternating-pressure or low-air-loss mattress system should be considered part of the bed system, not an optional accessory. Ask us about compatible bariatric mattress systems when you order:
866-218-0902.
Six Bariatric Hospital Beds at MDS — Complete Comparison
Browse our full bariatric hospital bed collection. Every bed below is in stock for nationwide delivery. Call us to confirm current availability and discuss the right fit for your specific care situation: 866-218-0902.

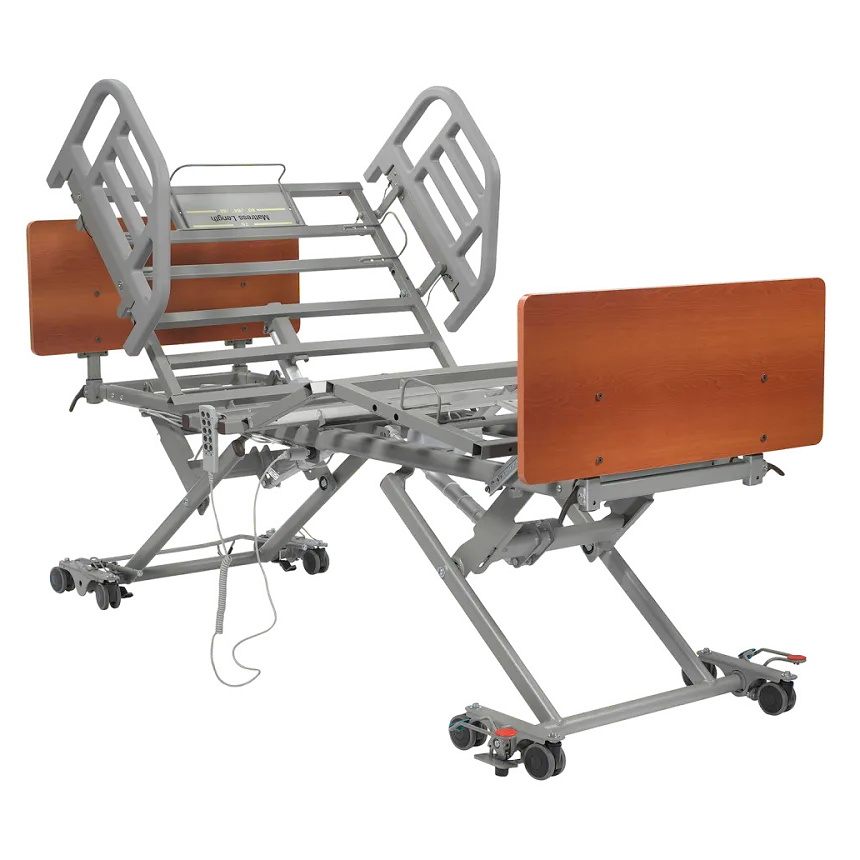

Entry-Level Bariatric · Best Value
Drive Medical · Model P703 · 550 lb capacity · From $1,699
550 lb capacity
7"–30" hi-low
36"–42" width
76–84" length
Auto Contour
8-function pendant
The P703 is where we start the bariatric bed conversation for most families — a genuine full-electric hi-low bed with a 550 lb rated capacity, Auto Contour positioning, and an optional width expansion kit that takes it from 36" to 42". The 7" low position makes it one of the most fall-safe home care beds at this price point. The 8-function pendant gives the patient independent control over head, foot, and height adjustment. For a patient in the 400–450 lb range who needs a capable hi-low bed without requiring the full bariatric specification of the 600+ lb models, the P703 is the right starting conversation.
View the Drive P703 →

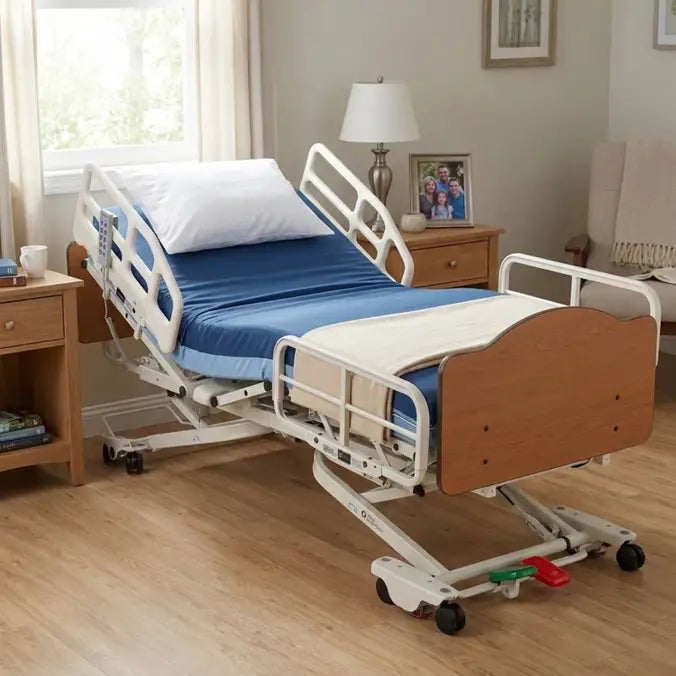

600 lb · Long-Term Care Grade
Joerns Healthcare · 600 lb capacity · 7"–30" hi-low · From $2,070
600 lb capacity
7"–30" hi-low
35" sleep surface
Auto-contour positioning
Roll-in-low design
Long-term care grade
The Joerns EasyCare is a step up in build quality — designed to Joerns Healthcare's long-term care facility standards, which is a meaningfully different specification from a standard home care bed. The 600 lb rated capacity, 7"–30" hi-low range, and Auto-Contour positioning system are all engineered for the daily operational demands of professional care environments. For a family setting up a home care situation that mirrors the safety and positioning capability of a skilled nursing facility, the EasyCare is the closest thing to a facility bed in the home care category. The Roll-in-Low mobility system enables bed repositioning without raising the patient first.
View the Joerns EasyCare →

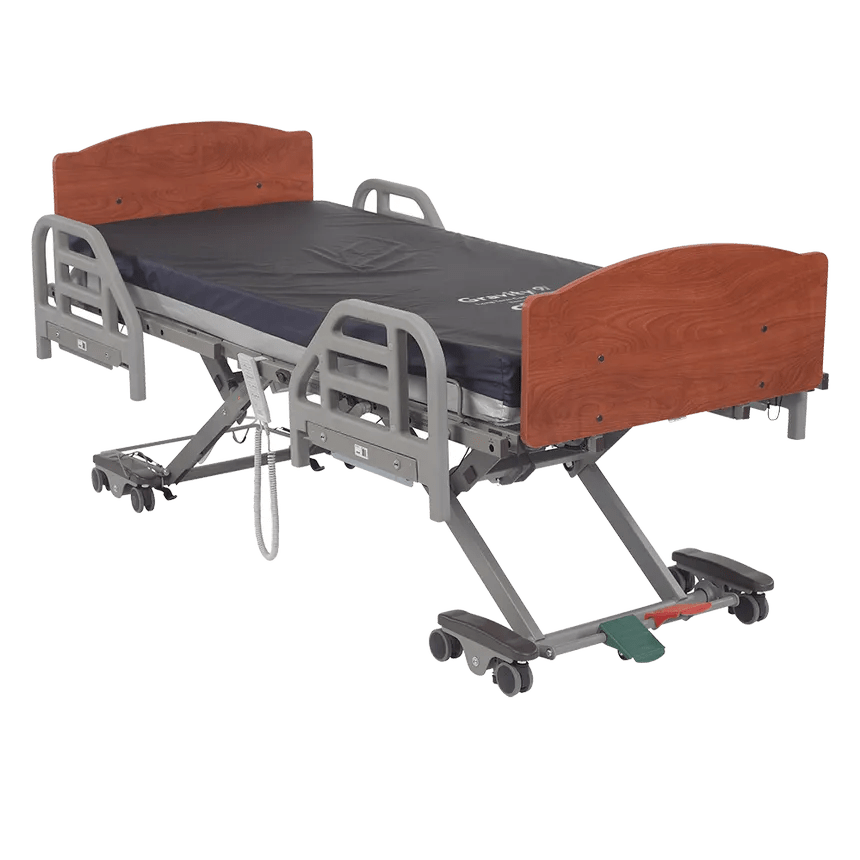

600 lb · Trendelenburg · Most Features
Drive Medical · Model P903 · 600 lb capacity · Width 36"–42" · From $2,218
600 lb capacity
7"–30" hi-low
36"–42" width
80"–88" length options
Trendelenburg
Cardiac Comfort Chair
10-function pendant
Under-bed night light
The P903 is the feature-richest 600 lb capacity bed in the MDS lineup. The 10-function backlit pendant gives the patient control over head, foot, height, Trendelenburg, Reverse Trendelenburg, and Auto Contour positions — the full clinical positioning range most patients need for respiratory management, edema reduction, and comfort. The adjustable width (36"–42") and three length options (80", 84", 88") accommodate a wider range of patient sizes than most fixed-dimension beds. The under-bed night light is a small feature that matters significantly for fall prevention during nighttime transfers. Quick-ship availability means faster delivery when timing is urgent.
View the Drive P903 Deluxe →
750 lb · 48" Wide · Best for Extra Surface Area
Drive Medical · Model 15302 · 750 lb capacity · 48"×88" · From $3,219.97
750 lb capacity
48" × 88" overall
42" × 80" sleep surface
Height 18.25"–26.25"
Split-pan deck
Tool-free assembly
5-yr frame warranty
The Drive Medical 15302 is the right answer when the primary requirement is maximum sleep surface area at 750 lb capacity. The 48" total width with a 42"×80" sleep surface is the widest single-piece fixed-frame Drive bariatric bed available — providing significantly more patient surface area than the 36"–42" expandable models. The split-pan deck design accommodates low-air-loss and alternating-pressure bariatric mattress systems directly, which is important for higher-weight patients with elevated pressure injury risk. The height range (18.25"–26.25") is slightly higher than hi-low models, making this a better fit for patients with good transfer ability who do not require ultra-low positioning. Lifetime weld warranty + 5-year frame warranty reflect Drive's confidence in the steel construction.
View the Drive 48" Bariatric →

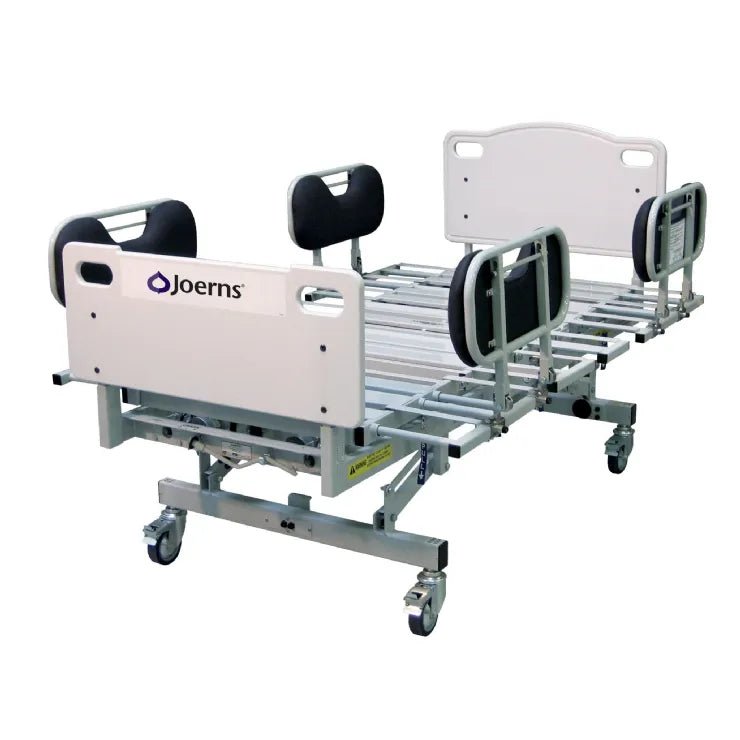

750 lb · Expands to 54" · Maximum Surface
Joerns Healthcare · RC 750 · 750 lb capacity · Expands to ~54" · From $6,710
750 lb capacity
Expands to ~54" wide
Full electric hi-low
Tool-free width expansion
Joerns long-term care quality
The RC-750 is the maximum-width option in the MDS bariatric collection — a Joerns Healthcare system that expands to approximately 54" wide with tool-free width adjustment. The combination of 750 lb rated capacity and the widest available sleep surface makes it the appropriate choice for the heaviest patients who also need maximum surface area for positioning and comfort. Joerns Healthcare's engineering standards — the same standards used in their hospital and skilled nursing facility products — provide the long-term reliability needed for a bed that will be in daily use for months or years. If you need more surface area than any fixed-width bed can provide, this is the system to call us about:
866-218-0902.

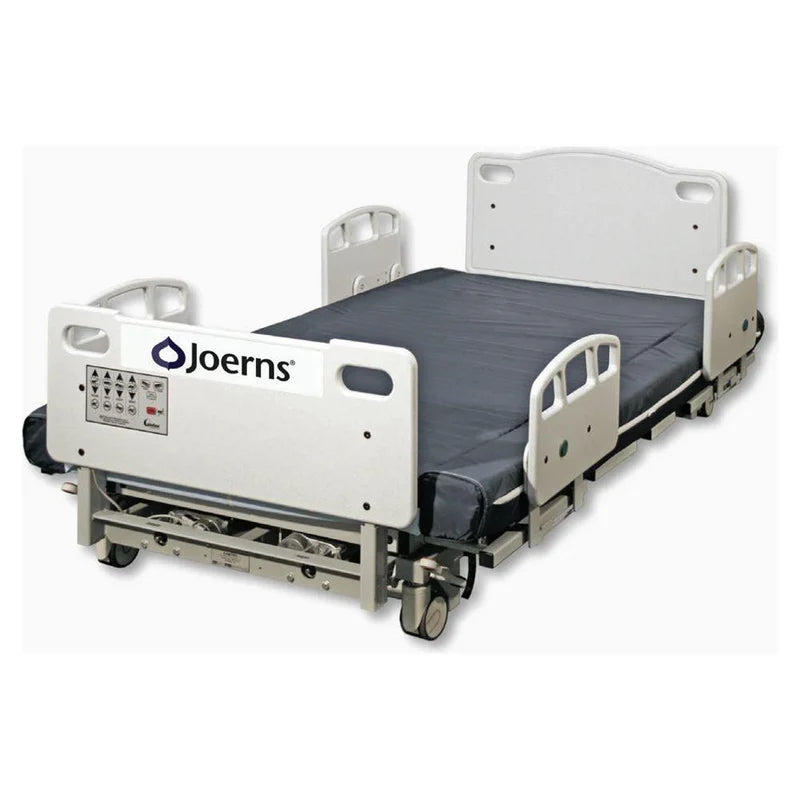

850 lb · Ultra-Low 9.5" · Highest Capacity
Joerns Healthcare · RC Ultra 850 · 850 lb capacity · 9.5"–29" hi-low · From $7,499
850 lb capacity
Ultra-low 9.5" floor height
9.5"–29" hi-low range
36"–48" expandable
Roll at any height
Total-lock casters
Advanced safety suite
The RC Ultra Hi-Lo 850 is the highest-specification bariatric hospital bed at MDS — and one of the highest-capacity home care beds available anywhere. Its defining feature is the combination of 850 lb rated capacity with an ultra-low 9.5" floor height — which is exceptional fall prevention capability at the highest weight tier. The roll-at-any-height design means caregivers can reposition the bed without lowering the patient first, reducing both patient discomfort and caregiver workload during repositioning. The expandable frame (36"–48") accommodates changing patient needs. This system is most commonly used in advanced home care environments and long-term care facilities where patient weight, fall prevention, and caregiver efficiency are all simultaneously critical. For the most complex bariatric care situations, this is the answer.
View the Joerns RC Ultra 850 →
How Much Does a Bariatric Hospital Bed Cost?
How much does a bariatric hospital bed cost?
Bariatric hospital beds at MDS range from approximately $1,699 (Drive Medical P703, 550 lb, entry-level bariatric) to $7,499 (Joerns RC Ultra Hi-Lo 850, 850 lb, highest-capacity safety system). The factors driving cost are weight capacity tier, width and expandability, hi-low range depth, feature set (Trendelenburg, night light, pendant sophistication), and manufacturer (Drive Medical vs Joerns Healthcare, with Joerns representing a higher specification standard). For most home care bariatric situations — a patient in the 400–600 lb range requiring safe daily care — a bed in the $1,699–$2,218 range is appropriate. Higher capacities or more advanced safety features move the price into the $3,000–$7,500 range.
| Price Range |
Bed / Model |
Capacity |
Who It's For |
| $1,699 |
Drive P703 |
550 lbs |
Entry bariatric, 400–420 lb patient range |
| $2,070 |
Joerns EasyCare |
600 lbs |
Long-term care quality, 450–460 lb patient range |
| $2,218 |
Drive P903 Deluxe |
600 lbs |
Full-feature 600 lb, Trendelenburg, up to 460 lbs patient |
| $3,220 |
Drive 15302 48" |
750 lbs |
Maximum surface area, 560–580 lb patient range |
| $6,710 |
Joerns RC-750 |
750 lbs |
Widest surface, up to 54", complex long-term care |
| $7,499 |
Joerns RC Ultra 850 |
850 lbs |
Highest capacity, ultra-low, advanced safety suite |
Does Medicare Cover a Bariatric Hospital Bed?
Does Medicare cover a bariatric hospital bed?
Medicare Part B may cover a bariatric hospital bed as Durable Medical Equipment (DME) when a physician documents medical necessity — specifically that the patient has a condition requiring the higher weight capacity or wider sleep surface that a standard hospital bed cannot safely provide. The documentation requirements are strict: the physician must document the specific condition, the patient's weight, why a standard bed is insufficient, and a Certificate of Medical Necessity. Coverage for the bariatric specification specifically (versus a standard hospital bed) requires distinct documentation supporting the bariatric need. Call us before the physician appointment for guidance on what needs to be documented: 866-218-0902.
Call us before the doctor appointment — not after.
The language and specificity of the physician's documentation determines what Medicare will and will not cover. Documentation written without the specific terminology Medicare requires typically results in a denial and a restart of the process. Our specialists explain exactly what needs to be in the prescription before your patient sees the physician:
866-218-0902. Free consultation, no obligation.
Complete Your Bariatric Bed Setup
A bariatric hospital bed is the foundation. The complete care system includes compatible accessories — and choosing the wrong accessories for a bariatric bed wastes money and can create safety gaps.
-
Bariatric mattress: Standard foam hospital mattresses are not rated for sustained bariatric loads. An alternating-pressure or low-air-loss bariatric mattress system matched to the bed's deck size is strongly recommended. Browse our hospital bed and mattress system guide.
-
Bed safety rails: Standard half-rails are not rated for bariatric use. Bariatric half-rails and full rails provide the structural support a heavier patient needs when repositioning or transferring. Browse our bed safety rails.
-
Patient lift: For patients who cannot self-transfer in and out of bed, a bariatric-rated patient lift is an essential companion to the bed system. Browse our heavy-duty patient lifts.
-
Overbed table: A wide overbed table rated for bariatric use provides safe surface space for meals, devices, and daily activities from bed. Browse our overbed tables.
10 Frequently Asked Questions
What weight can a bariatric hospital bed hold?
Bariatric hospital beds at MDS are rated from 550 lbs (Drive P703) to 850 lbs (Joerns RC Ultra Hi-Lo 850). The safe working load for sustained daily use is 75–80% of the rated capacity. Always choose a bed rated at least 25–30% above the patient's current weight to maintain an adequate safety margin and account for potential weight changes.
How wide is a bariatric hospital bed?
Bariatric hospital bed sleep surfaces range from 36"–42" on expandable models (Drive P703 and P903) to 42"×80" on the Drive 15302 48" model, and up to approximately 54" wide on the Joerns RC-750. Standard hospital beds have sleep surfaces of 30"–36". The overall bed frame is typically 3"–6" wider than the sleep surface on each side.
What is the difference between a standard and a bariatric hospital bed?
A standard hospital bed supports 250–450 lbs with a 36"–38" sleep surface using lighter-gauge steel construction. A bariatric bed uses heavier-gauge steel, reinforced frame welds, higher-rated hi-low motors, and wider sleep surfaces (42"–54"). Many bariatric beds also offer expandable width frames and higher-specification deck systems compatible with bariatric pressure-relief mattresses.
What mattress size fits a bariatric hospital bed?
Bariatric hospital beds use non-standard mattress sizes: typically 42"×80", 48"×80", or 54"×80" depending on the bed. Standard twin or twin XL mattresses will not fit a wider bariatric frame. A pressure-relieving bariatric mattress system — alternating pressure or low-air-loss — is strongly recommended for patients at elevated pressure injury risk. Browse our hospital bed and mattress system guide.
Are bariatric hospital beds expandable in width?
Several models in the MDS bariatric collection offer expandable width: the Drive P703 (36"–42"), Drive P903 (36"–42"), and Joerns RC-750 (up to approximately 54"). The Joerns RC Ultra Hi-Lo 850 also offers an expandable frame (36"–48"). Fixed-width bariatric beds (Drive 15302 at 48") provide a specific deck size without adjustability.
Does Medicare cover a bariatric hospital bed?
Medicare Part B may cover a bariatric hospital bed with documented medical necessity — a physician prescription, face-to-face examination, and Certificate of Medical Necessity specifying the patient's condition and why a standard bed is insufficient. Call us before the physician appointment for guidance on specific documentation requirements: 866-218-0902.
What is the safe working load vs the weight capacity?
The weight capacity is the maximum structural rating. The safe working load — the weight at which the bed should be operated for sustained daily use — is 75–80% of the rated capacity. A 750 lb rated bed has a safe working load of approximately 560–600 lbs. Always choose a bed with rated capacity at least 25–30% above the patient's weight.
Do bariatric beds come in full-electric options?
Yes — all six beds in this guide are full-electric, with head, foot, and hi-low height adjustment controlled by pendant. An emergency manual crank is standard on all models for power failure situations. Semi-electric bariatric beds (manual height adjustment only) exist but are not appropriate for most home care situations involving heavier patients.
How much does a bariatric hospital bed cost?
Bariatric hospital beds at MDS range from $1,699 (Drive P703, 550 lbs) to $7,499 (Joerns RC Ultra Hi-Lo 850, 850 lbs). Most home care bariatric situations in the 400–550 lb patient range are well served by beds in the $1,699–$2,218 range. Higher capacity, wider frames, and advanced safety features move the price into the $3,000–$7,500 range.
What features should I look for in a heavy-duty home care bed?
The five most important features are: (1) adequate rated capacity with 25–30% margin above patient weight; (2) hi-low height range — especially low height for fall prevention; (3) full-electric operation with a pendant for patient independence; (4) a split-pan deck system compatible with bariatric pressure-relief mattresses; and (5) expandable width if long-term needs may change. For patients with complex repositioning needs, Trendelenburg positioning and Auto Contour are also valuable. Call us and describe the patient's situation — we will tell you which features are essential and which are optional: 866-218-0902.
