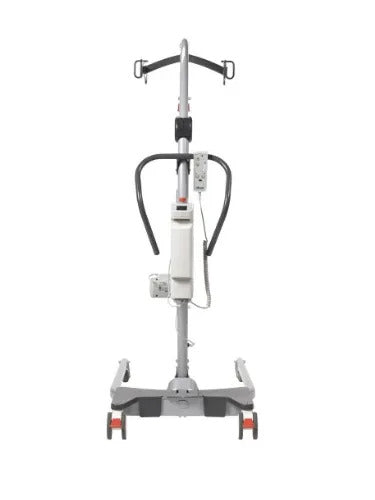

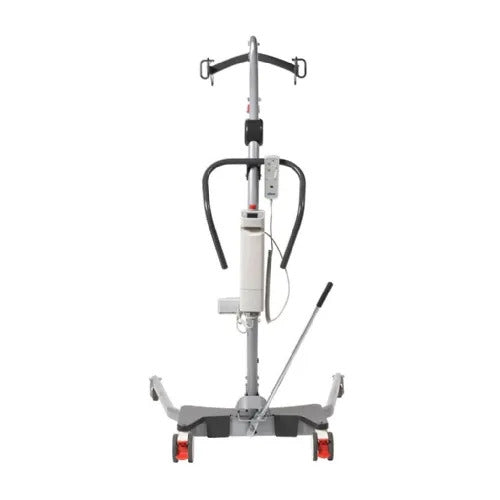

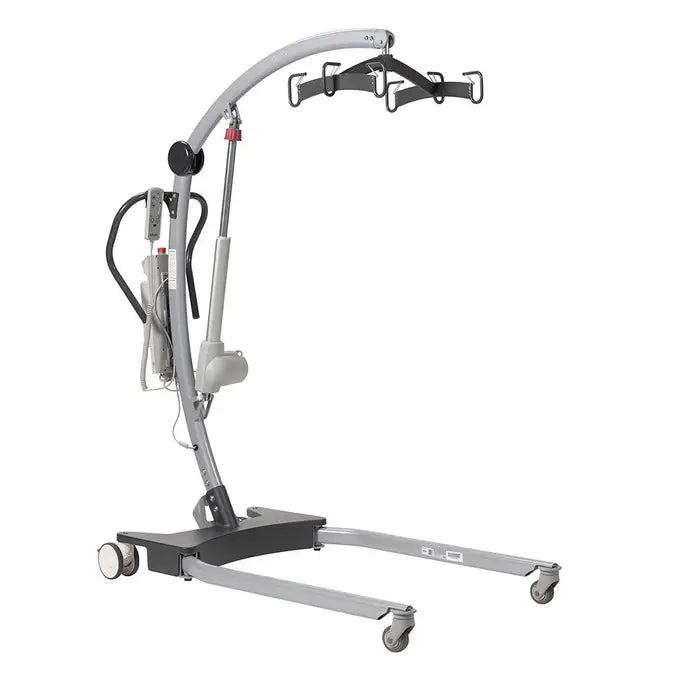

Drive Medical Levantar FLP500 Electric Patient Lift – 500 lb Battery Powered Floor Lift with Power Base
/
Drive Medical Levantar FLP500 Electric Patient Lift – 500 lb Battery Powered Floor Lift
Call 866-218-0902 to speak with a patient lift specialist.
The Drive Medical Levantar FLP500 Electric Patient Lift is a premium battery-powered floor lift designed to safely transfer patients between beds, wheelchairs, chairs, and the floor. With a strong 500 lb weight capacity and powered base adjustment, this lift provides reliable support for home care, assisted living, and medical environments.
The Levantar lift combines advanced safety monitoring with smooth electric lifting performance. Oversized sealed casters allow the lift to maneuver easily while the six-point cradle provides stable sling support for safer transfers.
Electric Patient Lift Performance
- 500 lb maximum weight capacity
- Battery powered electric lifting system
- Powered base widening for easier positioning

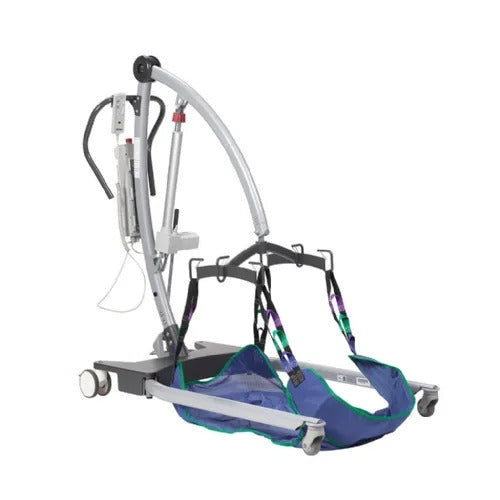

- Six-point spreader bar improves sling stability
- Designed for bed, wheelchair, and floor transfers
Safety & Smart Lift Technology
- Redundant controls allow lift operation even if hand pendant fails
- Audible alerts for weight overload and low battery
- Obstruction detection stops lift if interference occurs

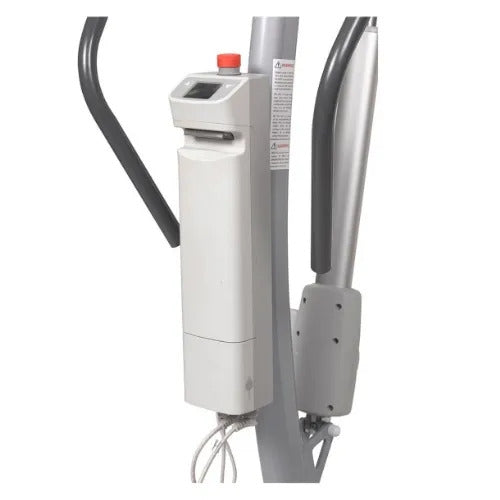

- LCD smart control module with maintenance monitoring
- Visual battery indicators on pendant and control module
Designed for Caregiver Efficiency
- Oversized sealed rear casters roll smoothly and lock securely
- Wide lifting range helps lift patients safely from the floor
- Battery can be charged on or off the lift
- External charger stand included
- Durable heavy-duty construction for everyday use
Key Specifications
- Weight Capacity: 500 lbs
- Lift Type: Electric patient floor lift
- Base: Powered widening base
- Overall Height: approx. 76"
- Net Weight: approx. 132 lbs
- Ground Clearance: approx. 3"
- Battery Pack: rechargeable battery system
What’s Included
- Drive Levantar FLP500 electric patient lift
- Rechargeable battery pack
- External battery charger stand
- Hand control pendant
- User documentation
Compare Bariatric & Heavy-Duty Patient Lifts
Trusted Nationwide Medical Equipment Provider
Medical Department Store supplies patient lifts and caregiver transfer equipment nationwide. Our specialists help caregivers select the right electric patient lift based on patient mobility, weight capacity needs, and home layout.
Product Specifications / Dimensions
| Included | Rechargeable Battery |
| Battery Pack Weight | 7.9 lbs (5.0A), 4.9 lbs (2.9A) |
| Weight Capacity | 500 lbs |
| Front Caster Diameter | 3" |
| Gross Weight | 156.5 lbs |
| Net Weight | 132.2 lbs |
| Ground Clearance | 2.9" |
| Maximum Overall Length | 52" |
| Maximum Overall Height | 76.3" |
| Minimum Overall Height | 27.7" |
| External Width (Opened) | 45.8" |
| Internal Width (Opened) | 40.3" |
| External Width (Closed) | 31.6" |
| Internal Width (Closed) | 26.1" |
| Height of Legs | 5.3" |
| Maximum Height at Hook | 6.9" |
| Minimum Height at Hook | 2.1" |
| Warranty on Battery | 1 year |
| Warranty on Electronics | 5 year |
