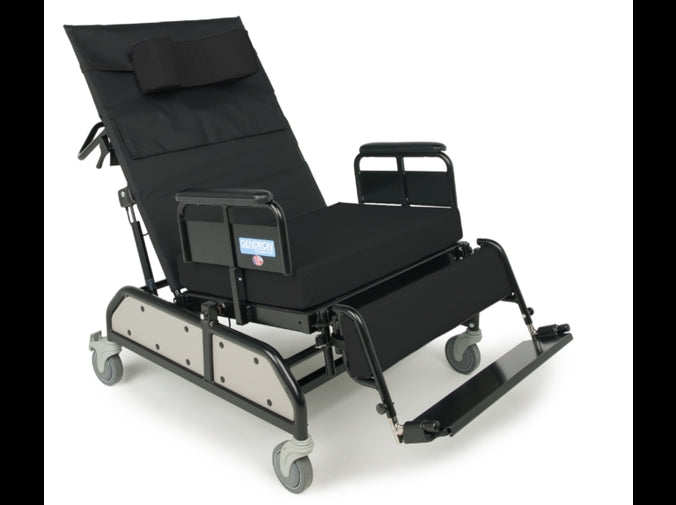

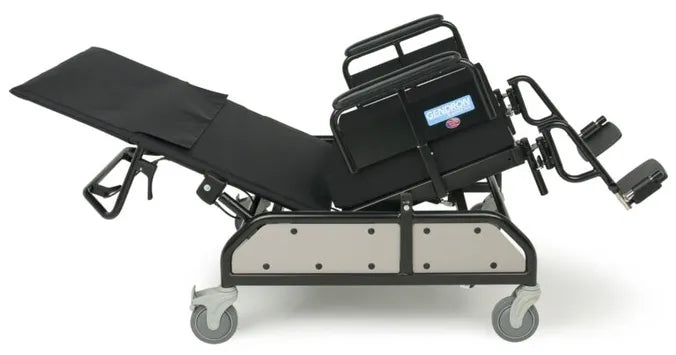

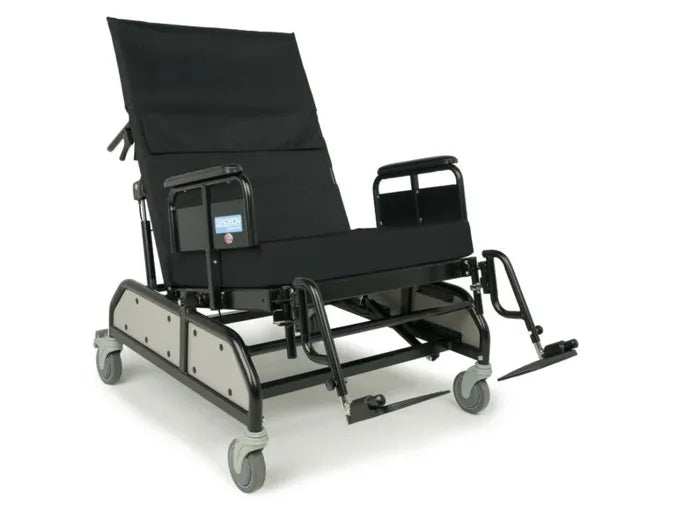

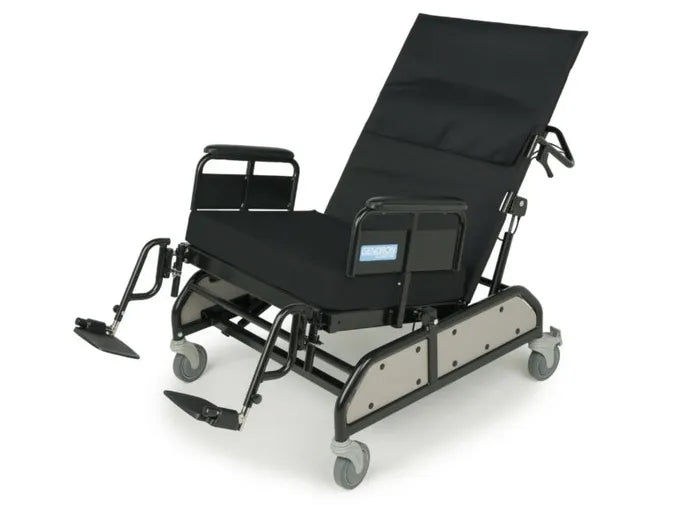

Graham Field TRC 750 Ultra-Bariatric Tilt and Recline Chair | 750 lb. Capacity
Our Price: $3,390.00
/
Description
The Graham Field TRC 750 Bariatric Tilt-Recline Chair is the highest-capacity geriatric chair we carry — rated to 750 lbs. and built for ultra-bariatric patients where no standard geri chair is appropriate. The TRC 750 is not a scaled-up recliner — it is a purpose-built bariatric mobility and positioning chair with independent tilt and recline controls, a 28-inch metal pan seat, four-inch high-density foam padding, swing-away footrests, and removable full-length armrests. Four manual control levers on the push handle allow the caregiver to independently adjust back recline from 10 to 36 degrees and seat tilt from 5 degrees forward to 22 degrees reverse. Made in the USA.
Ultra-bariatric positioning chair · 750 lb. capacity · 28" seat width · Independent tilt + recline · 4 manual control levers · 4" HD foam · Swing-away footrests · Removable armrests · Made in USA.
Questions about the TRC 750 or ultra-bariatric options?
Call 866-218-0902
— Mon–Fri 9AM–5PM · Sat 9AM–3PM · Product specialists on staff · Five SW Florida locations
Call Before Ordering — Configuration Options Available
The TRC 750 is available with multiple front rigging options including footrests, elevating leg rests, full-width padded leg support, and full-width footboard. Seat cushion options are also available. Call us before ordering to confirm the right configuration for your patient's needs and to discuss current lead times. 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM.
750 lb. Capacity · Independent Tilt and Recline · Made in USA — Key Features
750 lb. Capacity · 28" Seat · Ultra-Bariatric Construction
At 750 lbs. the TRC 750 sits in a category of its own — it is the solution when every other bariatric geri chair in our catalog is not enough. The 28-inch metal pan seat is the widest seat of any chair we carry. The frame is purpose-built for ultra-bariatric patients with the structural integrity required for sustained daily use at this weight range. Two rear locking casters keep the chair stable at rest. Made in the USA by Graham Field.
Independent Tilt + Recline · 4 Manual Control Levers
The defining feature of the TRC 750 is independent tilt and recline — the back recline and seat tilt function separately, controlled by four manual levers housed on the push handle. Back recline range is 10 to 36 degrees. Seat tilt range is 5 degrees forward to 22 degrees reverse. This level of independent positioning control is essential for ultra-bariatric patients who require precise weight distribution, pressure relief, and postural support that a standard recline-only chair cannot provide.
4" High-Density Foam · Swing-Away Footrests · Removable Armrests
The seat surface is a metal pan covered with four-inch fabric-covered high-density foam — removable if needed. Standard swing-away footrests provide easy patient access. Removable full-length armrests allow lateral access when required. Front rigging options include footrests, elevating leg rests, full-width padded leg support, and full-width footboard — call us to discuss the right configuration for your patient. Optional gel/foam seat insert available for additional pressure relief.
Full Specifications
| Brand | Graham Field |
| Model | TRC 750 Bariatric Tilt-Recline Chair |
| Weight Capacity | 750 lbs. |
| Seat Width | 28 inches |
| Seat Depth | 20 inches |
| Seat Surface | Metal pan · 4" fabric-covered high-density foam · removable |
| Back Recline Range | 10 to 36 degrees — independent control |
| Seat Tilt Range | 5 degrees forward · 22 degrees reverse — independent control |
| Controls | 4 manual levers on push handle · independent tilt and recline |
| Footrests | Swing-away footrests — standard |
| Armrests | Removable full-length armrests — standard |
| Casters | Two rear locking casters |
| Front Rigging Options | Footrests · elevating leg rests · full-width padded leg support · full-width footboard |
| Optional Upgrades | Gel/foam seat insert for additional pressure relief |
| Made in USA | Yes |
| Manufacturer | Graham Field |
| Returns | Non-returnable — confirm configuration before ordering |
Complete Geri Chair Buyer's Guide
Our complete guide covers all geri chair types, weight capacity selection from 250 to 750 lbs., tilt vs. recline explained, and full brand comparisons across our entire catalog. Read the Complete Geri Chair Buyer's Guide →
Frequently Asked Questions
The TRC 750 is in a class by itself in our catalog. It is the only chair we carry rated to 750 lbs. — 250 lbs. more than the next highest capacity chairs at 500 lbs. It is also the only chair with independent tilt and recline controls, which allows the caregiver to position the patient with precision that a recline-only chair cannot match. For patients above 500 lbs., or patients who require independent tilt-in-space and recline positioning, the TRC 750 is the correct solution. For patients up to 500 lbs. the Champion 56 Series or Drive Medical Extra-Wide are more appropriate and less costly options.
Recline changes the angle of the back rest relative to the seat — the seat stays level while the back moves. Tilt moves the entire seat and back as a unit — changing the patient's orientation relative to gravity without changing the hip and knee angles. On the TRC 750 these two functions are independent and controlled separately by four manual levers on the push handle. This allows the caregiver to recline the back without tilting the seat, tilt the seat without reclining the back, or combine both for precise patient positioning. For ultra-bariatric patients this level of control is important for pressure distribution, comfort, and safe positioning.
The TRC 750 is available with several front rigging configurations — standard swing-away footrests, elevating leg rests, full-width padded leg support, and full-width footboard. The right option depends on the patient's clinical needs and mobility level. Call us before ordering to discuss which configuration is appropriate for your patient. 866-218-0902.
Yes — while the TRC 750 is appropriate for clinical and facility environments it can also be used at home for ultra-bariatric patients. The four manual control levers on the push handle are designed to be operated by a caregiver. If you are purchasing for home use call us to discuss the configuration options and confirm the chair will fit your space — at 28 inches wide and with tilt and recline range the chair requires adequate room to operate safely. 866-218-0902.
Yes — an optional gel and foam seat insert is available for the TRC 750 for patients who require additional pressure relief beyond the standard four-inch high-density foam. This is particularly relevant for patients at risk of pressure injuries who will be spending extended periods in the chair. Call us to discuss this option when placing your order. 866-218-0902.
Compare Bariatric Geri Chairs
500 lb · Full Clinical
Champion 56 Series Bariatric Clinical Recliner
500 lb · Infinite position · 27.5" seat · Widest 500 lb chair
View →
View →
500 lb · Home & Clinical
Drive Medical Extra-Wide Bariatric 3-Position
500 lb · 3-position · Value pricing · Home and light clinical
View →
View →
450 lb · Drop Arms
Winco 6570 XL Drop-Arm Bariatric CareCliner
450 lb · Drop arms · Trendelenburg · Clinical transfer
View →
View →
All Bariatric Chairs
Full Bariatric Collection
400 to 750 lb. capacity · All brands · Home and clinical
Browse all →
Browse all →
Five SW Florida Locations · Nationwide Shipping
Medical Department Store carries the Graham Field TRC 750 and the full range of bariatric geri chairs from 400 to 750 lbs. across our five Southwest Florida locations in Venice, Sarasota, Port Charlotte, Fort Myers, and Naples. We ship nationwide. Call us before ordering to discuss configuration options, front rigging, seat cushion upgrades, and current lead times — this is not a standard stock item and getting the configuration right before ordering matters.
📞 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM · Find your nearest location →
