Winco 6570 XL Bariatric Drop-Arm Clinical Recliner | 450 lb. Capacity | Trendelenburg
Our Price: $2,739.97
/
Description

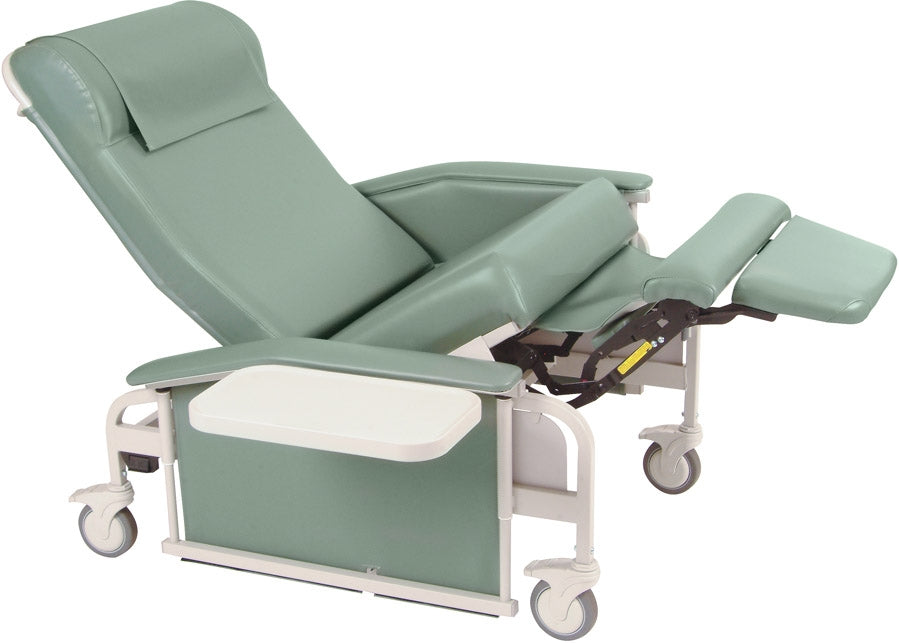

The Winco 6570 XL Drop-Arm Trendelenburg Bariatric CareCliner is the transfer-focused bariatric clinical recliner in Winco's XL lineup. The defining feature is the drop-arm mechanism — arms that lower flush with the seat surface with a single one-touch action, enabling safe lateral patient transfers without requiring the patient to be lifted. At 450 lbs. capacity with a 25-inch seat width, bilateral Trendelenburg release, elastic band suspension, and non-porous blow-molded fold-down trays on both sides, the 6570 XL is purpose-built for dialysis, oncology, and acute care environments where bariatric patient transfers are a daily clinical reality.
Bariatric clinical recliner · 450 lb. capacity · 25" seat width · Drop arms flush to seat · One-touch action · Bilateral Trendelenburg · Elastic band suspension · TB133 available · Made in USA.
Questions about drop arms, transfer needs, or TB133 requirements?
Call 866-218-0902
— Mon–Fri 9AM–5PM · Sat 9AM–3PM · Product specialists on staff · Five SW Florida locations
TB133 Flammability Compliance
Facilities in California, Illinois, Minnesota, and Massachusetts are required to use TB133-compliant upholstery on clinical furniture. The Winco 6570 XL is available with TB133-compliant fabric — confirm your state requirement before ordering. Call us if you are unsure whether your facility requires TB133. 866-218-0902.
Drop Arms · Bariatric Capacity · Clinical Grade — Key Features
Drop Arms · One-Touch · Flush with Seat
The 6570 XL's arms drop independently and lower flush with the seat surface with a single one-touch action — no tools, no manual effort. This allows safe lateral patient transfers where the patient slides sideways onto or off the chair without being lifted over a raised arm. For bariatric patients this is not a convenience feature — it is a caregiver safety requirement. Each arm operates independently so either or both can be lowered as needed.
450 lb. Capacity · 25" Seat · XL Reinforced Frame
Built on Winco's XL frame with a 450 lb. weight capacity and 25-inch seat width — wider than the Lumex Extra-Wide at 23 inches and higher capacity than standard clinical recliners. Heavy-duty 5-inch casters with positive locking swivel and wheel brakes support safe transport of bariatric patients. The XL frame is reinforced throughout for sustained clinical use under higher patient loads.
Bilateral Trendelenburg · Elastic Suspension · Blow-Molded Trays
Standard Trendelenburg release handle is accessible from either side of the chair — no reaching across the patient. Uni-directional elastic band suspension system in the back frame provides consistent support and eliminates bottoming out over time. Non-porous blow-molded fold-down side trays with cup recess on both sides. Built-in ergonomic headrest. Fluid-resistant upholstery supports disinfectant cleaning between patients.
Full Specifications
| Brand | Winco Manufacturing |
| Model | 6570 XL Drop-Arm CareCliner — nylon casters |
| Weight Capacity | 450 lbs. |
| Seat Width | 25 inches |
| Seat Depth | 20 inches |
| Seat Height | 21 inches |
| Overall Height | 49 inches |
| Overall Width with Tray Down | 37.75 inches |
| Chair Weight | 111 lbs. |
| Drop Arms | Independent · one-touch · lower flush with seat surface |
| Positioning | Infinitely adjustable back · Trendelenburg |
| Trendelenburg | Standard · bilateral release handle · accessible from either side |
| Suspension | Uni-directional elastic band · elastic open seat base |
| Trays | Non-porous blow-molded fold-down · cup recess · both sides |
| Headrest | Built-in ergonomic headrest |
| Casters | Heavy-duty 5" nylon · positive locking swivel · wheel brakes |
| TB133 Compliance | Available — required in CA, IL, MN, MA · confirm at order |
| Made in USA | Yes |
| Clinical Applications | Dialysis · Oncology · Acute care · Blood collection · Infusion therapy |
| Returns | Non-returnable — confirm specifications before ordering |
Complete Geri Chair Buyer's Guide
Not sure if the Winco 6570 XL is the right chair for your facility? Our complete guide covers all geri chair types, drop arm vs. fixed arm, Trendelenburg explained, TB133 requirements, and full brand comparisons. Read the Complete Geri Chair Buyer's Guide →
Frequently Asked Questions
Both are 450 lb. bariatric clinical recliners in Winco's XL series with the same elastic band suspension, bilateral Trendelenburg release, blow-molded trays, and ergonomic headrest. The key difference is the arms — the 6540 XL has standard fixed padded arms, while the 6570 XL has drop arms that lower flush with the seat for lateral patient transfers. If your clinical environment requires safe lateral transfers for bariatric patients — which is common in dialysis, oncology, and acute care — the 6570 XL is the correct choice. If lateral transfers are not a requirement the 6540 XL is the more economical option.
Each arm on the 6570 XL drops independently with a single one-touch action — lowering flush with the seat surface. This allows the patient to slide laterally onto or off the chair without being lifted over a raised armrest. Either arm can be lowered independently depending on which side the transfer is occurring. When the transfer is complete the arms return to the raised position. No tools or adjustment required — the action is designed to be performed quickly by clinical staff during routine patient handling.
The Winco 6570 XL is available with TB133-compliant upholstery. TB133 compliance is required for clinical furniture in California, Illinois, Minnesota, and Massachusetts. Confirm your state and facility requirement before ordering and specify TB133 at the time of purchase. Call us if you need clarification. 866-218-0902.
Yes — the Winco 6570 XL is one of the strongest choices for dialysis centers treating bariatric patients. The 450 lb. capacity and 25-inch seat width accommodate larger patients comfortably. The drop arms provide the lateral access needed for IV line placement and patient transfers. Bilateral Trendelenburg handles emergency positioning from either side. The non-porous upholstery and blow-molded trays support infection-control cleaning between sessions. The Winco Inverness 24-Hour Treatment Recliner is also worth considering for dialysis environments requiring overnight capability — call us to compare. 866-218-0902.
Winco's uni-directional elastic band suspension system replaces the foam padding typically used in the back frame of clinical recliners. It provides consistent, even support across all patient sizes and does not compress or degrade over time the way foam does — eliminating the bottoming-out effect that reduces comfort and support in high-frequency clinical use. For facilities where chairs are used multiple times per day the elastic suspension system significantly extends the useful life of the chair and maintains consistent patient comfort throughout.
Compare Bariatric Geri Chairs
450 lb · Fixed Arms · Winco
Winco 6540 XL CareCliner
450 lb · Fixed arms · Elastic suspension · Trendelenburg · More economical
View →
View →
450 lb · TB133 · Lumex
Lumex Extra-Wide Clinical Recliner
450 lb · 23" seat · 4 positions · Dual gas Trendelenburg · TB133
View →
View →
500 lb · Dialysis · Winco
Winco Inverness 24-Hour Treatment Recliner
500 lb · 180° swing arms · Day and night use · Dialysis specialist
View →
View →
All Bariatric Chairs
Full Bariatric Collection
400 to 750 lb. capacity · All brands · Home and clinical
Browse all →
Browse all →
Five SW Florida Locations · Nationwide Shipping
Medical Department Store is an authorized Winco dealer with over 25 years of DME experience. We carry the full Winco CareCliner line across our five Southwest Florida locations in Venice, Sarasota, Port Charlotte, Fort Myers, and Naples. We ship nationwide — call us before ordering to confirm TB133 requirements, fabric options, and current lead times.
📞 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM · Find your nearest location →
Technical Specs
Specifications
Winco 6570 Xl Carecliner Drop Arm Chair, Nylon Casters Specifications:
| Weight: | 111 lbs. (50.35 kg.) |
| Height: | 49 in. (124.46 cm.) |
| Maximum Width: | 55.25 in. (140.34 cm.) |
| Width with Tray Down: | 36.25 in. (92.08 cm.) |
| Seat Height: | 21 in. (53.34 cm.) |
| Seat Width: | 25 in. (63.50 cm.) |
| Seat Depth: | 20 in. (50.80 cm.) |
| Seat Back Height: | 31.5 in. (80.01 cm.) |
| Weight Capacity: | 450 lbs. (204.12 kg.) |
| Footprint Recline Length: | 76.5 in. (194.31 cm.) |
| Shipping Weight: | 127 lbs. (57.61 kg.) |
| Shipping Height: | 30 in. (76.20 cm.) |
| Shipping Width: | 45 in. (114.30 cm.) |
| Shipping Depth: | 37 in. (93.98 cm.) |
