At Medical Department Store, we review each and every, Harmar order. We will need to contact you after your purchase to confirm that you purchased lift will work properly with your vehicle and mobility product. As a Harmar Premier Dealer, your complete satisfaction is our priority. Just have Questions Call Us: 866-218-0902.

Compact exterior hitch-mount lift for 3- and 4-wheel micro and travel scooters — Class I hitch compatible, ideal for sedans and minivans.
- 135 lb capacity · 70 lb installed · 23.5" × 33" platform · Class I hitch or greater
- Power lift · manual fold · rear wheel cradle · 4 manual tie-down straps
- No scooter modifications required · license plate mount + manual crank backup included
- Optional swing-away · 3-year transferable warranty · Made in USA

Our Price: $2,155.00

Harmar AL010 Micro Scooter Lift
Description

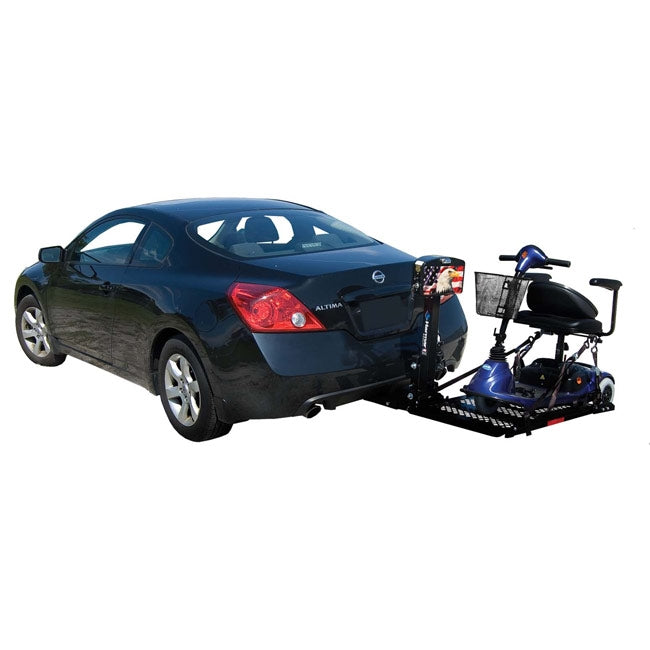

The Harmar AL010 Micro Scooter Lift is Harmar's most compact exterior hitch-mount lift — purpose-built for 3- and 4-wheel micro and travel scooters up to 135 lbs on most sedans and minivans. At just 70 lbs installed and compatible with a Class I hitch, the AL010 fits vehicles that heavier platform lifts cannot. The 23.5" × 33" platform includes an adjustable rear wheel cradle that extends to 42.25" for a custom snug fit. Four manual tie-down straps secure the scooter for transit. Power lift with manual fold. No scooter modifications required. License plate mount and manual crank backup included. Optional swing-away available. Made in the USA.

Exterior hitch-mount lift · Micro & travel scooters only · 135 lb capacity · 70 lb installed · 23.5" × 33" platform · Power lift + manual fold · Class I hitch or greater · Sedans & minivans. Compatibility confirmation required before every order ships.

Not sure the AL010 fits your vehicle and scooter? Call 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM · Authorized Harmar Dealer · Local & Nationwide Installation
Before You Order — Compatibility Must Be Confirmed The AL010 is rated for micro and travel scooters up to 135 lbs — confirm your scooter's weight before ordering. It is designed for most sedans and minivans using a Class I hitch or greater. It is not designed for full-size scooters or power chairs — for larger devices see the AL015 or AL050. We confirm compatibility on every order before it ships — no exceptions. Use the Harmar Compatibility Calculator below as a starting point then call us to verify before placing your order. We provide local professional installation at all five of our Southwest Florida locations and coordinate professional installation nationwide through Harmar's authorized dealer network. 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM.
Check Your Vehicle & Scooter Compatibility — Open Harmar Calculator →

The Right Lift for Smaller Vehicles and Compact Scooters

Class I Hitch Compatible · Sedans & Minivans The AL010's most important distinction is its Class I hitch compatibility — most micro scooter lift options require a Class II or III hitch, which rules out many sedans. The AL010 is light enough to work on a Class I hitch, opening it up to vehicles that could not support a heavier lift. If you drive a sedan or minivan and need to transport a compact scooter, the AL010 is purpose-built for your situation.
Rear Wheel Cradle · Adjustable Platform · 4 Tie-Downs The 23.5" × 33" platform includes an adjustable rear wheel cradle that extends to 42.25" to accommodate different scooter wheelbase lengths. Four manual tie-down straps — two front, two rear — provide complete securement. The cradle holds the rear wheel firmly in place, and the straps lock down the scooter for highway transport. No scooter modifications required.
Power Lift · Manual Fold · Manual Crank Backup Loading is powered — press the switch to lower the platform, roll the scooter on, secure the straps, and press the switch again to raise. When empty, the platform folds manually to a compact upright position. Manual crank backup allows lowering the platform if the power supply fails. License plate mount included standard. Optional swing-away for rear vehicle access without unloading. Optional cover for weather protection. 3-year transferable warranty · Made in USA.

Full Specifications

Model AL010 Micro Scooter Lift
Lift Type Exterior hitch-mount — scooter rides outside during transit
Weight Capacity 135 lbs
Installed Weight 70 lbs
Devices Accommodated 3- and 4-wheel micro and travel scooters
Platform Size 23.5" × 33" · adjustable rear wheel cradle extends to 42.25"
Operation Power lift · manual fold
Securement 4 manual tie-down straps · rear wheel cradle
Device Modifications Required No

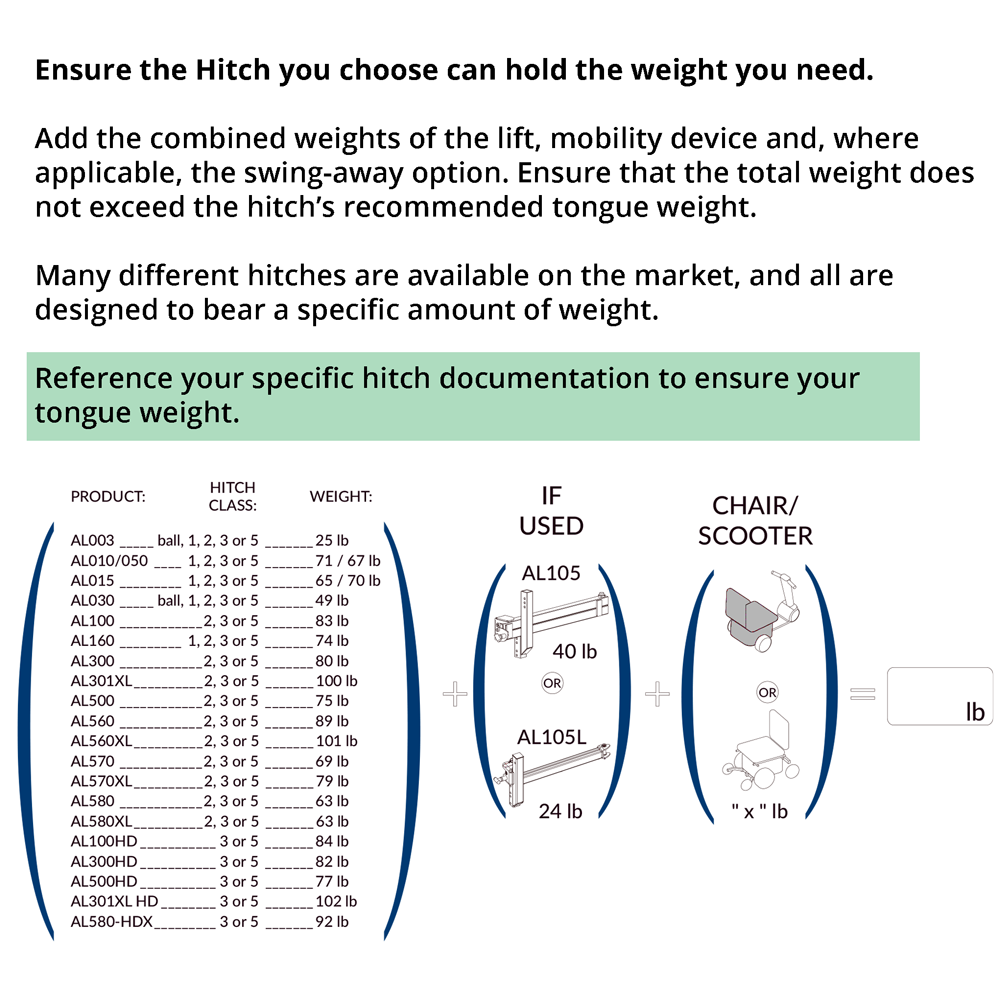

Hitch Class Class I or greater (Class II standard · Class III with adapter)
Vehicle Compatibility Most sedans · minivans
Included AL107 hitch post · AL126 Class II adapter · License plate mount · Manual crank backup
Optional Upgrades Swing-away · Battery pack · Cover · License plate riser
Made in USA Yes
Warranty 3-year transferable Harmar warranty
Returns Non-returnable once installed
Complete Harmar Vehicle Lift Guide Not sure if the AL010 is the right lift for your vehicle and scooter? Our guide covers every Harmar lift we carry. Read the Complete Vehicle Lift Guide →

Frequently Asked Questions

Yes — the AL010 is designed for most sedans using a Class I hitch. A hitch can be added to most sedans if one is not already installed. Use the Harmar Compatibility Calculator to check your specific vehicle, then call us to confirm before ordering. 866-218-0902.
No — the AL010 is rated for micro and travel scooters up to 135 lbs. For full-size scooters see the AL100 Profile or AL160. Call us and we will match the right lift to your specific scooter. 866-218-0902.
The AL010 is optimized for micro scooters and includes a rear wheel cradle — it is designed for sedans and minivans. The AL050 is designed for travel scooters and micro power chairs and also works with SUVs, trucks, and vans. Both have the same 135 lb capacity and 70 lb installed weight. Call us with your device and vehicle and we will confirm which is the right fit. 866-218-0902.

Compare Exterior Vehicle Lifts

Micro Power Chairs · More Vehicles Harmar AL050 Micro Power Chair Lift 135 lb · 70 lb installed · Travel scooters & micro power chairs · SUVs, trucks & vans
View →
Automatic Hold-Down · Open Platform Harmar AL015 Micro Scooter Lift 135 lb · Micro scooters · Automatic hold-down foot · Streamlined profile
View →
Step Up — Full-Size Scooters Harmar AL160 Profile Scooter Lift 350 lb · 74 lb installed · Full-size scooters · Fully powered lift + fold
View →
All Exterior Vehicle Lifts Full Exterior Lift Lineup Every exterior hitch-mount lift we carry
Browse all →

Local Installation & Nationwide Shipping

We are an authorized Harmar dealer with over 25 years of DME experience. Local professional installation is available at all five of our Southwest Florida locations — Venice, Sarasota, Port Charlotte, Fort Myers, and Naples. For customers anywhere in the country we ship directly and coordinate professional installation through Harmar's authorized dealer network. Every order requires a compatibility confirmation before it ships — call us with your vehicle year, make, model, and scooter details and we will verify fit before you buy.

📞 866-218-0902  ·  Mon–Fri 9AM–5PM  ·  Sat 9AM–3PM  ·  Find your nearest location →

Technical Specs
Specifications

AL-010 Micro Outside Lift Specifications:

Weight and Dimensions
Platform Width 23.5"
Platform Depth 33"
Total Lift System Weight 71 lbs
Capacity
Maximum Lift System Capacity 135 lbs
Maximum Lift Travel Distance 17"
Motor and Battery
Motor Type DC Motors
Battery Type and Weight Optional Battery Pack
Charger Car Charging
Warranty

3 Year Transferable Warranty
