Harmar AL100HD Heavy Duty Platform Scooter Lift
Installation & Product Guides:
Our Price: $2,805.00
/
Description

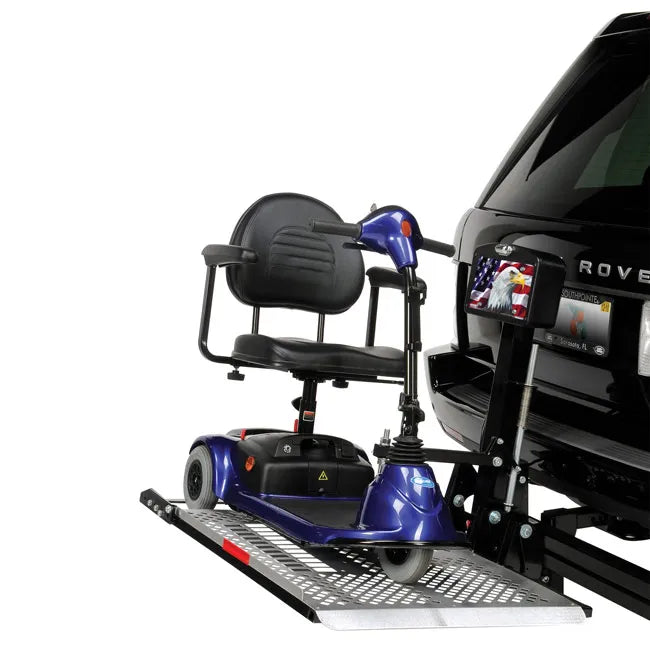

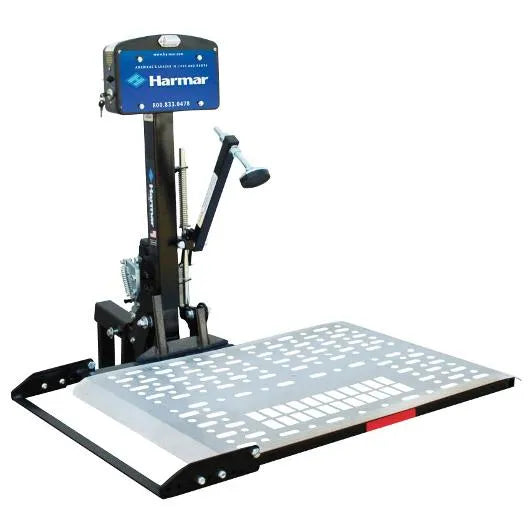

The Harmar AL100HD Heavy Duty Platform Scooter Lift is Harmar's 400 lb outside hitch-mounted platform lift — the heavy-duty version of the AL100, adding 50 lbs of capacity in the same compact, auto-folding outside platform design. At just 84 lbs installed, the AL100HD is one of the lightest 400 lb outside lifts available. The platform lowers automatically to ground level, the scooter drives on, the hold-down arm secures it, and the lift raises the device into the transport position behind the vehicle. When empty, the deck automatically folds flat and extends only 12 inches behind the bumper — less intrusion than most standard hitch cargo carriers. Class III hitch standard, Class V available. Swing-Away option for full trunk and liftgate access. License plate mount, hold-down arm, adjustable rear wheel cradle, and hardwire kit all included. Made in the USA. 4.8 stars from 4 verified buyers — 100% recommend.
Outside hitch platform lift · 400 lb capacity · 84 lb installed · 27.5" platform width · Class III or V hitch · 5"–18" hitch height · Folds to 12" behind bumper · Hold-down arm included · Swing-Away option available · Made in USA. Hitch adapter and compatibility confirmation required before every order ships.
Not sure the AL100HD fits your vehicle and scooter?
Call 866-218-0902
— Mon–Fri 9AM–5PM · Sat 9AM–3PM · Authorized Harmar Dealer · Local & Nationwide Installation
Florida License Plate Notice — Required on Lift
Florida is among the states that require the vehicle's license plate to be displayed on the outside lift, not on the vehicle bumper. If you are a Florida customer, the XL License Plate Riser (AL904, +$220) is strongly recommended — add it at the time of order. Failure to display the license plate on the lift may result in a traffic citation. We will flag this on every AL100HD order from Florida customers.
Before You Order — Hitch Required · Adapter Required · Compatibility Must Be Confirmed
The AL100HD requires a Class III or Class V receiver hitch on your vehicle — not Class I or Class II. A hitch adapter is required (see options below, all +$199) and must be specified at order to match your hitch height and drop. Hitch height range: 5"–18". We confirm full vehicle and device compatibility on every order before it ships. Use the Harmar Compatibility Calculator below as a starting point then call us to verify. Local professional installation available at all six Southwest Florida locations; nationwide installation coordinated through Harmar's dealer network. 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM.
Drive On. Arm Locks. Folds Flat. 12" Behind the Bumper.
400 lb · 84 lb Installed · Auto-Fold · Outside Platform

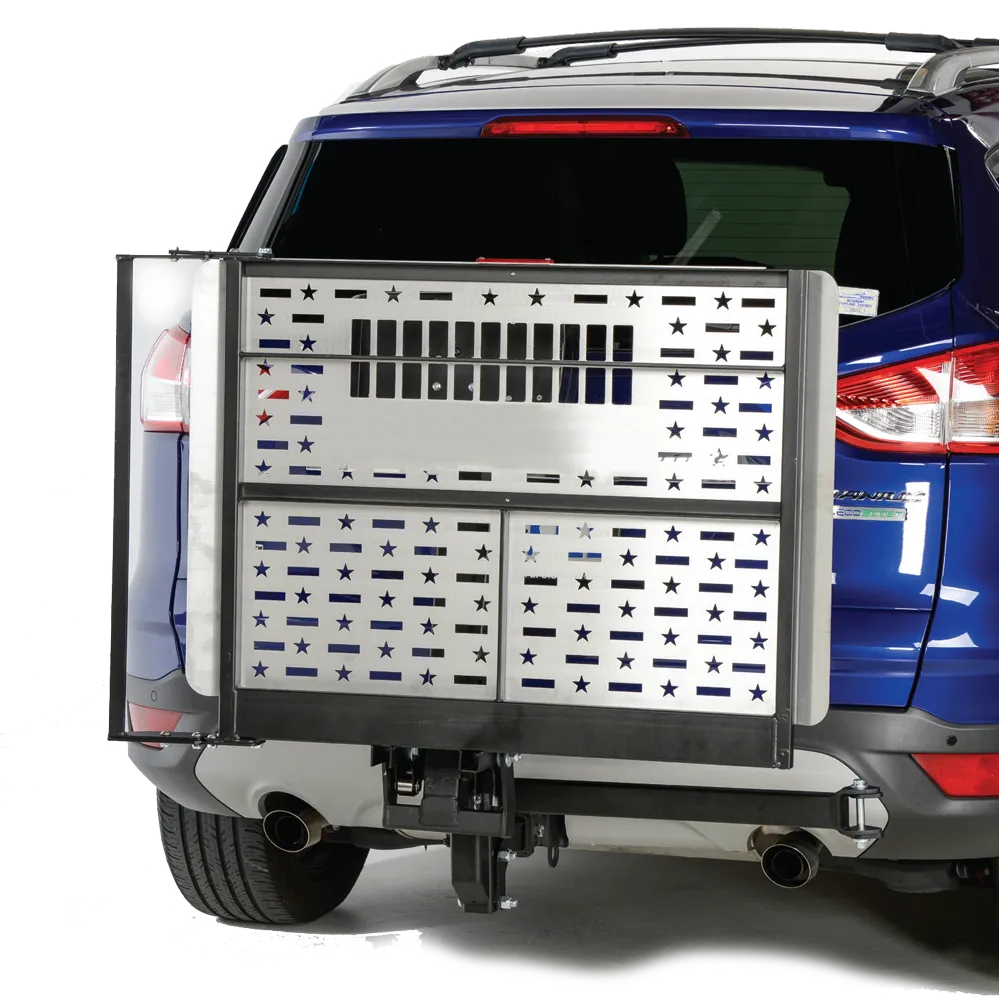

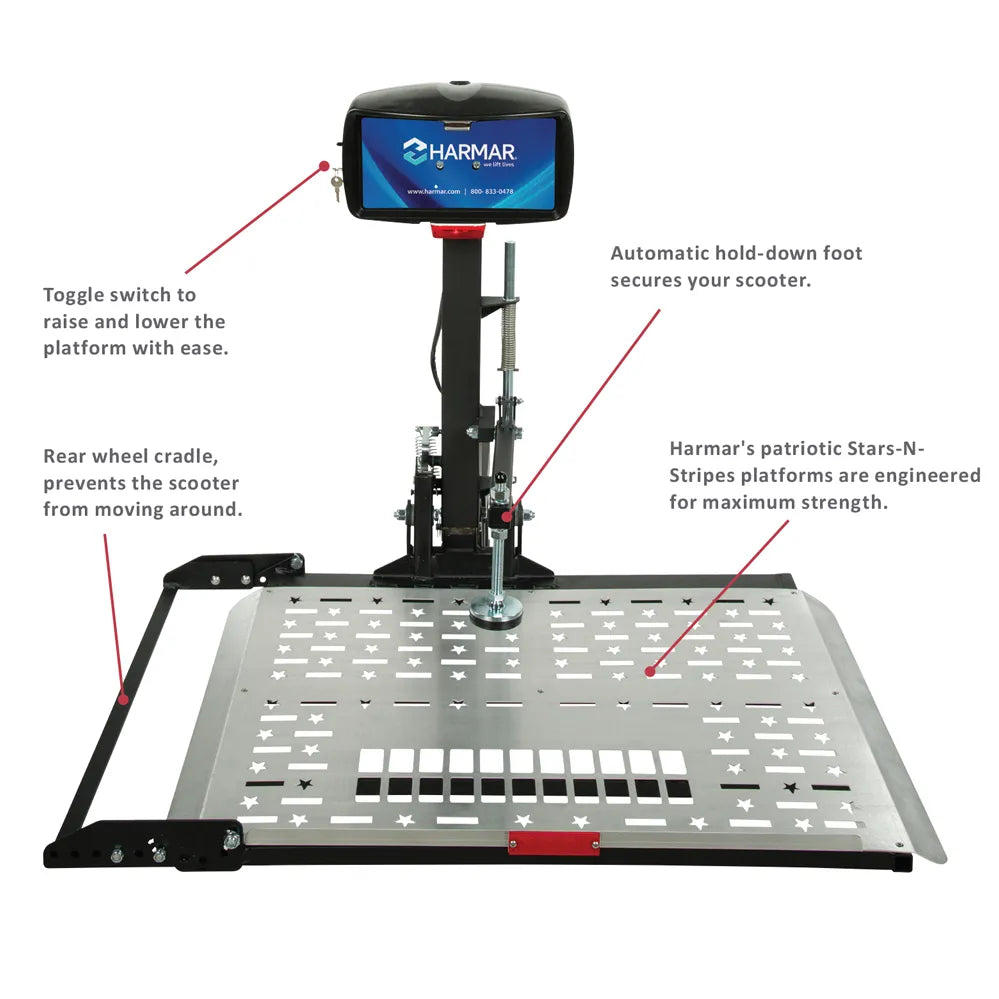

The AL100HD is Harmar's heaviest outside platform lift at just 84 lbs installed — an exceptional weight-to-capacity ratio. The platform lowers automatically to ground level; the user drives the scooter on using the joystick. The hold-down arm automatically secures the device. Press the remote and the lift raises to transport position. When the device is removed, the deck folds automatically to a flat position extending only 12 inches behind the bumper — not a hazard, not a constant visual, just a compact hitch-mounted platform that stays out of the way when not in use.
Class III or V Hitch · 5"–18" Height Range · Multiple Adapter Configurations
The AL100HD mounts to any Class III or Class V receiver hitch with a hitch height between 5 and 18 inches. A hitch adapter (AL-series, +$199) must be specified at time of order to match your hitch's exact height and drop — Harmar offers standard, extra-long, 2" drop, 5" drop, 6" drop, and 8" drop configurations in both standard and extra-long arm lengths for Class III, and corresponding options for Class V. Call us with your hitch height and we will confirm the right adapter before you order. 866-218-0902.
Swing-Away Option · Trunk Access · Backup Camera Add-On Available
The optional Swing-Away (AL105, 400 lb capacity, +$580 — or AL105L lightweight, 350 lb, +$640) allows the lift and loaded scooter to swing to the side, providing full access to the vehicle's trunk or liftgate without unloading the scooter. For outside lifts, the backup camera is obstructed by the device on the platform — the Multi-View Backup Camera or Mirror/Camera system ($825, professional installation required) restores rear visibility. Both camera options require professional installation at the time of order.
Full Specifications
| Model | AL100HD Heavy Duty Platform Scooter Lift |
| Lift Type | Outside hitch-mounted platform — device rides behind vehicle in transport position |
| Weight Capacity | 400 lbs |
| Installed Weight | 84 lbs |
| Platform Width | 27.5" |
| Hitch Size Required | Class III (standard) or Class V |
| Hitch Height Range | 5" to 18" |
| Folded Bumper Extension | 12" (empty, folded) · 14" with Swing-Away |
| Devices Accommodated | Travel scooters · Full-size scooters |
| Power Source | Hardwired to vehicle battery (standard) |
| Operation | Fully powered · auto-lowers · auto-lifts · auto-folds when empty |
| Hold-Down Arm | Included — automatic device securement |
| Rear Wheel Cradle | Adjustable — included |
| License Plate Mount | Included · XL License Plate Riser AL904 available (+$220) — required in FL and other states |
| Hardwire Kit | Included |
| Hitch Adapter | Required — multiple Class III and Class V configurations available (+$199 each) |
| Swing-Away Option | AL105 (400 lb, +$580) or AL105L (350 lb lightweight, +$640) |
| Backup Camera | Obstructed by device — Multi-View Backup Camera or Mirror/Camera available (+$825, professional install required) |
| Professional Installation | Available — add at time of order (+$1,050 · adds 5–7 business days) |
| Shipping Weight | 103 lbs |
| Shipping Dimensions | 42" × 42" × 12" |
| Ships In | 5–7 business days |
| Warranty | 3-year limited · transferable |
| Warranty Coverage | Parts only — labor, batteries, paint, and covers excluded |
| Returns | Non-returnable once installed |
| Reviews | 4.8 stars · 4 verified buyers · 100% recommend |
| Made in USA | Yes |
Hitch Adapter — Required at Order · Many Configurations Available
The AL100HD requires a hitch adapter (AL-series, +$199) matched to your vehicle's specific hitch height and drop. The adapter is not optional — the lift cannot be installed without one. Specify at the time of order. Call us with your hitch height and we will confirm the exact adapter needed before you buy: 866-218-0902. Key configurations available: Standard · Extra Long · 2"/5"/6"/8" Drop · Short Drop · Extra Long Drop — for both Class III and Class V hitches.
Complete Harmar Vehicle Lift Guide
Inside vs. outside, hitch vs. hybrid, 350 lb vs. 400 lb — our guide covers every Harmar lift we carry. Read the Complete Vehicle Lift Guide →
Frequently Asked Questions
The AL100 has a 350 lb capacity. The AL100HD is the heavy-duty version with a 400 lb capacity — same outside platform design, same auto-fold and auto-lower mechanism, same 12" bumper extension when folded empty. If your scooter plus any accessories or cargo weighs 351–400 lbs, the HD is required. If it's 350 lbs or under, either works — call us to confirm which is appropriate for your device: 866-218-0902.
Yes — the hitch adapter must be specified when you order. The adapter matches the AL100HD to your vehicle's specific hitch height and receiver drop. Call us with your vehicle year, make, model, and hitch height (measure from the ground to the center of the hitch receiver opening) and we will confirm the correct adapter — Standard, Extra Long, 2" Drop, 5" Drop, 6" Drop, or 8" Drop — for Class III or Class V. The adapter cannot be added or changed after the order ships: 866-218-0902.
The Swing-Away allows the lift (with or without the scooter loaded on it) to pivot to one side, giving full access to the vehicle's trunk or liftgate without unloading the device. If you frequently need trunk access while the scooter is loaded — for grocery runs, errands, travel — the Swing-Away is a meaningful convenience. Without it, the lift must be lowered and the scooter driven off before the liftgate can be opened. Two options: AL105 (400 lb capacity, +$580) or the lighter AL105L (350 lb capacity, +$640). Note: if your scooter exceeds 350 lbs, use the AL105 (full capacity Swing-Away). Call us: 866-218-0902.
Yes — when a scooter is loaded on the outside platform, the backup camera view is obstructed. This is the standard trade-off with outside hitch lifts. The Multi-View Backup Camera System or Mirror/Camera System (+$825 each) restores rear visibility and must be added at the time of order with professional installation. If backup camera visibility is important to you, add the camera system or call us to discuss options: 866-218-0902.
Yes. Florida is explicitly listed as a state that may require the vehicle's license plate to be displayed on the outside lift rather than on the vehicle. The XL License Plate Riser (AL904) is available as an option (+$220) and mounts the license plate on the lift. We flag this on every AL100HD order for Florida customers — add it at the time of order to avoid traffic citations: 866-218-0902.
The AL100HD is an outside hitch-mounted lift — the scooter rides on the platform behind the vehicle, exposed to weather and road conditions. The AL600 is an inside hybrid lift — the platform slides into the vehicle cargo area and the device is stored completely inside the vehicle, protected from weather. The AL100HD requires no cargo space and works with virtually any vehicle with a Class III or V hitch. The AL600 requires 32" of cargo headroom and 46.5" of depth inside the vehicle but offers inside storage and a clear backup camera. If your vehicle doesn't have adequate cargo space or you prefer inside storage, see the AL600. If you prefer an outside lift and have the right hitch, the AL100HD is simpler and lighter at 84 lbs installed.
Compare Outside & Inside Lifts
Outside · 350 lb · Standard
Harmar AL100 Platform Scooter Lift
350 lb · 75 lb installed · Same auto-fold outside design · Class III or V
View →
View →
Inside Hybrid · 350 lb · No Cargo Loss
Harmar AL600 Hybrid Platform Lift
350 lb · 160 lb · Slides into cargo area · Device stored inside · Backup camera clear
View →
View →
Inside Hoist · 400 lb · All Vehicles
Harmar AL425 Axis II Premium
400 lb · 66 lb · Power lift + rotation · Crane arm · Inside storage
View →
View →
Local Installation & Nationwide Shipping
We are an authorized Harmar dealer with over 25 years of DME experience. Local professional installation is available at all six of our Southwest Florida locations — Venice, Sarasota, Port Charlotte, Fort Myers, Naples, and North Port. For customers anywhere in the country we ship directly and coordinate professional installation through Harmar's authorized dealer network. Every order requires a compatibility confirmation before it ships — call us with your vehicle year, make, model, hitch class and height, and scooter details and we will verify fit and confirm the correct hitch adapter before you buy.
📞 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM · Find your nearest location →
[img]
[title]
[message]My Wishlist
Total in Wishlist: [totalPriceWishlist]
Love it? Add to your wishlist
Your favorites, all in one place. Shop quickly and easily with the wishlist feature!
[img]
PayPal Pay Later Messaging
Step 1: Choose message placement
Click the button below and then hover over your page to select a placement.
Technical Specs
Specifications
AL100 Platform Scooter Specifications:
| Hitch Height: |
5" to 18" |
| Power Source: | Hardwired |
| Works With Hitch Size: |
Class II Hitch Class III Hitch |
| Professional Install Available: | Yes |
| Service Contract Available: | No |
| Operation: | Power |
| Lifting Capacity: | 400 lbs |
| Recommended For: |
Travel Scooters Full Sized Scooters |
| Platform Size - Length: | 39-47 in |
| Platform Size - Width: | 27.5 in |
| Installed Product Weight: | 83 lbs |
| Type of Lift: | Outside Lift |
| Warranty: | 3 Year Limited Warranty |
| Warranty - Transferable Warranty: | Yes |
