Harmar AL425 Axis II Premium Inside Lift
Our Price: $3,270.00
/
SKU:
AL425
Description

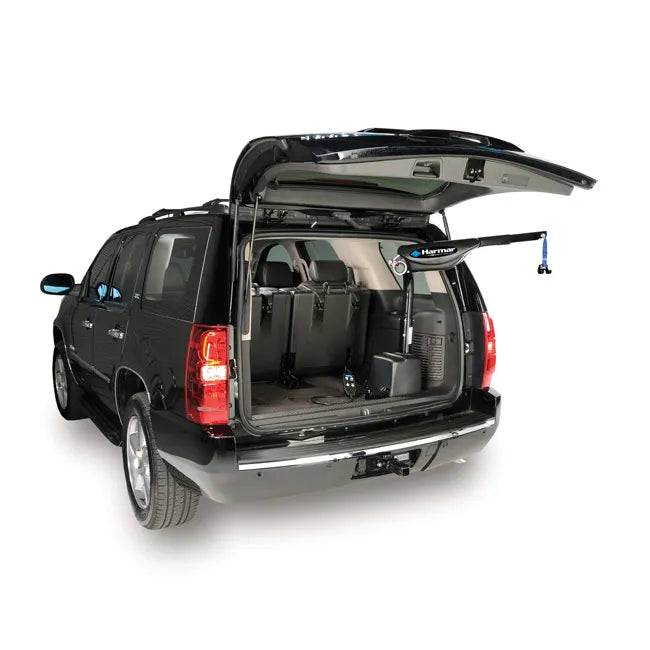

The Harmar AL425 Axis II Premium Inside Hoist Lift is a fully powered dual-axis inside hoist lift rated to 400 lbs — the step up from the AL225 that adds 150 lbs of capacity and broader vehicle compatibility. Both lifting and rotation are fully powered. The arm height adjusts from 30" to 41" and the arm length from 23.5" to 33.5", covering a wide range of cargo heights in minivans, SUVs, trucks, and vans. Can be installed on either passenger or driver side without an additional option part. Offset post delivers the device safely to the side of the vehicle. 30" of cargo headroom required. Weather-resistant remote control included. Optional wireless key fob, folding arm, battery pack, and custom docking devices. Backup camera fully usable. Made in the USA. HD version (AL425HD) available at 450 lb capacity.
Inside hoist lift · 400 lb capacity · 66 lb installed · Power lift + power rotation · Arm 30"–41" height · 23.5"–33.5" length · 30" headroom required · Driver or passenger side · Minivans, SUVs, trucks & vans. Compatibility confirmation required before every order ships.
Not sure the AL425 fits your vehicle and device?
Call 866-218-0902
— Mon–Fri 9AM–5PM · Sat 9AM–3PM · Authorized Harmar Dealer · Local & Nationwide Installation
Before You Order — 30" Headroom Required · Docking Device Not Included · Compatibility Must Be Confirmed
The AL425 requires a minimum of 30" of cargo headroom from the vehicle floor to the ceiling — measure your vehicle's cargo area before ordering. The docking device is not included and must be ordered separately — call us to confirm the correct docking device for your specific mobility device. For devices over 400 lbs see the AL425HD (450 lb, trucks only). We confirm full compatibility on every order before it ships — no exceptions. Use the Harmar Compatibility Calculator below as a starting point then call us to verify. We provide local professional installation at all five of our Southwest Florida locations and coordinate professional installation nationwide through Harmar's authorized dealer network. 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM.
400 lb. Fully Powered. Driver or Passenger Side. Backup Camera Clear.
400 lb Capacity · Power Lift + Power Rotation · Either Side
The AL425 is the 400 lb fully powered upgrade from the AL225's 250 lb — adding 150 lbs of capacity with both axes of movement remaining fully powered. Unlike the AL215 and AL225 which default to passenger side and require a separate option part for driver side, the AL425 can be installed on either passenger or driver side as a standard feature. This flexibility is meaningful for users whose vehicle layout or transfer preference favors the driver side. One remote handles both the lift and rotation cycles completely hands-free.
30"–41" Arm Height · Offset Post · Sleek Low-Profile Design

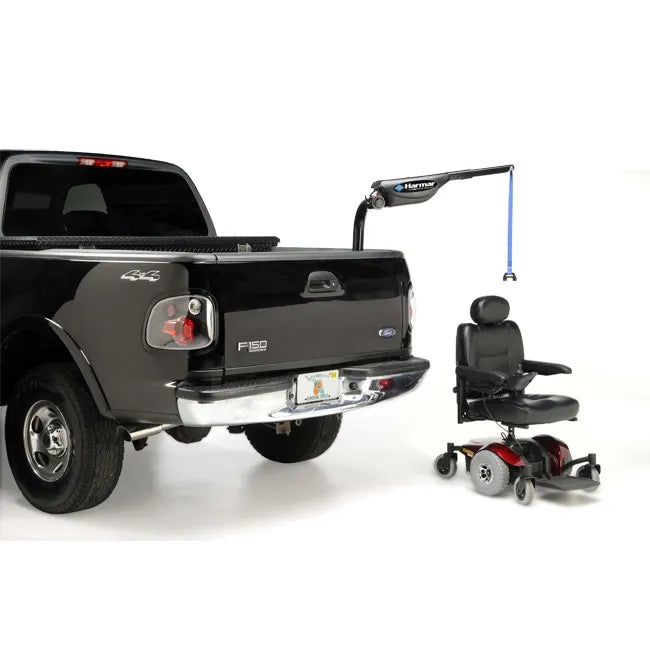

The AL425's arm adjusts from 30" to 41" in height — a taller ceiling than the AL225 — accommodating the higher cargo loading heights found in full-size vans, larger SUVs, and trucks. The arm length adjusts from 23.5" to 33.5". The integrated offset post positions the device to unload to the side of the vehicle rather than directly behind, shortening the transfer distance to the driver or passenger seat. Harmar describes the AL425 as "sleek and slim" — its compact installed footprint minimizes intrusion into the cargo area when not in use. Optional folding arm for additional space savings.
30" Headroom Required · Backup Camera Usable · HD Version Available

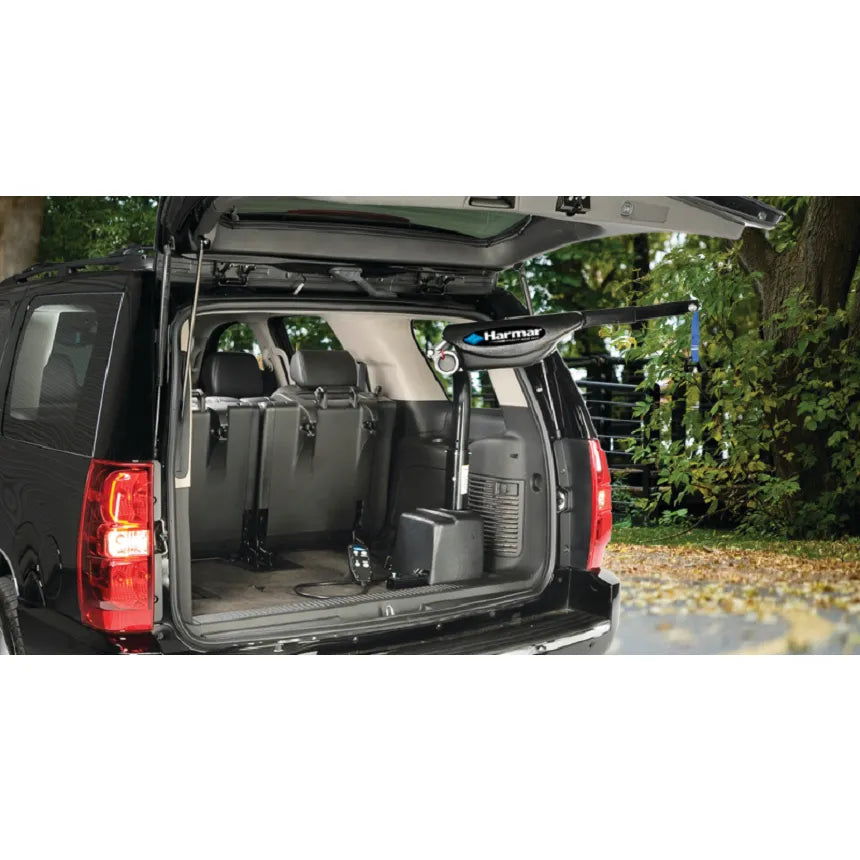

The 30" headroom requirement is the AL425's most important installation constraint — confirm your vehicle's cargo height from floor to ceiling before ordering. Because the device is stored inside the vehicle cargo area, the backup camera is fully unobstructed during transit. Universal base adapter included. Docking device not included — confirm the correct one for your device before ordering. Optional wireless key fob, battery pack, folding arm, custom adapters and docking devices. Also available: AL425HD at 450 lb capacity for trucks. 3-year warranty · Made in USA.
Full Specifications
| Model | AL425 Axis II Premium Inside Hoist Lift |
| Lift Type | Inside hoist — device stored in vehicle cargo area |
| Weight Capacity | 400 lbs |
| Installed Weight | 66 lbs |
| Devices Accommodated | Manual wheelchairs · Power wheelchairs · Scooters |
| Arm Height (adjustable) | 30" to 41" |
| Arm Length (adjustable) | 23.5" to 33.5" |
| Operation | Dual axis — power lifting + power rotation |
| Control | Weather-resistant remote control · wireless key fob optional |
| Cargo Headroom Required | 30" minimum |
| Installation Side | Passenger or driver side — either, standard |
| Vehicle Compatibility | Minivans · SUVs · Trucks · Vans |
| Backup Camera | Fully usable — device stored inside vehicle |
| Included | Universal base adapter |
| Docking Device | Not included — must be ordered separately |
| Optional Upgrades | Battery pack · Wireless key fob · Folding arm · Custom adapters · Custom docking device |
| HD Version Available | Yes — AL425HD · 450 lb · 70 lb · trucks only · View AL425HD → |
| Made in USA | Yes |
| Warranty | 3-year Harmar warranty |
| Returns | Non-returnable once installed |
Complete Harmar Vehicle Lift Guide
Not sure if the AL425 is the right lift for your vehicle and device? Our guide covers every Harmar lift we carry. Read the Complete Vehicle Lift Guide →
Frequently Asked Questions
Both are fully powered dual-axis inside hoist lifts. The AL225 is rated to 250 lbs, weighs 55 lbs installed, and has an arm height range of 30"–40". The AL425 is rated to 400 lbs, weighs 66 lbs installed, has a taller arm range of 30"–41", and can be installed on either passenger or driver side as standard (the AL225 requires an extra option for driver side). The AL425 also requires 30" of cargo headroom. If your device weighs between 250 and 400 lbs, the AL425 is the right choice. Call us to confirm. 866-218-0902.
Both share the same dual-axis powered design. The AL425 has a 400 lb capacity, weighs 66 lbs, and is compatible with minivans, SUVs, trucks, and vans. The AL425HD has a 450 lb capacity, weighs 70 lbs, has a taller arm range (31.5"–46.5"), and is compatible with trucks only. If you drive an SUV, minivan, or van, the AL425 is the right choice. If you need 450 lb capacity and drive a truck, the HD is required. Call us to confirm. 866-218-0902.
Measure from the vehicle's cargo floor (with any floor mats removed) vertically to the ceiling or headliner at the point where the lift arm will operate. This is typically measured near the rear cargo opening. If your cargo height is less than 30", the AL425 will not install correctly — call us to discuss alternatives. 866-218-0902.
The correct docking device depends on the make and model of your specific mobility device — different chairs and scooters require different attachment hardware. Rather than including a universal device that may not fit correctly, Harmar allows the right docking device to be specified per device. Call us before ordering and we will confirm which docking device is correct for your chair or scooter and include it with your order. 866-218-0902.
Professional installation is required for warranty coverage and safe operation. We provide local installation at all five of our Southwest Florida locations and coordinate professional installation nationwide through Harmar's authorized dealer network. 866-218-0902.
Compare Inside Vehicle Lifts
450 lb HD · Trucks Only
Harmar AL425HD Axis II HD
450 lb · 70 lb installed · Power lift + rotation · Trucks only · 30" headroom
View →
View →
250 lb · Lighter · Fully Powered
Harmar AL225 Axis II Lite
250 lb · 55 lb installed · Power lift + power rotation · All vehicles
View →
View →
3-Axis · 400 lb · Power Extend
Harmar AL435 Axis III Power Inside
400 lb · 76 lb installed · Power lift + rotate + extend · Most vans, SUVs & trucks
View →
View →
Local Installation & Nationwide Shipping
We are an authorized Harmar dealer with over 25 years of DME experience. Local professional installation is available at all five of our Southwest Florida locations — Venice, Sarasota, Port Charlotte, Fort Myers, and Naples. For customers anywhere in the country we ship directly and coordinate professional installation through Harmar's authorized dealer network. Every order requires a compatibility confirmation before it ships — call us with your vehicle year, make, model, cargo headroom measurement, and device details and we will verify fit before you buy.
📞 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM · Find your nearest location →
Technical Specs
Specifications
Harmar AL-425 Axis II Premium Inside Lift Specifications
|
Weight and Dimensions
|
|
| Total Lift System Weight | 66 lbs |
|
Capacity
|
|
| Maximum Lift System Capacity | 400 lbs |
| Maximum Lift Travel Distance | 17" |
|
Motor and Battery
|
|
| Motor Type | DC Motors |
| Battery Type and Weight | Optional Battery Pack |
| Charger | Car Charging |
|
Warranty
|
|
|
|
3 Year Transferable Warranty |
