At Medical Department Store, we review each and every Harmar order. We will need to contact you after your purchase to confirm that your lift will work properly with your vehicle and mobility product. As a Harmar Premier Dealer, your complete satisfaction is our priority.

Questions? Call Us: 866-218-0902

The lightest product in the Harmar lineup — a fully manual hitch-mount carrier for manual folding wheelchairs up to 100 lbs. Tilting joint makes roll-on loading easier, no power or battery required.
- 100 lb capacity · 25 lb installed · 14"×30" platform · Class I hitch · cars, minivans, SUVs, vans & trucks
- Fully manual — no motor, no wiring, no battery · tilting joint for easier roll-on loading
- Adjustable hold-down arm secures folded wheelchair · ball mount included
- 3-year warranty · Made in USA · powered version: AL030 Power Tote

Our Price: $685.00

Harmar AL003 Wheelchair Tilt N Tote
Description

The Harmar AL003 Wheelchair Tilt-N-Tote is the simplest and lightest wheelchair carrier Harmar makes — a fully manual hitch-mount carrier for manual folding wheelchairs up to 100 lbs, with no motor, no battery, and no power connection required. At just 25 lbs installed it is the lightest product in the entire Harmar vehicle lift lineup. The name describes the mechanism: the Tilt-N-Tote uses a tilting joint that tilts the platform forward to make rolling the wheelchair on and off significantly easier than a flat platform would allow. An adjustable hold-down arm then secures the chair for transit. Class I hitch or greater. Cars, minivans, SUVs, vans, and trucks. Ball mount included. For users who need a powered option, the AL030 Power Tote adds powered lifting to the same manual wheelchair platform concept. Made in the USA.

Manual hitch-mount wheelchair carrier · Manual folding wheelchairs only · 100 lb capacity · 25 lb installed · 14" × 30" platform · Tilting joint · Class I hitch · No power required · All vehicle types. Compatibility confirmation required before every order ships.

Not sure the AL003 fits your vehicle and wheelchair? Call 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM · Authorized Harmar Dealer · Local & Nationwide Installation
Before You Order — Manual Folding Wheelchairs Only · Compatibility Must Be Confirmed The AL003 is designed exclusively for manual folding wheelchairs up to 100 lbs — it is not designed for power chairs, scooters, or rigid-frame manual wheelchairs. The wheelchair must fold for the adjustable hold-down arm to secure it correctly. The AL003 is fully manual — there is no powered lifting. The user or caregiver manually tilts and places the chair on the platform. We confirm compatibility on every order before it ships — no exceptions. Use the Harmar Compatibility Calculator below as a starting point then call us to verify. We provide local professional installation at all five of our Southwest Florida locations and coordinate professional installation nationwide through Harmar's authorized dealer network. 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM.
Check Your Vehicle & Wheelchair Compatibility — Open Harmar Calculator →

25 lbs. No Power. Just Roll It On.

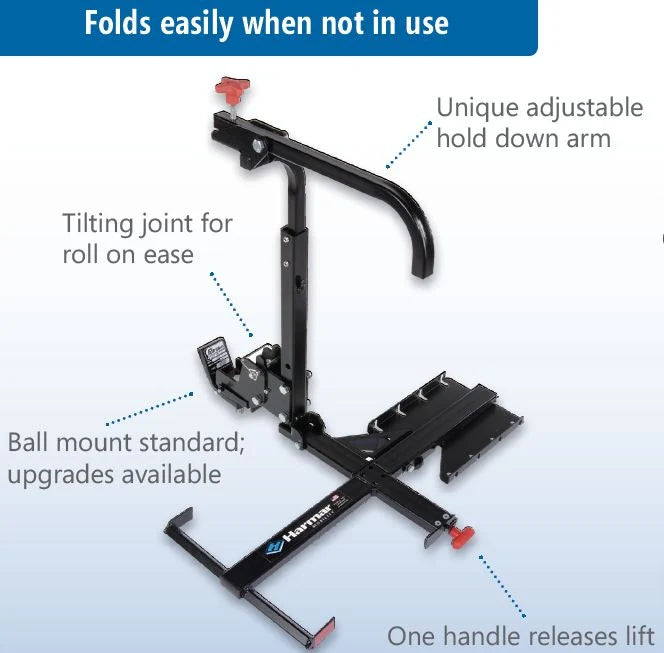

Tilting Joint — The Tilt-N-Tote Difference The AL003's defining feature is the tilting joint built into the platform mount. When loading, the platform tilts forward toward the ground, creating a lower angle that makes it considerably easier to roll or guide the folded wheelchair onto the platform surface. This is the mechanical insight that gives the product its name — it tilts to allow easy loading, then locks in the upright travel position to secure the chair for transit. For caregivers who load a manual wheelchair multiple times a day, this tilt mechanism meaningfully reduces the physical effort required compared to a fixed flat platform.
25 lb Installed · Class I Hitch · All Vehicle Types At 25 lbs installed, the AL003 is lighter than almost any other vehicle accessibility product on the market — lighter than most cargo carriers, lighter than trailer hitches, lighter than folding wheelchair ramps. The Class I hitch requirement means it works on virtually every vehicle type including most sedans, which typically cannot support the tongue weight of heavier mobility lifts. The 14" × 30" platform is sized specifically for folded manual wheelchairs. Ball mount included standard.
No Power Required · Adjustable Hold-Down Arm · Made in USA The AL003 requires no electrical connection, no battery, and no wiring — it is entirely mechanical. This simplifies installation, eliminates battery maintenance concerns, and makes the AL003 available in any vehicle regardless of electrical accessibility. The adjustable hold-down arm provides secure securement for different wheelchair widths and configurations. For users who want powered lifting for the same manual wheelchair use case, the AL030 Power Tote adds a motor. 3-year warranty · Made in USA.

Full Specifications

Model AL003 Wheelchair Tilt-N-Tote
Lift Type Manual hitch-mount carrier — wheelchair rides outside during transit
Weight Capacity 100 lbs
Installed Weight 25 lbs
Devices Accommodated Manual folding wheelchairs only
Platform Size 14" × 30"
Operation Fully manual — no power required
Loading Mechanism Tilting joint for roll-on ease
Securement Adjustable hold-down arm
Hitch Class Class I or greater
Vehicle Compatibility Cars · Minivans · SUVs · Vans · Trucks
Included Ball mount
Power Required No
Powered Version Available Yes — AL030 Power Tote · View AL030 →
Made in USA Yes
Warranty 3-year Harmar warranty
Returns Non-returnable once installed
Complete Harmar Vehicle Lift Guide Not sure if the AL003 is the right carrier for your vehicle and wheelchair? Our guide covers every Harmar lift we carry. Read the Complete Vehicle Lift Guide →

Frequently Asked Questions

Both are hitch-mount carriers for manual folding wheelchairs up to 100 lbs. The AL003 is fully manual — no motor, no power. Loading requires the user or caregiver to physically tilt and place the chair. The AL030 adds a powered lifting mechanism so the carrier raises and lowers automatically at the press of a button. If you or your caregiver can manage manual loading, the AL003 is the simpler and more economical choice. If powered lifting is needed, the AL030 is the right step up. Call us to discuss. 866-218-0902.
No — the AL003 is designed for manual folding wheelchairs. The hold-down arm and platform dimensions are optimized for folded chairs. A rigid-frame wheelchair does not fold and will not secure correctly on the AL003. Call us to discuss alternatives for rigid-frame chairs. 866-218-0902.
Yes — the AL003 is one of the only Harmar carriers designed specifically for Class I hitches, making it compatible with most sedans and smaller vehicles that cannot support heavier lifts. Use the Harmar Compatibility Calculator to check your specific vehicle, then call us to confirm. 866-218-0902.
Professional installation is required for warranty coverage and safe operation. We provide local installation at all five of our Southwest Florida locations and coordinate professional installation nationwide through Harmar's authorized dealer network. 866-218-0902.

Compare Manual Wheelchair Carriers & Lifts

Powered Version · Same Use Case Harmar AL030 Wheelchair Power Tote 100 lb · Manual folding wheelchairs · Powered lift + manual fold · Class I hitch
View →
Micro Scooters · 135 lb · Class I Harmar AL010 Micro Scooter Lift 135 lb · 70 lb installed · Micro scooters · Powered lift · Class I hitch
View →
Inside Hoist · 250 lb · All Vehicles Harmar AL215 Axis I Inside Lift 250 lb · 42 lb installed · Power lift + manual rotation · Inside storage
View →
All Wheelchair Carrier Lifts Full Wheelchair Carrier Lineup Every wheelchair carrier lift we carry
Browse all →

Local Installation & Nationwide Shipping

We are an authorized Harmar dealer with over 25 years of DME experience. Local professional installation is available at all five of our Southwest Florida locations — Venice, Sarasota, Port Charlotte, Fort Myers, and Naples. For customers anywhere in the country we ship directly and coordinate professional installation through Harmar's authorized dealer network. Every order requires a compatibility confirmation before it ships — call us with your vehicle year, make, model, and wheelchair details and we will verify fit before you buy.

📞 866-218-0902  ·  Mon–Fri 9AM–5PM  ·  Sat 9AM–3PM  ·  Find your nearest location →

Harmar Al003 lift
Technical Specs
Specifications

Harmar AL-003 Tilt-N-Tote Auto Lift Specifications:

Weight and Dimensions
Total Lift System Weight 25 lbs
Capacity
Maximum Lift System Capacity 100 lbs
Motor and Battery
Motor Type DC Motors
Battery Type and Weight Optional Battery Pack
Charger Car Charging
Warranty

3 Year Transferable Warranty
