Installation & Product Guides:

Vehicle Compatibility Tool Vehicle Compatibility Tool
Owners Manual Owner's Manual

The Harmar Fusion lift — one exterior hitch-mount platform that carries both power chairs and scooters up to 350 lbs, no device modifications required between uses.
- 350 lb capacity · 80 lb installed · 26"×39" platform, cradle extends to 46" · Class II+ hitch
- 4 self-tensioning Q'Straint retractors · no manual tightening · rear wheel cradle
- Stars-N-Stripes aluminum deck · fully powered lift + auto fold · wheelbase up to 42"
- Optional swing-away · 3-year transferable warranty · Made in USA

Our Price: $2,465.00

Harmar AL300 Fusion Power Chair & Scooter Lift
Description

The Harmar AL300 Fusion Power Chair & Scooter Lift is Harmar's most versatile mid-range exterior platform lift — the only lift in this class that carries both power chairs and scooters interchangeably on the same platform with no device modifications and no configuration change between uses. The "Fusion" name reflects exactly that: one lift, two device types. The 26" × 39" Stars-N-Stripes aluminum deck features an adjustable cradle that extends to 46" to accommodate wheelbases up to 42". Four self-tensioning Q'Straint retractors hook to the device and automatically maintain tension — no manual tightening, no straps to thread. Fully powered lift and automatic fold. Class II hitch or greater. 80 lbs installed. Minivans, SUVs, trucks, and vans. Made in the USA.

Exterior hitch-mount lift · Power chairs AND scooters · 350 lb capacity · 80 lb installed · 26" × 39" platform (extends to 46") · 4 self-tensioning Q'Straint retractors · Fully powered · Class II hitch or greater. Compatibility confirmation required before every order ships.

Not sure the AL300 fits your vehicle and device? Call 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM · Authorized Harmar Dealer · Local & Nationwide Installation

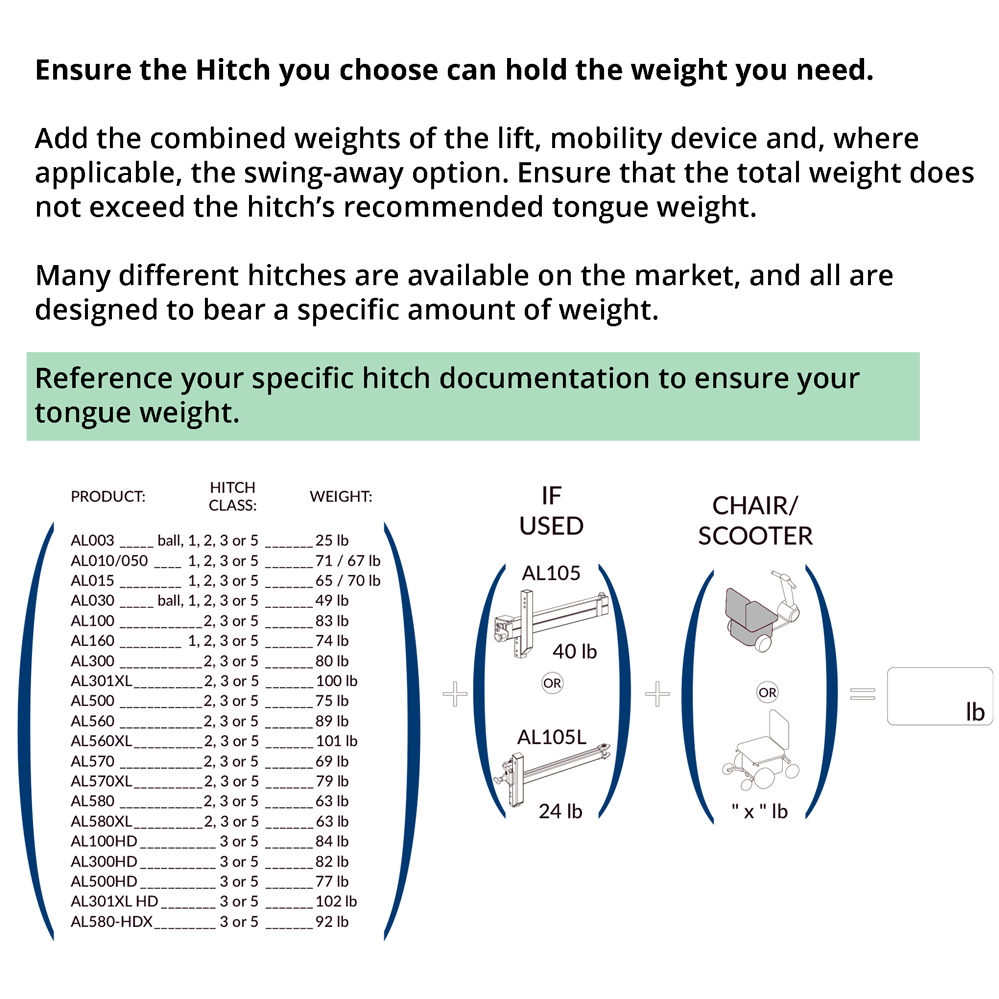

Before You Order — Compatibility Must Be Confirmed The AL300 accommodates power chairs and scooters up to 350 lbs with a wheelbase up to 42" and a maximum device width of 27". It requires a Class II hitch or greater and a hitch height between 5" and 18". Also available: the AL300HD with 400 lb capacity. We confirm compatibility on every order before it ships — no exceptions. Use the Harmar Compatibility Calculator below as a starting point then call us to verify before placing your order. We provide local professional installation at all five of our Southwest Florida locations and coordinate professional installation nationwide through Harmar's authorized dealer network. 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM.
Check Your Vehicle & Device Compatibility — Open Harmar Calculator →

One Lift. Power Chairs and Scooters Both.

Fusion Design — Power Chairs & Scooters, No Modifications Most exterior platform lifts are optimized for one device type — the AL300's Fusion platform is engineered to work with both medium-sized power chairs and virtually all scooters with wheelbases up to 42" without any reconfiguration between uses. The 26" × 39" adjustable deck accommodates a wide range of footprints and the four Q'Straint retractors connect to either device type with equal ease. For households with more than one device — or for users who may upgrade from a scooter to a power chair — the AL300 is a long-term investment that doesn't need to be replaced when the device changes.
4 Self-Tensioning Q'Straint Retractors — No Manual Tightening The AL300 uses four Q'Straint retractors — the gold standard in mobility device securement — that are self-tensioning. Hook each retractor to the device's frame, and internal spring tension automatically maintains the correct hold for transit. No manual ratcheting, no straps to check and retighten. The rear wheel cradle provides additional centering stability. Combined with the adjustable cradle that extends to 46", the AL300 provides one of the most secure and user-friendly securement systems in the Harmar exterior lineup.
Stars-N-Stripes Deck · 80 lb Installed · Fully Powered The Stars-N-Stripes perforated aluminum deck is one of Harmar's signature platform designs — patriotic in appearance and functional in use, with the perforation pattern providing traction and reducing debris accumulation on the platform surface. At 80 lbs installed it is manageable for a Class II hitch while still handling a 350 lb device. Fully powered lift and automatic fold with one-switch operation. License plate mount included. Optional swing-away, battery pack, and cover available. 3-year transferable warranty · Made in USA.

Full Specifications

Model AL300 Fusion Power Chair & Scooter Lift
Lift Type Exterior hitch-mount — device rides outside during transit
Weight Capacity 350 lbs
Installed Weight 80 lbs
Devices Accommodated Power chairs · Scooters · No modifications required
Max Device Width 27"
Max Wheelbase 42"
Platform Size 26" × 39" · adjustable cradle extends to 46"
Platform Design Stars-N-Stripes perforated aluminum deck
Operation Fully powered lift · automatic fold · one-switch
Securement 4 self-tensioning Q'Straint retractors · rear wheel cradle
Hitch Class Class II or greater (Class III adapter included standard)
Hitch Height Range 5" to 18"
Vehicle Compatibility Minivans · SUVs · Trucks · Vans
Included AL107 hitch post · AL123 Class III adapter · License plate mount · Rear wheel cradle
Optional Upgrades Swing-away · Battery pack · Cover · License plate riser
HD Version Available Yes — AL300HD · 400 lb capacity · View AL300HD →
Made in USA Yes
Warranty 3-year transferable Harmar warranty
Returns Non-returnable once installed
Complete Harmar Vehicle Lift Guide Not sure if the AL300 is the right lift for your vehicle and device? Our guide covers every Harmar lift we carry and explains which fits your situation. Read the Complete Vehicle Lift Guide →

Frequently Asked Questions

The Fusion designation means the lift is designed to carry both power chairs and scooters interchangeably on the same platform — no reconfiguration required. Most exterior platform lifts are optimized for one or the other. The AL300's 26" × 39" adjustable platform and four Q'Straint retractors work with either device type without modifications. This makes it a strong choice for users who own both a scooter and a power chair, or who anticipate switching devices in the future.
Both share the same Fusion platform design, Q'Straint retractors, and fully powered operation. The AL300 has a 350 lb capacity and uses a Class II or III hitch. The AL300HD has a 400 lb capacity and requires a Class III hitch or greater with a heavy-duty adapter. If your power chair or scooter weighs between 350 and 400 lbs, or if you want the additional headroom, the HD is the right choice. Call us and we will confirm which is correct for your device. 866-218-0902.
No — the Q'Straint retractors are designed to hook to existing frame points on virtually all power chairs and scooters without any drilling or modification. The self-tensioning mechanism maintains the correct hold automatically once the hooks are in place. Call us if you have a question about your specific device's compatibility. 866-218-0902.
Professional installation is required for warranty coverage and safe operation. We provide local installation at all five of our Southwest Florida locations and coordinate professional installation nationwide through Harmar's authorized dealer network. 866-218-0902.

Compare Exterior Vehicle Lifts

400 lb · Heavy Duty Version Harmar AL300HD Heavy Duty Fusion 400 lb · Same Fusion platform · Q'Straint retractors · Class III hitch required
View →
Scooters Only · Fully Powered · 350 lb Harmar AL160 Profile Scooter Lift 350 lb · 74 lb installed · 3 & 4-wheel scooters · Automatic hold-down · Class I hitch
View →
Power Chairs · Drive-On Platform · 350 lb Harmar AL560XL Automatic Universal 350 lb · 115 lb installed · Power chairs · Drive-on/off · Padded hold-down arm
View →
All Exterior Vehicle Lifts Full Exterior Lift Lineup Every exterior hitch-mount lift we carry
Browse all →

Local Installation & Nationwide Shipping

We are an authorized Harmar dealer with over 25 years of DME experience. Local professional installation is available at all five of our Southwest Florida locations — Venice, Sarasota, Port Charlotte, Fort Myers, and Naples. For customers anywhere in the country we ship directly and coordinate professional installation through Harmar's authorized dealer network. Every order requires a compatibility confirmation before it ships — call us with your vehicle year, make, model, and device details and we will verify fit before you buy.

📞 866-218-0902  ·  Mon–Fri 9AM–5PM  ·  Sat 9AM–3PM  ·  Find your nearest location →

Harmar AL300 Fusion Lift
Technical Specs
Specifications

Harmar Mobility AL300 Fusion Lift Specifications:

Lifting Capacity 350 lbs
Maximum Scooter Width 27"
Max Scooter Wheelbase 42"
Installed Weight 105 lbs
Hitch Height 5" - 19"
Hitch Class II or III
