High-capacity exterior hitch-mount lift for heavy mid-wheel drive power chairs — 450 lb capacity handles chairs with 10"–14" drive wheels that exceed the standard AL580's limits.
- 450 lb capacity · 92 lb installed · 27" usable platform width · Class III hitch required
- Dual securement: 4 Q'Straint retractors + padded hold-down arm · no chair modifications
- Mid-wheel drive only · Stars-N-Stripes platform · fully powered lift + fold
- Optional swing-away · 3-year transferable warranty · Made in USA

Our Price: $4,100.00

Harmar AL580-HDX High Capacity Mid-Wheel Power Chair Lift
Description

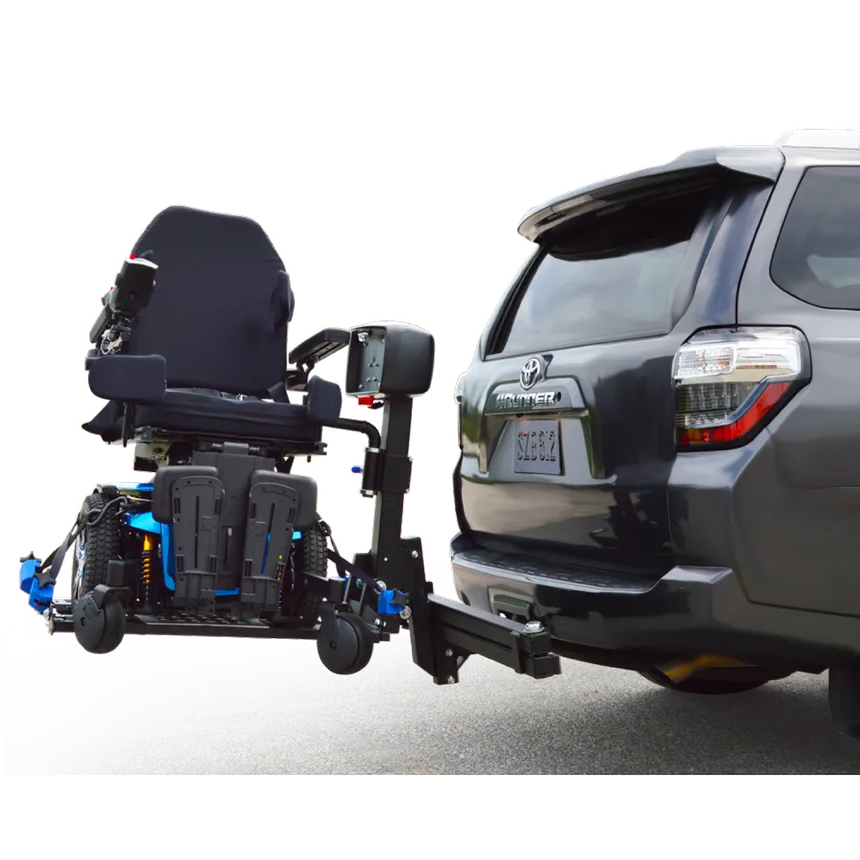

The Harmar AL580-HDX is Harmar's highest-capacity mid-wheel-specific exterior hitch-mount lift — built for the heavy mid-wheel drive power chairs that the standard AL580 cannot handle. Where the AL580 tops out at 350 lbs and is optimized for 10" drive wheels, the HDX steps up to 450 lbs and accommodates mid-wheel chairs with drive wheel sizes from 10" to 14", covering the full range of today's heavy and Group 3 mid-wheel platforms. Securement is dual-system: four Q'Straint retractors hook to the chair's frame points while a padded hold-down arm simultaneously stabilizes from above — the most comprehensive securement setup in the Harmar mid-wheel lift family. Stars-N-Stripes platform. 92 lbs installed. Class III hitch or greater required. Compatible with SUVs, trucks, and crossovers. Made in the USA.

Exterior hitch-mount lift · Mid-wheel drive power chairs only · 450 lb capacity · 92 lb installed · 27" usable width · Drive wheels 10"–14" · 4 Q'Straint retractors + padded hold-down arm · Class III hitch required. Compatibility confirmation required before every order ships.

Not sure the AL580-HDX fits your vehicle and power chair? Call 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM · Authorized Harmar Dealer · Local & Nationwide Installation
Before You Order — Mid-Wheel Drive Only · Class III Required · Compatibility Must Be Confirmed The AL580-HDX is designed exclusively for mid-wheel drive power chairs with drive wheel sizes of 10"–14". It is not compatible with rear-wheel or front-wheel drive power chairs. A Class III hitch is required — Class II is not sufficient. Confirm your chair's drive wheel size, total weight, and your vehicle's hitch class before ordering. We confirm compatibility on every order before it ships — no exceptions. Use the Harmar Compatibility Calculator below as a starting point then call us to verify. We provide local professional installation at all five of our Southwest Florida locations and coordinate professional installation nationwide through Harmar's authorized dealer network. 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM.
Check Your Vehicle & Power Chair Compatibility — Open Harmar Calculator →

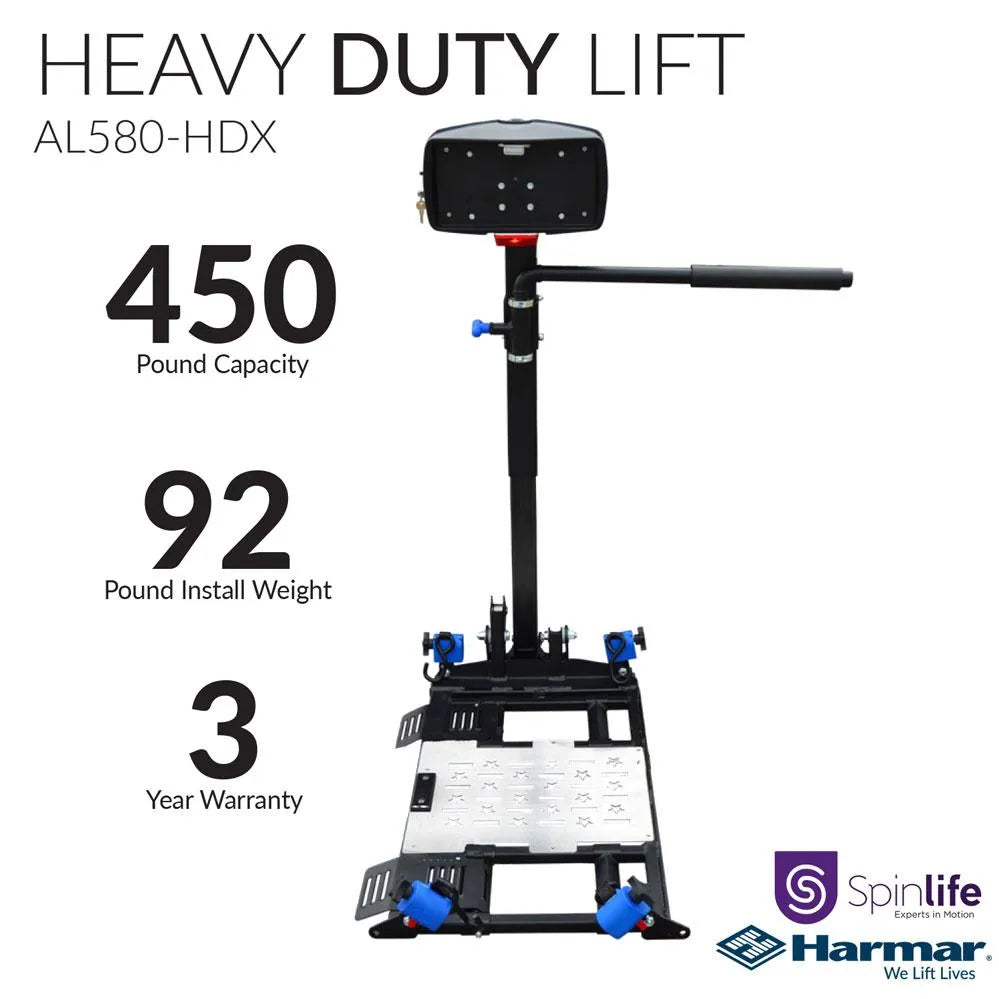

450 lbs. 10"–14" Drive Wheels. Dual Securement.

450 lb Capacity · 10"–14" Drive Wheels · Heavy Mid-Wheel Chairs The HDX designation reflects two critical upgrades over the standard AL580: a motor and frame rated to 450 lbs (vs 350 lbs), and a wider wheel cradle system that accommodates the larger 12" and 14" drive wheels found on heavier mid-wheel platforms and Group 3 power chairs — wheels the standard AL580 cannot accept. For users whose mid-wheel chair exceeds the AL580's 350 lb limit, or whose chair has 12" or 14" drive wheels, the HDX is the only Harmar mid-wheel lift that fits. Confirm your chair's wheel size and weight with us before ordering.

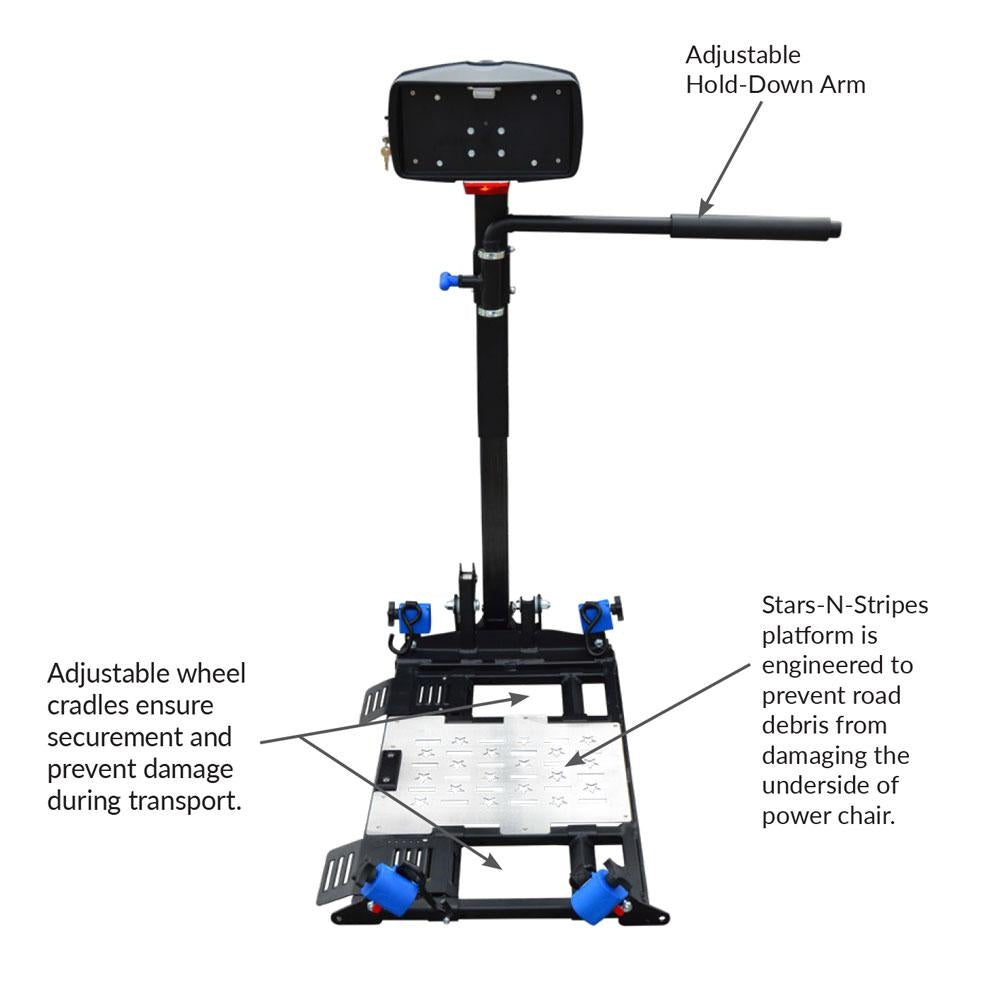

Dual Securement — 4 Q'Straint Retractors + Padded Hold-Down Arm The AL580-HDX uses a dual-system securement approach that no other AL580-series lift offers. Four Q'Straint retractors hook to the chair's frame and maintain automatic tension, while the padded hold-down arm simultaneously presses down on the seat from above. The combination of frame-level retractor tension and seat-level hold-down provides redundant securement for heavy chairs where load management during transport demands the highest level of stability. No chair modifications required.
Stars-N-Stripes Platform · 27" Usable Width · Class III Required The Stars-N-Stripes perforated aluminum platform protects the underside of the power chair from road debris — a practical benefit for heavy chairs with complex drive systems that could be damaged by debris impact during transit. The 27" usable platform width accommodates the wider footprints of heavy mid-wheel chairs. Class III hitch required — a Class III adapter is included standard. Compatible with SUVs, trucks, and crossovers. Optional swing-away, battery pack, and license plate riser available. 3-year transferable warranty · Made in USA.

Full Specifications

Model AL580-HDX High Capacity Mid-Wheel Power Chair Lift
Lift Type Exterior hitch-mount — power chair rides outside during transit
Weight Capacity 450 lbs
Installed Weight 92 lbs
Devices Accommodated Mid-wheel drive power chairs only · Drive wheel sizes 10"–14"
Device Modifications Required No
Platform Width 27" usable (approx. 23" × 33" platform)
Platform Design Stars-N-Stripes perforated aluminum deck
Operation Fully powered lift + fold
Securement 4 Q'Straint retractors + padded hold-down arm + adjustable wheel cradles

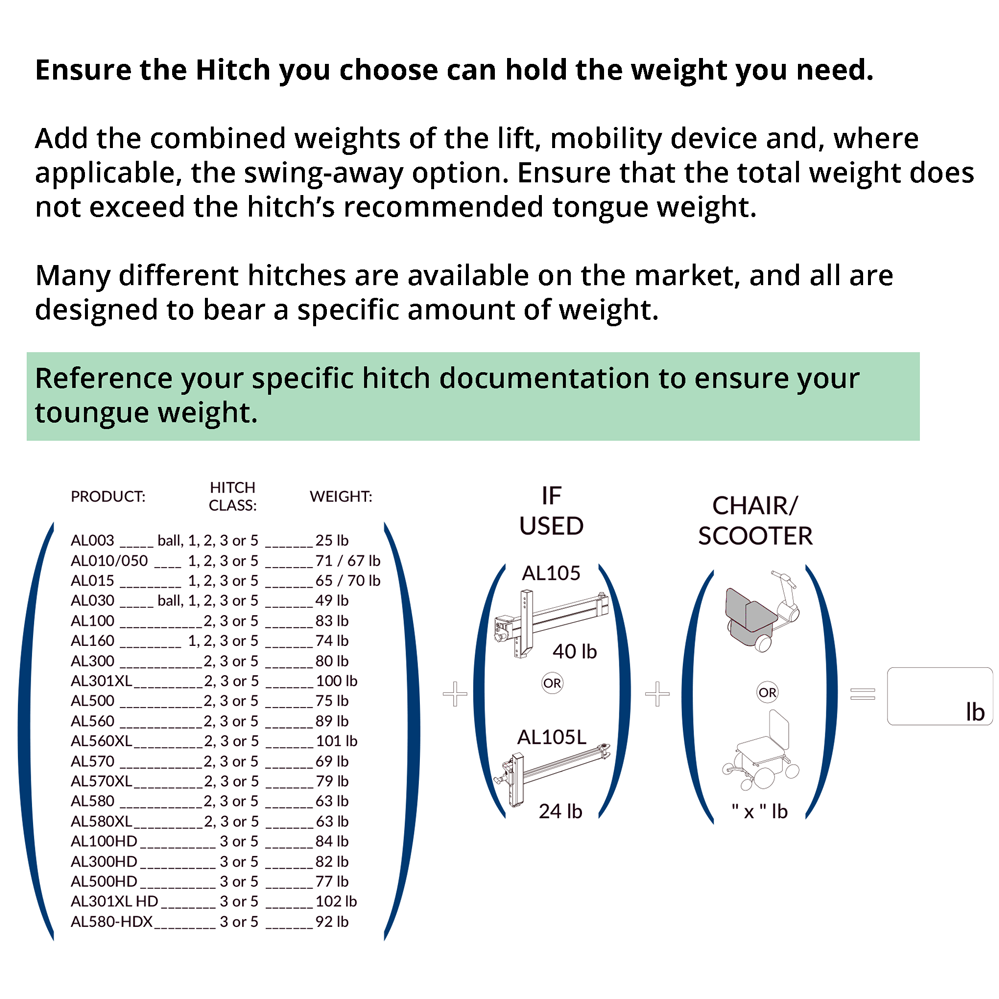

Hitch Class Class III or greater (adapter included standard)
Vehicle Compatibility SUVs · Trucks · Crossovers
Included Class III hitch adapter · License plate mount

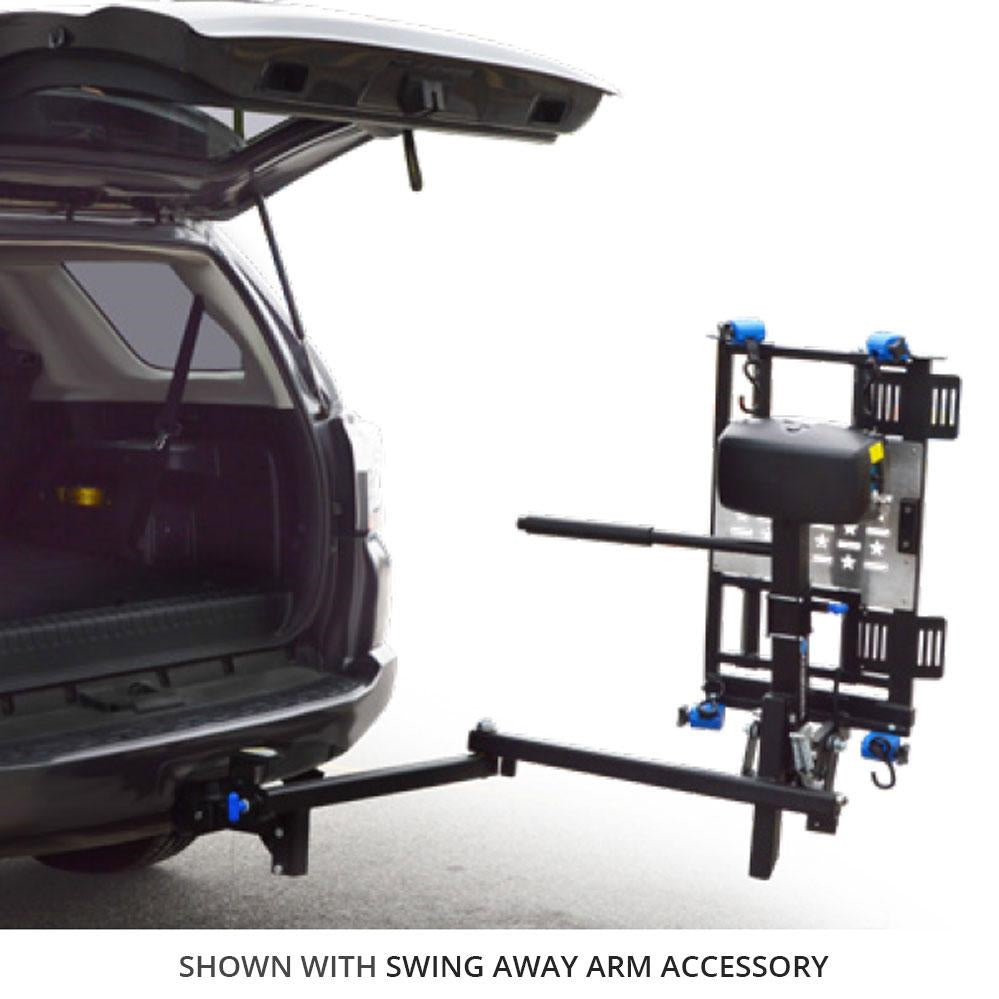

Optional Upgrades Swing-away · Battery pack · License plate riser · Wheelchair cover
Standard Version AL580 · 350 lb · 63 lb · 10" drive wheels · Class II/III · View AL580 →
Made in USA Yes
Warranty 3-year transferable Harmar warranty
Returns Non-returnable once installed
Complete Harmar Vehicle Lift Guide Not sure if the AL580-HDX is the right lift for your vehicle and power chair? Our guide covers every Harmar lift we carry and explains which fits your situation. Read the Complete Vehicle Lift Guide →

Frequently Asked Questions

Both are designed exclusively for mid-wheel drive power chairs. The AL580 has a 350 lb capacity, weighs 63 lbs installed, and works with Class II or III hitches — optimized for chairs with 10" drive wheels. The AL580-HDX has a 450 lb capacity, weighs 92 lbs installed, requires a Class III hitch, and accommodates drive wheel sizes from 10"–14". The HDX also adds four Q'Straint retractors alongside the padded hold-down arm for dual securement. If your mid-wheel chair weighs over 350 lbs or has 12"–14" drive wheels, the HDX is required. 866-218-0902.
No — the AL580-HDX is designed specifically for mid-wheel drive power chairs. The cradle geometry and platform configuration are optimized for the mid-wheel drive layout. For rear-wheel drive or front-wheel drive power chairs, see the AL500, AL500HD, or AL300 Fusion series. Call us with your chair's make and model and we will confirm the right lift. 866-218-0902.
Yes — the AL580-HDX's 450 lb capacity and 10"–14" drive wheel accommodation make it well suited for many Group 3 mid-wheel complex rehab chairs that exceed the limits of lighter platform lifts. Call us with the specific chair make, model, drive wheel size, and total weight and we will confirm compatibility. 866-218-0902.
Professional installation is required for warranty coverage and safe operation. We provide local installation at all five of our Southwest Florida locations and coordinate professional installation nationwide through Harmar's authorized dealer network. 866-218-0902.

Compare Exterior Vehicle Lifts

350 lb · 10" Drive Wheels · Lighter Harmar AL580 Next Generation 350 lb · 63 lb installed · Mid-wheel chairs · 10" drive wheels · Class II/III hitch
View →
400 lb · All Chair Types · Fusion Harmar AL500HD Platform Power Chair 400 lb · 77 lb installed · All power chair types · Q'Straint retractors · Class III
View →
350 lb · Drive-On Platform Harmar AL560XL Automatic Universal 350 lb · 115 lb installed · Drive-on/off · Padded hold-down · Flip-back arms required
View →
All Exterior Vehicle Lifts Full Exterior Lift Lineup Every exterior hitch-mount lift we carry
Browse all →

Local Installation & Nationwide Shipping

We are an authorized Harmar dealer with over 25 years of DME experience. Local professional installation is available at all five of our Southwest Florida locations — Venice, Sarasota, Port Charlotte, Fort Myers, and Naples. For customers anywhere in the country we ship directly and coordinate professional installation nationwide through Harmar's authorized dealer network. Every order requires a compatibility confirmation before it ships — call us with your vehicle year, make, model, and power chair details — including drive wheel size and total weight — and we will verify fit before you buy.

📞 866-218-0902  ·  Mon–Fri 9AM–5PM  ·  Sat 9AM–3PM  ·  Find your nearest location →

Technical Specs
Specifications

Specifications for the AL580-HDX Power Wheelchair Lift

Battery Pack Option: Yes
Lift Operation: Power
Power Source: Battery
Hardwired
Works With Hitch Size: Class III Hitch
Class V Hitch
Professional Install Available: Yes
Lifting Capacity: 450 lbs.
Recommended For: Full-Size Power Wheelchairs
Travel/Portable Power Wheelchairs
Heavy Duty Power Wheelchairs
Platform Size - Length: 33 in.
Platform Size - Width: 23 in.
Installed Product Weight: 92 lbs.
Type of Lift: Outside Lift
Warranty: 3 Year Limited Warranty
Warranty - Transferable Warranty: Yes
