Heavy duty version of the world's most popular outside power chair lift — same proven AL500 platform and Q'Straint system, stepped up to 400 lb capacity for larger and complex rehab chairs.
- 400 lb capacity · 77 lb installed · 26"×39" Stars-N-Stripes platform · Class III hitch required
- 4 self-tensioning Q'Straint retractors · spreader bar or frame loop attachment · no modifications
- Power chairs only · folds to 12" behind bumper · fully powered · manual crank backup
- Optional swing-away · 3-year transferable warranty · Made in USA

Our Price: $2,925.00

Harmar AL500HD Platform Power Wheelchair Lift
Description

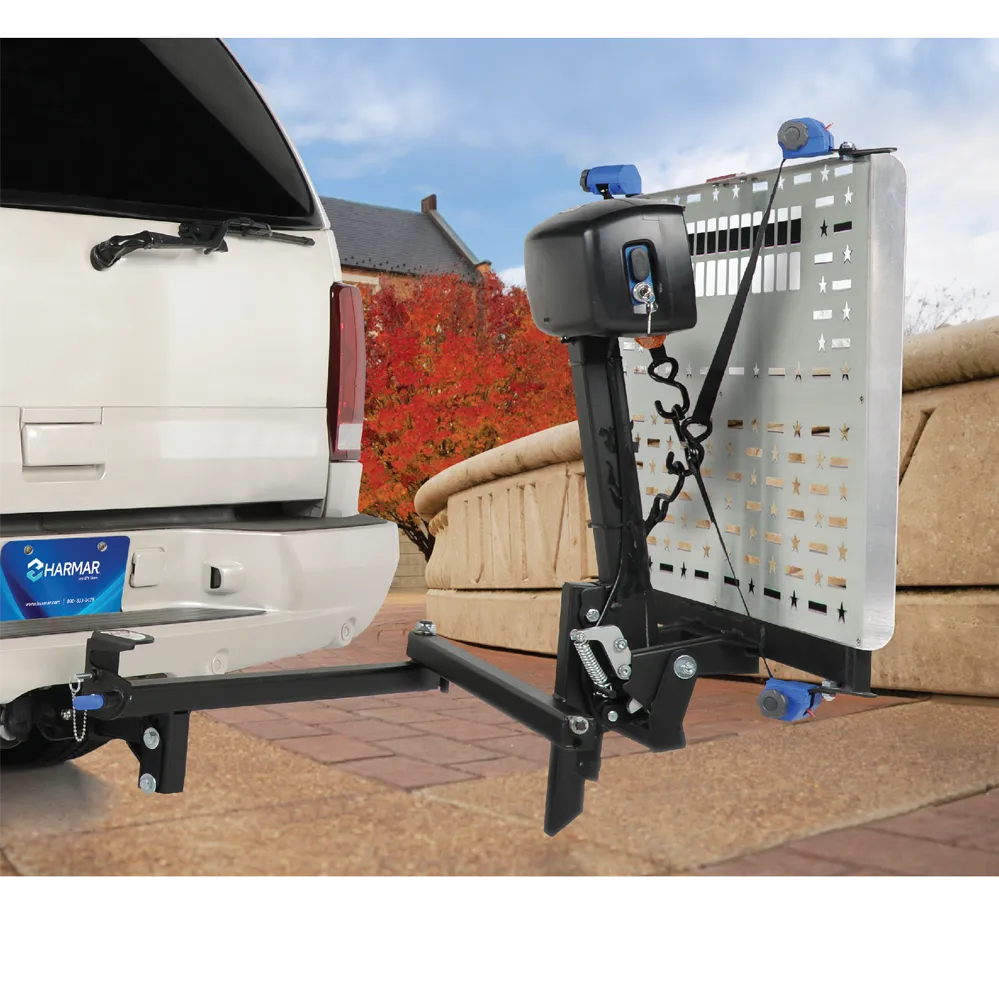

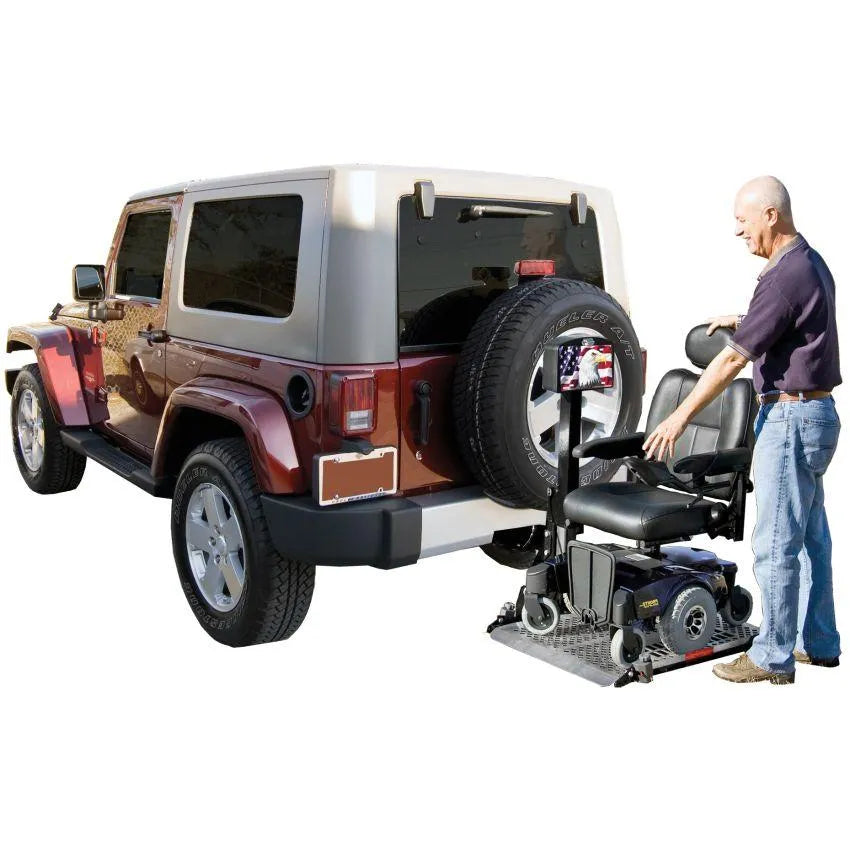

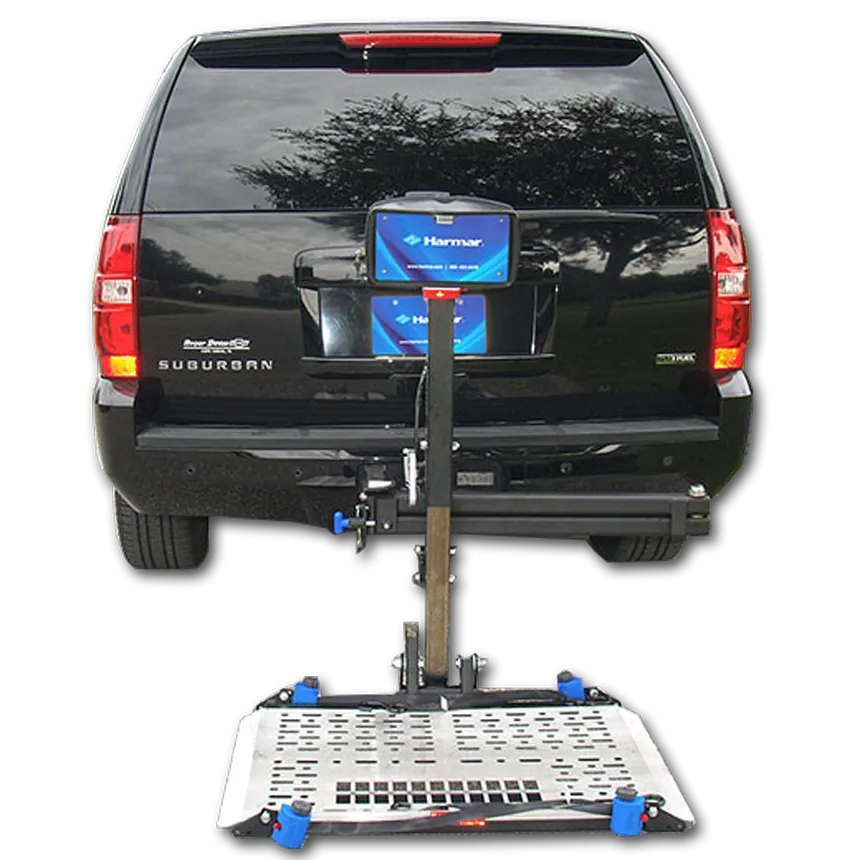

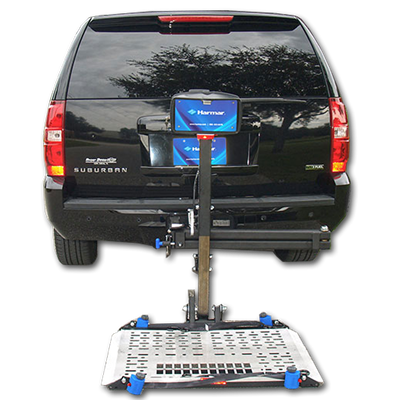

The Harmar AL500HD Heavy Duty Platform Power Wheelchair Lift is the higher-capacity version of the world's most popular outside power chair lift — the same proven AL500 platform, motor, and Q'Straint retractor system, rated to 400 lbs for larger power chairs, complex rehab chairs, and bariatric models that exceed the standard AL500's 350 lb limit. The 26" × 39" Stars-N-Stripes aluminum deck, the same dual-method retractor attachment system, and the signature 12" folded bumper profile are all carried over from the AL500. The only meaningful differences: a heavier-duty motor and actuator for the extra 50 lbs of capacity, and a Class III hitch requirement in place of the Class II option. At 77 lbs installed — just 2 lbs more than the standard AL500 — the HD delivers substantially more capacity with virtually no installation or vehicle impact penalty. Power chairs only. No modifications required. Made in the USA.

Exterior hitch-mount lift · Power chairs only · 400 lb capacity · 77 lb installed · 26" × 39" platform · 4 Q'Straint retractors · Folds to 12" behind bumper · Class III hitch required. Compatibility confirmation required before every order ships.

Not sure the AL500HD fits your vehicle and power chair? Call 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM · Authorized Harmar Dealer · Local & Nationwide Installation
Before You Order — Class III Hitch Required · Compatibility Must Be Confirmed The AL500HD requires a Class III hitch — Class II is not sufficient. The lift is designed for power chairs only up to 400 lbs. Confirm your chair's weight and your vehicle's hitch class before ordering. For chairs under 350 lbs, the standard AL500 with Class II hitch compatibility may be the more economical choice. We confirm compatibility on every order before it ships — no exceptions. Use the Harmar Compatibility Calculator below as a starting point then call us to verify. We provide local professional installation at all five of our Southwest Florida locations and coordinate professional installation nationwide through Harmar's authorized dealer network. 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM.
Check Your Vehicle & Power Chair Compatibility — Open Harmar Calculator →

The AL500 Platform, Built for Heavier Power Chairs

400 lb Capacity · Only 2 lbs Heavier Than the Standard AL500 The AL500HD upgrades the motor and actuator to handle the additional load demand of chairs up to 400 lbs — the platform, dimensions, retractor system, and operational characteristics are otherwise identical to the standard AL500. The result is that users with heavier power chairs, complex rehab chairs, or bariatric models get exactly the same proven lift platform they would expect from the AL500 family, without trading away any of its defining advantages. At 77 lbs installed, the HD adds just 2 lbs over the standard model while delivering 50 additional pounds of lifting capacity.
4 Q'Straint Retractors · Two Attachment Methods · No Modifications The AL500HD uses the same dual-method Q'Straint retractor attachment system as the standard AL500. Four self-tensioning retractors secure the power chair without any drilling or chair modifications — attaching via either a spreader bar that slides between the seat and seat post, or metal loops that attach directly to the chair's frame for chairs without a seat post. The padded hold-down arm stabilizes the chair during transit by pressing against the frame. This flexible attachment approach ensures the AL500HD works with virtually any power chair design including complex rehab configurations.
12" Folded Profile · Class III Required · Stars-N-Stripes Deck The AL500HD maintains the AL500's signature 12" folded bumper profile when unloaded — the same garage-friendly compact footprint that has made the AL500 family the preferred choice for everyday users who need reliable clearance. The Stars-N-Stripes perforated aluminum deck carries over unchanged. Class III hitch required — heavy-duty adapter included standard. Optional swing-away adds just 2" to the folded profile. Battery pack, cover, and license plate riser also available. 3-year transferable warranty · Made in USA.

Full Specifications

Model AL500HD Heavy Duty Platform Power Wheelchair Lift
Lift Type Exterior hitch-mount — power chair rides outside during transit
Weight Capacity 400 lbs
Installed Weight 77 lbs
Devices Accommodated Power chairs only · No modifications required
Platform Size 26" × 39" · Stars-N-Stripes aluminum deck
Operation Fully powered lift · automatic fold · one-switch · manual crank backup
Folded Profile 12" behind bumper (unloaded) · ~14" with swing-away option
Securement 4 self-tensioning Q'Straint retractors · padded hold-down arm · spreader bar or frame loop attachment
Device Modifications Required No
Hitch Class Class III or greater (heavy-duty adapter included standard)
Hitch Height Range 5" to 18"
Vehicle Compatibility Minivans · SUVs · Trucks · Vans
Included AL107 hitch post · AL123HD Class III HD adapter · License plate mount
Optional Upgrades Swing-away · Battery pack · Cover · License plate riser
Standard Version Available Yes — AL500 · 350 lb · 75 lb · Class II hitch OK · View AL500 →
Made in USA Yes
Warranty 3-year transferable Harmar warranty
Returns Non-returnable once installed
Complete Harmar Vehicle Lift Guide Not sure if the AL500HD is the right lift for your vehicle and power chair? Our guide covers every Harmar lift we carry and explains which fits your situation. Read the Complete Vehicle Lift Guide →

Frequently Asked Questions

The platform, dimensions, retractor system, folded profile, and operational feel are identical. The AL500 has a 350 lb capacity, weighs 75 lbs installed, and works with Class II or III hitches. The AL500HD has a 400 lb capacity, weighs 77 lbs installed, and requires a Class III hitch. If your power chair weighs between 350 and 400 lbs — or if you want the extra capacity margin for a heavy or complex rehab chair — the HD is the right choice. Call us to confirm. 866-218-0902.
No — the AL500HD requires a Class III hitch. If your vehicle only supports a Class II hitch and your power chair weighs 350 lbs or less, the standard AL500 is the appropriate choice. If your vehicle can be upgraded to a Class III hitch, the HD becomes an option. Call us to discuss. 866-218-0902.
Yes — the AL500HD is well suited for complex rehab power chairs, which tend to be heavier than standard full-size chairs. The dual-method retractor attachment (spreader bar or frame loops) accommodates the varied frame configurations of complex rehab chairs without modification. Call us with the specific chair make and model to confirm compatibility. 866-218-0902.
Professional installation is required for warranty coverage and safe operation. We provide local installation at all five of our Southwest Florida locations and coordinate professional installation nationwide through Harmar's authorized dealer network. 866-218-0902.

Compare Exterior Vehicle Lifts

350 lb · Class II Hitch OK Harmar AL500 Platform Power Chair Lift 350 lb · 75 lb installed · Same platform · Class II or III hitch
View →
Power Chairs & Scooters · 400 lb Harmar AL300HD Heavy Duty Fusion 400 lb · 82 lb installed · Power chairs AND scooters · Class III hitch required
View →
Drive-On Platform · 350 lb Harmar AL560XL Automatic Universal 350 lb · 115 lb installed · Drive-on/off · Padded hold-down arm · Flip-back arms required
View →
All Exterior Vehicle Lifts Full Exterior Lift Lineup Every exterior hitch-mount lift we carry
Browse all →

Local Installation & Nationwide Shipping

We are an authorized Harmar dealer with over 25 years of DME experience. Local professional installation is available at all five of our Southwest Florida locations — Venice, Sarasota, Port Charlotte, Fort Myers, and Naples. For customers anywhere in the country we ship directly and coordinate professional installation through Harmar's authorized dealer network. Every order requires a compatibility confirmation before it ships — call us with your vehicle year, make, model, and power chair details and we will verify fit before you buy.

📞 866-218-0902  ·  Mon–Fri 9AM–5PM  ·  Sat 9AM–3PM  ·  Find your nearest location →

Technical Specs
Specifications

AL500 Platform Power Wheelchair Specifications:

AL500 AL500HD
Hitch Height:
5" to 18" 5" to 18"
Power Source: Battery
Hardwired 		Battery
Hardwired
Works With Hitch Size: Class II Hitch
Class III Hitch 		Class II Hitch
Class III Hitch
Professional Install Available: Yes Yes
Service Contract Available: No No
Operation: Power Power
Lifting Capacity: 350 lbs 400 lbs
Recommended For: Power Wheelchairs Power Wheelchairs
Platform Size - Length: 39 in 39 in
Platform Size - Width: 27.5 in 27.5 in
Installed Product Weight: 75 lbs 77 lbs
Type of Lift: Outside Lift Outside Lift
Warranty: 3 Year Limited Warranty 3 Year Limited Warranty
Warranty - Transferable Warranty: Yes Yes
