  • FREE Heavy Duty Mobility Cover
  • Nationwide Installation Available
  • Weight Capacity 350 lbs
Our Price: $2,820.00

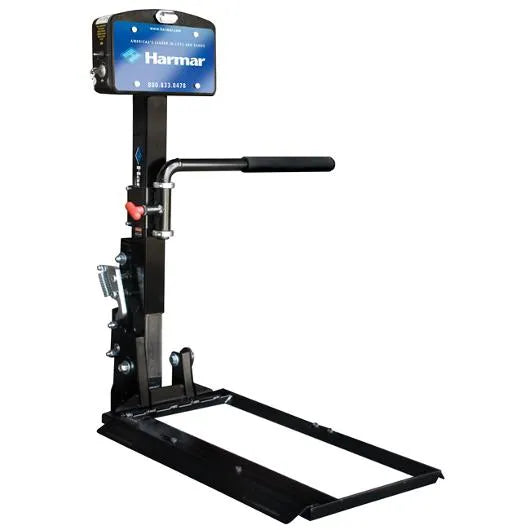

Harmar AL580XL Power Wheelchair Lift
Description
Harmar AL580XL Profile Power Wheelchair Vehicle Lift | MDS

The Harmar AL580XL Profile Power Wheelchair Vehicle Lift is Harmar's dedicated outside hitch-mounted lift for full-size power wheelchairs — including mid-wheel drive power chairs with 14-inch drive wheels that standard platform lifts cannot properly accommodate. The AL580XL's "Profile" arm geometry is specifically engineered to clear the drive wheel and frame geometry of today's full-size and mid-wheel drive power chairs, providing a clean, secure lift without the clearance problems that occur when you put a power chair on a scooter-designed platform. At just 63 lbs installed, it is the lightest Class III outside power chair lift Harmar makes. The 5"–24" hitch height range — the widest in the Harmar outside lift lineup — accommodates taller vehicle hitches including trucks and larger SUVs. Padded hold-down arm standard. Auto-folds when the chair is unloaded. Fully powered lifting and folding. Hardwired or battery pack — choose at time of order. HSA/FSA eligible. Made in the USA. 3-year transferable warranty.

Outside hitch power chair lift · 350 lb capacity · 63 lb installed · 17.5"×27" platform · Class III hitch · 5"–24" hitch height · Padded hold-down arm · Auto-folds unoccupied · Hardwired or battery · Made in USA · HSA/FSA eligible. Compatibility confirmation required before every order ships.

Not sure the AL580XL fits your power chair and vehicle? Call 866-218-0902 — Mon–Fri 9AM–5PM · Sat 9AM–3PM · Authorized Harmar Dealer · Local & Nationwide Installation
Before You Order — Power Chair Lift Specific · Compatibility Must Be Confirmed The AL580XL is designed for full-size power wheelchairs — including mid-wheel drive chairs with 14" drive wheels. It is not designed for scooters (see the AL100HD for scooters). A Class III receiver hitch is required. Hitch height range 5"–24". A hitch adapter will be needed for non-standard hitch heights and drops — call us with your vehicle and power chair details and we will confirm the right configuration before you order. We review every vehicle lift order for compatibility before it ships. 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM.
Check Your Vehicle & Power Chair Compatibility — Open Harmar Calculator →

Designed for Power Chairs. 63 lbs. 24" Hitch Height. Drive On. Arm Locks. Done.

Profile Arm · Mid-Wheel Drive · 14" Drive Wheels · 63 lb Installed The AL580XL's "Profile" designation is not a marketing name — it refers to the specific arm geometry Harmar engineered to accommodate full-size power wheelchairs, particularly mid-wheel drive chairs with 14-inch drive wheels. Standard platform lifts designed for scooters can conflict with the front and rear casters, drive wheel clearances, and anti-tip wheel geometry of mid-wheel drive power chairs. The AL580XL's profile arm is shaped to clear these features cleanly. At 63 lbs installed, it is the lightest Class III outside power chair lift in Harmar's lineup.
5"–24" Hitch Height · Class III · Wider Range Than Most Lifts The AL580XL accommodates hitch heights from 5 to 24 inches — a significantly wider range than the AL100HD (5"–18") and most competing outside lifts. This matters for taller vehicles: full-size pickup trucks, larger SUVs, and high-clearance vehicles routinely have hitches above 18 inches. The AL580XL's 24-inch maximum hitch height means it works with vehicles that other outside lifts cannot properly reach. Hitch adapters are available for various drop configurations. Call us with your hitch height before ordering: 866-218-0902.
Padded Hold-Down Arm Standard · Auto-Folds · Hardwired or Battery · HSA/FSA The padded hold-down arm is included as standard — not an upgrade. When the power chair drives onto the platform, the arm lowers and locks over the chair, securing it for transport without requiring the user to strap down the device manually. When the chair is removed, the platform folds automatically. Power source is the buyer's choice at order: hardwired to vehicle battery (most reliable for daily use) or battery pack (for vehicles where hardwiring is less practical). HSA and FSA payment accepted.

Full Specifications

Model AL580XL Profile Power Wheelchair Vehicle Lift (HAR-AL580XL)
Lift Type Outside hitch-mounted — power wheelchair specific · Profile arm geometry
Weight Capacity 350 lbs
Installed Weight 63 lbs — lightest Class III outside power chair lift in Harmar lineup
Platform Size 17.5" (L) × 27" (W)
Hitch Size Required Class III receiver hitch · 2" receiver
Hitch Height Range 5" to 24" — widest range in Harmar outside lift lineup
Recommended For Full-size power wheelchairs · Mid-wheel drive power chairs with 14" drive wheels
Hold-Down Arm Padded — standard (included, not an upgrade)
Auto-Fold Yes — platform folds automatically when chair is unloaded
Power Source Hardwired to vehicle battery OR battery pack — specify at order
Battery Pack Option Yes — available at time of order
Operation Fully powered lifting and folding · remote hand control
Hitch Adapters Available for various drop configurations — call for guidance
HSA / FSA Eligible Yes
Shipping Method LTL freight · pallet · curbside delivery
Ships In 15 business days
Made in USA Yes
Warranty 3-year limited · transferable · warranty card must be returned within 10 days of purchase
Warranty Coverage Parts only — labor, batteries, and paint excluded
Returns 20% restocking fee · RA required within 15 days · must be unused in original packaging
Warranty Card — Must Be Returned Within 10 Days Harmar's warranty requires the warranty registration card to be completed and returned to Harmar Mobility within ten (10) days of purchase. The 3-year warranty does not take effect until the card is received. Register immediately upon delivery — do not wait. Call us if you have questions about the registration process: 866-218-0902.

"Profile" — What It Means for Mid-Wheel Drive Power Chairs

Most outside vehicle lifts are designed around scooter geometry: a relatively flat, long wheelbase device with no significant protrusions above the deck level. Full-size power wheelchairs — particularly mid-wheel drive chairs — have a fundamentally different profile: large 14-inch drive wheels at the mid-point, front and rear anti-tip casters, joystick mounts, seat post geometry, and in many cases controller boxes and seating hardware that project above and behind the chair's base frame.

When a mid-wheel drive power chair is placed on a scooter-designed platform, the arm geometry can conflict with the chair's rear casters, anti-tip wheels, or frame. The chair may not sit flat. The hold-down arm may not reach the correct point. The lift may not clear the chair's overall height when raised.

The AL580XL's Profile arm is shaped specifically to address these issues. The arm geometry and platform dimensions (17.5"×27") match the footprint and height profile of full-size power chairs. The padded hold-down arm is positioned and sized for power chair frames, not scooter bodies. For a mid-wheel drive power chair user, this is the difference between a lift that works cleanly every time and one that requires workarounds.

Hardwired or Battery Pack — Choosing Your Power Source

Unlike the AL100HD, where hardwired is standard and battery is an add-on, the AL580XL lets the buyer choose either power source at time of order. Both power the lift identically:

  • Hardwired to vehicle battery — the most reliable option for daily use. Direct connection to the vehicle battery means the lift is always powered without charging between sessions. Requires running a wire from the battery to the lift — straightforward for professional installation. Recommended for users who load and unload the power chair daily.
  • Battery pack — a self-contained rechargeable battery that powers the lift without connecting to the vehicle. Ideal for vehicles where hardwiring access is difficult, for users who prefer not to modify the vehicle's electrical system, or for situations where the lift is used across multiple vehicles. The battery pack requires charging between use periods — charge overnight with the included charger for daily readiness.

Both options are available at time of order. Call us if you are unsure which is right for your situation: 866-218-0902.

Complete Harmar Vehicle Lift Guide Power chair lifts, scooter lifts, inside lifts, outside lifts — our guide covers every Harmar lift we carry and helps you match your device and vehicle to the right solution. Read the Complete Vehicle Lift Guide →

Frequently Asked Questions

Power wheelchairs — specifically full-size power wheelchairs including mid-wheel drive chairs with 14-inch drive wheels. The Profile arm geometry is engineered for power chair frames and dimensions, not scooter bodies. For scooters, the AL100HD is the appropriate outside lift. If you have a power chair, the AL580XL is the right choice. Call us to confirm your specific chair is compatible: 866-218-0902.
The AL580XL handles hitch heights from 5 to 24 inches — the widest range in the Harmar outside lift lineup. Most pickup trucks with factory hitches fall within this range. If your hitch is at the upper end (18"–24"), confirm the exact hitch height and call us — we will verify fit and identify any adapter needed for your specific truck: 866-218-0902.
When the power chair is driven onto the platform, the padded hold-down arm lowers and locks over the chair's frame or push handles, securing it for transport without manual strapping. The padding protects the chair's finish. When the chair is driven off, the arm releases and the platform folds automatically. This is included as standard on the AL580XL — not an upgrade option. It makes the load-and-go process significantly faster and easier than strap-based securement systems.
The AL580XL's 17.5" platform length is measured for the wheel contact footprint — the area where the chair's front and rear wheels sit on the platform surface. The chair's body and footrests extend beyond the platform edges, which is intentional in the Profile lift design. The hold-down arm secures the chair body above the platform. The 27" platform width accommodates most full-size power chair wheelbases. Call us with your chair's overall dimensions and wheelbase if you have fit concerns: 866-218-0902.
Yes — as an outside lift, the loaded power chair behind the vehicle obstructs the rear backup camera. This is standard for all outside hitch lifts. If backup camera visibility is important, ask us about Harmar's backup camera system options that can be added at time of order: 866-218-0902.
The Harmar warranty covers products that have been "installed, maintained and operated properly." Self-installation that results in improper installation could affect warranty claims. Professional installation is strongly recommended — particularly for the hardwired power connection. We provide local professional installation at all six Southwest Florida locations and coordinate installation nationwide: 866-218-0902.

Compare Power Chair Lift Options

Outside · Scooters · 400 lb Harmar AL100HD Outside Platform Lift 400 lb · 84 lb installed · For scooters · Class III/V · 5"–18" hitch
View →
Inside Hybrid · 350 lb · No Cargo Loss Harmar AL600 Hybrid Platform Lift 350 lb · Power chair + scooter · Inside storage · Backup camera clear
View →
Inside Hoist · 400 lb · Crane Arm Harmar AL425 Axis II Premium 400 lb · 66 lb · Power lift + rotation · All vehicles · Inside storage
View →
All Power Chair Lifts Full Power Chair Lift Lineup Every power wheelchair vehicle lift we carry
Browse all →

Local Installation & Nationwide Shipping

We are an authorized Harmar dealer with over 25 years of DME experience. Local professional installation is available at all six of our Southwest Florida locations — Venice, Sarasota, Port Charlotte, Fort Myers, Naples, and North Port. For customers anywhere in the country we ship directly and coordinate professional installation through Harmar's authorized dealer network. Every order requires a compatibility confirmation before it ships — call us with your vehicle year, make, model, hitch height, and power chair make and model and we will verify fit before you buy.

📞 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM · Find your nearest location →

Harmar AL301
Technical Specs
Specifications

AL580XL Power Wheelchair Lift Specifications:

  • Type of Lift: Outside Lift
  • Operation: Power
  • Power Source: Battery
  • Hardwired
  • Recommended For: Power Wheelchairs
  • Lifting Capacity: 350 lbs.
  • Platform Size - Length: 18 in.
  • Platform Size - Width: 27 in.
  • Installed Product Weight: 63 lbs.
  • Works With Hitch Size: Class III Hitch
  • Hitch Height: 5 to 24 in.
  • Professional Install Available: Yes
  • Service Contract Available: No
  • Warranty: 3 Year Limited Warranty
  • Warranty - Transferable Warranty: Yes
  • Battery Pack Option: Yes
